#include <Assemblies_PositioningTask.hxx>

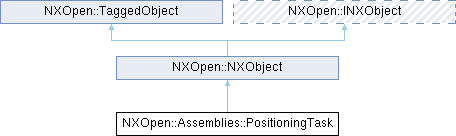

类 NXOpen::Assemblies::PositioningTask 继承关系图:

Public 成员函数
void	Activate ()
void	ActivatePositioningGroup (NXOpen::Assemblies::PositioningGroup *positioningGroup)
NXOpen::ErrorList *	CheckInPositioningGroups (const std::vector< NXOpen::Assemblies::PositioningGroup * > &positioningGroups)
NXOpen::ErrorList *	CheckOutPositioningGroups (const std::vector< NXOpen::Assemblies::PositioningGroup * > &positioningGroups)
void	Deactivate ()
void	DeactivatePositioningGroup (NXOpen::Assemblies::PositioningGroup *positioningGroup)
bool	DisplayConstraints ()
bool	DisplaySuppressedConstraints ()
std::vector< NXOpen::Assemblies::Component * >	GetAllContextCollectionMembers ()
std::vector< NXOpen::Assemblies::PositioningGroup * >	GetAllPositioningGroups ()
std::vector< NXOpen::Assemblies::Component * >	GetAllWorkCollectionMembers ()
bool	IsInContextCollection (NXOpen::Assemblies::Component *component)
bool	IsInWorkCollection (NXOpen::Assemblies::Component *component)
void	RemoveFromTask (NXOpen::Assemblies::PositioningGroup *positioningGroup)
void	SetDisplayConstraints (bool displayConstraints)
void	SetDisplaySuppressedConstraints (bool displaySuppressedConstraints)
void	Ungroup (NXOpen::Assemblies::PositioningGroup *positioningGroup)
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_PositioningTaskBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

定位任务

 表示定位任务类。
<br> 要创建或编辑此类的实例，请使用 @link NXOpen::Assemblies::PositioningTaskBuilder  NXOpen::Assemblies::PositioningTaskBuilder @endlink  <br>

在 NX10.0.0 中创建。

成员函数说明

◆ Activate()

void NXOpen::Assemblies::PositioningTask::Activate ( )

激活 NXOpen::Assemblies::PositioningTask。
Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

◆ ActivatePositioningGroup()

void NXOpen::Assemblies::PositioningTask::ActivatePositioningGroup ( NXOpen::Assemblies::PositioningGroup * positioningGroup )

在定位任务中激活 NXOpen::Assemblies::PositioningGroup。
Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

positioningGroup positioninggroup

◆ CheckInPositioningGroups()

NXOpen::ErrorList * NXOpen::Assemblies::PositioningTask::CheckInPositioningGroups ( const std::vector< NXOpen::Assemblies::PositioningGroup * > & positioningGroups )

       检入必须与此定位任务关联的指定 @link NXOpen::Assemblies::PositioningGroup NXOpen::Assemblies::PositioningGroup@endlink。
    @return  检入定位组期间发生的任何错误

Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

positioningGroups positioninggroups

◆ CheckOutPositioningGroups()

NXOpen::ErrorList * NXOpen::Assemblies::PositioningTask::CheckOutPositioningGroups ( const std::vector< NXOpen::Assemblies::PositioningGroup * > & positioningGroups )

       检出必须与此定位任务关联的指定 @link NXOpen::Assemblies::PositioningGroup NXOpen::Assemblies::PositioningGroup@endlink。
    @return  检出定位组期间发生的任何错误

Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

positioningGroups positioninggroups

◆ Deactivate()

void NXOpen::Assemblies::PositioningTask::Deactivate ( )

停用 NXOpen::Assemblies::PositioningTask 。
Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

◆ DeactivatePositioningGroup()

void NXOpen::Assemblies::PositioningTask::DeactivatePositioningGroup ( NXOpen::Assemblies::PositioningGroup * positioningGroup )

在定位任务中停用 NXOpen::Assemblies::PositioningGroup。
Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

positioningGroup positioninggroup

◆ DisplayConstraints()

bool NXOpen::Assemblies::PositioningTask::DisplayConstraints ( )

返回指示此定位任务的工作集合设计元素的约束是否要在图形窗口中显示的标志。（这是一个与隐藏和显示单个约束分开的系统。）此标志控制被抑制和未被抑制约束的可见性。
在 NX10.0.0 中创建。

许可要求：无

◆ DisplaySuppressedConstraints()

bool NXOpen::Assemblies::PositioningTask::DisplaySuppressedConstraints ( )

返回是否在图形窗口中显示此定位任务的工作集合设计元素的被抑制约束的标志。（这是一个独立于隐藏和显示单个约束的系统。）
Created in NX10.0.0.

License requirements : None

◆ GetAllContextCollectionMembers()

std::vector< NXOpen::Assemblies::Component * > NXOpen::Assemblies::PositioningTask::GetAllContextCollectionMembers ( )

获取 NXOpen::Assemblies::PositioningTask 的所有上下文集合成员。
在 NX10.0.0 中创建。

许可要求：无

◆ GetAllPositioningGroups()

std::vector< NXOpen::Assemblies::PositioningGroup * > NXOpen::Assemblies::PositioningTask::GetAllPositioningGroups ( )

获取与此定位任务关联的所有 NXOpen::Assemblies::PositioningGroup。
Created in NX10.0.0.

License requirements : None

◆ GetAllWorkCollectionMembers()

std::vector< NXOpen::Assemblies::Component * > NXOpen::Assemblies::PositioningTask::GetAllWorkCollectionMembers ( )

获取 NXOpen::Assemblies::PositioningTask 的所有工作集合成员。
在 NX10.0.0 中创建。

许可要求：无

◆ IsInContextCollection()

bool NXOpen::Assemblies::PositioningTask::IsInContextCollection ( NXOpen::Assemblies::Component * component )

检查输入的 NXOpen::Assemblies::Component 是否是 NXOpen::Assemblies::PositioningTask 上下文集合的一部分。
在 NX10.0.0 中创建。

许可要求：无

参数

component 组件

◆ IsInWorkCollection()

bool NXOpen::Assemblies::PositioningTask::IsInWorkCollection ( NXOpen::Assemblies::Component * component )

检查输入的 NXOpen::Assemblies::Component 是否是 NXOpen::Assemblies::PositioningTask 工作集合的一部分。
在 NX10.0.0 中创建。

许可要求：无

参数

component 组件

◆ RemoveFromTask()

void NXOpen::Assemblies::PositioningTask::RemoveFromTask ( NXOpen::Assemblies::PositioningGroup * positioningGroup )

       从 @link NXOpen::Assemblies::PositioningTask NXOpen::Assemblies::PositioningTask@endlink 中移除指定的 @link NXOpen::Assemblies::PositioningGroup NXOpen::Assemblies::PositioningGroup@endlink。

Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

positioningGroup positioninggroup

◆ SetDisplayConstraints()

void NXOpen::Assemblies::PositioningTask::SetDisplayConstraints ( bool displayConstraints )

设置是否在图形窗口中显示此定位任务的工作集合设计元素的约束标志。（这是一个独立于隐藏和显示单个约束的系统。）此标志控制被抑制和未抑制约束的可见性。
Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

displayConstraints displayconstraints

◆ SetDisplaySuppressedConstraints()

void NXOpen::Assemblies::PositioningTask::SetDisplaySuppressedConstraints ( bool displaySuppressedConstraints )

设置是否在图形窗口中显示此定位任务的工作集合设计元素的被抑制约束的标志。（这是一个独立于隐藏和显示单个约束的系统。）
Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

displaySuppressedConstraints displaysuppressedconstraints

◆ Ungroup()

void NXOpen::Assemblies::PositioningTask::Ungroup ( NXOpen::Assemblies::PositioningGroup * positioningGroup )

       取消定位组的组合。它将删除定位组并将其所有成员移至此 @link NXOpen::Assemblies::PositioningTask NXOpen::Assemblies::PositioningTask@endlink 的工作集合中。

Created in NX10.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

参数

positioningGroup positioninggroup

Public 成员函数

友元

额外继承的成员函数

详细描述

成员函数说明

◆ Activate()

◆ ActivatePositioningGroup()

◆ CheckInPositioningGroups()

◆ CheckOutPositioningGroups()

◆ Deactivate()

◆ DeactivatePositioningGroup()

◆ DisplayConstraints()

◆ DisplaySuppressedConstraints()

◆ GetAllContextCollectionMembers()

◆ GetAllPositioningGroups()

◆ GetAllWorkCollectionMembers()

◆ IsInContextCollection()

◆ IsInWorkCollection()

◆ RemoveFromTask()

◆ SetDisplayConstraints()

◆ SetDisplaySuppressedConstraints()

◆ Ungroup()
