STL文件创建器更多...

#include <STLCreator.hxx>

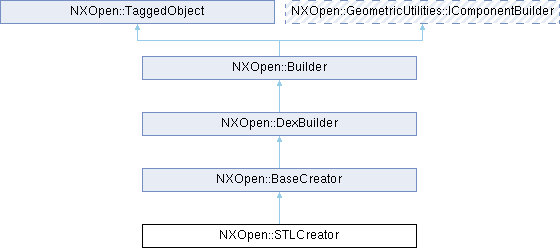

类 NXOpen::STLCreator 继承关系图:

Public 类型
enum	OutputTypeEnum { OutputTypeEnumBinary , OutputTypeEnumText }
enum	SheetBodyExportOptionEnum { SheetBodyExportOptionEnumIndividualSheets , SheetBodyExportOptionEnumJoinSheets }
Public 类型继承自 NXOpen::BaseCreator
enum	ExportDestinationOption { ExportDestinationOptionNativeFileSystem , ExportDestinationOptionTeamcenter }

Public 成员函数
double	AdjacencyTol ()
double	AngularTol ()
bool	AutoNormalGen ()
double	ChordalTol ()
bool	ErrorMessageDisplay ()
NXOpen::SelectNXObjectList *	ExportSelectionBlock ()
NXString	HeaderInfo ()
int	NormalDirectionIndicator ()
bool	NormalDisplay ()
NXOpen::STLCreator::OutputTypeEnum	OutputType ()
NXOpen::SelectNXObjectList *	ReferenceSurfaceSelectionBlock ()
bool	ReverseNormalDirection ()
void	SetAdjacencyTol (double adjacencyTol)
void	SetAngularTol (double angularTol)
void	SetAutoNormalGen (bool autoNormalGen)
void	SetChordalTol (double chordalTol)
void	SetErrorMessageDisplay (bool errorMessageDisplay)
void	SetHeaderInfo (const char *headerInfo)
void	SetHeaderInfo (const NXString &headerInfo)
void	SetNormalDirectionIndicator (int normalDirectionIndicator)
void	SetNormalDisplay (bool normalDisplay)
void	SetOutputType (NXOpen::STLCreator::OutputTypeEnum outputType)
void	SetReverseNormalDirection (bool reverseNormalDirection)
void	SetSheetBodyExportOption (NXOpen::STLCreator::SheetBodyExportOptionEnum sheetBodyExportOption)
void	SetTriangleDisplay (bool triangleDisplay)
NXOpen::STLCreator::SheetBodyExportOptionEnum	SheetBodyExportOption ()
bool	TriangleDisplay ()
Public 成员函数继承自 NXOpen::BaseCreator
NXString	DatasetName ()
NXOpen::BaseCreator::ExportDestinationOption	ExportDestination ()
NXString	OutputFile ()
NXString	OutputFileExtension ()
void	SetDatasetName (const char *datasetName)
void	SetDatasetName (const NXString &datasetName)
void	SetExportDestination (NXOpen::BaseCreator::ExportDestinationOption exportFrom)
void	SetOutputFile (const char *filename)
void	SetOutputFile (const NXString &filename)
void	SetOutputFileExtension (const char *outputFileExtension)
void	SetOutputFileExtension (const NXString &outputFileExtension)
Public 成员函数继承自 NXOpen::DexBuilder
bool	ProcessHoldFlag ()
void	SetProcessHoldFlag (bool doingFileSave)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_STLCreatorBuilder

详细描述

STL文件创建器

表示用于导出STL数据的STLCreator。此类通过DexManager创建。 Commit()将返回NULL对象。要创建此类的新实例，请使用DexManager::CreateStlCreator。默认值：

属性	值
AdjacencyTol	0.058
AngularTol	18.0
AutoNormalGen	0
ChordalTol	0.058
ErrorMessageDisplay	0
NormalDisplay	0
OutputType	Binary
ReverseNormalDirection	0
SheetBodyExportOption	IndividualSheets
TriangleDisplay	0

创建于NX11.0.0。

成员枚举类型说明

◆ OutputTypeEnum

enum NXOpen::STLCreator::OutputTypeEnum

输出实体到STL的选项

枚举值
OutputTypeEnumBinary	二进制输出类型
OutputTypeEnumText	文本输出类型

◆ SheetBodyExportOptionEnum

enum NXOpen::STLCreator::SheetBodyExportOptionEnum

选择片体导出选项

枚举值
SheetBodyExportOptionEnumIndividualSheets	按单个片体导出
SheetBodyExportOptionEnumJoinSheets	尝试合并片体

成员函数说明

◆ AdjacencyTol()

double NXOpen::STLCreator::AdjacencyTol ( )

Returns the adjacency tol - tolerance for adjacency
Created in NX11.0.0.

License requirements : None

◆ AngularTol()

double NXOpen::STLCreator::AngularTol ( )

Returns the angular tol - tolerance for angular
Created in NX11.0.0.

License requirements : None

◆ AutoNormalGen()

bool NXOpen::STLCreator::AutoNormalGen ( )

Returns the Auto Normal Gen - if set to true will generate auto normals
Created in NX11.0.0.

License requirements : None

◆ ChordalTol()

double NXOpen::STLCreator::ChordalTol ( )

Returns the chordal tol - the distance between a chord of the tessellation and the true surface
Created in NX11.0.0.

License requirements : None

◆ ErrorMessageDisplay()

bool NXOpen::STLCreator::ErrorMessageDisplay ( )

返回错误消息显示状态 - 若为true则显示错误消息
创建于 NX11.0.0.

许可要求 : 无

◆ ExportSelectionBlock()

NXOpen::SelectNXObjectList * NXOpen::STLCreator::ExportSelectionBlock ( )

Returns the export selection block - the object selection will be done by this block.
Created in NX11.0.0.

License requirements : None

◆ HeaderInfo()

NXString NXOpen::STLCreator::HeaderInfo ( )

返回头部信息 - STL头部信息
创建于 NX11.0.0.

许可要求 : 无

◆ NormalDirectionIndicator()

int NXOpen::STLCreator::NormalDirectionIndicator ( )

返回法线方向指示器 - STL法线方向指示器
创建于 NX11.0.0.

许可要求 : 无

◆ NormalDisplay()

bool NXOpen::STLCreator::NormalDisplay ( )

Returns the Normal Display - if set to true will display normal
Created in NX11.0.0.

License requirements : None

◆ OutputType()

NXOpen::STLCreator::OutputTypeEnum NXOpen::STLCreator::OutputType ( )

Returns the output type - this will decide if output type should be binary or text
Created in NX11.0.0.

License requirements : None

◆ ReferenceSurfaceSelectionBlock()

NXOpen::SelectNXObjectList * NXOpen::STLCreator::ReferenceSurfaceSelectionBlock ( )

Returns the reference surface selection - the object selection will be done by this block.
Created in NX11.0.0.

License requirements : None

◆ ReverseNormalDirection()

bool NXOpen::STLCreator::ReverseNormalDirection ( )

返回反向法线方向状态 - 若为true则反转法线方向
创建于 NX11.0.0.

许可要求 : 无

◆ SetAdjacencyTol()

void NXOpen::STLCreator::SetAdjacencyTol ( double adjacencyTol )

Sets the adjacency tol - tolerance for adjacency
Created in NX11.0.0.

License requirements : None

参数

adjacencyTol adjacencytol

◆ SetAngularTol()

void NXOpen::STLCreator::SetAngularTol ( double angularTol )

Sets the angular tol - tolerance for angular
Created in NX11.0.0.

License requirements : None

参数

angularTol angulartol

◆ SetAutoNormalGen()

void NXOpen::STLCreator::SetAutoNormalGen ( bool autoNormalGen )

Sets the Auto Normal Gen - if set to true will generate auto normals
Created in NX11.0.0.

License requirements : None

参数

autoNormalGen autonormalgen

◆ SetChordalTol()

void NXOpen::STLCreator::SetChordalTol ( double chordalTol )

Sets the chordal tol - the distance between a chord of the tessellation and the true surface
Created in NX11.0.0.

License requirements : None

参数

chordalTol chordaltol

◆ SetErrorMessageDisplay()

void NXOpen::STLCreator::SetErrorMessageDisplay ( bool errorMessageDisplay )

设置错误消息显示状态 - 若为true则显示错误消息
创建于 NX11.0.0.

许可要求 : 无

参数

errorMessageDisplay errormessagedisplay

◆ SetHeaderInfo() [1/2]

void NXOpen::STLCreator::SetHeaderInfo ( const char * headerInfo )

设置头部信息 - STL头部信息
创建于 NX11.0.0.

许可要求 : 无

参数

headerInfo headerinfo

◆ SetHeaderInfo() [2/2]

void NXOpen::STLCreator::SetHeaderInfo ( const NXString & headerInfo )

设置头部信息 - STL头部信息
创建于 NX11.0.0.

许可要求 : 无

参数

headerInfo headerinfo

◆ SetNormalDirectionIndicator()

void NXOpen::STLCreator::SetNormalDirectionIndicator ( int normalDirectionIndicator )

设置法线方向指示器 - STL法线方向指示器
创建于 NX11.0.0.

许可要求 : 无

参数

normalDirectionIndicator normaldirectionindicator

◆ SetNormalDisplay()

void NXOpen::STLCreator::SetNormalDisplay ( bool normalDisplay )

Sets the Normal Display - if set to true will display normal
Created in NX11.0.0.

License requirements : None

参数

normalDisplay normaldisplay

◆ SetOutputType()

void NXOpen::STLCreator::SetOutputType ( NXOpen::STLCreator::OutputTypeEnum outputType )

Sets the output type - this will decide if output type should be binary or text
Created in NX11.0.0.

License requirements : None

参数

outputType outputtype

◆ SetReverseNormalDirection()

void NXOpen::STLCreator::SetReverseNormalDirection ( bool reverseNormalDirection )

设置反向法线方向状态 - 若为true则反转法线方向
创建于 NX11.0.0.

许可要求 : 无

参数

reverseNormalDirection reversenormaldirection

◆ SetSheetBodyExportOption()

void NXOpen::STLCreator::SetSheetBodyExportOption ( NXOpen::STLCreator::SheetBodyExportOptionEnum sheetBodyExportOption )

Sets the Sheet Body Export Option - indicates whether sheet bodies will be joined or faceted as individual sheets
Created in NX11.0.0.

License requirements : None

参数

sheetBodyExportOption sheetbodyexportoption

◆ SetTriangleDisplay()

void NXOpen::STLCreator::SetTriangleDisplay ( bool triangleDisplay )

设置三角形显示状态 - 若为true则显示三角形
创建于 NX11.0.0.

许可要求 : 无

参数

triangleDisplay triangledisplay

◆ SheetBodyExportOption()

NXOpen::STLCreator::SheetBodyExportOptionEnum NXOpen::STLCreator::SheetBodyExportOption ( )

Returns the Sheet Body Export Option - indicates whether sheet bodies will be joined or faceted as individual sheets
Created in NX11.0.0.

License requirements : None

◆ TriangleDisplay()

bool NXOpen::STLCreator::TriangleDisplay ( )

返回三角形显示状态 - 若为true则显示三角形
创建于 NX11.0.0.

许可要求 : 无
