#include <Layout2d_Component.hxx>

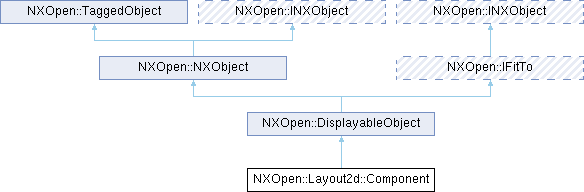

类 NXOpen::Layout2d::Component 继承关系图:

Public 成员函数
void	Activate ()
NXOpen::Sketch *	ActivateInIsolation ()
void	AddExistingCurves (const std::vector< NXOpen::DisplayableObject * > &curves)
void	Deactivate ()
void	ExitActivate ()
bool	GetAnchorPoint (NXOpen::Point3d *anchorPoint)
NXOpen::Layout2d::ComponentDefinition *	GetDefinition ()
NXOpen::Layout2d::Layout2dDefinitionLocation	GetDefinitionLocation ()
NXString	GetDefinitionName ()
NXString	GetDefinitionPath ()
void	GetMembers (NXOpen::Layout2d::Layout2dComponentMemberType memberType, std::vector< NXOpen::DisplayableObject * > &members)
void	GetTransform (NXOpen::Matrix3x3 rotation, NXOpen::Vector3d translation)
bool	IsActive ()
bool	LockUpdateStatus ()
void	RenewSketch ()
void	SetLockUpdateStatus (bool lock)
void	SetTransform (const NXOpen::Matrix3x3 &rotation, const NXOpen::Vector3d &translation)
void	SetUpgradeUponActivation (bool upgrade)
void	Transform (const NXOpen::Matrix3x3 &rotation, const NXOpen::Vector3d &translation)
void	Update ()
bool	UpgradeUponActivation ()
Public 成员函数继承自 NXOpen::DisplayableObject
void	Blank ()
int	Color ()
void	Highlight ()
bool	IsBlanked ()
int	Layer ()
NXOpen::DisplayableObject::ObjectFont	LineFont ()
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
NXOpen::Point3d	NameLocation ()
void	RedisplayObject ()
void	RemoveViewDependency ()
void	SetColor (int color)
void	SetLayer (int layer)
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void	SetNameLocation (const NXOpen::Point3d &location)
void	Unblank ()
void	Unhighlight ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ComponentBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline , ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 , ObjectFontNine , ObjectFontTen , ObjectFontEleven }
enum	ObjectWidth { ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 , ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive , ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

组件

表示组件对象。
要创建或编辑此类的实例，请使用 NXOpen::Layout2d::DefineComponentBuilder

创建于NX10.0.0。

成员函数说明

◆ Activate()

void NXOpen::Layout2d::Component::Activate ( )

激活组件。
创建于NX10.0.0。

许可证要求：nx_layout ("NX Layout")

◆ ActivateInIsolation()

NXOpen::Sketch * NXOpen::Layout2d::Component::ActivateInIsolation ( )

在隔离编辑任务环境中激活组件，并返回组件内部草图
于NX11.0.0创建。

许可证要求：nx_layout ("NX Layout")

◆ AddExistingCurves()

void NXOpen::Layout2d::Component::AddExistingCurves ( const std::vector< NXOpen::DisplayableObject * > & curves )

从顶级草图向此组件添加指定的曲线数组
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

curves 曲线

◆ Deactivate()

void NXOpen::Layout2d::Component::Deactivate ( )

取消激活组件。
创建于NX10.0.0。

许可证要求：nx_layout ("NX Layout")

◆ ExitActivate()

void NXOpen::Layout2d::Component::ExitActivate ( )

退出组件激活状态而不提交更改。
创建于NX10.0.0。

许可证要求：nx_layout ("NX Layout")

◆ GetAnchorPoint()

bool NXOpen::Layout2d::Component::GetAnchorPoint ( NXOpen::Point3d * anchorPoint )

若组件存在锚点，则获取锚点
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

anchorPoint 锚点

◆ GetDefinition()

NXOpen::Layout2d::ComponentDefinition * NXOpen::Layout2d::Component::GetDefinition ( )

获取组件的组件定义
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

◆ GetDefinitionLocation()

NXOpen::Layout2d::Layout2dDefinitionLocation NXOpen::Layout2d::Component::GetDefinitionLocation ( )

获取组件定义的位置
于NX11.0.0创建。

许可证要求：nx_layout ("NX Layout")

◆ GetDefinitionName()

NXString NXOpen::Layout2d::Component::GetDefinitionName ( )

获取组件的组件定义名称
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

◆ GetDefinitionPath()

NXString NXOpen::Layout2d::Component::GetDefinitionPath ( )

获取组件定义的路径
于NX11.0.0创建。

许可证要求：nx_layout ("NX Layout")

◆ GetMembers()

void NXOpen::Layout2d::Component::GetMembers	(	NXOpen::Layout2d::Layout2dComponentMemberType	memberType,
		std::vector< NXOpen::DisplayableObject * > &	members )

获取此组件中指定类型的成员数组
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

memberType	成员类型
members	成员

◆ GetTransform()

void NXOpen::Layout2d::Component::GetTransform	(	NXOpen::Matrix3x3 *	rotation,
		NXOpen::Vector3d *	translation )

获取组件的绝对变换，返回旋转矩阵和平移向量
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

rotation	旋转矩阵
translation	平移向量

◆ IsActive()

bool NXOpen::Layout2d::Component::IsActive ( )

返回2D组件的激活状态。
创建于NX10.0.0。

许可证要求：drafting ("DRAFTING")

◆ LockUpdateStatus()

bool NXOpen::Layout2d::Component::LockUpdateStatus ( )

返回2D组件的锁定更新状态。
创建于NX10.0.0。

许可证要求：drafting ("DRAFTING")

◆ RenewSketch()

void NXOpen::Layout2d::Component::RenewSketch ( )

更新组件草图至最新求解器版本，并更新组件层级以生效变更。
于NX2306.0.0创建。

许可证要求：nx_layout ("NX Layout")

◆ SetLockUpdateStatus()

void NXOpen::Layout2d::Component::SetLockUpdateStatus ( bool lock )

设置2D组件的锁定更新状态。
创建于NX10.0.0。

许可证要求：nx_layout ("NX Layout")

参数

lock 锁定

◆ SetTransform()

void NXOpen::Layout2d::Component::SetTransform	(	const NXOpen::Matrix3x3 &	rotation,
		const NXOpen::Vector3d &	translation )

为组件设置绝对变换，接受旋转矩阵和平移向量作为参数
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

rotation	旋转矩阵
translation	平移向量

◆ SetUpgradeUponActivation()

void NXOpen::Layout2d::Component::SetUpgradeUponActivation ( bool upgrade )

设置导致组件在激活时升级的标志
于NX1926.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

upgrade 当值为true时，组件将在激活时升级。

◆ Transform()

void NXOpen::Layout2d::Component::Transform	(	const NXOpen::Matrix3x3 &	rotation,
		const NXOpen::Vector3d &	translation )

使用旋转矩阵和平移向量变换组件
于NX10.0.0创建。

许可证要求：nx_layout ("NX Layout")

参数

rotation	旋转矩阵
translation	平移向量

◆ Update()

void NXOpen::Layout2d::Component::Update ( )

更新组件及其所有子组件。
创建于NX10.0.0。

许可证要求：nx_layout ("NX Layout")

◆ UpgradeUponActivation()

bool NXOpen::Layout2d::Component::UpgradeUponActivation ( )

获取导致组件在激活时升级的标志
于NX1926.0.0创建。

许可证要求：nx_layout ("NX Layout")

Public 成员函数

友元

额外继承的成员函数

详细描述

成员函数说明

◆ Activate()

◆ ActivateInIsolation()

◆ AddExistingCurves()

◆ Deactivate()

◆ ExitActivate()

◆ GetAnchorPoint()

◆ GetDefinition()

◆ GetDefinitionLocation()

◆ GetDefinitionName()

◆ GetDefinitionPath()

◆ GetMembers()

◆ GetTransform()

◆ IsActive()

◆ LockUpdateStatus()

◆ RenewSketch()

◆ SetLockUpdateStatus()

◆ SetTransform()

◆ SetUpgradeUponActivation()

◆ Transform()

◆ Update()

◆ UpgradeUponActivation()
