#include <Assemblies_Order.hxx>

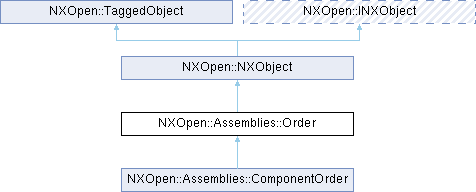

类 NXOpen::Assemblies::Order 继承关系图:

Public 类型
enum	State { StateUnSaved , StateSaved }
enum	Type { TypeUserDefinedComponent , TypeSequentialComponent , TypeChronologicalComponent , TypeAlphanumericComponent , TypeAlphabeticComponent }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
void	Activate ()
bool	CanUseSubAssemblyOrder ()
void	Delete ()
bool	GetReversed ()
bool	IsActive ()
NXOpen::Assemblies::Order::State	OrderState ()
NXOpen::Assemblies::Order::Type	OrderType ()
void	Save ()
NXOpen::Assemblies::Order *	SaveAs (const char *newName)
NXOpen::Assemblies::Order *	SaveAs (const NXString &newName)
void	SetReversed (bool isReversed)
void	SetUseSubAssemblyOrder (bool useSubAssemblyOrder)
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_OrderBuilder

额外继承的成员函数
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

顺序类

表示所有Order类的基类。这是一个抽象类，不能单独实例化。所有Order类都应继承此类。
这是一个抽象类，无法实例化。

创建于NX9.0.0。

成员枚举类型说明

◆ State

enum NXOpen::Assemblies::Order::State

表示Order是否已保存

枚举值
StateUnSaved	Order未保存
StateSaved	Order已保存

◆ Type

enum NXOpen::Assemblies::Order::Type

表示Order的类型

枚举值
TypeUserDefinedComponent	用户定义的组件顺序
TypeSequentialComponent	系统定义的顺序组件顺序
TypeChronologicalComponent	系统定义的时间顺序组件顺序
TypeAlphanumericComponent	系统定义的字母数字组件顺序
TypeAlphabeticComponent	系统定义的字母顺序组件顺序

成员函数说明

◆ Activate()

void NXOpen::Assemblies::Order::Activate ( )

应用此Order
创建于NX9.0.0。

许可要求：无

◆ CanUseSubAssemblyOrder()

bool NXOpen::Assemblies::Order::CanUseSubAssemblyOrder ( )

如果此Order在所属 NXOpen::Assemblies::ComponentAssembly 中设置了'UseSubAssembly'状态，则返回true

返回: 如果可以使用子装配顺序来确定子组件顺序则为True
创建于NX1872.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

◆ Delete()

void NXOpen::Assemblies::Order::Delete ( )

删除一个Order
创建于NX9.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

◆ GetReversed()

bool NXOpen::Assemblies::Order::GetReversed ( )

获取 NXOpen::Assemblies::Order 的反转状态

返回: 如果Order已反转则为True，否则为False
创建于NX9.0.0。

许可要求：无

◆ IsActive()

bool NXOpen::Assemblies::Order::IsActive ( )

返回输入 NXOpen::Assemblies::Component 的直接子组件，按照此 NXOpen::Assemblies::ComponentOrder 中的顺序排列

弃用: 在NX10.0.0中弃用。请使用 NXOpen::Assemblies::ComponentOrder::AskChildrenOrder 替代，以获取此 NXOpen::Assemblies::ComponentOrder 中的子组件顺序。

创建于NX9.0.0。

许可要求：无

parent 返回按顺序排列的子组件如果此Order是所属 NXOpen::Assemblies::ComponentAssembly 中的活动Order，则返回true

返回: 如果当前Order是活动的则为True
创建于NX10.0.3。

许可要求：装配 ("ASSEMBLIES MODULE")

◆ OrderState()

NXOpen::Assemblies::Order::State NXOpen::Assemblies::Order::OrderState ( )

返回 NXOpen::Assemblies::Order 的状态。Order可以处于 NXOpen::Assemblies::Order::State 之一。
创建于NX9.0.0。

许可要求：无

◆ OrderType()

NXOpen::Assemblies::Order::Type NXOpen::Assemblies::Order::OrderType ( )

返回 NXOpen::Assemblies::Order 的类型。Order可以是 NXOpen::Assemblies::Order::Type 类型
创建于NX9.0.0。

许可要求：无

◆ Save()

void NXOpen::Assemblies::Order::Save ( )

保存一个Order
创建于NX9.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

◆ SaveAs() [1/2]

NXOpen::Assemblies::Order * NXOpen::Assemblies::Order::SaveAs ( const char * newName )

创建Order的副本，并为副本指定新名称。每个 NXOpen::Assemblies::ComponentAssembly 包含一组系统定义的Order，可以使用 NXOpen::Assemblies::ComponentAssembly::GetComponentOrders 方法查询。新的 NXOpen::Assemblies::Order::TypeUserDefinedComponent 类型的Order只能通过此方法创建。

返回: 新的Order对象
创建于NX9.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

参数

newName newname

◆ SaveAs() [2/2]

NXOpen::Assemblies::Order * NXOpen::Assemblies::Order::SaveAs ( const NXString & newName )

创建Order的副本，并为副本指定新名称。每个 NXOpen::Assemblies::ComponentAssembly 包含一组系统定义的Order，可以使用 NXOpen::Assemblies::ComponentAssembly::GetComponentOrders 方法查询。新的 NXOpen::Assemblies::Order::TypeUserDefinedComponent 类型的Order只能通过此方法创建。

返回: 新的Order对象
创建于NX9.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

参数

newName newname

◆ SetReversed()

void NXOpen::Assemblies::Order::SetReversed ( bool isReversed )

设置 NXOpen::Assemblies::Order 的反转状态
创建于NX9.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

参数

isReversed isreversed

◆ SetUseSubAssemblyOrder()

void NXOpen::Assemblies::Order::SetUseSubAssemblyOrder ( bool useSubAssemblyOrder )

设置 NXOpen::Assemblies::Order 的'UseSubAssembly'状态
创建于NX1872.0.0。

许可要求：装配 ("ASSEMBLIES MODULE")

参数

useSubAssemblyOrder usesubassemblyorder

Public 类型

Public 成员函数

友元

额外继承的成员函数

详细描述

成员枚举类型说明

◆ State

◆ Type

成员函数说明

◆ Activate()

◆ CanUseSubAssemblyOrder()

◆ Delete()

◆ GetReversed()

◆ IsActive()

◆ OrderState()

◆ OrderType()

◆ Save()

◆ SaveAs() [1/2]

◆ SaveAs() [2/2]

◆ SetReversed()

◆ SetUseSubAssemblyOrder()
