NXOpen::Features::SketchSplineBuilder类 参考

草图样条构建器 更多...

#include <Features_SketchSplineBuilder.hxx>

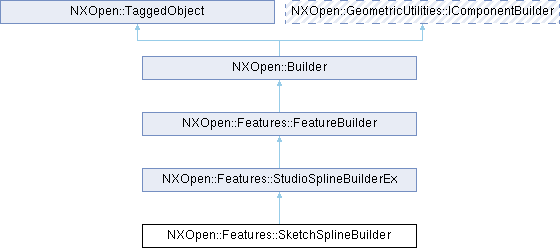

类 NXOpen::Features::SketchSplineBuilder 继承关系图:

友元
class	_SketchSplineBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Features::StudioSplineBuilderEx
enum	DrawingPlaneOptions {   DrawingPlaneOptionsView , DrawingPlaneOptionsXY , DrawingPlaneOptionsYZ , DrawingPlaneOptionsXZ ,   DrawingPlaneOptionsGeneral }
enum	InputCurveOptions { InputCurveOptionsKeep , InputCurveOptionsHide , InputCurveOptionsDelete }
enum	MatchKnotsTypes { MatchKnotsTypesNone , MatchKnotsTypesCubic , MatchKnotsTypesGeneral }
enum	MovementMethodType {   MovementMethodTypeWCS , MovementMethodTypeView , MovementMethodTypeVector , MovementMethodTypePlane ,   MovementMethodTypeNormal , MovementMethodTypePolygon }
enum	Types { TypesThroughPoints , TypesByPoles }
enum	WCSOptionType {   WCSOptionTypeX , WCSOptionTypeY , WCSOptionTypeZ , WCSOptionTypeYZ ,   WCSOptionTypeXZ , WCSOptionTypeXY }
Public 成员函数 继承自 NXOpen::Features::StudioSplineBuilderEx
bool	CanUseOrientationTool ()
NXOpen::Features::GeometricConstraintDataManager *	ConstraintManager ()
NXOpen::CoordinateSystem *	ConstraintPlane ()
NXOpen::Spline *	Curve ()
int	Degree ()
NXOpen::Plane *	DrawingPlane ()
NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions	DrawingPlaneOption ()
void	EditSpline (NXOpen::NXObject *spline)
void	Evaluate ()
NXOpen::GeometricUtilities::SplineExtensionBuilder *	Extender ()
std::vector< double >	GetKnots ()
std::vector< double >	GetParameters ()
bool	HasPlaneConstraint ()
bool	HasProportionalUpdate ()
NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions	InputCurveOption ()
void	InsertKnot (const NXOpen::Point3d &point)
void	InsertPole (int afterIndex)
bool	IsAssociative ()
bool	IsPeriodic ()
bool	IsSingleSegment ()
NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes	MatchKnotsType ()
NXOpen::Features::StudioSplineBuilderEx::MovementMethodType	MovementMethod ()
NXOpen::Plane *	MovementPlane ()
NXOpen::Direction *	MovementVector ()
NXOpen::GeometricUtilities::OrientXpressBuilder *	OrientExpress ()
bool	ProjectToGeometry ()
void	SetAssociative (bool associative)
void	SetCanUseOrientationTool (bool useOrientationTool)
void	SetConstraintPlane (NXOpen::CoordinateSystem *coordinateSystem)
void	SetDegree (int degree)
void	SetDrawingPlane (NXOpen::Plane *drawingPlane)
void	SetDrawingPlaneOption (NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions planeOption)
void	SetHasPlaneConstraint (bool hasConstraint)
void	SetHasProportionalUpdate (bool hasProportionalUpdate)
void	SetInputCurveOption (NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions option)
void	SetKnots (const std::vector< double > &knots)
void	SetMatchKnotsType (NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes matchKnotsType)
void	SetMovementMethod (NXOpen::Features::StudioSplineBuilderEx::MovementMethodType movementMethod)
void	SetMovementPlane (NXOpen::Plane *movementPlane)
void	SetMovementVector (NXOpen::Direction *movementVector)
void	SetParameters (const std::vector< double > &parameters)
void	SetPeriodic (bool periodicity)
void	SetProjectToGeometry (bool canProject)
void	SetSingleSegment (bool isSingleSegment)
void	SetType (NXOpen::Features::StudioSplineBuilderEx::Types type)
void	SetWCSOption (NXOpen::Features::StudioSplineBuilderEx::WCSOptionType wcsOption)
NXOpen::Features::StudioSplineBuilderEx::Types	Type ()
void	UpdateOnConstraintPlane ()
NXOpen::Features::StudioSplineBuilderEx::WCSOptionType	WCSOption ()
Public 成员函数 继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

草图样条构建器

草图样条构建器类。
要创建此类的新实例，请使用 NXOpen::Features::FeatureCollection::CreateSketchSplineBuilder
默认值。

属性	值
绘图平面选项	视图
输入曲线选项	隐藏
匹配节点类型	无
移动方法	视图
类型	过点
WCS选项	X

在NX8.0.0中创建。
