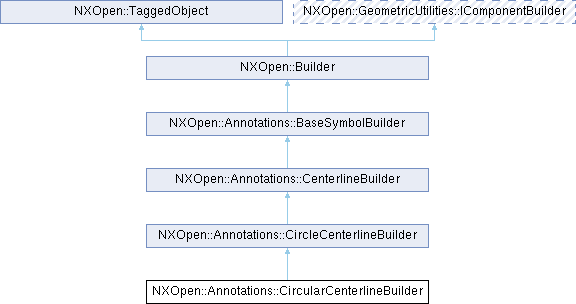

类 NXOpen::Annotations::CircularCenterlineBuilder 继承关系图:

友元
class	_CircularCenterlineBuilderBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::Annotations::CircleCenterlineBuilder
enum	Types { TypesThrough3Points , TypesCenterpoint }
Public 成员函数继承自 NXOpen::Annotations::CircleCenterlineBuilder
bool	FullCircle ()
NXOpen::SelectNXObject *	Inherit ()
NXOpen::SelectNXObjectList *	Locations ()
void	RemoveLocation (int index)
void	SetFullCircle (bool fullType)
NXOpen::Annotations::CircleCenterlineSettingsBuilder *	Settings ()
void	SetType (NXOpen::Annotations::CircleCenterlineBuilder::Types method)
NXOpen::Annotations::CircleCenterlineBuilder::Types	Type ()
Public 成员函数继承自 NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
void	AddExtension (int index, double defaultValue)
std::vector< double >	GetAllExtensions ()
std::vector< double >	GetAllIndividualExtensions ()
std::vector< double >	GetEndExtensions ()
void	RemoveEndExtensions ()
void	RemoveExtension (int index)
void	ResetAllExtensions (double defaultValue)
void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
void	SetEndExtensions (double start, double end)
void	SetIndividualExtensions (int index, double value1, double value2)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

圆形中心线构建器

表示圆形中心线构建器
要创建此类的新实例，请使用 NXOpen::Annotations::CenterlineCollection::CreateCircularCenterlineBuilder
默认值。

属性	值
FullCircle	true
Type	Through3Points

在 NX6.0.0 版本中创建。
