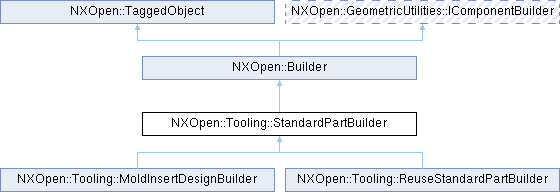

类 NXOpen::Tooling::StandardPartBuilder 继承关系图:

Public 类型
enum	EditType { EditTypeAddInstance , EditTypeNewComponent , EditTypeModify }
enum	RefsetName { RefsetNameTrue , RefsetNameFalse , RefsetNameEntirePart , RefsetNameModel }

Public 成员函数
void	AddConceptObjectsQuietly (const char positionMethod, NXOpen::Tooling::ConceptStandardPartRecord conceptRecord)
void	AddConceptObjectsQuietly (const NXString &positionMethod, NXOpen::Tooling::ConceptStandardPartRecord *conceptRecord)
std::vector< NXOpen::Assemblies::Component * >	AddStandardPartsToPattern (NXOpen::Part patternPart, const char fileName, const char refsetName, const char instanceName)
std::vector< NXOpen::Assemblies::Component * >	AddStandardPartsToPattern (NXOpen::Part *patternPart, const NXString &fileName, const NXString &refsetName, const NXString &instanceName)
int	AnalyzePostionType (const char positionType, bool isReorientView, NXOpen::NXObject positionPlane, NXOpen::Point3d positionPoint, NXOpen::Matrix3x3 positionMatrix)
int	AnalyzePostionType (const NXString &positionType, bool isReorientView, NXOpen::NXObject positionPlane, NXOpen::Point3d positionPoint, NXOpen::Matrix3x3 *positionMatrix)
NXOpen::NXObject *	AskPositionFace ()
bool	AssociativePointPosition ()
bool	AssociativePosition ()
NXOpen::Tooling::CloneObject *	BuildCloneObject (int installationType, const char *clonePartName)
NXOpen::Tooling::CloneObject *	BuildCloneObject (int installationType, const NXString &clonePartName)
void	ChangeReferenceSet (NXOpen::Assemblies::Component component, bool addToExtraRefset, const char refsetName)
void	ChangeReferenceSet (NXOpen::Assemblies::Component *component, bool addToExtraRefset, const NXString &refsetName)
bool	CheckStandardPartPosition (NXOpen::Assemblies::Component *partOccurrence)
bool	CompPattern ()
bool	ConceptDesign ()
void	ConvertConceptObjectToRealStandardPart (const std::vector< NXOpen::NXObject * > &pConceptObjects)
void	CreateComponentPatternToPatternCsys (NXOpen::NXObject partInstance, NXOpen::NXObject selectedCSYS)
void	CreateConstraintBetweenComponentAndCSYS (NXOpen::Assemblies::Component partOccurrence, NXOpen::NXObject selectedCSYS)
void	EditConceptSymbols (NXOpen::Tooling::ConceptStandardPartRecord conceptRecord, const std::vector< NXOpen::NXObject > &entities)
void	EditDataBase ()
void	EditRegister ()
void	EditStandardPartDimensions (NXOpen::Assemblies::Component *component)
NXOpen::NXObject *	FindComponentFeatureByName (const char featureName, const char partName, int featureType, NXOpen::Part **owningPart)
NXOpen::NXObject *	FindComponentFeatureByName (const NXString &featureName, const NXString &partName, int featureType, NXOpen::Part **owningPart)
void	FindComponentNamedFeatures (NXOpen::Assemblies::Component *partOccurrence)
void	Flip ()
void	FlipComponent (NXOpen::Assemblies::Component *component)
void	FreePositionData ()
NXOpen::Assemblies::Component *	GetAddedStandardPartOccurrenceItem (int partOccIndex)
int	GetAddedStandardPartOccurrencesNumber ()
void	GetAllConceptObjectInstances (NXOpen::NXObject conceptObject, std::vector< NXOpen::NXObject > &pInstanceObjects)
NXOpen::Tooling::ConceptStandardPartRecord *	GetConceptPartData ()
NXOpen::Tooling::SpreadsheetData *	GetSpreadsheetData ()
	Gets standard part spread sheet data
NXOpen::Tooling::StandardPartData *	GetStandardPartClientData ()
	Gets standard part client data
void	Help ()
void	InitializePositionData (int actionType)
void	InsertAddedStandardPartOccsItem (NXOpen::Assemblies::Component *component)
bool	MakeReadOnlyAfterEdit ()
void	ManageStandardPartReadOnlyStatus (bool makeReadOnly)
void	MateForPDWPunchInsert (int positionType)
void	PerformPostProcessToAddedStandardPart (NXOpen::Assemblies::Component *component)
NXOpen::SelectNXObject *	PointPattern ()
NXOpen::SelectNXObject *	PositioningCsys ()
NXOpen::SelectNXObject *	PositioningFeature ()
NXOpen::SelectNXObject *	PositioningPlane ()
int	PreparePositionDataForSmartPosition (int acttionType)
void	ReadStandardPartClientDataFromLibrary (bool isFromMemberView, int dataType, const char libName, const char libPath)
	Reads data from the library with given name and path. Created in NX12.0.2. License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")
void	ReadStandardPartClientDataFromLibrary (bool isFromMemberView, int dataType, const NXString &libName, const NXString &libPath)
	Reads data from the library with given name and path. Created in NX12.0.2. License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")
void	ReadStandardPartDataFromConceptObject (NXOpen::NXObject *conceptObject)
void	RecommendMoldBasePlateHeight ()
void	RecommendMoldBaseSize ()
NXOpen::Tooling::StandardPartBuilder::RefsetName	ReferenceSet ()
void	RemoveComponent ()
void	RemoveComponent (NXOpen::Assemblies::Component *component)
void	RemoveConceptObject (NXOpen::NXObject *conceptObject)
void	RemoveMoldBase (NXOpen::Assemblies::Component *component)
bool	RenameComponents ()
void	Reposition ()
void	RepositionStandardPartBySelectedCsys (int positionType)
void	RepositionStandardPartBySpecifiedPoint (int positionType, NXOpen::NXObject *locatingPoint)
void	RepositionStandardPartSetForEDW ()
void	ResetStandardPartClientData (int dataType, const char libName, const char libPath)
	Resets client data with specified library. Created in NX12.0.2. License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")
void	ResetStandardPartClientData (int dataType, const NXString &libName, const NXString &libPath)
	Resets client data with specified library. Created in NX12.0.2. License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")
void	ResetStandardPartClientDataWithLibraryName (const char *libName)
	Resets client data with named library. Created in NX12.0.2. License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")
void	ResetStandardPartClientDataWithLibraryName (const NXString &libName)
	Resets client data with named library. Created in NX12.0.2. License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")
void	RotateMoldBase (NXOpen::Assemblies::Component *component, double angle)
void	SetAssociativePointPosition (bool associativePointPosition)
void	SetAssociativePosition (bool associativePosition)
void	SetCompPattern (bool useCompPattern)
void	SetConceptDesign (bool conceptDesign)
void	SetConceptPartData (NXOpen::Tooling::ConceptStandardPartRecord *conceptPartData)
void	SetIsToAddNewMoldBase (bool isAddMoldBase)
void	SetLinkFeatureFixAtCurrentTimestamp (NXOpen::NXObject *linkedFeature, int featureType, bool fixAtTimestamp)
void	SetMakeReadOnlyAfterEdit (bool bMakeReadonlyAfterEdit)
void	SetReferenceSet (NXOpen::Tooling::StandardPartBuilder::RefsetName referenceSet)
void	SetRenameComponents (bool renameComponents)
void	SetShowInfoWindow (bool showInfoWindow)
void	SetSpreadsheetData (NXOpen::Tooling::SpreadsheetData *sheetData)
void	SetStandardPartClientData (NXOpen::Tooling::StandardPartData *standardClientData)
void	SetStandardPartEditType (NXOpen::Tooling::StandardPartBuilder::EditType standardPartEditType)
void	SetUsePositionDialogForPlaneType (bool bUsePlanePositionDialog)
void	SetUsePositionDialogForPointType (bool bUsePointPositionDialog)
bool	ShowInfoWindow ()
NXOpen::SelectNXObject *	StandardPartComponent ()
NXOpen::Tooling::StandardPartBuilder::EditType	StandardPartEditType ()
void	UpdateConceptMoldBaseExpressions (NXOpen::Part *conceptMoldBasePart)
void	UpdateDimensionsByCondition (NXOpen::Assemblies::Component *partOccurrence, std::vector< NXString > &conditions)
void	UpdateSpreadsheetDataWithObject (NXOpen::NXObject objectWithParameters, bool isConcpetObject, NXOpen::Tooling::SpreadsheetData sheetData)
bool	UsePositionDialogForPlaneType ()
bool	UsePositionDialogForPointType ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_StandardPartBuilderBuilder

详细描述

标准件构建器

Represents a builder to be used to create Mold Wizard Standard Part.
To create a new instance of this class, use NXOpen::Tooling::StandardPartCollection::CreateStandardPartBuilder
Default values.

Property	Value
AssociativePosition	0
ConceptDesign	0
ReferenceSet	True
RenameComponents	0
ShowInfoWindow	0
StandardPartEditType	AddInstance

Created in NX8.0.0.

成员枚举类型说明

◆ EditType

enum NXOpen::Tooling::StandardPartBuilder::EditType

Represents the type to edit a standard part.

枚举值
EditTypeAddInstance	add instance
EditTypeNewComponent	new component
EditTypeModify	modify

◆ RefsetName

enum NXOpen::Tooling::StandardPartBuilder::RefsetName

Represents the reference set of the standard part when it is added to the assembly.

枚举值
RefsetNameTrue	true
RefsetNameFalse	false
RefsetNameEntirePart	entire part
RefsetNameModel	model

成员函数说明

◆ AddConceptObjectsQuietly() [1/2]

void NXOpen::Tooling::StandardPartBuilder::AddConceptObjectsQuietly	(	const char *	positionMethod,
		NXOpen::Tooling::ConceptStandardPartRecord *	conceptRecord )

Adds concept symbols or points quietly.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

positionMethod	The standard part positioning method
conceptRecord	Concept standard part record

◆ AddConceptObjectsQuietly() [2/2]

void NXOpen::Tooling::StandardPartBuilder::AddConceptObjectsQuietly	(	const NXString &	positionMethod,
		NXOpen::Tooling::ConceptStandardPartRecord *	conceptRecord )

Adds concept symbols or points quietly.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

positionMethod	The standard part positioning method
conceptRecord	Concept standard part record

◆ AddStandardPartsToPattern() [1/2]

std::vector< NXOpen::Assemblies::Component * > NXOpen::Tooling::StandardPartBuilder::AddStandardPartsToPattern	(	NXOpen::Part *	patternPart,
		const char *	fileName,
		const char *	refsetName,
		const char *	instanceName )

Adds standard parts to a parent which contains pattern points.

返回: The added components
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

patternPart	The parent part to add a component
fileName	File name of the component to add
refsetName	New reference set applied to the added component
instanceName	New instance name applied to the added component

◆ AddStandardPartsToPattern() [2/2]

std::vector< NXOpen::Assemblies::Component * > NXOpen::Tooling::StandardPartBuilder::AddStandardPartsToPattern	(	NXOpen::Part *	patternPart,
		const NXString &	fileName,
		const NXString &	refsetName,
		const NXString &	instanceName )

Adds standard parts to a parent which contains pattern points.

返回: The added components
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

patternPart	The parent part to add a component
fileName	File name of the component to add
refsetName	New reference set applied to the added component
instanceName	New instance name applied to the added component

◆ AnalyzePostionType() [1/2]

int NXOpen::Tooling::StandardPartBuilder::AnalyzePostionType	(	const char *	positionType,
		bool	isReorientView,
		NXOpen::NXObject *	positionPlane,
		NXOpen::Point3d *	positionPoint,
		NXOpen::Matrix3x3 *	positionMatrix )

分析位置类型
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

positionType	positiontype
isReorientView	isreorientview
positionPlane	positionplane
positionPoint	positionpoint
positionMatrix	positionmatrix

◆ AnalyzePostionType() [2/2]

int NXOpen::Tooling::StandardPartBuilder::AnalyzePostionType	(	const NXString &	positionType,
		bool	isReorientView,
		NXOpen::NXObject *	positionPlane,
		NXOpen::Point3d *	positionPoint,
		NXOpen::Matrix3x3 *	positionMatrix )

分析位置类型
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

positionType	positiontype
isReorientView	isreorientview
positionPlane	positionplane
positionPoint	positionpoint
positionMatrix	positionmatrix

◆ AskPositionFace()

NXOpen::NXObject * NXOpen::Tooling::StandardPartBuilder::AskPositionFace ( )

Asks the position face from selected standard part occurrence or selected concept standard part
Created in NX2007.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

◆ AssociativePointPosition()

bool NXOpen::Tooling::StandardPartBuilder::AssociativePointPosition ( )

Returns the flag to indicate whether to use the associative point position method.
Created in NX2206.0.0.

License requirements : None

◆ AssociativePosition()

bool NXOpen::Tooling::StandardPartBuilder::AssociativePosition ( )

Returns the flag to indicate whether to use the associative position method.
Created in NX8.0.0.

License requirements : None

◆ BuildCloneObject() [1/2]

NXOpen::Tooling::CloneObject * NXOpen::Tooling::StandardPartBuilder::BuildCloneObject	(	int	installationType,
		const char *	clonePartName )

创建克隆对象

返回: 一个 NXOpen::Tooling::CloneObject 实例
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

installationType	installationtype
clonePartName	clonepartname

◆ BuildCloneObject() [2/2]

NXOpen::Tooling::CloneObject * NXOpen::Tooling::StandardPartBuilder::BuildCloneObject	(	int	installationType,
		const NXString &	clonePartName )

创建克隆对象

返回: 一个 NXOpen::Tooling::CloneObject 实例
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

installationType	installationtype
clonePartName	clonepartname

◆ ChangeReferenceSet() [1/2]

void NXOpen::Tooling::StandardPartBuilder::ChangeReferenceSet	(	NXOpen::Assemblies::Component *	component,
		bool	addToExtraRefset,
		const char *	refsetName )

Changes the current reference set of the specified component.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component	The component to change reference set
addToExtraRefset	Whether to add the component to 'TRUE' and 'FALSE' reference set of its parent part
refsetName	New reference set applied to the component

◆ ChangeReferenceSet() [2/2]

void NXOpen::Tooling::StandardPartBuilder::ChangeReferenceSet	(	NXOpen::Assemblies::Component *	component,
		bool	addToExtraRefset,
		const NXString &	refsetName )

Changes the current reference set of the specified component.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component	The component to change reference set
addToExtraRefset	Whether to add the component to 'TRUE' and 'FALSE' reference set of its parent part
refsetName	New reference set applied to the component

◆ CheckStandardPartPosition()

bool NXOpen::Tooling::StandardPartBuilder::CheckStandardPartPosition ( NXOpen::Assemblies::Component * partOccurrence )

Checks whether the position of the selected standard part is changed
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

partOccurrence the occurrence of the standard part to edit

◆ CompPattern()

bool NXOpen::Tooling::StandardPartBuilder::CompPattern ( )

Returns the flag to indicate whether to use use pattern component to position a standard part.
Created in NX12.0.2.

License requirements : None

◆ ConceptDesign()

bool NXOpen::Tooling::StandardPartBuilder::ConceptDesign ( )

Returns the flag to indicate whether to add concept symbols instead of real standard parts.
Created in NX8.0.0.

License requirements : None

◆ ConvertConceptObjectToRealStandardPart()

void NXOpen::Tooling::StandardPartBuilder::ConvertConceptObjectToRealStandardPart ( const std::vector< NXOpen::NXObject * > & pConceptObjects )

Converts specified concept object and its instances to real standard part components
Created in NX2206.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

pConceptObjects concept objects,can be symbols or points

◆ CreateComponentPatternToPatternCsys()

void NXOpen::Tooling::StandardPartBuilder::CreateComponentPatternToPatternCsys	(	NXOpen::NXObject *	partInstance,
		NXOpen::NXObject *	selectedCSYS )

Creates component pattern to pattern CSYS
Created in NX2406.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

partInstance	The part instance tag to add component pattern
selectedCSYS	The selected CSYS to add component pattern

◆ CreateConstraintBetweenComponentAndCSYS()

void NXOpen::Tooling::StandardPartBuilder::CreateConstraintBetweenComponentAndCSYS	(	NXOpen::Assemblies::Component *	partOccurrence,
		NXOpen::NXObject *	selectedCSYS )

Creates constraint between the standard part component and the selected CSYS
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

partOccurrence	the occurrence of the standard part to edit
selectedCSYS	the selected CSYS to create constraint

◆ EditConceptSymbols()

void NXOpen::Tooling::StandardPartBuilder::EditConceptSymbols	(	NXOpen::Tooling::ConceptStandardPartRecord *	conceptRecord,
		const std::vector< NXOpen::NXObject * > &	entities )

Edits the dimension of concept symbols.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

conceptRecord	Concept standard part record
entities	Entities regarded as concept objects

◆ EditDataBase()

void NXOpen::Tooling::StandardPartBuilder::EditDataBase ( )

Edits the data file of the standard item selected in Reuse Member View
Created in NX8.0.0.

License requirements : None

◆ EditRegister()

void NXOpen::Tooling::StandardPartBuilder::EditRegister ( )

Edits the registering spread sheet file of the standard item selected in Reuse Member View.
Created in NX8.0.0.

License requirements : None

◆ EditStandardPartDimensions()

void NXOpen::Tooling::StandardPartBuilder::EditStandardPartDimensions ( NXOpen::Assemblies::Component * component )

Edits standard part dimensions.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component The component to be edited

◆ FindComponentFeatureByName() [1/2]

NXOpen::NXObject * NXOpen::Tooling::StandardPartBuilder::FindComponentFeatureByName	(	const char *	featureName,
		const char *	partName,
		int	featureType,
		NXOpen::Part **	owningPart )

Gets the feature tag by name

返回: the tag of the found feature
Created in NX2306.0.0.

License requirements : None

参数

featureName	the name of the feature to find
partName	the name of the part which owns the feature
featureType	the type of the feature to find
owningPart	the tag of part which owns the found feature

◆ FindComponentFeatureByName() [2/2]

NXOpen::NXObject * NXOpen::Tooling::StandardPartBuilder::FindComponentFeatureByName	(	const NXString &	featureName,
		const NXString &	partName,
		int	featureType,
		NXOpen::Part **	owningPart )

Gets the feature tag by name

返回: the tag of the found feature
Created in NX2306.0.0.

License requirements : None

参数

featureName	the name of the feature to find
partName	the name of the part which owns the feature
featureType	the type of the feature to find
owningPart	the tag of part which owns the found feature

◆ FindComponentNamedFeatures()

void NXOpen::Tooling::StandardPartBuilder::FindComponentNamedFeatures ( NXOpen::Assemblies::Component * partOccurrence )

Finds all of the named features in the components of the given standard part assembly
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

partOccurrence the occurrence of the part where named features to be found

◆ Flip()

void NXOpen::Tooling::StandardPartBuilder::Flip ( )

Flips the selected standard part component.
Created in NX8.0.0.

License requirements : None

◆ FlipComponent()

void NXOpen::Tooling::StandardPartBuilder::FlipComponent ( NXOpen::Assemblies::Component * component )

Flips the selected standard part
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component The standard part component to flip

◆ FreePositionData()

void NXOpen::Tooling::StandardPartBuilder::FreePositionData ( )

释放平面位置的数据结构
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

◆ GetAddedStandardPartOccurrenceItem()

NXOpen::Assemblies::Component * NXOpen::Tooling::StandardPartBuilder::GetAddedStandardPartOccurrenceItem ( int partOccIndex )

Gets an object in m_addedStandardPartOccs
Created in NX12.0.2.

License requirements : None

参数

partOccIndex partoccindex

◆ GetAddedStandardPartOccurrencesNumber()

int NXOpen::Tooling::StandardPartBuilder::GetAddedStandardPartOccurrencesNumber ( )

Gets number of objects saved in m_addedStandardPartOccs
Created in NX12.0.2.

License requirements : None

◆ GetAllConceptObjectInstances()

void NXOpen::Tooling::StandardPartBuilder::GetAllConceptObjectInstances	(	NXOpen::NXObject *	conceptObject,
		std::vector< NXOpen::NXObject * > &	pInstanceObjects )

查找输入概念对象父部件中所有具有相同部件名称的符号/点。
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

conceptObject	conceptobject
pInstanceObjects	pinstanceobjects

◆ GetConceptPartData()

NXOpen::Tooling::ConceptStandardPartRecord * NXOpen::Tooling::StandardPartBuilder::GetConceptPartData ( )

获取标准件概念数据

返回: 一个 NXOpen::Tooling::ConceptStandardPartRecord 实例
创建于 NX2007.0.0。

许可要求：无

◆ GetSpreadsheetData()

NXOpen::Tooling::SpreadsheetData * NXOpen::Tooling::StandardPartBuilder::GetSpreadsheetData ( )

Gets standard part spread sheet data

返回: A NXOpen::Tooling::SpreadsheetData instance
Created in NX12.0.2.

License requirements : None

◆ GetStandardPartClientData()

NXOpen::Tooling::StandardPartData * NXOpen::Tooling::StandardPartBuilder::GetStandardPartClientData ( )

Gets standard part client data

返回: A NXOpen::Tooling::StandardPartData instance
Created in NX12.0.2.

License requirements : None

◆ Help()

void NXOpen::Tooling::StandardPartBuilder::Help ( )

Ask help of the selected standard part component.
Created in NX8.0.0.

License requirements : None

◆ InitializePositionData()

void NXOpen::Tooling::StandardPartBuilder::InitializePositionData ( int actionType )

初始化平面位置的数据结构
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

actionType actiontype

◆ InsertAddedStandardPartOccsItem()

void NXOpen::Tooling::StandardPartBuilder::InsertAddedStandardPartOccsItem ( NXOpen::Assemblies::Component * component )

Inserts an object to m_addedStandardPartOccs
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component The standard part component to add to the saving list

◆ MakeReadOnlyAfterEdit()

bool NXOpen::Tooling::StandardPartBuilder::MakeReadOnlyAfterEdit ( )

Returns the flag to indicate whether to make the standard part read-only after edit
Created in NX2406.0.0.

License requirements : None

◆ ManageStandardPartReadOnlyStatus()

void NXOpen::Tooling::StandardPartBuilder::ManageStandardPartReadOnlyStatus ( bool makeReadOnly )

Manages the read-only status of the standard part being edited
Created in NX2406.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

makeReadOnly Whether to make read-only or modifiable

◆ MateForPDWPunchInsert()

void NXOpen::Tooling::StandardPartBuilder::MateForPDWPunchInsert ( int positionType )

PDW 冲头镶件的配合
创建于 NX1953.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

positionType positiontype

◆ PerformPostProcessToAddedStandardPart()

void NXOpen::Tooling::StandardPartBuilder::PerformPostProcessToAddedStandardPart ( NXOpen::Assemblies::Component * component )

Performs post process to the newly added standard part.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component The component to be edited

◆ PointPattern()

NXOpen::SelectNXObject * NXOpen::Tooling::StandardPartBuilder::PointPattern ( )

Returns the point pattern used to control how to standard parts.
Created in NX8.0.0.

License requirements : None

◆ PositioningCsys()

NXOpen::SelectNXObject * NXOpen::Tooling::StandardPartBuilder::PositioningCsys ( )

返回用于定位已添加标准件的坐标系。
创建于 NX2306.0.0。

许可要求：无

◆ PositioningFeature()

NXOpen::SelectNXObject * NXOpen::Tooling::StandardPartBuilder::PositioningFeature ( )

Returns the positioning feature used to control how to add standard parts.
Created in NX1953.0.0.

License requirements : None

◆ PositioningPlane()

NXOpen::SelectNXObject * NXOpen::Tooling::StandardPartBuilder::PositioningPlane ( )

Returns the positioning plane used to position a standard part.
Created in NX8.0.0.

License requirements : None

◆ PreparePositionDataForSmartPosition()

int NXOpen::Tooling::StandardPartBuilder::PreparePositionDataForSmartPosition ( int acttionType )

Prepare position data for associative plane position
Created in NX2007.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

acttionType acttiontype

◆ ReadStandardPartClientDataFromLibrary() [1/2]

void NXOpen::Tooling::StandardPartBuilder::ReadStandardPartClientDataFromLibrary	(	bool	isFromMemberView,
		int	dataType,
		const char *	libName,
		const char *	libPath )

Reads data from the library with given name and path.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

isFromMemberView	True if an item is dragged from reuse library
dataType	The data type of the library
libName	Library name
libPath	Library path

◆ ReadStandardPartClientDataFromLibrary() [2/2]

void NXOpen::Tooling::StandardPartBuilder::ReadStandardPartClientDataFromLibrary	(	bool	isFromMemberView,
		int	dataType,
		const NXString &	libName,
		const NXString &	libPath )

Reads data from the library with given name and path.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

isFromMemberView	True if an item is dragged from reuse library
dataType	The data type of the library
libName	Library name
libPath	Library path

◆ ReadStandardPartDataFromConceptObject()

void NXOpen::Tooling::StandardPartBuilder::ReadStandardPartDataFromConceptObject ( NXOpen::NXObject * conceptObject )

从概念点或符号恢复标准件数据。
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

conceptObject conceptobject

◆ RecommendMoldBasePlateHeight()

void NXOpen::Tooling::StandardPartBuilder::RecommendMoldBasePlateHeight ( )

Recommends A,B and C plate height of mold base according to layout dimension
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD")

◆ RecommendMoldBaseSize()

void NXOpen::Tooling::StandardPartBuilder::RecommendMoldBaseSize ( )

Recommends mold base size according to layout dimension
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD")

◆ ReferenceSet()

NXOpen::Tooling::StandardPartBuilder::RefsetName NXOpen::Tooling::StandardPartBuilder::ReferenceSet ( )

Returns the reference set currently used to add a new component to an assembly.
Created in NX8.0.0.

License requirements : None

◆ RemoveComponent() [1/2]

void NXOpen::Tooling::StandardPartBuilder::RemoveComponent ( )

Removes the selected standard part component.
Created in NX8.0.0.

License requirements : None

◆ RemoveComponent() [2/2]

void NXOpen::Tooling::StandardPartBuilder::RemoveComponent ( NXOpen::Assemblies::Component * component )

Removes the specified standard part component from the current Mold Wizard assembly
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component The standard part component to remove

◆ RemoveConceptObject()

void NXOpen::Tooling::StandardPartBuilder::RemoveConceptObject ( NXOpen::NXObject * conceptObject )

移除选定的概念对象
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

conceptObject conceptobject

◆ RemoveMoldBase()

void NXOpen::Tooling::StandardPartBuilder::RemoveMoldBase ( NXOpen::Assemblies::Component * component )

Removes the specified mold base from the current Mold Wizard assembly
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component The mold base component to remove

◆ RenameComponents()

bool NXOpen::Tooling::StandardPartBuilder::RenameComponents ( )

Returns the flag to indicate whether to bring up the Part Name Management dialog.
Created in NX8.0.0.

License requirements : None

◆ Reposition()

void NXOpen::Tooling::StandardPartBuilder::Reposition ( )

Repositions the selected standard part component.
Created in NX8.0.0.

License requirements : None

◆ RepositionStandardPartBySelectedCsys()

void NXOpen::Tooling::StandardPartBuilder::RepositionStandardPartBySelectedCsys ( int positionType )

Repositions the standard part with a selected Datum CSYS
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

positionType the positioning type

◆ RepositionStandardPartBySpecifiedPoint()

void NXOpen::Tooling::StandardPartBuilder::RepositionStandardPartBySpecifiedPoint	(	int	positionType,
		NXOpen::NXObject *	locatingPoint )

Repositions the standard part with a specified point
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

positionType	the positioning type
locatingPoint	the point used as new source entity to relink the Linked Point feature

◆ RepositionStandardPartSetForEDW()

void NXOpen::Tooling::StandardPartBuilder::RepositionStandardPartSetForEDW ( )

为 EDW 重新定位标准件集
创建于 NX1953.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ ResetStandardPartClientData() [1/2]

void NXOpen::Tooling::StandardPartBuilder::ResetStandardPartClientData	(	int	dataType,
		const char *	libName,
		const char *	libPath )

Resets client data with specified library.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

dataType	The data type of the library
libName	Library name
libPath	Library path

◆ ResetStandardPartClientData() [2/2]

void NXOpen::Tooling::StandardPartBuilder::ResetStandardPartClientData	(	int	dataType,
		const NXString &	libName,
		const NXString &	libPath )

Resets client data with specified library.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

dataType	The data type of the library
libName	Library name
libPath	Library path

◆ ResetStandardPartClientDataWithLibraryName() [1/2]

void NXOpen::Tooling::StandardPartBuilder::ResetStandardPartClientDataWithLibraryName ( const char * libName )

Resets client data with named library.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

libName Library name

◆ ResetStandardPartClientDataWithLibraryName() [2/2]

void NXOpen::Tooling::StandardPartBuilder::ResetStandardPartClientDataWithLibraryName ( const NXString & libName )

Resets client data with named library.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

libName Library name

◆ RotateMoldBase()

void NXOpen::Tooling::StandardPartBuilder::RotateMoldBase	(	NXOpen::Assemblies::Component *	component,
		double	angle )

Rotates the specified mold base with given angle
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

component	The mold base component to rotate
angle	The input angle used to rotate the mold base

◆ SetAssociativePointPosition()

void NXOpen::Tooling::StandardPartBuilder::SetAssociativePointPosition ( bool associativePointPosition )

Sets the flag to indicate whether to use the associative point position method.
Created in NX2206.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

associativePointPosition associativepointposition

◆ SetAssociativePosition()

void NXOpen::Tooling::StandardPartBuilder::SetAssociativePosition ( bool associativePosition )

Sets the flag to indicate whether to use the associative position method.
Created in NX8.0.0.

License requirements : None

参数

associativePosition associativeposition

◆ SetCompPattern()

void NXOpen::Tooling::StandardPartBuilder::SetCompPattern ( bool useCompPattern )

Sets the flag to indicate whether to use use pattern component to position a standard part.
Created in NX12.0.2.

License requirements : None

参数

useCompPattern usecomppattern

◆ SetConceptDesign()

void NXOpen::Tooling::StandardPartBuilder::SetConceptDesign ( bool conceptDesign )

Sets the flag to indicate whether to add concept symbols instead of real standard parts.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

conceptDesign conceptdesign

◆ SetConceptPartData()

void NXOpen::Tooling::StandardPartBuilder::SetConceptPartData ( NXOpen::Tooling::ConceptStandardPartRecord * conceptPartData )

设置标准件概念数据。
创建于 NX2007.0.0。

许可要求：ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

conceptPartData A NXOpen::Tooling::ConceptStandardPartRecord instance

◆ SetIsToAddNewMoldBase()

void NXOpen::Tooling::StandardPartBuilder::SetIsToAddNewMoldBase ( bool isAddMoldBase )

Sets the flag whether a new mold base is to be added
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

isAddMoldBase True if the user chooses to add a new mold base

◆ SetLinkFeatureFixAtCurrentTimestamp()

void NXOpen::Tooling::StandardPartBuilder::SetLinkFeatureFixAtCurrentTimestamp	(	NXOpen::NXObject *	linkedFeature,
		int	featureType,
		bool	fixAtTimestamp )

Sets whether the linked feature fix at current timestamp
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

linkedFeature	the linked feature to edit timestamp
featureType	the feature type
fixAtTimestamp	the value of Fix at Current Timestamp to set for the feature

◆ SetMakeReadOnlyAfterEdit()

void NXOpen::Tooling::StandardPartBuilder::SetMakeReadOnlyAfterEdit ( bool bMakeReadonlyAfterEdit )

Sets the flag to indicate whether to make the standard part read-only after edit
Created in NX2406.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

bMakeReadonlyAfterEdit bmakereadonlyafteredit

◆ SetReferenceSet()

void NXOpen::Tooling::StandardPartBuilder::SetReferenceSet ( NXOpen::Tooling::StandardPartBuilder::RefsetName referenceSet )

Sets the reference set currently used to add a new component to an assembly.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

referenceSet referenceset

◆ SetRenameComponents()

void NXOpen::Tooling::StandardPartBuilder::SetRenameComponents ( bool renameComponents )

Sets the flag to indicate whether to bring up the Part Name Management dialog.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

renameComponents renamecomponents

◆ SetShowInfoWindow()

void NXOpen::Tooling::StandardPartBuilder::SetShowInfoWindow ( bool showInfoWindow )

Sets the flag to indicate whether to show the Information Window.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

showInfoWindow showinfowindow

◆ SetSpreadsheetData()

void NXOpen::Tooling::StandardPartBuilder::SetSpreadsheetData ( NXOpen::Tooling::SpreadsheetData * sheetData )

Sets standard part spread sheet data.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

sheetData Spreadsheet data

◆ SetStandardPartClientData()

void NXOpen::Tooling::StandardPartBuilder::SetStandardPartClientData ( NXOpen::Tooling::StandardPartData * standardClientData )

Sets standard part client data.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

standardClientData A NXOpen::Tooling::StandardPartData instance

◆ SetStandardPartEditType()

void NXOpen::Tooling::StandardPartBuilder::SetStandardPartEditType ( NXOpen::Tooling::StandardPartBuilder::EditType standardPartEditType )

Sets the standard part edit type of processing the selected component.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

standardPartEditType standardpartedittype

◆ SetUsePositionDialogForPlaneType()

void NXOpen::Tooling::StandardPartBuilder::SetUsePositionDialogForPlaneType ( bool bUsePlanePositionDialog )

Sets the flag to indicate whether to use standard part position dialog to add standard part for plane position type
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

bUsePlanePositionDialog buseplanepositiondialog

◆ SetUsePositionDialogForPointType()

void NXOpen::Tooling::StandardPartBuilder::SetUsePositionDialogForPointType ( bool bUsePointPositionDialog )

Sets the flag to indicate whether to use standard part position dialog to add standard part for point position type
Created in NX2306.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

bUsePointPositionDialog busepointpositiondialog

◆ ShowInfoWindow()

bool NXOpen::Tooling::StandardPartBuilder::ShowInfoWindow ( )

Returns the flag to indicate whether to show the Information Window.
Created in NX8.0.0.

License requirements : None

◆ StandardPartComponent()

NXOpen::SelectNXObject * NXOpen::Tooling::StandardPartBuilder::StandardPartComponent ( )

Returns the standard part component which is selected to be edited.
Created in NX8.0.0.

License requirements : None

◆ StandardPartEditType()

NXOpen::Tooling::StandardPartBuilder::EditType NXOpen::Tooling::StandardPartBuilder::StandardPartEditType ( )

Returns the standard part edit type of processing the selected component.
Created in NX8.0.0.

License requirements : None

◆ UpdateConceptMoldBaseExpressions()

void NXOpen::Tooling::StandardPartBuilder::UpdateConceptMoldBaseExpressions ( NXOpen::Part * conceptMoldBasePart )

Updates expressions of the specified concept mold base
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

conceptMoldBasePart The mold base part to update expressions

◆ UpdateDimensionsByCondition()

void NXOpen::Tooling::StandardPartBuilder::UpdateDimensionsByCondition	(	NXOpen::Assemblies::Component *	partOccurrence,
		std::vector< NXString > &	conditions )

Updates the dimensions of standard part by specified condition
Created in NX2212.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

partOccurrence	partoccurrence
conditions	Search conditions

◆ UpdateSpreadsheetDataWithObject()

void NXOpen::Tooling::StandardPartBuilder::UpdateSpreadsheetDataWithObject	(	NXOpen::NXObject *	objectWithParameters,
		bool	isConcpetObject,
		NXOpen::Tooling::SpreadsheetData *	sheetData )

Updates standard part spread sheet data by reading parameter values from a part, point or symbol.
Created in NX12.0.2.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard") OR ug_die_design ("Die Design")

参数

objectWithParameters	The object where parameter values to be read
isConcpetObject	True if the object is a concept one( a point or symbol with special attributes)
sheetData	Spreadsheet data

◆ UsePositionDialogForPlaneType()

bool NXOpen::Tooling::StandardPartBuilder::UsePositionDialogForPlaneType ( )

Returns the flag to indicate whether to use standard part position dialog to add standard part for plane position type
Created in NX2306.0.0.

License requirements : None

◆ UsePositionDialogForPointType()

bool NXOpen::Tooling::StandardPartBuilder::UsePositionDialogForPointType ( )

Returns the flag to indicate whether to use standard part position dialog to add standard part for point position type
Created in NX2306.0.0.

License requirements : None

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ EditType

◆ RefsetName

成员函数说明

◆ AddConceptObjectsQuietly() [1/2]

◆ AddConceptObjectsQuietly() [2/2]

◆ AddStandardPartsToPattern() [1/2]

◆ AddStandardPartsToPattern() [2/2]

◆ AnalyzePostionType() [1/2]

◆ AnalyzePostionType() [2/2]

◆ AskPositionFace()

◆ AssociativePointPosition()

◆ AssociativePosition()

◆ BuildCloneObject() [1/2]

◆ BuildCloneObject() [2/2]

◆ ChangeReferenceSet() [1/2]

◆ ChangeReferenceSet() [2/2]

◆ CheckStandardPartPosition()

◆ CompPattern()

◆ ConceptDesign()

◆ ConvertConceptObjectToRealStandardPart()

◆ CreateComponentPatternToPatternCsys()

◆ CreateConstraintBetweenComponentAndCSYS()

◆ EditConceptSymbols()

◆ EditDataBase()

◆ EditRegister()

◆ EditStandardPartDimensions()

◆ FindComponentFeatureByName() [1/2]

◆ FindComponentFeatureByName() [2/2]

◆ FindComponentNamedFeatures()

◆ Flip()

◆ FlipComponent()

◆ FreePositionData()

◆ GetAddedStandardPartOccurrenceItem()

◆ GetAddedStandardPartOccurrencesNumber()

◆ GetAllConceptObjectInstances()

◆ GetConceptPartData()

◆ GetSpreadsheetData()

◆ GetStandardPartClientData()

◆ Help()

◆ InitializePositionData()

◆ InsertAddedStandardPartOccsItem()

◆ MakeReadOnlyAfterEdit()

◆ ManageStandardPartReadOnlyStatus()

◆ MateForPDWPunchInsert()

◆ PerformPostProcessToAddedStandardPart()

◆ PointPattern()

◆ PositioningCsys()

◆ PositioningFeature()

◆ PositioningPlane()

◆ PreparePositionDataForSmartPosition()

◆ ReadStandardPartClientDataFromLibrary() [1/2]

◆ ReadStandardPartClientDataFromLibrary() [2/2]

◆ ReadStandardPartDataFromConceptObject()

◆ RecommendMoldBasePlateHeight()

◆ RecommendMoldBaseSize()

◆ ReferenceSet()

◆ RemoveComponent() [1/2]

◆ RemoveComponent() [2/2]

◆ RemoveConceptObject()

◆ RemoveMoldBase()

◆ RenameComponents()

◆ Reposition()

◆ RepositionStandardPartBySelectedCsys()

◆ RepositionStandardPartBySpecifiedPoint()

◆ RepositionStandardPartSetForEDW()

◆ ResetStandardPartClientData() [1/2]

◆ ResetStandardPartClientData() [2/2]

◆ ResetStandardPartClientDataWithLibraryName() [1/2]

◆ ResetStandardPartClientDataWithLibraryName() [2/2]

◆ RotateMoldBase()

◆ SetAssociativePointPosition()

◆ SetAssociativePosition()

◆ SetCompPattern()

◆ SetConceptDesign()

◆ SetConceptPartData()
