NXOpen::DesignSimulation::Container类 参考

容器类 更多...

#include <DesignSimulation_Container.hxx>

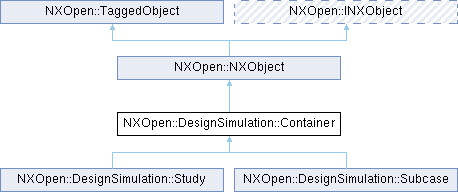

类 NXOpen::DesignSimulation::Container 继承关系图:

Public 类型
enum	ReorderType { ReorderTypeBefore , ReorderTypeAfter , ReorderTypeInto }
Public 类型 继承自 NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,   AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,   AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
void	GetMembers (std::vector< NXOpen::NXObject * > &members)
void	Reorder (NXOpen::NXObject *source, NXOpen::NXObject *target, NXOpen::DesignSimulation::Container::ReorderType type)
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char *title, const char *value)
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetReferenceAttribute (const char *title, const char *value)
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char *title, const char *value)
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ContainerBuilder

额外继承的成员函数
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

容器类

表示设计仿真容器对象
NXOpen::DesignSimulation::Container 不能独立创建。NXOpen::DesignSimulation::Study 和 NXOpen::DesignSimulation::Subcase 是容器的类型，用户可创建和删除。

于NX2206.0.0中创建。

成员枚举类型说明

ReorderType

enum NXOpen::DesignSimulation::Container::ReorderType

重排序操作类型。

枚举值
ReorderTypeBefore	在同一容器中，将对象重排序到另一对象之前
ReorderTypeAfter	在同一容器中，将对象重排序到另一对象之后
ReorderTypeInto	将对象重排序到不包含它的容器中

成员函数说明

GetMembers()

void NXOpen::DesignSimulation::Container::GetMembers

(

std::vector< NXOpen::NXObject * > &

members

)

获取所有NXOpen::NXObject 成员，按引用顺序排列。
于NX2206.0.0中创建。

许可要求：solid_modeling ("实体建模") 或 features_modeling ("特征建模")

参数

members

成员

Reorder()

void NXOpen::DesignSimulation::Container::Reorder	(	NXOpen::NXObject *	source,
		NXOpen::NXObject *	target,
		NXOpen::DesignSimulation::Container::ReorderType	type )

将子对象重排序到同一NXOpen::DesignSimulation::Container 中的另一子对象“之前”或“之后”。 将来会实现将对象重排序“到”不包含它的NXOpen::DesignSimulation::Container 中。
于NX2206.0.0中创建。

许可要求：des_top_opt ("设计人员拓扑优化") 或 sc_des_topol_opt ("设计人员拓扑优化") 或 nx_perf_predictor ("性能预测器")

参数

source	源对象
target	目标对象
type	类型
