外观数据管理器更多...

#include <Appearance_DataManager.hxx>

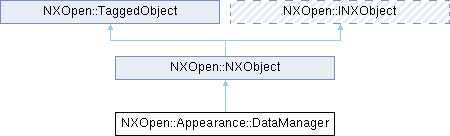

类 NXOpen::Appearance::DataManager 继承关系图:

Public 成员函数
void	GetAllLoadedAppearanceAreas (std::vector< NXOpen::Appearance::Area * > &appearanceAreas)
NXOpen::Appearance::Area *	GetAppearanceArea (const char *appearanceAreaName)
NXOpen::Appearance::Area *	GetAppearanceArea (const NXString &appearanceAreaName)
NXOpen::Appearance::Area *	GetCurrentWorkAppearanceArea ()
NXString	GetLoadedAssembly ()
NXString	GetProductAssembly ()
NXOpen::PDM::OperationErrors *	SaveAppearanceScheme ()
void	SetCurrentWorkAppearanceArea (NXOpen::Appearance::Area *appearanceArea)
NXOpen::ErrorList *	UnloadAppearanceData (NXOpen::Part *part)
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_DataManagerBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

外观数据管理器

   表示NX运行时数据模型中的NX外观管理器类。
   在会话中，此类持有所有信息，如包含外观数据的产品装配、
   为装配加载的外观区域，以及用于加载、卸载和保存外观数据的操作API。
<br> 使用 @link NXOpen::Appearance::AppearanceUtils::GetAppearanceManager NXOpen::Appearance::AppearanceUtils::GetAppearanceManager@endlink 获取此类的实例。 <br>

在NX1953.0.0中创建。

成员函数说明

◆ GetAllLoadedAppearanceAreas()

void NXOpen::Appearance::DataManager::GetAllLoadedAppearanceAreas ( std::vector< NXOpen::Appearance::Area * > & appearanceAreas )

此函数将获取所有已加载的外观区域。管理器持有对已加载的外观产品分解的引用，该引用将用于获取外观区域。
在NX1953.0.0中创建。

许可要求：appearance_mgmt (" AppearanceManagement Author for Native mode") 或 appearance_mgmt_mgd (" AppearanceManagement Author for Managed mode")

参数

appearanceAreas 已加载外观区域的数组

◆ GetAppearanceArea() [1/2]

NXOpen::Appearance::Area * NXOpen::Appearance::DataManager::GetAppearanceArea ( const char * appearanceAreaName )

此函数将获取给定外观区域名称的外观区域对象。

返回: 要返回的外观区域。
在NX1953.0.0中创建。

许可要求：appearance_mgmt (" AppearanceManagement Author for Native mode") 或 appearance_mgmt_mgd (" AppearanceManagement Author for Managed mode")

参数

appearanceAreaName 外观区域名称

◆ GetAppearanceArea() [2/2]

NXOpen::Appearance::Area * NXOpen::Appearance::DataManager::GetAppearanceArea ( const NXString & appearanceAreaName )

此函数将获取给定外观区域名称的外观区域对象。

返回: 要返回的外观区域。
在NX1953.0.0中创建。

许可要求：appearance_mgmt (" AppearanceManagement Author for Native mode") 或 appearance_mgmt_mgd (" AppearanceManagement Author for Managed mode")

参数

appearanceAreaName 外观区域名称

◆ GetCurrentWorkAppearanceArea()

NXOpen::Appearance::Area * NXOpen::Appearance::DataManager::GetCurrentWorkAppearanceArea ( )

此函数将获取当前工作外观区域

返回: 将返回的外观区域对象。
在NX1953.0.0中创建。

许可要求：studio_visualize ("STUDIO VISUALIZE")

◆ GetLoadedAssembly()

NXString NXOpen::Appearance::DataManager::GetLoadedAssembly ( )

此函数将在产品装配的上下文中获取已加载的包含外观数据的装配。
在NX1953.0.0中创建。

许可要求：studio_visualize ("STUDIO VISUALIZE")

◆ GetProductAssembly()

NXString NXOpen::Appearance::DataManager::GetProductAssembly ( )

此函数将获取包含外观数据的产品装配。
在NX1953.0.0中创建。

许可要求：studio_visualize ("STUDIO VISUALIZE")

◆ SaveAppearanceScheme()

NXOpen::PDM::OperationErrors * NXOpen::Appearance::DataManager::SaveAppearanceScheme ( )

此函数将检查配色方案中的修改并保存它们。

返回: 外观保存期间遇到的错误
在NX1953.0.0中创建。

许可要求：appearance_mgmt (" AppearanceManagement Author for Native mode") 或 appearance_mgmt_mgd (" AppearanceManagement Author for Managed mode")

◆ SetCurrentWorkAppearanceArea()

void NXOpen::Appearance::DataManager::SetCurrentWorkAppearanceArea ( NXOpen::Appearance::Area * appearanceArea )

此函数将设置当前工作外观区域。
在NX1953.0.0中创建。

许可要求：studio_visualize ("STUDIO VISUALIZE")

参数

appearanceArea 将设置为当前工作外观区域的外观区域对象。

◆ UnloadAppearanceData()

NXOpen::ErrorList * NXOpen::Appearance::DataManager::UnloadAppearanceData ( NXOpen::Part * part )

此函数将卸载输入部件的配色方案。将卸载特定于给定部件的外观数据，同时保持其他外观数据不变。注意：为会话中的所有部件调用此函数，不会导致卸载所有外观数据。

返回: 发生的任何错误。
在NX1953.0.0中创建。

许可要求：studio_visualize ("STUDIO VISUALIZE")

参数

part	为输入部件卸载外观数据
