NXOpen::Routing::PartDefinitionShadow类 参考

部件定义影子类 更多...

#include <Routing_PartDefinitionShadow.hxx>

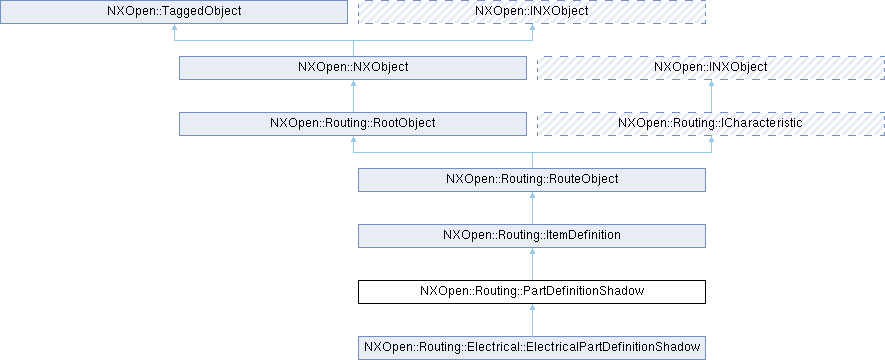

类 NXOpen::Routing::PartDefinitionShadow 继承关系图:
NXOpen::Routing::ItemDefinition NXOpen::Routing::RouteObject NXOpen::Routing::RootObject NXOpen::Routing::ICharacteristic NXOpen::NXObject NXOpen::INXObject NXOpen::TaggedObject NXOpen::INXObject NXOpen::Routing::Electrical::ElectricalPartDefinitionShadow

Public 成员函数

std::vector< NXOpen::Routing::InterfaceTerminalShadow * > GetInterfaceTerminalShadows ()
Public 成员函数 继承自 NXOpen::Routing::ItemDefinition
NXOpen::Part * DefiningNxObject ()
Public 成员函数 继承自 NXOpen::Routing::RouteObject
virtual void DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
virtual NXOpen::Routing::CharacteristicList * GetCharacteristics ()
virtual NXOpen::Routing::CharacteristicList * GetDestinationCharacteristics ()
virtual int GetIntegerCharacteristic (const char *name)
virtual int GetIntegerCharacteristic (const NXString &name)
virtual double GetRealCharacteristic (const char *name)
virtual double GetRealCharacteristic (const NXString &name)
virtual NXString GetStringCharacteristic (const char *name)
virtual NXString GetStringCharacteristic (const NXString &name)
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
virtual void SetCharacteristic (const char *name, const char *value)
virtual void SetCharacteristic (const char *name, double value)
virtual void SetCharacteristic (const char *name, int value)
virtual void SetCharacteristic2 (const char *title, const char *value)
virtual void SetCharacteristic2 (const char *title, double value)
virtual void SetCharacteristic2 (const char *title, int value)
virtual void SetCharacteristic2 (const NXString &title, const NXString &value)
virtual void SetCharacteristic2 (const NXString &title, double value)
virtual void SetCharacteristic2 (const NXString &title, int value)
virtual void SetCharacteristics2 (NXOpen::Routing::CharacteristicList *values)
Public 成员函数 继承自 NXOpen::Routing::RootObject
NXString Guid ()
void SetGuid (const char *guid)
void SetGuid (const NXString &guid)
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const
Public 成员函数 继承自 NXOpen::Routing::ICharacteristic
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name

友元

class _PartDefinitionShadowBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::Routing::RouteObject
const NXString & value
double value
int value
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value
Public 属性 继承自 NXOpen::Routing::ICharacteristic
const NXString & value = 0
double value = 0
int value = 0

详细描述

部件定义影子类

   @link NXOpen::Routing::PartDefinitionShadow NXOpen::Routing::PartDefinitionShadow@endlink  存储逻辑部件（如连接器）的定义数据。
   @link NXOpen::Routing::PartDefinitionShadow NXOpen::Routing::PartDefinitionShadow@endlink  包含一组
   @link NXOpen::Routing::InterfaceTerminalShadow NXOpen::Routing::InterfaceTerminalShadow@endlink 。部件分配功能将NX物理部件与此
   @link NXOpen::Routing::PartDefinitionShadow NXOpen::Routing::PartDefinitionShadow@endlink  定义的逻辑部件相关联。
    <br>
   有关连通性数据模型的文档，请参见NX Routing帮助。
    <br>
<br> KF中不支持创建。  <br>


NX4.0.2版本创建。

成员函数说明

◆ GetInterfaceTerminalShadows()

std::vector< NXOpen::Routing::InterfaceTerminalShadow * > NXOpen::Routing::PartDefinitionShadow::GetInterfaceTerminalShadows ( )

获取 NXOpen::Routing::PartDefinitionShadow 关联的 NXOpen::Routing::InterfaceTerminalShadow 列表。

返回
此 NXOpen::Routing::PartDefinitionShadow 对应的 NXOpen::Routing::InterfaceTerminalShadow 列表
NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"），routing_base（"基础布线"）
