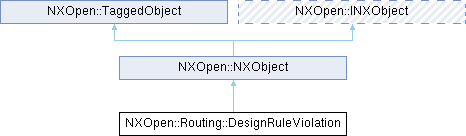

类 NXOpen::Routing::DesignRuleViolation 继承关系图:

Public 类型
enum	BlankOption { BlankOptionBlank , BlankOptionUnblank }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
void	AddObjects (const std::vector< NXOpen::Routing::DesignRuleViolation * > &objects)
void	AddViolationLocations (const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > &locationObjects)
void	BlankLocationObjectsOfViolation (NXOpen::Routing::DesignRuleViolation::BlankOption blankOption)
void	DeleteRuleOverride (NXOpen::Routing::DesignRuleOverride *deleteObject)
std::vector< NXOpen::Routing::DesignRuleViolationLocation * >	GetLocations ()
std::vector< NXOpen::NXObject * >	GetObjects ()
NXOpen::Routing::DesignRule *	GetOwningDesignRule ()
bool	IsRuleOverridden ()
NXString	LongDescription ()
NXOpen::Routing::DesignRuleOverride *	Override ()
void	RemoveViolationOverride ()
void	SetLocations (const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > &violationLocations)
void	SetLongDescription (const char *longDescription)
void	SetLongDescription (const NXString &longDescription)
void	SetObjects (const std::vector< NXOpen::NXObject * > &objects)
void	SetOverride (NXOpen::Routing::DesignRuleOverride *overrideTag)
void	SetShortDescription (const char *shortDescription)
void	SetShortDescription (const NXString &shortDescription)
void	SetTimeStamp (int timeStamp)
void	SetViolationOverride (const char user, const char reason, int timestamp)
void	SetViolationOverride (const NXString &user, const NXString &reason, int timestamp)
NXString	ShortDescription ()
int	TimeStamp ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_DesignRuleViolationBuilder

额外继承的成员函数
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

设计规则违反

表示 NXOpen::Routing::DesignRuleViolation 对象
设计规则违例对象在设计规则检查期间自动创建

创建于NX4.0.2版本

成员枚举类型说明

◆ BlankOption

enum NXOpen::Routing::DesignRuleViolation::BlankOption

设计规则违例位置对象显示选项

枚举值
BlankOptionBlank	隐藏
BlankOptionUnblank	显示

成员函数说明

◆ AddObjects()

void NXOpen::Routing::DesignRuleViolation::AddObjects ( const std::vector< NXOpen::Routing::DesignRuleViolation * > & objects )

向违例中添加违例对象
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

objects 对象集合

◆ AddViolationLocations()

void NXOpen::Routing::DesignRuleViolation::AddViolationLocations ( const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > & locationObjects )

添加指定数量的违规位置对象。
版本：NX6.0.0。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

locationObjects 要添加的违规位置数组。

◆ BlankLocationObjectsOfViolation()

void NXOpen::Routing::DesignRuleViolation::BlankLocationObjectsOfViolation ( NXOpen::Routing::DesignRuleViolation::BlankOption blankOption )

隐藏指定违规的位置对象。
版本：NX6.0.0。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

blankOption 隐藏选项

◆ DeleteRuleOverride()

void NXOpen::Routing::DesignRuleViolation::DeleteRuleOverride ( NXOpen::Routing::DesignRuleOverride * deleteObject )

删除忽略对象
版本：NX4.0.3
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

deleteObject 待删除对象

◆ GetLocations()

std::vector< NXOpen::Routing::DesignRuleViolationLocation * > NXOpen::Routing::DesignRuleViolation::GetLocations ( )

获取调用该方法的违规对象中存储的所有违规位置对象。

返回: NXOpen::Routing::DesignRuleViolationLocation 对象数组。
版本：NX6.0.0。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ GetObjects()

std::vector< NXOpen::NXObject * > NXOpen::Routing::DesignRuleViolation::GetObjects ( )

获取违例对象数组

返回: 调用者需释放该数组
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ GetOwningDesignRule()

NXOpen::Routing::DesignRule * NXOpen::Routing::DesignRuleViolation::GetOwningDesignRule ( )

返回拥有此违规的设计规则。

返回: 版本：NX12.0.1。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ IsRuleOverridden()

bool NXOpen::Routing::DesignRuleViolation::IsRuleOverridden ( )

查询违例是否被忽略

返回: 是否忽略
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ LongDescription()

NXString NXOpen::Routing::DesignRuleViolation::LongDescription ( )

返回设计规则违例的详细描述
创建于NX4.0.0版本

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ Override()

NXOpen::Routing::DesignRuleOverride * NXOpen::Routing::DesignRuleViolation::Override ( )

获取违例的忽略对象
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ RemoveViolationOverride()

void NXOpen::Routing::DesignRuleViolation::RemoveViolationOverride ( )

移除违例对象的忽略设置
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ SetLocations()

void NXOpen::Routing::DesignRuleViolation::SetLocations ( const std::vector< NXOpen::Routing::DesignRuleViolationLocation * > & violationLocations )

为此设计规则的违例添加位置信息
版本：NX6.0.0
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

violationLocations 违例位置集合

◆ SetLongDescription() [1/2]

void NXOpen::Routing::DesignRuleViolation::SetLongDescription ( const char * longDescription )

设置设计规则违例的详细描述
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

longDescription 详细描述

◆ SetLongDescription() [2/2]

void NXOpen::Routing::DesignRuleViolation::SetLongDescription ( const NXString & longDescription )

设置设计规则违例的详细描述
创建于NX4.0.2版本

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

longDescription 详细描述

◆ SetObjects()

void NXOpen::Routing::DesignRuleViolation::SetObjects ( const std::vector< NXOpen::NXObject * > & objects )

设置违例对象数组
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

objects 调用者需释放该数组

◆ SetOverride()

void NXOpen::Routing::DesignRuleViolation::SetOverride ( NXOpen::Routing::DesignRuleOverride * overrideTag )

设置违例的忽略对象
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

overrideTag 忽略对象标识

◆ SetShortDescription() [1/2]

void NXOpen::Routing::DesignRuleViolation::SetShortDescription ( const char * shortDescription )

设置设计规则违例的简短描述
创建于NX4.0.0版本

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

shortDescription 简短描述

◆ SetShortDescription() [2/2]

void NXOpen::Routing::DesignRuleViolation::SetShortDescription ( const NXString & shortDescription )

设置设计规则违例的简短描述
创建于NX4.0.0版本

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

shortDescription 简短描述

◆ SetTimeStamp()

void NXOpen::Routing::DesignRuleViolation::SetTimeStamp ( int timeStamp )

设置违例创建或更新的日期时间时间戳为自UNIX纪元（1970年1月1日GMT午夜）起的秒数
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

timeStamp 时间戳

◆ SetViolationOverride() [1/2]

void NXOpen::Routing::DesignRuleViolation::SetViolationOverride	(	const char *	user,
		const char *	reason,
		int	timestamp )

设置违例忽略信息
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

user	操作用户
reason	忽略原因
timestamp	时间戳

◆ SetViolationOverride() [2/2]

void NXOpen::Routing::DesignRuleViolation::SetViolationOverride	(	const NXString &	user,
		const NXString &	reason,
		int	timestamp )

设置违例忽略信息
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

user	操作用户
reason	忽略原因
timestamp	时间戳

◆ ShortDescription()

NXString NXOpen::Routing::DesignRuleViolation::ShortDescription ( )

返回设计规则违例的简短描述
创建于NX4.0.2版本

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ TimeStamp()

int NXOpen::Routing::DesignRuleViolation::TimeStamp ( )

获取违例创建或更新的日期时间时间戳为自UNIX纪元（1970年1月1日GMT午夜）起的秒数
版本：NX4.0.2
许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

Public 类型

Public 成员函数

友元

额外继承的成员函数

详细描述

成员枚举类型说明

◆ BlankOption

成员函数说明

◆ AddObjects()

◆ AddViolationLocations()

◆ BlankLocationObjectsOfViolation()

◆ DeleteRuleOverride()

◆ GetLocations()

◆ GetObjects()

◆ GetOwningDesignRule()

◆ IsRuleOverridden()

◆ LongDescription()

◆ Override()

◆ RemoveViolationOverride()

◆ SetLocations()

◆ SetLongDescription() [1/2]

◆ SetLongDescription() [2/2]

◆ SetObjects()

◆ SetOverride()

◆ SetShortDescription() [1/2]

◆ SetShortDescription() [2/2]

◆ SetTimeStamp()

◆ SetViolationOverride() [1/2]

◆ SetViolationOverride() [2/2]

◆ ShortDescription()

◆ TimeStamp()
