NXOpen::Annotations::AngularDimensionBuilder类 参考

角度尺寸构建器 更多...

#include <Annotations_AngularDimensionBuilder.hxx>

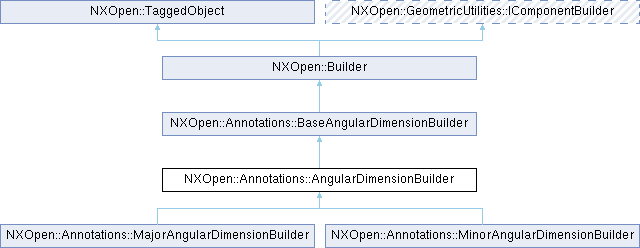

类 NXOpen::Annotations::AngularDimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
NXOpen::Annotations::ForeshorteningSymbolBuilder *	ForeshorteningSymbol ()
Public 成员函数 继承自 NXOpen::Annotations::BaseAngularDimensionBuilder
void	AlternateAngle ()
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
NXOpen::SelectDisplayableObject *	FirstAssociativity ()
NXOpen::Direction *	FirstVector ()
NXOpen::View *	FirstVectorView ()
bool	GetFirstAssociativityVectorFlipped ()
bool	GetSecondAssociativityVectorFlipped ()
NXOpen::Annotations::SelectDimension *	Inherit ()
NXOpen::Annotations::Dimension::MeasurementTypes	MeasurementType ()
NXOpen::Annotations::OriginBuilder *	Origin ()
NXOpen::SelectDisplayableObject *	SecondAssociativity ()
NXOpen::Direction *	SecondVector ()
NXOpen::View *	SecondVectorView ()
void	SetFirstAssociativityVectorFlipped (bool firstVectorFlipped)
void	SetFirstVector (NXOpen::Direction *firstVector)
void	SetFirstVectorView (NXOpen::View *firstVectorView)
void	SetMeasurementType (NXOpen::Annotations::Dimension::MeasurementTypes measurementType)
void	SetNthAssociativityEdited (int index, bool edited)
void	SetSecondAssociativityVectorFlipped (bool secondVectorFlipped)
void	SetSecondVector (NXOpen::Direction *secondVector)
void	SetSecondVectorView (NXOpen::View *firstVectorView)
NXOpen::Annotations::StyleBuilder *	Style ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_AngularDimensionBuilderBuilder

详细描述

角度尺寸构建器

表示 NXOpen::Annotations::AngularDimension 构建器
此为抽象类，无法实例化。

创建于 NX9.0.0。

成员函数说明

Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::Annotations::AngularDimensionBuilder::Driving

(

)

获取 驱动值构建器
创建于 NX9.0.0。

许可要求：无

ForeshorteningSymbol()

NXOpen::Annotations::ForeshorteningSymbolBuilder * NXOpen::Annotations::AngularDimensionBuilder::ForeshorteningSymbol

(

)

获取 缩短符号构建器
创建于 NX10.0.0。

许可要求：无
