NXOpen::SketchMakeCollinearBuilder类 参考

草图共线约束构建器 更多...

#include <SketchMakeCollinearBuilder.hxx>

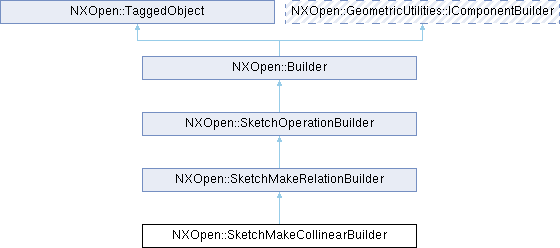

类 NXOpen::SketchMakeCollinearBuilder 继承关系图:

友元
class	_SketchMakeCollinearBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::SketchMakeRelationBuilder
enum	RelationTypes {   RelationTypesCoincident , RelationTypesCollinear , RelationTypesHorizontal , RelationTypesVertical ,   RelationTypesParallel , RelationTypesPerpendicular , RelationTypesEqualLength , RelationTypesEqualRadius ,   RelationTypesSymmetric , RelationTypesTangent , RelationTypesMidpointAligned , RelationTypesPointOnString ,   RelationTypesTangentToString , RelationTypesPerpendicularToString }
Public 类型 继承自 NXOpen::SketchOperationBuilder
enum	SolverStatus {   SolverStatusUnknown , SolverStatusInitializing , SolverStatusConfigured , SolverStatusConfigureFailed ,   SolverStatusUpdated , SolverStatusUpdateFailed }
Public 成员函数 继承自 NXOpen::SketchMakeRelationBuilder
void	ClearCurrentOperation ()
NXOpen::SelectNXObjectList *	LockObjects ()
NXOpen::SelectNXObjectList *	LockPoints ()
NXOpen::SelectNXObjectList *	MotionObjects ()
NXOpen::SelectNXObjectList *	MotionPoints ()
void	SetCreateConstraints (bool createConstaints)
NXOpen::SelectNXObject *	StationaryObject ()
Public 成员函数 继承自 NXOpen::SketchOperationBuilder
NXOpen::SketchOperationData *	ExportOperationData ()
std::vector< NXOpen::SketchFoundRelation * >	FindRelations ()
NXOpen::SketchOperationBuilder::SolverStatus	GetSolverStatus ()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use NXOpen::SketchOperationBuilder::ExportOperationData instead.") NXString ExportSolverConfiguration(int *numStringSize)
void	RestoreOperation ()
void	SetRelationRelaxState (NXOpen::SketchRelation *relation, bool relax)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

草图共线约束构建器

表示NXOpen::SketchMakeCollinearBuilder 构建器。
创建此类的新实例，请使用NXOpen::SketchCollection::CreateSketchMakeCollinearBuilder

创建于 NX1872.0.0。
