NXOpen::Annotations::BusinessModifier类 参考

业务修改器 更多...

#include <Annotations_BusinessModifier.hxx>

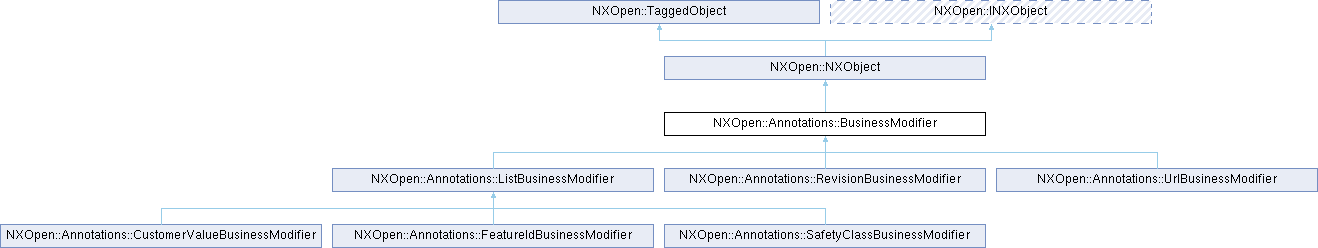

类 NXOpen::Annotations::BusinessModifier 继承关系图:

Public 成员函数
void	SetTextValue (const char *textValue)
void	SetTextValue (const NXString &textValue)
void	SetTitle (const char *title)
void	SetTitle (const NXString &title)
NXString	TextValue ()
NXString	Title ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char *title, const char *value)
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetReferenceAttribute (const char *title, const char *value)
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char *title, const char *value)
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_BusinessModifierBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,   AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,   AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

业务修改器

表示业务修饰符对象。业务修饰符可应用于PMI以嵌入额外的业务/流程信息。该对象由知识融合驱动，即通过.dfa文件中定义的属性创建。
创建于 NX4.0.0。

成员函数说明

SetTextValue() [1/2]

void NXOpen::Annotations::BusinessModifier::SetTextValue

(

const char *

textValue

)

设置 值
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

textValue

文本格式的新值

SetTextValue() [2/2]

void NXOpen::Annotations::BusinessModifier::SetTextValue

(

const NXString &

textValue

)

设置 值
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

textValue

文本格式的新值

SetTitle() [1/2]

void NXOpen::Annotations::BusinessModifier::SetTitle

(

const char *

title

)

设置 标题
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

title

新标题

SetTitle() [2/2]

void NXOpen::Annotations::BusinessModifier::SetTitle

(

const NXString &

title

)

设置 标题
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

title

新标题

TextValue()

NXString NXOpen::Annotations::BusinessModifier::TextValue

(

)

获取 值
创建于 NX4.0.0。

许可要求：无

Title()

NXString NXOpen::Annotations::BusinessModifier::Title

(

)

获取 标题
创建于 NX4.0.0。

许可要求：无
