#include <ShipDesign_Navigator.hxx>

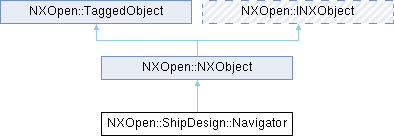

类 NXOpen::ShipDesign::Navigator 继承关系图:

Public 类型
typedef NXOpen::Callback1< void, NXOpen::ShipDesign::NavigatorNode * >	NodeCheckCallback
typedef NXOpen::Callback1< int, NXOpen::ShipDesign::NavigatorNode * >	NodeContextMenuItemActionCallback
typedef NXOpen::Callback1< bool, NXOpen::ShipDesign::NavigatorNode * >	NodeContextMenuItemDefaultMenuItemCallback
typedef NXOpen::Callback1< bool, NXOpen::ShipDesign::NavigatorNode * >	NodeContextMenuItemVisibilityCallback
typedef NXOpen::Callback1< void, NXOpen::ShipDesign::NavigatorNode * >	NodeDeselectedCallback
typedef NXOpen::Callback3< int, NXOpen::ShipDesign::NavigatorNode , NXOpen::ShipDesign::NavigatorNode , NXString >	NodePropertyCompareCallback
typedef NXOpen::Callback1< int, std::vector< NXOpen::ShipDesign::NavigatorNode * > >	NodesContextMenuItemActionCallback
typedef NXOpen::Callback1< bool, std::vector< NXOpen::ShipDesign::NavigatorNode * > >	NodesContextMenuItemDefaultMenuItemCallback
typedef NXOpen::Callback1< bool, std::vector< NXOpen::ShipDesign::NavigatorNode * > >	NodesContextMenuItemVisibilityCallback
typedef NXOpen::Callback1< void, NXOpen::ShipDesign::NavigatorNode * >	NodeSelectedCallback
typedef NXOpen::Callback1< int, NXOpen::ShipDesign::NavigatorView * >	ViewContextMenuItemActionCallback
typedef NXOpen::Callback1< bool, NXOpen::ShipDesign::NavigatorView * >	ViewContextMenuItemVisibilityCallback
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
NXOpen::BasePart *	GetRootPart ()
NXOpen::ShipDesign::NavigatorView *	GetView (int viewIndex)
int	GetViewCount ()
void	Hide ()
void	Hide (bool hideNavigator)
void	HideView (int viewIndex)
void	RegisterNodeContextMenuItem (const char title, const char icon, const NXOpen::ShipDesign::Navigator::NodeContextMenuItemActionCallback &actionCB, const NXOpen::ShipDesign::Navigator::NodeContextMenuItemVisibilityCallback &visibilityCB, const NXOpen::ShipDesign::Navigator::NodeContextMenuItemDefaultMenuItemCallback &isDefaultCB)
void	RegisterNodeContextMenuItem (const NXString &title, const NXString &icon, const NXOpen::ShipDesign::Navigator::NodeContextMenuItemActionCallback &actionCB, const NXOpen::ShipDesign::Navigator::NodeContextMenuItemVisibilityCallback &visibilityCB, const NXOpen::ShipDesign::Navigator::NodeContextMenuItemDefaultMenuItemCallback &isDefaultCB)
void	RegisterNodesContextMenuItem (const char title, const char icon, const NXOpen::ShipDesign::Navigator::NodesContextMenuItemActionCallback &actionCB, const NXOpen::ShipDesign::Navigator::NodesContextMenuItemVisibilityCallback &visibilityCB, const NXOpen::ShipDesign::Navigator::NodesContextMenuItemDefaultMenuItemCallback &isDefaultCB)
void	RegisterNodesContextMenuItem (const NXString &title, const NXString &icon, const NXOpen::ShipDesign::Navigator::NodesContextMenuItemActionCallback &actionCB, const NXOpen::ShipDesign::Navigator::NodesContextMenuItemVisibilityCallback &visibilityCB, const NXOpen::ShipDesign::Navigator::NodesContextMenuItemDefaultMenuItemCallback &isDefaultCB)
void	RegisterViewContextMenuItem (const char title, const char icon, const NXOpen::ShipDesign::Navigator::ViewContextMenuItemActionCallback &actionCB, const NXOpen::ShipDesign::Navigator::ViewContextMenuItemVisibilityCallback &visibilityCB)
void	RegisterViewContextMenuItem (const NXString &title, const NXString &icon, const NXOpen::ShipDesign::Navigator::ViewContextMenuItemActionCallback &actionCB, const NXOpen::ShipDesign::Navigator::ViewContextMenuItemVisibilityCallback &visibilityCB)
void	SetNodeCheckCallback (const NXOpen::ShipDesign::Navigator::NodeCheckCallback &checkCB)
void	SetNodeDeselectedCallback (const NXOpen::ShipDesign::Navigator::NodeDeselectedCallback &deselectedCB)
void	SetNodePropertyCompareCallback (const NXOpen::ShipDesign::Navigator::NodePropertyCompareCallback &checkCB)
void	SetNodeSelectedCallback (const NXOpen::ShipDesign::Navigator::NodeSelectedCallback &selectedCB)
void	SetRootPart (NXOpen::BasePart *rootPart)
void	ShowView (int viewIndex)
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_NavigatorBuilder

额外继承的成员函数
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

导航器类

表示导航器操作类的接口
使用NXOpen::ShipDesign::NavigatorCollection 类获取导航器实例

创建于NX11.0.1版本。

成员类型定义说明

◆ NodeCheckCallback

typedef NXOpen::Callback1<void, NXOpen::ShipDesign::NavigatorNode *> NXOpen::ShipDesign::Navigator::NodeCheckCallback

导航器节点勾选回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodeContextMenuItemActionCallback

typedef NXOpen::Callback1<int, NXOpen::ShipDesign::NavigatorNode *> NXOpen::ShipDesign::Navigator::NodeContextMenuItemActionCallback

导航器节点上下文菜单项回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodeContextMenuItemDefaultMenuItemCallback

typedef NXOpen::Callback1<bool, NXOpen::ShipDesign::NavigatorNode *> NXOpen::ShipDesign::Navigator::NodeContextMenuItemDefaultMenuItemCallback

导航器节点上下文菜单项默认回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodeContextMenuItemVisibilityCallback

typedef NXOpen::Callback1<bool, NXOpen::ShipDesign::NavigatorNode *> NXOpen::ShipDesign::Navigator::NodeContextMenuItemVisibilityCallback

导航器节点上下文菜单项可见性回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodeDeselectedCallback

typedef NXOpen::Callback1<void, NXOpen::ShipDesign::NavigatorNode *> NXOpen::ShipDesign::Navigator::NodeDeselectedCallback

导航器节点取消选中回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodePropertyCompareCallback

typedef NXOpen::Callback3<int, NXOpen::ShipDesign::NavigatorNode *, NXOpen::ShipDesign::NavigatorNode *, NXString> NXOpen::ShipDesign::Navigator::NodePropertyCompareCallback

导航器节点属性比较回调。
创建于NX12.0.2版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodesContextMenuItemActionCallback

typedef NXOpen::Callback1<int, std::vector<NXOpen::ShipDesign::NavigatorNode *> > NXOpen::ShipDesign::Navigator::NodesContextMenuItemActionCallback

多导航器节点上下文菜单项回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodesContextMenuItemDefaultMenuItemCallback

typedef NXOpen::Callback1<bool, std::vector<NXOpen::ShipDesign::NavigatorNode *> > NXOpen::ShipDesign::Navigator::NodesContextMenuItemDefaultMenuItemCallback

多导航器节点上下文菜单项默认回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodesContextMenuItemVisibilityCallback

typedef NXOpen::Callback1<bool, std::vector<NXOpen::ShipDesign::NavigatorNode *> > NXOpen::ShipDesign::Navigator::NodesContextMenuItemVisibilityCallback

多导航器节点上下文菜单项可见性回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ NodeSelectedCallback

typedef NXOpen::Callback1<void, NXOpen::ShipDesign::NavigatorNode *> NXOpen::ShipDesign::Navigator::NodeSelectedCallback

导航器节点选中回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ ViewContextMenuItemActionCallback

typedef NXOpen::Callback1<int, NXOpen::ShipDesign::NavigatorView *> NXOpen::ShipDesign::Navigator::ViewContextMenuItemActionCallback

导航器视图上下文菜单项回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

◆ ViewContextMenuItemVisibilityCallback

typedef NXOpen::Callback1<bool, NXOpen::ShipDesign::NavigatorView *> NXOpen::ShipDesign::Navigator::ViewContextMenuItemVisibilityCallback

导航器视图上下文菜单项可见性回调。
创建于NX11.0.1版本。

许可要求: nx_ship_basic ("船舶基础设计")

成员函数说明

◆ GetRootPart()

NXOpen::BasePart * NXOpen::ShipDesign::Navigator::GetRootPart ( )

获取用于加载导航器模型的根部件。
创建于NX11.0.2。

许可证要求: nx_ship_basic ("船舶基础设计")

◆ GetView()

NXOpen::ShipDesign::NavigatorView * NXOpen::ShipDesign::Navigator::GetView ( int viewIndex )

获取导航器视图
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

viewIndex 视图索引

◆ GetViewCount()

int NXOpen::ShipDesign::Navigator::GetViewCount ( )

获取导航器视图数量
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

◆ Hide() [1/2]

void NXOpen::ShipDesign::Navigator::Hide ( )

隐藏导航器
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

◆ Hide() [2/2]

void NXOpen::ShipDesign::Navigator::Hide ( bool hideNavigator )

隐藏导航器
创建于NX11.0.2.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

hideNavigator 隐藏导航器

◆ HideView()

void NXOpen::ShipDesign::Navigator::HideView ( int viewIndex )

隐藏导航器视图
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

viewIndex 视图索引

◆ RegisterNodeContextMenuItem() [1/2]

void NXOpen::ShipDesign::Navigator::RegisterNodeContextMenuItem	(	const char *	title,
		const char *	icon,
		const NXOpen::ShipDesign::Navigator::NodeContextMenuItemActionCallback &	actionCB,
		const NXOpen::ShipDesign::Navigator::NodeContextMenuItemVisibilityCallback &	visibilityCB,
		const NXOpen::ShipDesign::Navigator::NodeContextMenuItemDefaultMenuItemCallback &	isDefaultCB )

注册节点上下文菜单
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

title	标题
icon	图标
actionCB	动作回调
visibilityCB	可见性回调
isDefaultCB	默认菜单项回调

◆ RegisterNodeContextMenuItem() [2/2]

void NXOpen::ShipDesign::Navigator::RegisterNodeContextMenuItem	(	const NXString &	title,
		const NXString &	icon,
		const NXOpen::ShipDesign::Navigator::NodeContextMenuItemActionCallback &	actionCB,
		const NXOpen::ShipDesign::Navigator::NodeContextMenuItemVisibilityCallback &	visibilityCB,
		const NXOpen::ShipDesign::Navigator::NodeContextMenuItemDefaultMenuItemCallback &	isDefaultCB )

注册节点上下文菜单
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

title	标题
icon	图标
actionCB	动作回调
visibilityCB	可见性回调
isDefaultCB	默认菜单项回调

◆ RegisterNodesContextMenuItem() [1/2]

void NXOpen::ShipDesign::Navigator::RegisterNodesContextMenuItem	(	const char *	title,
		const char *	icon,
		const NXOpen::ShipDesign::Navigator::NodesContextMenuItemActionCallback &	actionCB,
		const NXOpen::ShipDesign::Navigator::NodesContextMenuItemVisibilityCallback &	visibilityCB,
		const NXOpen::ShipDesign::Navigator::NodesContextMenuItemDefaultMenuItemCallback &	isDefaultCB )

注册多节点上下文菜单。
创建于NX11.0.1。

许可证要求: nx_ship_basic ("船舶基础设计")

参数

title	标题
icon	图标
actionCB	动作回调
visibilityCB	可见性回调
isDefaultCB	默认项回调

◆ RegisterNodesContextMenuItem() [2/2]

void NXOpen::ShipDesign::Navigator::RegisterNodesContextMenuItem	(	const NXString &	title,
		const NXString &	icon,
		const NXOpen::ShipDesign::Navigator::NodesContextMenuItemActionCallback &	actionCB,
		const NXOpen::ShipDesign::Navigator::NodesContextMenuItemVisibilityCallback &	visibilityCB,
		const NXOpen::ShipDesign::Navigator::NodesContextMenuItemDefaultMenuItemCallback &	isDefaultCB )

注册多节点上下文菜单。
创建于NX11.0.1。

许可证要求: nx_ship_basic ("船舶基础设计")

参数

title	标题
icon	图标
actionCB	动作回调
visibilityCB	可见性回调
isDefaultCB	默认项回调

◆ RegisterViewContextMenuItem() [1/2]

void NXOpen::ShipDesign::Navigator::RegisterViewContextMenuItem	(	const char *	title,
		const char *	icon,
		const NXOpen::ShipDesign::Navigator::ViewContextMenuItemActionCallback &	actionCB,
		const NXOpen::ShipDesign::Navigator::ViewContextMenuItemVisibilityCallback &	visibilityCB )

注册视图上下文菜单
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

title	标题
icon	图标
actionCB	动作回调
visibilityCB	可见性回调

◆ RegisterViewContextMenuItem() [2/2]

void NXOpen::ShipDesign::Navigator::RegisterViewContextMenuItem	(	const NXString &	title,
		const NXString &	icon,
		const NXOpen::ShipDesign::Navigator::ViewContextMenuItemActionCallback &	actionCB,
		const NXOpen::ShipDesign::Navigator::ViewContextMenuItemVisibilityCallback &	visibilityCB )

注册视图上下文菜单
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

title	标题
icon	图标
actionCB	动作回调
visibilityCB	可见性回调

◆ SetNodeCheckCallback()

void NXOpen::ShipDesign::Navigator::SetNodeCheckCallback ( const NXOpen::ShipDesign::Navigator::NodeCheckCallback & checkCB )

设置节点勾选回调
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

checkCB 勾选回调

◆ SetNodeDeselectedCallback()

void NXOpen::ShipDesign::Navigator::SetNodeDeselectedCallback ( const NXOpen::ShipDesign::Navigator::NodeDeselectedCallback & deselectedCB )

设置节点取消选中回调
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

deselectedCB 取消选中回调

◆ SetNodePropertyCompareCallback()

void NXOpen::ShipDesign::Navigator::SetNodePropertyCompareCallback ( const NXOpen::ShipDesign::Navigator::NodePropertyCompareCallback & checkCB )

设置节点属性比较回调函数。
创建于NX12.0.2。

许可证要求: nx_ship_basic ("船舶基础设计")

参数

checkCB 检查回调

◆ SetNodeSelectedCallback()

void NXOpen::ShipDesign::Navigator::SetNodeSelectedCallback ( const NXOpen::ShipDesign::Navigator::NodeSelectedCallback & selectedCB )

设置节点选中回调
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

selectedCB 选中回调

◆ SetRootPart()

void NXOpen::ShipDesign::Navigator::SetRootPart ( NXOpen::BasePart * rootPart )

设置用于加载导航器模型的根部件。
创建于NX11.0.1。

许可证要求: nx_ship_basic ("船舶基础设计")

参数

rootPart 根部件

◆ ShowView()

void NXOpen::ShipDesign::Navigator::ShowView ( int viewIndex )

显示导航器视图
创建于NX11.0.1.

许可证要求: nx_ship_basic ("船舶基础设计")

参数

viewIndex 视图索引

Public 类型

Public 成员函数

友元

额外继承的成员函数

详细描述

成员类型定义说明

◆ NodeCheckCallback

◆ NodeContextMenuItemActionCallback

◆ NodeContextMenuItemDefaultMenuItemCallback

◆ NodeContextMenuItemVisibilityCallback

◆ NodeDeselectedCallback

◆ NodePropertyCompareCallback

◆ NodesContextMenuItemActionCallback

◆ NodesContextMenuItemDefaultMenuItemCallback

◆ NodesContextMenuItemVisibilityCallback

◆ NodeSelectedCallback

◆ ViewContextMenuItemActionCallback

◆ ViewContextMenuItemVisibilityCallback

成员函数说明

◆ GetRootPart()

◆ GetView()

◆ GetViewCount()

◆ Hide() [1/2]

◆ Hide() [2/2]

◆ HideView()

◆ RegisterNodeContextMenuItem() [1/2]

◆ RegisterNodeContextMenuItem() [2/2]

◆ RegisterNodesContextMenuItem() [1/2]

◆ RegisterNodesContextMenuItem() [2/2]

◆ RegisterViewContextMenuItem() [1/2]

◆ RegisterViewContextMenuItem() [2/2]

◆ SetNodeCheckCallback()

◆ SetNodeDeselectedCallback()

◆ SetNodePropertyCompareCallback()

◆ SetNodeSelectedCallback()

◆ SetRootPart()

◆ ShowView()
