NXOpen::Fields::FieldReference类 参考

表示一个引用场
引用场公开抽象数据存储内部的数据。抽象数据存储由适当的应用程序数据提供程序提供，并允许将提供程序数据作为 Fields::Field 进行访问

要获取此类的实例，请使用适当的应用程序数据提供程序。

创建于 NX9.0.0 版本。
更多...

#include <Fields_FieldReference.hxx>

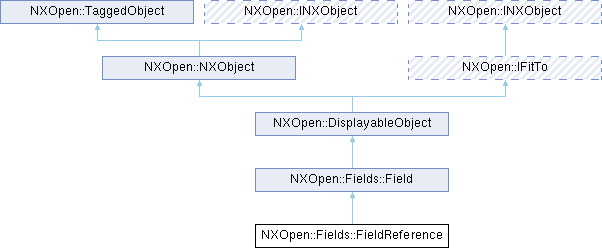

类 NXOpen::Fields::FieldReference 继承关系图:
NXOpen::Fields::Field NXOpen::DisplayableObject NXOpen::NXObject NXOpen::IFitTo NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject

Public 成员函数

NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum GetSecondaryValuesOutsideTableInterpolation ()
void SetSecondaryValuesOutsideTableInterpolation (NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum interpolMethod)
void SetValuesOutsideTableInterpolation (NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum interpolationMethod)
NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum ValuesOutsideTableInterpolation ()
Public 成员函数 继承自 NXOpen::Fields::Field
void AddApplicationData (NXOpen::Fields::IApplicationData *appData)
NXOpen::Fields::Field * CreateCopyInPart (NXOpen::BasePart *targetPart)
NXOpen::Fields::FieldTable * CreateTableInPart (NXOpen::BasePart *targetPart)
void Delete ()
NXOpen::Fields::IApplicationData * GetApplicationData (const char *applicationName)
NXOpen::Fields::IApplicationData * GetApplicationData (const NXString &applicationName)
std::vector< NXOpen::Fields::FieldVariable * > GetDependentVariables ()
std::vector< NXString > GetDescription ()
NXOpen::Fields::FieldEvaluator * GetFieldEvaluator ()
NXOpen::Fields::FieldFolder * GetFolder ()
int GetIdLabel ()
std::vector< NXOpen::Fields::FieldVariable * > GetIndependentVariables ()
NXOpen::Fields::SpatialMap * GetSpatialMap ()
bool IsLocked ()
bool IsUserField ()
void Reload ()
void Rename (const char *newName)
void Rename (const NXString &newName)
void SetDescription (std::vector< NXString > &lines)
void SetIdLabel (int idLabel)
void SetLocked (bool locked)
void SetPartContext ()
void SetSpatialMap (NXOpen::Fields::SpatialMap *overrideMap)
void XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray)
void XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int viewIndex, bool overlay)
void XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, bool overlay)
void XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, bool overlay, double scaleFactor, std::vector< NXOpen::CAE::Xyplot::Plot * > &plots)
void XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, bool overlay, std::vector< NXOpen::CAE::Xyplot::Plot * > &plots)
NXOpen::CAE::Xyplot::Plot * XYGraph3D (NXOpen::Fields::FieldVariable *xAxisIndepVar, double xAxisBndsMinimum, double xAxisBndsMaximum, int xAxisBndsSampleSize, NXOpen::Fields::FieldVariable *zAxisIndepVar, double zAxisBndsMinimum, double zAxisBndsMaximum, int zAxisBndsSampleSize, NXOpen::Fields::FieldVariable *yAxisDepVar, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, bool interpolateTableData, int windowDevice, int viewIndex, bool overlay, double scaleFactor)
void XYGraphArgand (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, std::vector< NXOpen::CAE::Xyplot::Plot * > &plots)
void XYGraphPlotData (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, bool overlay, double scaleFactor, NXOpen::Fields::Field::PlotOption plotOption, std::vector< NXOpen::CAE::Xyplot::Plot * > &plots)
Public 成员函数 继承自 NXOpen::DisplayableObject
void Blank ()
int Color ()
void Highlight ()
bool IsBlanked ()
int Layer ()
NXOpen::DisplayableObject::ObjectFont LineFont ()
NXOpen::DisplayableObject::ObjectWidth LineWidth ()
NXOpen::Point3d NameLocation ()
void RedisplayObject ()
void RemoveViewDependency ()
void SetColor (int color)
void SetLayer (int layer)
void SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void SetNameLocation (const NXOpen::Point3d &location)
void Unblank ()
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _FieldReferenceBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::Fields::Field
enum  PlotOption { PlotOptionInterpolatedValues , PlotOptionInterpolatedValuesWithBounds , PlotOptionRawTableValues }
Public 类型 继承自 NXOpen::DisplayableObject
enum  ObjectFont {
  ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,
  ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,
  ObjectFontNine , ObjectFontTen , ObjectFontEleven
}
enum  ObjectWidth {
  ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,
  ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,
  ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

表示一个引用场
引用场公开抽象数据存储内部的数据。抽象数据存储由适当的应用程序数据提供程序提供，并允许将提供程序数据作为 Fields::Field 进行访问

要获取此类的实例，请使用适当的应用程序数据提供程序。

创建于 NX9.0.0 版本。

场引用

成员函数说明

◆ GetSecondaryValuesOutsideTableInterpolation()

NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum NXOpen::Fields::FieldReference::GetSecondaryValuesOutsideTableInterpolation ( )

若引用场是异质的，获取次独立域的表外值插值方法。 否则，将引发错误。

返回
子场的表外值插值方法
创建于 NX12.0.0 版本。

许可证要求：无

◆ SetSecondaryValuesOutsideTableInterpolation()

void NXOpen::Fields::FieldReference::SetSecondaryValuesOutsideTableInterpolation ( NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum interpolMethod)

若引用场是异质的，设置次独立域的表外值插值方法。 否则，将引发错误。
创建于 NX12.0.0 版本。

许可证要求：无

参数
interpolMethod子场的表外值插值方法

◆ SetValuesOutsideTableInterpolation()

void NXOpen::Fields::FieldReference::SetValuesOutsideTableInterpolation ( NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum interpolationMethod)

设置线性插值的表外值插值方法。 若引用场是异质的，此方法设置主独立域的表外值插值方法， 并使用 set_secondary_values_outside_table_interpolation 方法设置次独立域的表外值插值方法。
创建于 NX12.0.0 版本。

许可证要求：无

参数
interpolationMethod表外值插值方法

◆ ValuesOutsideTableInterpolation()

NXOpen::Fields::FieldEvaluator::ValuesOutsideTableInterpolationEnum NXOpen::Fields::FieldReference::ValuesOutsideTableInterpolation ( )

返回线性插值的表外值插值方法。 若引用场是异质的，此方法获取主独立域的表外值插值方法， 并使用 set_secondary_values_outside_table_interpolation 方法获取次独立域的表外值插值方法。
创建于 NX12.0.0 版本。

许可证要求：无
