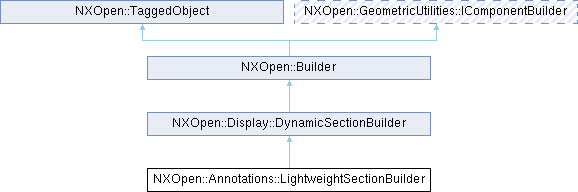

类 NXOpen::Annotations::LightweightSectionBuilder 继承关系图:

Public 成员函数
NXOpen::SelectDisplayableObjectList *	BoundingBoxComponents ()
bool	ClipCoplanarObjects ()
bool	ClipWireframeObjects ()
void	GetSectionCurves (std::vector< NXOpen::Curve * > &curves)
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.AssemblyCrosshatching@endlink instead.") bool AssemblyCrosshatching()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.AssemblyCrosshatching@endlink instead.") void SetAssemblyCrosshatching(bool assemblyCrosshatchingOption)
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchAdjacencyTolerance@endlink instead.") double ToleranceCrosshatch()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchAdjacencyTolerance@endlink instead.") void SetToleranceCrosshatch(double crosshatchAdjacencyTolerance)
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchPatternDefinedBy@endlink instead.") int PatternDefinedBy()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchPatternDefinedBy@endlink instead.") void SetPatternDefinedBy(int patternDefinedBy)
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.DisplayCrosshatch@endlink instead.") bool DisplayCrosshatch()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.DisplayCrosshatch@endlink instead.") void SetDisplayCrosshatch(bool displayCrosshatchOption)
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.RestrictCrosshatchAngle@endlink instead.") bool RestrictCrosshatch()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.RestrictCrosshatchAngle@endlink instead.") void SetRestrictCrosshatch(bool restrictCrosshatchOption)
NXOpen::SelectDisplayableObjectList *	ObjectsToSection ()
bool	SaveAssociativeCurves ()
void	SetClipCoplanarObjects (bool clipCoplanarObjectsOption)
void	SetClipWireframeObjects (bool clipWireframeObjectsOption)
void	SetSaveAssociativeCurves (bool saveAssociativeCurvesToggle)
NXOpen::Annotations::PmiSectionViewSettingsBuilder *	Settings ()
void	SetViewName (const char *viewName)
void	SetViewName (const NXString &viewName)
NXString	ViewName ()
Public 成员函数继承自 NXOpen::Display::DynamicSectionBuilder
void	AlternatePlane ()
bool	BoxExtentDelayUpdate ()
double	BoxExtentMargin ()
NXOpen::SelectINXObjectList *	BoxExtentObjects ()
bool	BoxExtentSupported ()
NXOpen::NXColor *	CapColor ()
NXOpen::Display::DynamicSectionTypes::CapColorOption	CapColorOption ()
NXOpen::Display::DynamicSectionTypes::Clip	ClipType ()
NXOpen::DatumPlane *	CreateDatumPlane ()
NXOpen::Display::DynamicSectionTypes::CoordinateSystem	CsysType ()
NXOpen::NXColor *	CurveColor ()
NXOpen::Display::DynamicSectionTypes::CurveColorOption	CurveColorOption ()
NXOpen::DisplayableObject::ObjectFont	CurveFont ()
NXOpen::DisplayableObject::ObjectWidth	CurveWidth ()
NXOpen::Display::DynamicSectionTypes::Axis	DefaultPlaneAxis ()
bool	DeferCurveUpdate ()
void	EditView (NXOpen::ModelingView *view)
NXOpen::Part *	ExportSectionCurves (const char groupName, const char fileName, int *numSectionCurves)
NXOpen::Part *	ExportSectionCurves (const NXString &groupName, const NXString &fileName, int *numSectionCurves)
void	GetActivePlane (NXOpen::Display::DynamicSectionTypes::Axis planeAxis, NXOpen::Display::DynamicSectionTypes::ActivePlane activePlane)
void	GetAllPlanesGeometry (std::vector< NXOpen::Point3d > &planeOrigins, std::vector< NXOpen::Matrix3x3 > &planeMetrices)
NXOpen::Plane *	GetAssociativePlane ()
void	GetBoundingBox (NXOpen::Point3d minCornerPt, NXOpen::Point3d maxCornerPt)
NXOpen::Display::PlaneGridBuilder *	GetGridSettings ()
NXString	GetName ()
NXOpen::Vector3d	GetNormal ()
double	GetOffset ()
void	GetOffsetLimits (double minimumOffset, double maximumOffset)
NXOpen::Point3d	GetOrigin ()
void	GetPlaneGeometry (NXOpen::Display::DynamicSectionTypes::Axis axisType, NXOpen::Display::DynamicSectionTypes::ActivePlane planeType, NXOpen::Point3d origin, NXOpen::Matrix3x3 matrix)
double	GetPlaneThickness ()
double	GetRotationAngle (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis)
NXOpen::Matrix3x3	GetRotationMatrix ()
NXOpen::NXColor *	InterferenceColor ()
bool	IsAssociativitySupported ()
bool	IsDefaultPlane ()
NXOpen::Display::LayerSettingsBuilder *	LayerSettings ()
bool	LoadAllIntersecting (NXOpen::PartLoadStatus **loadStatus)
bool	LoadNearIntersecting (NXOpen::PartLoadStatus **loadStatus)
bool	LockPlanes ()
int	NumberInSeries ()
	NX_DEPRECATED ("Deprecated in NX6.0.0. Use ModelingView::IsDynamicSectionVisible instead.") bool ShowCurves()
	NX_DEPRECATED ("Deprecated in NX6.0.0. Use ModelingView::SetDynamicSectionVisible instead.") void SetShowCurves(bool showCurves)
void	OffsetOriginInPlane (double xOffset, double yOffset)
void	PlaneX ()
void	PlaneY ()
void	PlaneZ ()
void	RestoreView ()
void	ReverseDirection ()
bool	ReverseSeries ()
void	SaveCurves (const char *groupName)
void	SaveCurves (const NXString &groupName)
double	SeriesSpacing ()
void	SetActivePlane (NXOpen::Display::DynamicSectionTypes::Axis planeAxis, NXOpen::Display::DynamicSectionTypes::ActivePlane activePlane)
bool	SetAllPlanesGeometry (const std::vector< NXOpen::Point3d > &planeOrigins, const std::vector< NXOpen::Matrix3x3 > &planeMetrices)
void	SetAssociativePlane (NXOpen::Plane *planeTag)
void	SetBoundingBox (const NXOpen::Point3d &minCornerPt, const NXOpen::Point3d &maxCornerPt)
void	SetBoxExtentDelayUpdate (bool delayUpdate)
void	SetBoxExtentMargin (double margin)
void	SetCapColor (NXOpen::NXColor *capColor)
void	SetCapColorOption (NXOpen::Display::DynamicSectionTypes::CapColorOption capColorOption)
void	SetClipType (NXOpen::Display::DynamicSectionTypes::Clip clipType)
void	SetCsysType (NXOpen::Display::DynamicSectionTypes::CoordinateSystem csys)
void	SetCurveColor (NXOpen::NXColor *curveColor)
void	SetCurveColorOption (NXOpen::Display::DynamicSectionTypes::CurveColorOption curveColorOption)
void	SetCurveFont (NXOpen::DisplayableObject::ObjectFont curveFont)
void	SetCurveWidth (NXOpen::DisplayableObject::ObjectWidth curveWidth)
void	SetDefaultPlane ()
void	SetDefaultPlaneAxis (NXOpen::Display::DynamicSectionTypes::Axis planeAxis)
void	SetDefaults ()
void	SetDeferCurveUpdate (bool deferCurveUpdate)
void	SetInterferenceColor (NXOpen::NXColor *interferenceColor)
void	SetLockPlanes (bool lockPlanes)
bool	SetName (const char *sectionName)
bool	SetName (const NXString &sectionName)
void	SetNormal (const NXOpen::Vector3d &normal)
void	SetNumberInSeries (int numberSectionsRequested)
void	SetOffset (double offset)
void	SetOffsetByPoint (const NXOpen::Point3d &point)
void	SetOrigin (const NXOpen::Point3d &origin)
void	SetPlane (const NXOpen::Point3d &axisOrigin, const NXOpen::Point3d &origin, const NXOpen::Matrix3x3 &rotationMatrix)
void	SetPlaneThickness (double planeThickness)
void	SetReverseSeries (bool reverseSeries)
void	SetRotationAngle (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis, double angle)
void	SetRotationMatrix (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis, const NXOpen::Matrix3x3 &rotationMatrix)
void	SetSeriesSpacing (double sectionSpacing)
void	SetShowCap (bool showCap)
void	SetShowClip (bool showClip)
void	SetShowGrid (bool showGrid)
void	SetShowInterference (bool showInterference)
void	SetShowViewer (bool showViewer)
void	SetType (NXOpen::Display::DynamicSectionTypes::Type type)
void	SetView (NXOpen::ModelingView *view)
bool	ShowCap ()
bool	ShowClip ()
void	ShowCurvePreview (bool showCurvePreview)
bool	ShowGrid ()
bool	ShowInterference ()
void	ShowSectionCurves (bool showCurves)
bool	ShowViewer ()
NXOpen::Display::DynamicSectionTypes::Type	Type ()
void	UpdateBoxExtents ()
NXOpen::ModelingView *	View ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_LightweightSectionBuilderBuilder

详细描述

轻量级截面构建器

表示 NXOpen::Annotations::LightweightSection 构建器
要创建此类的新实例，请使用 NXOpen::Annotations::PmiLightweightSectionCollection::CreateLightweightSectionBuilder
默认值。

属性	值
BoxExtentDelayUpdate	false
CapColorOption	Any
ClipType	Section
CurveColorOption	Any
CurveFont	Solid
CurveWidth	Two
LockPlanes	true
ShowCap	true
ShowClip	true
ShowCurves (已弃用)	false
ShowGrid	false
ShowInterference	false
ShowViewer	false
Type	OnePlane

在 NX7.5.0 版本中创建。

成员函数说明

◆ BoundingBoxComponents()

NXOpen::SelectDisplayableObjectList * NXOpen::Annotations::LightweightSectionBuilder::BoundingBoxComponents ( )

返回用于定义箱型剖切类型边界范围的对象
Created in NX8.0.0.

License requirements : None

◆ ClipCoplanarObjects()

bool NXOpen::Annotations::LightweightSectionBuilder::ClipCoplanarObjects ( )

返回剖切平面符号

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.CuttingPlaneSymbol@endlink。
创建于NX9.0.0。

许可要求：无

返回修剪共面对象选项
创建于NX11.0.0。

许可要求：无

◆ ClipWireframeObjects()

bool NXOpen::Annotations::LightweightSectionBuilder::ClipWireframeObjects ( )

返回修剪线框对象选项
创建于NX11.0.1。

许可要求：无

◆ GetSectionCurves()

void NXOpen::Annotations::LightweightSectionBuilder::GetSectionCurves ( std::vector< NXOpen::Curve * > & curves )

返回轻量剖切视图的曲线
Created in NX7.5.0.

License requirements : None

参数

curves Array of lightweight section view curves

◆ NX_DEPRECATED() [1/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.AssemblyCrosshatching@endlink instead." )

返回装配剖面线选项

弃用: Deprecated in NX2007.0.0. Use instead.
Created in NX9.0.0.

License requirements : None

◆ NX_DEPRECATED() [2/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.AssemblyCrosshatching@endlink instead." )

设置装配剖面线选项

弃用: Deprecated in NX2007.0.0. Use instead.
Created in NX9.0.0.

License requirements : geometric_tol ("GDT")

assemblycrosshatchingoption

◆ NX_DEPRECATED() [3/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchAdjacencyTolerance@endlink instead." )

返回剖面线相邻容差

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchAdjacencyTolerance@endlink。
创建于NX9.0.0。

许可要求：无

◆ NX_DEPRECATED() [4/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchAdjacencyTolerance@endlink instead." )

设置剖面线相邻容差

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchAdjacencyTolerance@endlink。
创建于NX9.0.0。

许可要求：geometric_tol ("GDT")

crosshatchadjacencytolerance

◆ NX_DEPRECATED() [5/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchPatternDefinedBy@endlink instead." )

返回剖面线图案定义方式

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchPatternDefinedBy@endlink。
创建于NX9.0.0。

许可要求：无

◆ NX_DEPRECATED() [6/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchPatternDefinedBy@endlink instead." )

设置剖面线图案定义方式

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.View.CrosshatchPatternDefinedBy@endlink。
创建于NX9.0.0。

许可要求：geometric_tol ("GDT")

patterndefinedby

◆ NX_DEPRECATED() [7/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.DisplayCrosshatch@endlink instead." )

返回剖面线设置

弃用: Deprecated in NX2007.0.0. Use instead.
Created in NX9.0.0.

License requirements : None

返回显示剖面线选项

弃用: Deprecated in NX2007.0.0. Use instead.
Created in NX9.0.0.

License requirements : None

◆ NX_DEPRECATED() [8/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.DisplayCrosshatch@endlink instead." )

设置显示剖面线选项

弃用: Deprecated in NX2007.0.0. Use instead.
Created in NX9.0.0.

License requirements : geometric_tol ("GDT")

displaycrosshatchoption

◆ NX_DEPRECATED() [9/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.RestrictCrosshatchAngle@endlink instead." )

返回限制剖面线角度为45度的选项

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.View.RestrictCrosshatchAngle@endlink。
创建于NX9.0.0。

许可要求：无

◆ NX_DEPRECATED() [10/10]

NXOpen::Annotations::LightweightSectionBuilder::NX_DEPRECATED ( "Deprecated in NX2007.0.0. Use @link NXOpen.LightweightSectionBuilder.Settings.View.RestrictCrosshatchAngle@endlink instead." )

设置限制剖面线角度为45度的选项

弃用: 在NX2007.0.0中已弃用。请改用 NXOpen.LightweightSectionBuilder.Settings.View.RestrictCrosshatchAngle@endlink。
创建于NX9.0.0。

许可要求：geometric_tol ("GDT")

restrictcrosshatchoption

◆ ObjectsToSection()

NXOpen::SelectDisplayableObjectList * NXOpen::Annotations::LightweightSectionBuilder::ObjectsToSection ( )

返回要剖切的对象
Created in NX7.5.0.

License requirements : None

◆ SaveAssociativeCurves()

bool NXOpen::Annotations::LightweightSectionBuilder::SaveAssociativeCurves ( )

返回保存关联曲线的切换值
Created in NX7.5.0.

License requirements : None

◆ SetClipCoplanarObjects()

void NXOpen::Annotations::LightweightSectionBuilder::SetClipCoplanarObjects ( bool clipCoplanarObjectsOption )

设置修剪共面对象选项
创建于NX11.0.0。

许可要求：geometric_tol ("GDT")

参数

clipCoplanarObjectsOption clipcoplanarobjectsoption

◆ SetClipWireframeObjects()

void NXOpen::Annotations::LightweightSectionBuilder::SetClipWireframeObjects ( bool clipWireframeObjectsOption )

设置修剪线框对象选项
创建于NX11.0.1。

许可要求：geometric_tol ("GDT")

参数

clipWireframeObjectsOption clipwireframeobjectsoption

◆ SetSaveAssociativeCurves()

void NXOpen::Annotations::LightweightSectionBuilder::SetSaveAssociativeCurves ( bool saveAssociativeCurvesToggle )

设置保存关联曲线的切换值
Created in NX7.5.0.

License requirements : geometric_tol ("GDT")

参数

saveAssociativeCurvesToggle saveassociativecurvestoggle

◆ Settings()

NXOpen::Annotations::PmiSectionViewSettingsBuilder * NXOpen::Annotations::LightweightSectionBuilder::Settings ( )

返回视图设置
Created in NX2007.0.0.

License requirements : None

◆ SetViewName() [1/2]

void NXOpen::Annotations::LightweightSectionBuilder::SetViewName ( const char * viewName )

设置轻量剖切视图的名称
Created in NX7.5.0.

License requirements : geometric_tol ("GDT")

参数

viewName Section name

◆ SetViewName() [2/2]

void NXOpen::Annotations::LightweightSectionBuilder::SetViewName ( const NXString & viewName )

设置轻量剖切视图的名称
Created in NX7.5.0.

License requirements : geometric_tol ("GDT")

参数

viewName Section name

◆ ViewName()

NXString NXOpen::Annotations::LightweightSectionBuilder::ViewName ( )

返回轻量剖切视图的名称
Created in NX7.5.0.

License requirements : None

Public 成员函数

友元

详细描述

成员函数说明

◆ BoundingBoxComponents()

◆ ClipCoplanarObjects()

◆ ClipWireframeObjects()

◆ GetSectionCurves()

◆ NX_DEPRECATED() [1/10]

◆ NX_DEPRECATED() [2/10]

◆ NX_DEPRECATED() [3/10]

◆ NX_DEPRECATED() [4/10]

◆ NX_DEPRECATED() [5/10]

◆ NX_DEPRECATED() [6/10]

◆ NX_DEPRECATED() [7/10]

◆ NX_DEPRECATED() [8/10]

◆ NX_DEPRECATED() [9/10]

◆ NX_DEPRECATED() [10/10]

◆ ObjectsToSection()

◆ SaveAssociativeCurves()

◆ SetClipCoplanarObjects()

◆ SetClipWireframeObjects()

◆ SetSaveAssociativeCurves()

◆ Settings()

◆ SetViewName() [1/2]

◆ SetViewName() [2/2]

◆ ViewName()
