NXOpen::Display::PlaneGridBuilder类 参考

平面网格构建器 更多...

#include <Display_PlaneGridBuilder.hxx>

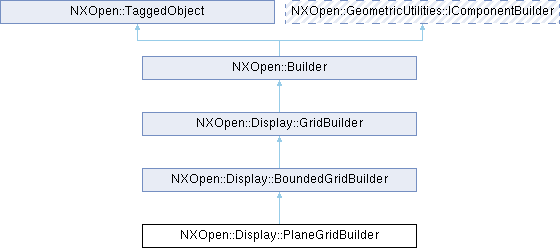

类 NXOpen::Display::PlaneGridBuilder 继承关系图:

Public 成员函数
NXOpen::Plane *	Plane ()
void	SetPlane (NXOpen::Plane *plane)
Public 成员函数 继承自 NXOpen::Display::BoundedGridBuilder
bool	Associative ()
bool	GetCornerPoints (NXOpen::Point3d *point1, NXOpen::Point3d *point2, NXOpen::Point3d *point3, NXOpen::Point3d *point4)
NXOpen::Display::BoundedGridBuilder::LabelReferenceType	LabelReference ()
NXOpen::Point3d	LocalOrigin ()
void	SaveCurves (const char *groupName)
void	SaveCurves (const NXString &groupName)
NXOpen::Display::SectionCurveSettingsBuilder *	SectionCurveSettings ()
void	SetAssociative (bool associative)
bool	SetCornerPoints (const NXOpen::Point3d &point1, const NXOpen::Point3d &point2, const NXOpen::Point3d &point3, const NXOpen::Point3d &point4)
void	SetLabelReference (NXOpen::Display::BoundedGridBuilder::LabelReferenceType labelReference)
void	SetLocalOrigin (const NXOpen::Point3d &localOrigin)
void	SetShowLabel (NXOpen::Display::BoundedGridBuilder::ShowLabelType showLabelType)
NXOpen::Display::BoundedGridBuilder::ShowLabelType	ShowLabel ()
Public 成员函数 继承自 NXOpen::Display::GridBuilder
void	InheritSettings (NXOpen::Display::Grid *grid)
NXOpen::NXColor *	LineColor ()
double	MajorLineSpacing ()
NXOpen::Display::GridBuilder::LineStyleType	MajorLineStyle ()
NXOpen::Display::GridBuilder::LineWeightType	MajorLineWeight ()
int	MinorLinesPerMajor ()
NXOpen::Display::GridBuilder::LineStyleType	MinorLineStyle ()
NXOpen::Display::GridBuilder::LineWeightType	MinorLineWeight ()
void	SetLineColor (NXOpen::NXColor *lineColor)
void	SetMajorLineSpacing (double majorLineSpacing)
void	SetMajorLineStyle (NXOpen::Display::GridBuilder::LineStyleType majorLineStyle)
void	SetMajorLineWeight (NXOpen::Display::GridBuilder::LineWeightType majorLineWeight)
void	SetMinorLinesPerMajor (int minorLinesPerMajor)
void	SetMinorLineStyle (NXOpen::Display::GridBuilder::LineStyleType minorLineStyle)
void	SetMinorLineWeight (NXOpen::Display::GridBuilder::LineWeightType minorLineWeight)
void	SetShow (bool show)
void	SetShowMajorLines (bool showMajorLines)
void	SetShowOnTop (bool showOnTop)
void	SetSnapPointsPerMinor (int snapPointsPerMinor)
void	SetSnapToGrid (bool snapToGrid)
bool	Show ()
bool	ShowMajorLines ()
bool	ShowOnTop ()
int	SnapPointsPerMinor ()
bool	SnapToGrid ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_PlaneGridBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Display::BoundedGridBuilder
enum	LabelReferenceType { LabelReferenceTypeLocal , LabelReferenceTypeWcs , LabelReferenceTypeAbsolute }
enum	ShowLabelType { ShowLabelTypeAlways , ShowLabelTypeParalleltoView , ShowLabelTypeNone }
Public 类型 继承自 NXOpen::Display::GridBuilder
enum	LineStyleType {   LineStyleTypeSolid , LineStyleTypeDashed , LineStyleTypePhantom , LineStyleTypeCenterline ,   LineStyleTypeDotted , LineStyleTypeLongdash , LineStyleTypeDotdash , LineStyleTypeEight ,   LineStyleTypeNine , LineStyleTypeTen , LineStyleTypeEleven }
enum	LineWeightType {   LineWeightTypeThin , LineWeightTypeNormal , LineWeightTypeThick , LineWeightTypeOne ,   LineWeightTypeTwo , LineWeightTypeThree , LineWeightTypeFour , LineWeightTypeFive ,   LineWeightTypeSix , LineWeightTypeSeven , LineWeightTypeEight , LineWeightTypeNine }

详细描述

平面网格构建器

表示用于向平面添加有界网格 NXOpen::Display::PlaneGrid 的构建器。
要创建此类的新实例，请使用 NXOpen::Display::GridCollection::CreatePlaneGridBuilder
默认值。

属性	值
关联性	1
标签参考	Local
主线条间距	100（毫米单位部件），1（英寸单位部件）
主线条样式	实线
主线条粗细	正常
次线条样式	虚线
次线条粗细	细
每主线条的次线条数	1
显示	1
显示标签	Always
显示主线条	1
显示在顶部	0
每次线条的捕捉点数	1
捕捉到网格	0

创建于NX6.0.0。

成员函数说明

Plane()

NXOpen::Plane * NXOpen::Display::PlaneGridBuilder::Plane

(

)

返回平面
创建于NX6.0.0。

许可证要求：无

SetPlane()

void NXOpen::Display::PlaneGridBuilder::SetPlane

(

NXOpen::Plane *

plane

)

设置平面
创建于NX6.0.0。

许可证要求：无

参数

plane

平面
