Public 成员函数 | 友元 | 所有成员列表
NXOpen::SketchHelpedGeometricConstraint类 参考

草图辅助几何约束类 更多...

#include <SketchHelpedGeometricConstraint.hxx>

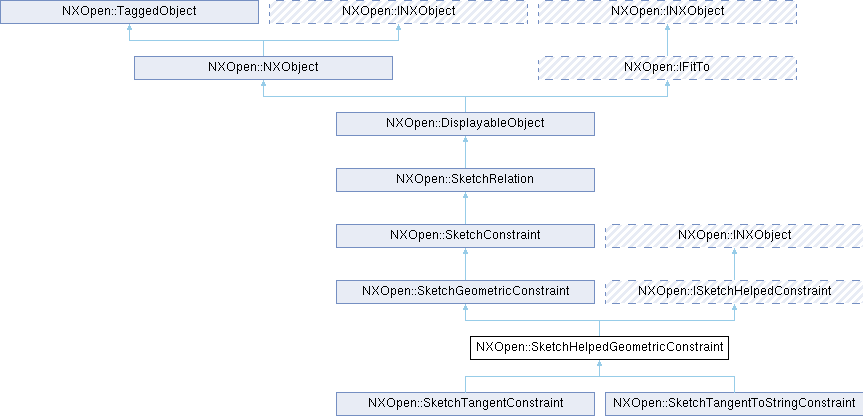

类 NXOpen::SketchHelpedGeometricConstraint 继承关系图:
NXOpen::SketchGeometricConstraint NXOpen::ISketchHelpedConstraint NXOpen::SketchConstraint NXOpen::INXObject NXOpen::SketchRelation NXOpen::DisplayableObject NXOpen::NXObject NXOpen::IFitTo NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject NXOpen::SketchTangentConstraint NXOpen::SketchTangentToStringConstraint

Public 成员函数

virtual void GetHelpData (bool *hasHelpPoint1, bool *hasHelpPoint2, bool *hasHelpParameter1, bool *hasHelpParameter2, NXOpen::Point3d *helpPoint1, NXOpen::Point3d *helpPoint2, double *helpParameter1, double *helpParameter2)
virtual void SetHelpParameters (bool hasHelp1, bool hasHelp2, double helpParameter1, double helpParameter2)
virtual void SetHelpPoints (bool hasHelp1, bool hasHelp2, const NXOpen::Point3d &helpPoint1, const NXOpen::Point3d &helpPoint2)
Public 成员函数 继承自 NXOpen::SketchGeometricConstraint
std::vector< NXOpen::Sketch::ConstraintGeometry > GetGeometry ()
bool IsInferred ()
Public 成员函数 继承自 NXOpen::SketchConstraint
NXOpen::Sketch::ConstraintType ConstraintType ()
void Refresh ()
void RefreshDimension ()
Public 成员函数 继承自 NXOpen::DisplayableObject
void Blank ()
int Color ()
void Highlight ()
bool IsBlanked ()
int Layer ()
NXOpen::DisplayableObject::ObjectFont LineFont ()
NXOpen::DisplayableObject::ObjectWidth LineWidth ()
NXOpen::Point3d NameLocation ()
void RedisplayObject ()
void RemoveViewDependency ()
void SetColor (int color)
void SetLayer (int layer)
void SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void SetNameLocation (const NXOpen::Point3d &location)
void Unblank ()
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _SketchHelpedGeometricConstraintBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::DisplayableObject
enum  ObjectFont {
  ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,
  ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,
  ObjectFontNine , ObjectFontTen , ObjectFontEleven
}
enum  ObjectWidth {
  ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,
  ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,
  ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

草图辅助几何约束类

Represents a geometric sketch constraint that has a help point or help parameter
To obtain an instance of this class, use Sketch

Created in NX3.0.0.

成员函数说明

◆ GetHelpData()

virtual void NXOpen::SketchHelpedGeometricConstraint::GetHelpData ( bool * hasHelpPoint1,
bool * hasHelpPoint2,
bool * hasHelpParameter1,
bool * hasHelpParameter2,
NXOpen::Point3d * helpPoint1,
NXOpen::Point3d * helpPoint2,
double * helpParameter1,
double * helpParameter2 )
virtual

Gets the help data for the constraint
Created in NX3.0.0.

License requirements : None

参数
hasHelpPoint1Whether the constraint's first associated geometric item has an associated help point
hasHelpPoint2Whether the constraint's second associated geometric item has an associated help point
hasHelpParameter1Whether the constraint's first associated geometric item has an associated help parameter
hasHelpParameter2Whether the constraint's second associated geometric item has an associated help parameter
helpPoint1The first help point. Not used unless has_help_point1 is true.
helpPoint2The second help point. Not used unless has_help_point2 is true.
helpParameter1The first help parameter. Not used unless has_help_parameter1 is true.
helpParameter2The second help parameter. Not used unless has_help_parameter2 is true.

实现了 NXOpen::ISketchHelpedConstraint.

◆ SetHelpParameters()

virtual void NXOpen::SketchHelpedGeometricConstraint::SetHelpParameters ( bool hasHelp1,
bool hasHelp2,
double helpParameter1,
double helpParameter2 )
virtual

Sets the help parameters for the constraint
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR drafting ("DRAFTING")

参数
hasHelp1Whether the constraint's first associated geometric item has an associated help parameter
hasHelp2Whether the constraint's second associated geometric item has an associated help parameter
helpParameter1The first help parameter. Not used unless has_help1 is true.
helpParameter2The second help parameter. Not used unless has_help2 is true.

实现了 NXOpen::ISketchHelpedConstraint.

◆ SetHelpPoints()

virtual void NXOpen::SketchHelpedGeometricConstraint::SetHelpPoints ( bool hasHelp1,
bool hasHelp2,
const NXOpen::Point3d & helpPoint1,
const NXOpen::Point3d & helpPoint2 )
virtual

Sets the help points for the constraint
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR drafting ("DRAFTING")

参数
hasHelp1Whether the constraint's first associated geometric item has an associated help point
hasHelp2Whether the constraint's second associated geometric item has an associated help point
helpPoint1The first help point. Not used unless has_help1 is true.
helpPoint2The second help point. Not used unless has_help2 is true.

实现了 NXOpen::ISketchHelpedConstraint.
