#include <Routing_SingleDevice.hxx>

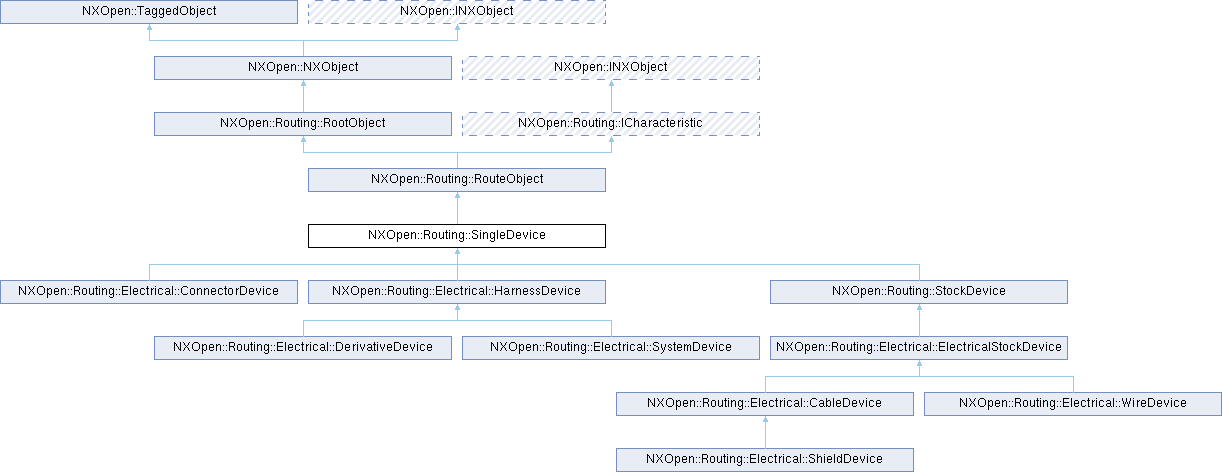

类 NXOpen::Routing::SingleDevice 继承关系图:

Public 类型
enum	DeleteObjectResult { DeleteObjectResultOk , DeleteObjectResultStillRouted , DeleteObjectResultStillAssigned , DeleteObjectResultCantDeleteUnknown }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
std::vector< NXOpen::Routing::LogicalConnection * >	GetImplementedConnections ()
NXOpen::Routing::ItemDefinition *	GetItemDefinition ()
std::vector< NXOpen::Routing::DeviceRelationship * >	GetReferencingDeviceRelshps ()
std::vector< NXOpen::Routing::SingleDevice * >	GetRelatedSingleDevices ()
NXOpen::Routing::SingleDevice *	GetRelatingSingleDevice ()
NXOpen::Routing::SingleDevice::DeleteObjectResult	ManuallyDelete ()
NXOpen::NXObject *	NxEquivalent ()
NXString	PartName ()
NXString	PartNumber ()
void	SetNxEquivalent (NXOpen::NXObject *routeNxEquivalent)
void	SetPartName (const char *routePartName)
void	SetPartName (const NXString &routePartName)
void	SetPartNumber (const char *routePartNumber)
void	SetPartNumber (const NXString &routePartNumber)
Public 成员函数继承自 NXOpen::Routing::RouteObject
virtual void	DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
virtual NXOpen::Routing::CharacteristicList *	GetCharacteristics ()
virtual NXOpen::Routing::CharacteristicList *	GetDestinationCharacteristics ()
virtual int	GetIntegerCharacteristic (const char *name)
virtual int	GetIntegerCharacteristic (const NXString &name)
virtual double	GetRealCharacteristic (const char *name)
virtual double	GetRealCharacteristic (const NXString &name)
virtual NXString	GetStringCharacteristic (const char *name)
virtual NXString	GetStringCharacteristic (const NXString &name)
	NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
virtual void	SetCharacteristic (const char name, const char value)
virtual void	SetCharacteristic (const char *name, double value)
virtual void	SetCharacteristic (const char *name, int value)
virtual void	SetCharacteristic2 (const char title, const char value)
virtual void	SetCharacteristic2 (const char *title, double value)
virtual void	SetCharacteristic2 (const char *title, int value)
virtual void	SetCharacteristic2 (const NXString &title, const NXString &value)
virtual void	SetCharacteristic2 (const NXString &title, double value)
virtual void	SetCharacteristic2 (const NXString &title, int value)
virtual void	SetCharacteristics2 (NXOpen::Routing::CharacteristicList *values)
Public 成员函数继承自 NXOpen::Routing::RootObject
NXString	Guid ()
void	SetGuid (const char *guid)
void	SetGuid (const NXString &guid)
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const
Public 成员函数继承自 NXOpen::Routing::ICharacteristic
	NX_DEPRECATED ("在NX11.0.0中已弃用。请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("在NX11.0.0中已弃用。请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("在NX11.0.0中已弃用。请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name

友元
class	_SingleDeviceBuilder

额外继承的成员函数
Public 属性继承自 NXOpen::Routing::RouteObject
const NXString &	value
double	value
int	value
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value
Public 属性继承自 NXOpen::Routing::ICharacteristic
const NXString &	value = 0
double	value = 0
int	value = 0

详细描述

单一设备类

   布线单设备（SingleDevice）对应@link NXOpen::Routing::ItemDefinition NXOpen::Routing::ItemDefinition@endlink 的抽象实例。
<br> 知识融合(KF)中不提供创建方法。  <br>

于NX4.0.2版本创建。

成员枚举类型说明

◆ DeleteObjectResult

enum NXOpen::Routing::SingleDevice::DeleteObjectResult

删除结果

枚举值
DeleteObjectResultOk	单设备删除成功。
DeleteObjectResultStillRouted	已布线的连接不会被删除。请先解除布线再删除。
DeleteObjectResultStillAssigned	已分配的组件不会被删除。请先解除分配再删除。
DeleteObjectResultCantDeleteUnknown	删除时发生未知错误。请提交事件报告反馈此问题。

成员函数说明

◆ GetImplementedConnections()

std::vector< NXOpen::Routing::LogicalConnection * > NXOpen::Routing::SingleDevice::GetImplementedConnections ( )

获取在此单设备上实现的连接。

返回: 逻辑连接集合
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ GetItemDefinition()

NXOpen::Routing::ItemDefinition * NXOpen::Routing::SingleDevice::GetItemDefinition ( )

获取物料定义。

返回: 物料定义对象
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ GetReferencingDeviceRelshps()

std::vector< NXOpen::Routing::DeviceRelationship * > NXOpen::Routing::SingleDevice::GetReferencingDeviceRelshps ( )

获取引用此设备的设备关系。

返回: 设备关系集合
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ GetRelatedSingleDevices()

std::vector< NXOpen::Routing::SingleDevice * > NXOpen::Routing::SingleDevice::GetRelatedSingleDevices ( )

假设此单设备是NXOpen::Routing::DeviceRelationship 中的关联方设备，获取对应的被关联方单设备集合。

返回: 被关联方单设备集合
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ GetRelatingSingleDevice()

NXOpen::Routing::SingleDevice * NXOpen::Routing::SingleDevice::GetRelatingSingleDevice ( )

假设此单设备是NXOpen::Routing::DeviceRelationship 中的被关联方设备，获取对应的关联方单设备。

返回: 关联方单设备
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ ManuallyDelete()

NXOpen::Routing::SingleDevice::DeleteObjectResult NXOpen::Routing::SingleDevice::ManuallyDelete ( )

手动删除单设备。

返回: 删除结果
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ NxEquivalent()

NXOpen::NXObject * NXOpen::Routing::SingleDevice::NxEquivalent ( )

获取对应的NX对象。 Routing::Electrical::ConnectorDevice 对应的NX对象是Assemblies::Component 。 Routing::Electrical::ElectricalStockDevice 对应的NX对象是Routing::Wire 。 Routing::Electrical::HarnessDevice 对应的NX对象同样是Routing::Wire 。 Routing::StockDevice 对应的NX对象是Routing::Stock 。
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ PartName()

NXString NXOpen::Routing::SingleDevice::PartName ( )

获取部件名称
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ PartNumber()

NXString NXOpen::Routing::SingleDevice::PartNumber ( )

获取部件编号
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

◆ SetNxEquivalent()

void NXOpen::Routing::SingleDevice::SetNxEquivalent ( NXOpen::NXObject * routeNxEquivalent )

设置对应的NX对象。 Routing::Electrical::ConnectorDevice 对应的NX对象是Assemblies::Component 。 Routing::Electrical::ElectricalStockDevice 对应的NX对象是Routing::Wire 。 Routing::Electrical::HarnessDevice 对应的NX对象同样是Routing::Wire 。 Routing::StockDevice 对应的NX对象是Routing::Stock 。
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

routeNxEquivalent 对应的NX对象

◆ SetPartName() [1/2]

void NXOpen::Routing::SingleDevice::SetPartName ( const char * routePartName )

设置部件名称
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

routePartName 部件名称

◆ SetPartName() [2/2]

void NXOpen::Routing::SingleDevice::SetPartName ( const NXString & routePartName )

设置部件名称
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

routePartName 部件名称

◆ SetPartNumber() [1/2]

void NXOpen::Routing::SingleDevice::SetPartNumber ( const char * routePartNumber )

设置部件编号
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

routePartNumber 部件编号

◆ SetPartNumber() [2/2]

void NXOpen::Routing::SingleDevice::SetPartNumber ( const NXString & routePartNumber )

设置部件编号
于NX4.0.2版本创建。

许可要求：routing_advanced（"高级布线"）, routing_base（"基础布线"）

参数

routePartNumber 部件编号

Public 类型

Public 成员函数

友元

额外继承的成员函数

详细描述

成员枚举类型说明

◆ DeleteObjectResult

成员函数说明

◆ GetImplementedConnections()

◆ GetItemDefinition()

◆ GetReferencingDeviceRelshps()

◆ GetRelatedSingleDevices()

◆ GetRelatingSingleDevice()

◆ ManuallyDelete()

◆ NxEquivalent()

◆ PartName()

◆ PartNumber()

◆ SetNxEquivalent()

◆ SetPartName() [1/2]

◆ SetPartName() [2/2]

◆ SetPartNumber() [1/2]

◆ SetPartNumber() [2/2]
