NXOpen::Routing::DeviceRelationship类 参考

表示NXOpen::Routing::SingleDevice 对象间的关系。
ObjectRelationship是NXOpen::Routing::InterfaceTerminalRelationshipBase 和NXOpen::Routing::DeviceRelationship 的抽象基类。

由于是抽象类，KF中无创建方法。

于NX4.0.2版本创建。
更多...

#include <Routing_DeviceRelationship.hxx>

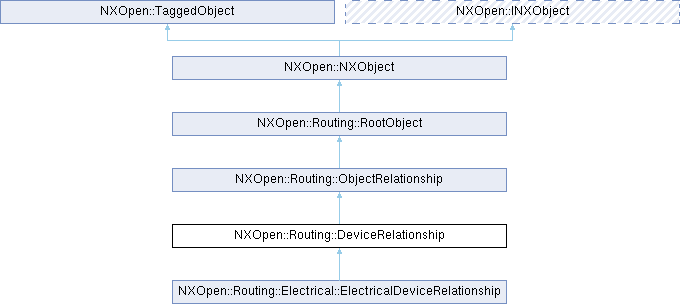

类 NXOpen::Routing::DeviceRelationship 继承关系图:
NXOpen::Routing::ObjectRelationship NXOpen::Routing::RootObject NXOpen::NXObject NXOpen::TaggedObject NXOpen::INXObject NXOpen::Routing::Electrical::ElectricalDeviceRelationship

Public 类型

enum  RelationType { RelationTypeAssociatedEquipment }
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数

void AddRelatedSingleDevice (NXOpen::Routing::SingleDevice *relatedDevice)
std::vector< NXOpen::Routing::SingleDevice * > GetRelatedSingleDevices ()
NXOpen::Routing::SingleDevice * GetRelatingSingleDevice ()
NXOpen::Routing::DeviceRelationship::RelationType RelationshipType ()
void RemoveRelatedSingleDevice (NXOpen::Routing::SingleDevice *relatedDevice)
void ReplaceRelatedSingleDevices (const std::vector< NXOpen::Routing::SingleDevice * > &relatedDevices)
void SetRelatingSingleDevice (NXOpen::Routing::SingleDevice *relatingDevice)
void SetRelationshipType (NXOpen::Routing::DeviceRelationship::RelationType relationshipType)
Public 成员函数 继承自 NXOpen::Routing::RootObject
NXString Guid ()
void SetGuid (const char *guid)
void SetGuid (const NXString &guid)
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _DeviceRelationshipBuilder

额外继承的成员函数

Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

表示NXOpen::Routing::SingleDevice 对象间的关系。
ObjectRelationship是NXOpen::Routing::InterfaceTerminalRelationshipBase 和NXOpen::Routing::DeviceRelationship 的抽象基类。

由于是抽象类，KF中无创建方法。

于NX4.0.2版本创建。

设备关系

成员枚举类型说明

◆ RelationType

enum NXOpen::Routing::DeviceRelationship::RelationType
        指定关联对象与被关联对象之间的关系类型。


于NX4.0.2版本创建。

枚举值
RelationTypeAssociatedEquipment

关联的单个设备附着于被关联的单个设备

成员函数说明

◆ AddRelatedSingleDevice()

void NXOpen::Routing::DeviceRelationship::AddRelatedSingleDevice ( NXOpen::Routing::SingleDevice * relatedDevice)

添加一个单个设备到关联设备集合中。
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

参数
relatedDevice要添加到关联集合中的NXOpen::Routing::SingleDevice 对象

◆ GetRelatedSingleDevices()

std::vector< NXOpen::Routing::SingleDevice * > NXOpen::Routing::DeviceRelationship::GetRelatedSingleDevices ( )

获取关联的单个设备列表，这些设备与被关联的单个设备相关。

返回
与被关联单个设备相关的NXOpen::Routing::SingleDevice 对象集合
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

◆ GetRelatingSingleDevice()

NXOpen::Routing::SingleDevice * NXOpen::Routing::DeviceRelationship::GetRelatingSingleDevice ( )

获取被关联的单个设备，其他单个设备与此设备相关联。

返回

于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

◆ RelationshipType()

NXOpen::Routing::DeviceRelationship::RelationType NXOpen::Routing::DeviceRelationship::RelationshipType ( )

获取关系类型。
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

◆ RemoveRelatedSingleDevice()

void NXOpen::Routing::DeviceRelationship::RemoveRelatedSingleDevice ( NXOpen::Routing::SingleDevice * relatedDevice)

从关联设备集合中移除一个单个设备。
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

参数
relatedDevice要从关联集合中移除的NXOpen::Routing::SingleDevice 对象

◆ ReplaceRelatedSingleDevices()

void NXOpen::Routing::DeviceRelationship::ReplaceRelatedSingleDevices ( const std::vector< NXOpen::Routing::SingleDevice * > & relatedDevices)

替换关联的单个设备集合。
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

参数
relatedDevices用于替换当前关联集合的NXOpen::Routing::SingleDevice 对象集合

◆ SetRelatingSingleDevice()

void NXOpen::Routing::DeviceRelationship::SetRelatingSingleDevice ( NXOpen::Routing::SingleDevice * relatingDevice)

设置被关联的单个设备。
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

参数
relatingDevice新的被关联设备

◆ SetRelationshipType()

void NXOpen::Routing::DeviceRelationship::SetRelationshipType ( NXOpen::Routing::DeviceRelationship::RelationType relationshipType)

设置关系类型。
于NX4.0.2版本创建。

许可证要求：routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

参数
relationshipType新的关系类型
