NXOpen::Routing::StockPort类 参考

原材料端口 更多...

#include <Routing_StockPort.hxx>

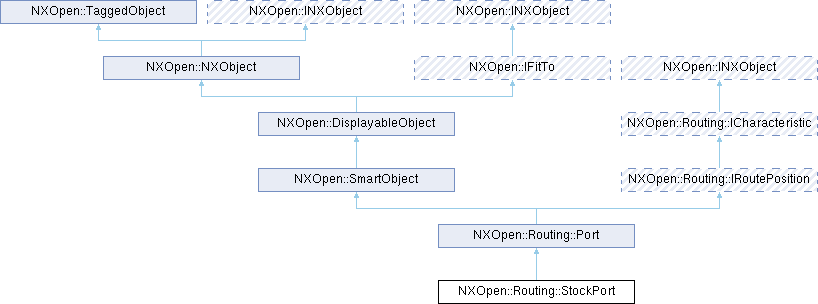

类 NXOpen::Routing::StockPort 继承关系图:
NXOpen::Routing::Port NXOpen::SmartObject NXOpen::Routing::IRoutePosition NXOpen::DisplayableObject NXOpen::Routing::ICharacteristic NXOpen::NXObject NXOpen::IFitTo NXOpen::INXObject NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject

Public 成员函数

NXOpen::Routing::ExtractPort * GetExtractPort ()
NXOpen::Routing::Stock * GetStock ()
Public 成员函数 继承自 NXOpen::Routing::Port
bool AllowMultipleConnections ()
NXOpen::Routing::FeaturePort * AskFeature ()
NXOpen::Features::WaveRouting * AskWaveFeature ()
double BackwardExtension ()
NXOpen::Expression * BackwardExtensionObject ()
NXOpen::Expression * ClockIncrementObject ()
NXOpen::Routing::PortConnection * Connect ()
virtual void DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
void Disconnect ()
int FindPortIntegerCharacteristic (const char *name)
int FindPortIntegerCharacteristic (const NXString &name)
double FindPortRealCharacteristic (const char *name)
double FindPortRealCharacteristic (const NXString &name)
NXString FindPortStringCharacteristic (const char *name)
NXString FindPortStringCharacteristic (const NXString &name)
NXOpen::Vector3d GetAlignmentVector ()
virtual NXOpen::Routing::CharacteristicList * GetCharacteristics ()
double GetClockIncrement ()
NXOpen::Assemblies::Component * GetComponent ()
void GetConnectedPorts (NXOpen::Routing::Port **connectedPort1, NXOpen::Routing::Port **connectedPort2)
NXOpen::Routing::ControlPoint * GetControlPoint ()
double GetCutbackLength ()
virtual NXOpen::Routing::CharacteristicList * GetDestinationCharacteristics ()
double GetEngagement ()
NXOpen::Point3d GetEngagementPosition ()
NXOpen::Routing::Port::FlowDirectionType GetFlowDirection ()
double GetForwardExtension ()
NXOpen::Expression * GetForwardExtensionObject ()
virtual int GetIntegerCharacteristic (const char *name)
virtual int GetIntegerCharacteristic (const NXString &name)
NXOpen::NXObject * GetOccurrence ()
NXOpen::Routing::PortConnection * GetPortConnection ()
NXOpen::Routing::Port::PortType GetPortType ()
virtual double GetRealCharacteristic (const char *name)
virtual double GetRealCharacteristic (const NXString &name)
NXString GetReferenceCharacteristic (const char *name)
NXString GetReferenceCharacteristic (const NXString &name)
NXOpen::DisplayableObject * GetRotationObject ()
NXOpen::Vector3d GetRotationVector ()
NXOpen::Routing::ISegment * GetSegment ()
NXOpen::Routing::Stock * GetStockOfPort ()
virtual NXString GetStringCharacteristic (const char *name)
virtual NXString GetStringCharacteristic (const NXString &name)
bool IsEngagementLocked (NXOpen::Routing::Port *portToCheck)
bool IsRotationLocked (NXOpen::Routing::Port *portToCheck)
std::vector< NXOpen::Positioning::Constraint * > LockEngagement (NXOpen::Routing::Port *portToLock)
std::vector< NXOpen::Positioning::Constraint * > LockRotation (NXOpen::Routing::Port *portToLock)
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
virtual NXOpen::Point * Point ()
virtual NXOpen::Point3d Position ()
void ReorderFeature ()
void SetAllowMultipleConnections (bool allowMultipleConnections)
void SetBackwardExtension (double extension)
void SetBackwardExtensionObject (NXOpen::Expression *backwardExtension)
virtual void SetCharacteristic (const char *name, const char *value)
virtual void SetCharacteristic (const char *name, double value)
virtual void SetCharacteristic (const char *name, int value)
virtual void SetCharacteristic2 (const char *title, const char *value)
virtual void SetCharacteristic2 (const char *title, double value)
virtual void SetCharacteristic2 (const char *title, int value)
virtual void SetCharacteristic2 (const NXString &title, const NXString &value)
virtual void SetCharacteristic2 (const NXString &title, double value)
virtual void SetCharacteristic2 (const NXString &title, int value)
virtual void SetCharacteristics2 (NXOpen::Routing::CharacteristicList *values)
void SetClockIncrement (double increment)
void SetClockIncrementObject (NXOpen::Expression *increment)
void SetFlowDirection (NXOpen::Routing::Port::FlowDirectionType flowDirection)
virtual void SetPoint (NXOpen::Point *point)
virtual void SetPosition (const NXOpen::Point3d &position)
void SetReferenceCharacteristic (const char *name, const char *value)
void SetReferenceCharacteristic (const NXString &name, const NXString &value)
void UnlockEngagement (NXOpen::Routing::Port *portToUnlock)
void UnlockRotation (NXOpen::Routing::Port *portToUnlock)
Public 成员函数 继承自 NXOpen::SmartObject
void Evaluate ()
void ProtectFromDelete ()
void ReleaseDeleteProtection ()
void RemoveParameters ()
void ReplaceParameters (NXOpen::SmartObject *otherSo)
void SetVisibility (NXOpen::SmartObject::VisibilityOption visibility)
NXOpen::SmartObject::UpdateOption Update ()
NXOpen::SmartObject::VisibilityOption Visibility ()
Public 成员函数 继承自 NXOpen::DisplayableObject
void Blank ()
int Color ()
void Highlight ()
bool IsBlanked ()
int Layer ()
NXOpen::DisplayableObject::ObjectFont LineFont ()
NXOpen::DisplayableObject::ObjectWidth LineWidth ()
NXOpen::Point3d NameLocation ()
void RedisplayObject ()
void RemoveViewDependency ()
void SetColor (int color)
void SetLayer (int layer)
void SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void SetNameLocation (const NXOpen::Point3d &location)
void Unblank ()
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const
Public 成员函数 继承自 NXOpen::Routing::ICharacteristic
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name

友元

class _StockPortBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::Routing::Port
enum  CreateRotationVector { CreateRotationVectorNo , CreateRotationVectorYes }
enum  FlowDirectionType { FlowDirectionTypeRouteFlowEither , FlowDirectionTypeRouteFlowIn , FlowDirectionTypeRouteFlowOut , FlowDirectionTypeFlowNone }
enum  PortType {
  PortTypeUnknownPort , PortTypeFittingPort , PortTypeFixturePort , PortTypeMultiPort ,
  PortTypeTerminalPort , PortTypeStockPort , PortTypeStockOffsetPort
}
Public 类型 继承自 NXOpen::SmartObject
enum  UpdateOption {
  UpdateOptionDontUpdate , UpdateOptionWithinModeling , UpdateOptionAfterModeling , UpdateOptionAfterParentBody ,
  UpdateOptionMixed
}
enum  VisibilityOption { VisibilityOptionInvisible , VisibilityOptionVisible , VisibilityOptionVisibleIfParentInvisible }
Public 类型 继承自 NXOpen::DisplayableObject
enum  ObjectFont {
  ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,
  ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,
  ObjectFontNine , ObjectFontTen , ObjectFontEleven
}
enum  ObjectWidth {
  ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,
  ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,
  ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::Routing::Port
const NXString & value
double value
int value
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value
Public 属性 继承自 NXOpen::Routing::ICharacteristic
const NXString & value = 0
double value = 0
int value = 0

详细描述

原材料端口

NXOpen::Routing::StockPort 对象由 NXOpen::Routing::Stock 对象自动创建和更新。
此类实例由NXOpen::Routing::Stock 创建。

于NX4.0.0版本创建。

成员函数说明

◆ GetExtractPort()

NXOpen::Routing::ExtractPort * NXOpen::Routing::StockPort::GetExtractPort ( )

对于作为组件的管段，使用此NXOpen::Routing::StockPort 在工作部件中的实例，返回其对应的NXOpen::Routing::ExtractPort。 如果指定的NXOpen::Routing::StockPort 在工作部件中没有端口实例，则返回NULL。

返回
代表此StockPort在工作部件中实例的抽取端口
于NX8.0.0版本创建。

许可要求：routing_base（"管路基础"）

◆ GetStock()

NXOpen::Routing::Stock * NXOpen::Routing::StockPort::GetStock ( )

获取拥有此对象的NXOpen::Routing::Stock。

返回

于NX4.0.0版本创建。

许可要求：routing_base（"管路基础"）
