测量卷边构建器更多...

#include <Weld_MeasureHemBuilder.hxx>

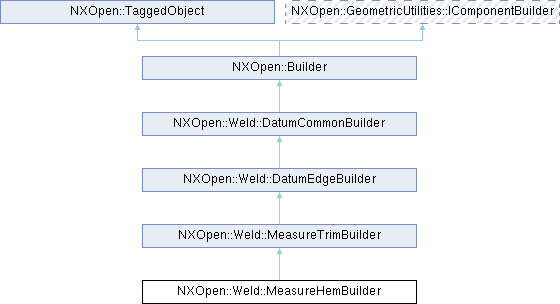

类 NXOpen::Weld::MeasureHemBuilder 继承关系图:

Public 类型
enum	HemMethodTypes { HemMethodTypesMidPoint , HemMethodTypesNormalToBody }
Public 类型继承自 NXOpen::Weld::DatumCommonBuilder
enum	ControlMethodTypes { ControlMethodTypesPrincipalAxis , ControlMethodTypesUseSectionPlane }
enum	CreationDirectionMethods { CreationDirectionMethodsDefault , CreationDirectionMethodsOpposite }
enum	CustomTypes { CustomTypesDefault , CustomTypesCustom1 , CustomTypesCustom2 , CustomTypesCustom3 , CustomTypesCustom4 , CustomTypesCustom5 , CustomTypesCustom6 , CustomTypesCustom7 }
enum	PlaneMethodTypes { PlaneMethodTypesInferPlanes , PlaneMethodTypesParallelXCPlanes , PlaneMethodTypesParallelYCPlanes , PlaneMethodTypesParallelZCPlanes , PlaneMethodTypesSelectPlanes , PlaneMethodTypesUnknown }
enum	SizeMethodTypes { SizeMethodTypesAutomatic , SizeMethodTypesManual }
enum	SolidTypes { SolidTypesSphere , SolidTypesCylinder , SolidTypesCone , SolidTypesCuboid , SolidTypesHollow , SolidTypesArrow , SolidTypesNone , SolidTypesHourglass }

Public 成员函数
NXOpen::Weld::MeasureHemBuilder::HemMethodTypes	HemMethod ()
void	SetHemMethod (NXOpen::Weld::MeasureHemBuilder::HemMethodTypes hemMethod)
Public 成员函数继承自 NXOpen::Weld::DatumEdgeBuilder
NXOpen::ScCollector *	BoundaryCurve ()
double	CustomCuboidLength ()
double	CustomCuboidWidth ()
NXOpen::Weld::SelectDatumEdge *	DerivedDatum ()
double	GridSnapTolerance ()
void	InitializeAxis (const NXOpen::Point3d &approximatePoint)
void	MoveMinimumDistance ()
NXOpen::ScCollector *	RestingFace ()
void	SetCustomCuboidLength (double customCuboidLength)
void	SetCustomCuboidWidth (double customCuboidWidth)
void	SetGridSnapTolerance (double gridSnapTolerance)
void	SetSnapPointToGrid (bool snapPointToGrid)
void	SetXCoordinate (double xCoordinate)
void	SetYCoordinate (double yCoordinate)
void	SetZCoordinate (double zCoordinate)
bool	SnapPointToGrid ()
void	UpdateAxisData ()
double	XCoordinate ()
double	YCoordinate ()
double	ZCoordinate ()
Public 成员函数继承自 NXOpen::Weld::DatumCommonBuilder
NXOpen::Assemblies::SelectComponentList *	AdditionalReferences ()
bool	Associative ()
NXOpen::Weld::CharacteristicsBuilder *	Characteristics ()
NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes	ControlMethod ()
bool	CreateDirectionVector ()
bool	CreatePlane ()
bool	CreatePoint ()
NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods	CreationDirection ()
double	CustomAboveLength ()
double	CustomRadius ()
double	CustomTotalLength ()
NXOpen::Weld::DatumCommonBuilder::CustomTypes	CustomType ()
NXString	CustomTypeName ()
bool	Derived ()
NXString	DerivedParentID ()
NXOpen::Axis *	DirectionAxis ()
double	DirectionLength ()
double	HoleDiameter ()
double	ModelingTolerance ()
double	PlaneHeight ()
NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes	PlaneMethod ()
double	PlaneWidth ()
bool	PrincipalAxisX ()
bool	PrincipalAxisY ()
bool	PrincipalAxisZ ()
bool	ProjectAlongDirection ()
NXOpen::Expression *	RadiusExp ()
NXOpen::Expression *	RotationAngle ()
NXOpen::Direction *	SectionPlaneNormal ()
void	SetAssociative (bool associative)
void	SetControlMethod (NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes controlMethod)
void	SetCreateDirectionVector (bool createDirectionVector)
void	SetCreatePlane (bool createPlane)
void	SetCreatePoint (bool createPoint)
void	SetCreationDirection (NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods creationDirection)
void	SetCustomAboveLength (double directionLength)
void	SetCustomRadius (double customRadius)
void	SetCustomTotalLength (double customTotalLength)
void	SetCustomType (NXOpen::Weld::DatumCommonBuilder::CustomTypes customType)
void	SetCustomTypeName (const char *customTypeName)
void	SetCustomTypeName (const NXString &customTypeName)
void	SetDerived (bool derived)
void	SetDerivedParentID (const char *parentDatumID)
void	SetDerivedParentID (const NXString &parentDatumID)
void	SetDirectionAxis (NXOpen::Axis *directionAxis)
void	SetDirectionLength (double directionLength)
void	SetHoleDiameter (double holeDiameter)
void	SetModelingTolerance (double modelingTolerance)
void	SetPlaneHeight (double planeHeight)
void	SetPlaneMethod (NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes planeMethod)
void	SetPlaneWidth (double planeWidth)
void	SetPrincipalAxisX (bool principalAxisX)
void	SetPrincipalAxisY (bool principalAxisY)
void	SetPrincipalAxisZ (bool principalAxisZ)
void	SetProjectAlongDirection (bool projectAlongDirection)
void	SetSectionPlaneNormal (NXOpen::Direction *sectionPlaneNormal)
void	SetSizeMethodType (NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes sizeMethodType)
void	SetSlotLength (double slotLength)
void	SetSlotWidth (double slotWidth)
void	SetSolidType (NXOpen::Weld::DatumCommonBuilder::SolidTypes solidType)
void	SetXTolerance (double xTolerance)
void	SetYTolerance (double xTolerance)
void	SetZTolerance (double xTolerance)
NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes	SizeMethodType ()
double	SlotLength ()
double	SlotWidth ()
NXOpen::Weld::DatumCommonBuilder::SolidTypes	SolidType ()
void	UpdateWithDerivedDatum ()
NXOpen::SelectNXObjectList *	UserPlane ()
double	XTolerance ()
double	YTolerance ()
double	ZTolerance ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_MeasureHemBuilderBuilder

详细描述

测量卷边构建器

用于创建或编辑NXOpen::Weld::MeasureHem特征。
要创建此类的新实例，请使用NXOpen::Weld::WeldManager::CreateMeasureHemBuilder
默认值。

属性	值
ControlMethod	PrincipalAxis
CreateDirectionVector	1
CreatePoint	1
Derived	0
DirectionLength	20（毫米单位部件），1.0（英寸单位部件）
GridSnapTolerance	1（毫米单位部件），0.05（英寸单位部件）
ModelingTolerance	0.02（毫米单位部件），0.001（英寸单位部件）
PlaneHeight	20（毫米单位部件），1.0（英寸单位部件）
PlaneWidth	20（毫米单位部件），1.0（英寸单位部件）
PrincipalAxisX	0
PrincipalAxisY	0
PrincipalAxisZ	0
SnapPointToGrid	1

在NX2406.0.0中创建。

成员枚举类型说明

◆ HemMethodTypes

enum NXOpen::Weld::MeasureHemBuilder::HemMethodTypes

指示用于计算卷边向量位置的方法。

枚举值
HemMethodTypesMidPoint	使用截面切口的中点。
HemMethodTypesNormalToBody	使用垂直于体的方法。

成员函数说明

◆ HemMethod()

NXOpen::Weld::MeasureHemBuilder::HemMethodTypes NXOpen::Weld::MeasureHemBuilder::HemMethod ( )

返回计算卷边位置的方法。
在NX2406.0.0中创建。

许可证要求：无

◆ SetHemMethod()

void NXOpen::Weld::MeasureHemBuilder::SetHemMethod ( NXOpen::Weld::MeasureHemBuilder::HemMethodTypes hemMethod )

设置计算卷边位置的方法。
在NX2406.0.0中创建。

许可证要求：tooling_locators ("Tooling Locators")

参数

hemMethod hemmethod
