添加可重用部件更多...

#include <Tooling_AddReusablePart.hxx>

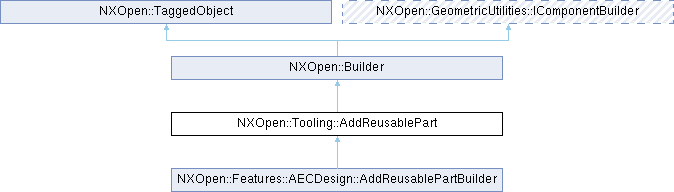

类 NXOpen::Tooling::AddReusablePart 继承关系图:

Public 类型
enum	ComponentMode { ComponentModeNormal = 1 , ComponentModeCadenas = 3 }
enum	ModeMethod { ModeMethodAdd = 1 , ModeMethodEdit }
enum	PocketBodyMethod { PocketBodyMethodNone = 1 , PocketBodyMethodUpdate , PocketBodyMethodDelete }
enum	PositionMethod { PositionMethodInvalid = -1 , PositionMethodAbsolute , PositionMethodMate , PositionMethodReposition , PositionMethodWcs , PositionMethodPosition , PositionMethodPoint = 15 , PositionMethodInferredOny , PositionMethodRouting }

Public 成员函数
void	AddClonePartName (const char *clonedpartname)
void	AddClonePartName (const NXString &clonedpartname)
void	AddComponentMode (NXOpen::Tooling::AddReusablePart::ModeMethod modeMethod)
void	AddComponentProperty (const char compName, const char refsetName, int layer)
void	AddComponentProperty (const NXString &compName, const NXString &refsetName, int layer)
void	AddCriteriaToInstance (bool hasCriteria, const char expStr, const char addValue)
void	AddCriteriaToInstance (bool hasCriteria, const NXString &expStr, const NXString &addValue)
void	AddHoleInstance (const NXOpen::Point3d &inputDirection, const NXOpen::Point3d &inputPostion)
void	AddHoleInstanceForCsys (const NXOpen::Point3d &inputDirection, const NXOpen::Point3d &inputPostion, NXOpen::NXObject *selCsys)
void	AddNewInstance (NXOpen::Assemblies::Component *partOcc, int index)
void	AddPartOccurance (NXOpen::Assemblies::Component *partOcc)
void	AddReuseablePartToPattern ()
void	AffirmReusableComponent ()
std::vector< NXOpen::Assemblies::Component * >	AffirmReusableComponents ()
void	AssignStructureDesignerAttributes ()
NXOpen::Assemblies::ComponentPatternBuilder *	ComponentPatternBuilder ()
NXOpen::Tooling::AddReusablePart::ComponentMode	ComponentType ()
void	ConstructParametersData ()
NXOpen::Tooling::CloneObject *	CreateCloneObject (NXOpen::Tooling::ToolingApplication applicationType, const char *assemName)
NXOpen::Tooling::CloneObject *	CreateCloneObject (NXOpen::Tooling::ToolingApplication applicationType, const NXString &assemName)
void	CreateComponents (int count, NXOpen::NXObject *selobj)
NXOpen::PartFamily::InstanceSelectionCriteria *	CreateCriteria (const char expStr, const char addValue)
NXOpen::PartFamily::InstanceSelectionCriteria *	CreateCriteria (const NXString &expStr, const NXString &addValue)
void	CreatePatternComponent (bool createPattern)
void	CreatePositioningFeatureByPoint (NXOpen::NXObject *selobj, const NXOpen::Point3d &inputPosition, bool centerFace)
void	CreatePositioningFeatureOnPoint (NXOpen::NXObject *selobj, const NXOpen::Point3d &inputPosition, bool centerFace)
void	CreateReusableConstraints (int index)
void	CreateReusablePocket (bool commit)
void	DelayComponents (const std::vector< NXOpen::TaggedObject * > &objs)
void	DeleteComponents (int count)
void	DeleteReusableConstraints ()
void	DeleteReusablePocket ()
void	DestroyReusableBuilder ()
void	EditReusableComponent (NXOpen::Assemblies::Component *partOcc)
NXOpen::Features::Feature *	FindPositioningFeatureSet ()
NXOpen::NXObject *	GetAttachedGeometry ()
NXOpen::Tooling::CloneObject *	GetCloneObject ()
std::vector< NXOpen::Assemblies::Component * >	GetDesignElement ()
NXOpen::Point3d	GetInitialPosition ()
NXOpen::Part *	GetParentPart ()
NXOpen::Tooling::ReusablePocketBuilder *	GetReusablePocketBuilder ()
NXOpen::Tooling::SpreadsheetData *	GetSpreadsheetData ()
void	InsertReusableComponent (int instIndex, bool needTransform)
void	LoadReusableComponent (const char *krxFile)
void	LoadReusableComponent (const NXString &krxFile)
void	ModifyParametersByRow (int index)
void	MoveReusableComponent (const NXOpen::Vector3d &translation, const NXOpen::Matrix3x3 &rotation, int index)
NXOpen::Sketch *	PositioningFeature ()
NXOpen::CoordinateSystem *	PositioningFeatureSeedCsys ()
NXOpen::Tooling::AddReusablePart::PositionMethod	PositionMode ()
void	PostUpdate ()
void	RecordReusableComponent (const char *fileName)
void	RecordReusableComponent (const NXString &fileName)
void	RemoveDesignElement ()
void	RemoveFamilyInstance (NXOpen::Part *part)
void	RemoveOldInstance (int index)
void	RemoveReusableComponent (int index)
void	RenamePart (const char *partName)
void	RenamePart (const NXString &partName)
void	ReplaceReusableComponent ()
bool	ReselectObject ()
NXOpen::NXObject *	ReverseComponentDirection (const NXOpen::Point3d &inputPosition, const NXOpen::Point3d &inputDirection, double length, const NXOpen::Point3d &outputPosition, const NXOpen::Point3d &outputDirection)
void	ReverseDirection ()
void	ReversePreviewComponent (const NXOpen::Point3d &rememberDir)
void	SaveLibraryPath (const char libName, const char libpath)
void	SaveLibraryPath (const NXString &libName, const NXString &libpath)
void	SavePositioningOriginPlacement (const char *positionOffSet, int placementOriginIndex)
void	SavePositioningOriginPlacement (const NXString &positionOffSet, int placementOriginIndex)
void	SetAttachedGeometry (NXOpen::NXObject *part)
void	SetCloneObject (NXOpen::Tooling::CloneObject *cloneObject)
void	SetComponentHandleToPoint ()
void	SetComponentPatternBuilder (NXOpen::Assemblies::ComponentPatternBuilder *patternComponentBuilderTag)
void	SetComponentProperties (const char referenceSetName, const char componentName, int layer)
void	SetComponentProperties (const NXString &referenceSetName, const NXString &componentName, int layer)
void	SetComponentToReplace (int index, NXOpen::Assemblies::Component *replaceComponent)
void	SetComponentType (NXOpen::Tooling::AddReusablePart::ComponentMode partType)
void	SetEnablePreview (bool isTrunOn)
void	SetInitialPosition (const NXOpen::Point3d &dropLocation)
void	SetParentPart (NXOpen::Part *part)
void	SetPositioningFeature (NXOpen::Sketch *sketch)
void	SetPositioningFeatureSeedCsys (NXOpen::CoordinateSystem *seedCsys)
void	SetPositionMode (NXOpen::Tooling::AddReusablePart::PositionMethod positionMode)
void	SetReplaceTemplate (NXOpen::Part *replaceTemplate)
void	SetReselectObject (bool isReselectObject)
void	SetReusablePocketBuilder (NXOpen::Tooling::ReusablePocketBuilder *pocketTag)
void	SetSearchGeometry (bool isTrunOn)
void	SetSpreadsheetData (NXOpen::Tooling::SpreadsheetData *spreadsheetData)
void	SetStructureDesignerPart (bool isStructureDesigner)
void	SetUpdateComponentName (bool updateComponentName)
void	SetWaveLink ()
void	SubtituteReusableComponent (bool substituteInstance)
void	UndelayComponentToUpdate (NXOpen::Part *obj)
void	UpdateCadenasParameter (const char paraName, const char paraValue)
void	UpdateCadenasParameter (const NXString &paraName, const NXString &paraValue)
void	UpdateMountingFeetInfo (NXOpen::Assemblies::Component *partOcc)
void	UpdateParametersByConfiguration ()
void	UpdatePartData ()
void	UpdatePocketBody (bool createPattern, NXOpen::Tooling::AddReusablePart::PocketBodyMethod updatePocketBody)
void	UpdatePositioningOffset (const char *positionOffSet)
void	UpdatePositioningOffset (const NXString &positionOffSet)
void	UpdateReusableComponent ()
void	UpdateReusablePocket ()
void	UpdateToolingSymbolicThread ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_AddReusablePartBuilder

详细描述

添加可重用部件

        表示一个 @link NXOpen::Tooling::AddReusablePart NXOpen::Tooling::AddReusablePart@endlink
         <br> 要创建此类的新实例，请使用 @link NXOpen::Tooling::AddReusablePartCollection::CreateBuilder  NXOpen::Tooling::AddReusablePartCollection::CreateBuilder @endlink  <br>
    默认值。
    <list type="table">
    <listheader><term>
    属性</term>  <description>
    值</description> </listheader>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.XOnPathSpacing.NCopies.Value </term> <description>
    2 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.XOnPathSpacing.SpaceType </term> <description>
    偏移量 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.XPathOption </term> <description>
    偏移量 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YDirectionOption </term> <description>
    截面 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YOnPathSpacing.NCopies.Value </term> <description>
    1 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YPathOption </term> <description>
    偏移量 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YSpacing.NCopies.Value </term> <description>
    1 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YSpacing.PitchDistance.Value </term> <description>
    10 (毫米零件), 1 (英寸零件) </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YSpacing.SpaceType </term> <description>
    偏移量 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.AlongPathDefinition.YSpacing.SpanDistance.Value </term> <description>
    100 (毫米零件), 10 (英寸零件) </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.CircularDefinition.AngularSpacing.NCopies.Value </term> <description>
    12 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.CircularDefinition.AngularSpacing.PitchAngle.Value </term> <description>
    30 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.CircularDefinition.AngularSpacing.PitchDistance.Value </term> <description>
    10 (毫米零件), 1 (英寸零件) </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.CircularDefinition.AngularSpacing.SpaceType </term> <description>
    偏移量 </description> </item>
    <item><term>
    ComponentPatternBuilder.PatternService.CircularDefinition.AngularSpacing.SpanAngle.Value </term> <description>
    360 (毫米零件), 360 (英寸零件) </description> </item>

ComponentPatternBuilder.PatternService.CircularDefinition.AngularSpacing.UsePitchOption Angle ComponentPatternBuilder.PatternService.CircularDefinition.CreateLastStaggered true ComponentPatternBuilder.PatternService.CircularDefinition.HorizontalRef.RotationAngle.Value 0 (millimeters part), 0 (inches part) ComponentPatternBuilder.PatternService.CircularDefinition.IncludeSeedToggle true ComponentPatternBuilder.PatternService.CircularDefinition.RadialSpacing.NCopies.Value 1 ComponentPatternBuilder.PatternService.CircularDefinition.StaggerType None ComponentPatternBuilder.PatternService.HelixDefinition.AnglePitch.Value 30 ComponentPatternBuilder.PatternService.HelixDefinition.CountOfInstances.Value 6 ComponentPatternBuilder.PatternService.HelixDefinition.DirectionType Righthand ComponentPatternBuilder.PatternService.HelixDefinition.DistancePitch.Value 10 (millimeters part), 0.4 (inches part) ComponentPatternBuilder.PatternService.HelixDefinition.HelixPitch.Value 50 (millimeters part), 2 (inches part) ComponentPatternBuilder.PatternService.HelixDefinition.HelixSpan.Value 100 (millimeters part), 4 (inches part) ComponentPatternBuilder.PatternService.HelixDefinition.NumberOfTurns.Value 2 ComponentPatternBuilder.PatternService.HelixDefinition.SizeOption CountAngleDistance ComponentPatternBuilder.PatternService.PatternFill.FillMargin.Value 0 (millimeters part), 0 (inches part) ComponentPatternBuilder.PatternService.PatternFill.FillOptions None ComponentPatternBuilder.PatternService.PatternFill.SimplifiedBoundaryToggle False ComponentPatternBuilder.PatternService.PatternOrientation.AlongOrientationOption NormalToPath ComponentPatternBuilder.PatternService.PatternOrientation.CircularOrientationOption FollowPattern ComponentPatternBuilder.PatternService.PatternOrientation.FollowFaceProjDirOption PatternPlaneNormal ComponentPatternBuilder.PatternService.PatternOrientation.GeneralOrientationOption Fixed ComponentPatternBuilder.PatternService.PatternOrientation.HelixOrientationOption FollowPattern ComponentPatternBuilder.PatternService.PatternOrientation.LinearOrientationOption Fixed ComponentPatternBuilder.PatternService.PatternOrientation.MirrorOrientationOption FollowPattern ComponentPatternBuilder.PatternService.PatternOrientation.OrientationOption Fixed ComponentPatternBuilder.PatternService.PatternOrientation.PolygonOrientationOption FollowPattern ComponentPatternBuilder.PatternService.PatternOrientation.SpiralOrientationOption FollowPattern ComponentPatternBuilder.PatternService.PatternType Linear ComponentPatternBuilder.PatternService.PolygonDefinition.NumberOfSides.Value 6 ComponentPatternBuilder.PatternService.PolygonDefinition.PolygonSizeOption Inscribed ComponentPatternBuilder.PatternService.PolygonDefinition.PolygonSpacing.NCopies.Value 4 ComponentPatternBuilder.PatternService.PolygonDefinition.PolygonSpacing.PitchDistance.Value 25 (millimeters part), 1 (inches part) ComponentPatternBuilder.PatternService.PolygonDefinition.PolygonSpacing.SpaceType Offset ComponentPatternBuilder.PatternService.PolygonDefinition.PolygonSpacing.SpanAngle.Value 360 ComponentPatternBuilder.PatternService.PolygonDefinition.RadialSpacing.NCopies.Value 1 ComponentPatternBuilder.PatternService.PolygonDefinition.RadialSpacing.PitchDistance.Value 25 (millimeters part), 1 (inches part) ComponentPatternBuilder.PatternService.PolygonDefinition.RadialSpacing.SpanDistance.Value 100 (millimeters part), 4 (inches part) ComponentPatternBuilder.PatternService.RectangularDefinition.CreateLastStaggered true ComponentPatternBuilder.PatternService.RectangularDefinition.SimplifiedLayoutType Square ComponentPatternBuilder.PatternService.RectangularDefinition.StaggerType None ComponentPatternBuilder.PatternService.RectangularDefinition.XSpacing.NCopies.Value 2 ComponentPatternBuilder.PatternService.RectangularDefinition.YSpacing.NCopies.Value 1 ComponentPatternBuilder.PatternService.SpiralDefinition.DirectionType Lefthand ComponentPatternBuilder.PatternService.SpiralDefinition.NumberOfTurns.Value 1 (millimeters part), 1 (inches part) ComponentPatternBuilder.PatternService.SpiralDefinition.RadialPitch.Value 50 (millimeters part), 2 (inches part) ComponentPatternBuilder.PatternService.SpiralDefinition.SizeSpiralType NumberOfTurns ComponentPatternBuilder.PatternService.SpiralDefinition.TotalAngle.Value 360 (millimeters part), 360 (inches part)

Created in NX5.0.0.

成员枚举类型说明

◆ ComponentMode

enum NXOpen::Tooling::AddReusablePart::ComponentMode

Represents the component type of the added part

枚举值
ComponentModeNormal	normal reusable component
ComponentModeCadenas	cadenas part component

◆ ModeMethod

enum NXOpen::Tooling::AddReusablePart::ModeMethod

Represents adding or editing a reusable component mode method

枚举值
ModeMethodAdd	Add reusable component
ModeMethodEdit	Edit reusable component

◆ PocketBodyMethod

enum NXOpen::Tooling::AddReusablePart::PocketBodyMethod

Represents save pocket body information, updating or deleting a pocket body size mode method

枚举值
PocketBodyMethodNone	Save pocket body information into attatched component
PocketBodyMethodUpdate	Update the existed pocket body size
PocketBodyMethodDelete	Delete pocket body

◆ PositionMethod

enum NXOpen::Tooling::AddReusablePart::PositionMethod

Represents the position method

枚举值
PositionMethodInvalid	invalid
PositionMethodAbsolute	absolute
PositionMethodMate	mate
PositionMethodReposition	reposition
PositionMethodWcs	wcs
PositionMethodPosition	position
PositionMethodPoint	Position by point
PositionMethodInferredOny	inferred ony
PositionMethodRouting	Position using Routing

成员函数说明

◆ AddClonePartName() [1/2]

void NXOpen::Tooling::AddReusablePart::AddClonePartName ( const char * clonedpartname )

Adds clone part name
Created in NX9.0.0.

License requirements : None

参数

clonedpartname The new clone part name

◆ AddClonePartName() [2/2]

void NXOpen::Tooling::AddReusablePart::AddClonePartName ( const NXString & clonedpartname )

Adds clone part name
Created in NX9.0.0.

License requirements : None

参数

clonedpartname The new clone part name

◆ AddComponentMode()

void NXOpen::Tooling::AddReusablePart::AddComponentMode ( NXOpen::Tooling::AddReusablePart::ModeMethod modeMethod )

为可重用组件添加模式
创建于 NX9.0.0。

许可要求：无

参数

modeMethod 模式方法

◆ AddComponentProperty() [1/2]

void NXOpen::Tooling::AddReusablePart::AddComponentProperty	(	const char *	compName,
		const char *	refsetName,
		int	layer )

添加组件属性
创建于 NX9.0.0。

许可要求：无

参数

compName	用于表示新组件的参考集的名称
refsetName	放置新组件的图层
layer	图层

◆ AddComponentProperty() [2/2]

void NXOpen::Tooling::AddReusablePart::AddComponentProperty	(	const NXString &	compName,
		const NXString &	refsetName,
		int	layer )

添加组件属性
创建于 NX9.0.0。

许可要求：无

参数

compName	用于表示新组件的参考集的名称
refsetName	放置新组件的图层
layer	图层

◆ AddCriteriaToInstance() [1/2]

void NXOpen::Tooling::AddReusablePart::AddCriteriaToInstance	(	bool	hasCriteria,
		const char *	expStr,
		const char *	addValue )

Sets criteria into instance
Created in NX11.0.0.

License requirements : None

参数

hasCriteria	hascriteria
expStr	expstr
addValue	addvalue

◆ AddCriteriaToInstance() [2/2]

void NXOpen::Tooling::AddReusablePart::AddCriteriaToInstance	(	bool	hasCriteria,
		const NXString &	expStr,
		const NXString &	addValue )

Sets criteria into instance
Created in NX11.0.0.

License requirements : None

参数

hasCriteria	hascriteria
expStr	expstr
addValue	addvalue

◆ AddHoleInstance()

void NXOpen::Tooling::AddReusablePart::AddHoleInstance	(	const NXOpen::Point3d &	inputDirection,
		const NXOpen::Point3d &	inputPostion )

在孔中添加一系列可重用组件
创建于 NX9.0.0。

许可要求：无

参数

inputDirection	组件的输入方向
inputPostion	组件的输入位置

◆ AddHoleInstanceForCsys()

void NXOpen::Tooling::AddReusablePart::AddHoleInstanceForCsys	(	const NXOpen::Point3d &	inputDirection,
		const NXOpen::Point3d &	inputPostion,
		NXOpen::NXObject *	selCsys )

在坐标系中添加一系列可重用组件
创建于 NX11.0.1。

许可要求：无

参数

inputDirection	组件的输入方向
inputPostion	组件的输入位置
selCsys	组件的输入坐标系

◆ AddNewInstance()

void NXOpen::Tooling::AddReusablePart::AddNewInstance	(	NXOpen::Assemblies::Component *	partOcc,
		int	index )

添加新实例
创建于 NX9.0.0。

许可要求：无

参数

partOcc	将新的出现添加到零件数据中
index	组件实例的索引

◆ AddPartOccurance()

void NXOpen::Tooling::AddReusablePart::AddPartOccurance ( NXOpen::Assemblies::Component * partOcc )

将出现添加到零件数据中
创建于 NX9.0.0。

许可要求：无

参数

partOcc 要添加到零件数据中的组件出现

◆ AddReuseablePartToPattern()

void NXOpen::Tooling::AddReusablePart::AddReuseablePartToPattern ( )

将添加的可重用部件添加到相关模式定义
创建于 NX2212.0.0。

许可要求：无

◆ AffirmReusableComponent()

void NXOpen::Tooling::AddReusablePart::AffirmReusableComponent ( )

Affirm insertion of the reusable component. To get the inserted reusable components, please use NXOpen::Tooling::AddReusablePart::AffirmReusableComponents instead.
Created in NX9.0.0.

License requirements : None

◆ AffirmReusableComponents()

std::vector< NXOpen::Assemblies::Component * > NXOpen::Tooling::AddReusablePart::AffirmReusableComponents ( )

Affirm insertion of the reusable component, and return the array of NXOpen::Assemblies::Component tag in the display part.
Created in NX1899.0.0.

License requirements : None

◆ AssignStructureDesignerAttributes()

void NXOpen::Tooling::AddReusablePart::AssignStructureDesignerAttributes ( )

Assign attribute to mounting feet part and solid body.
Created in NX1953.0.0.

License requirements : None

◆ ComponentPatternBuilder()

NXOpen::Assemblies::ComponentPatternBuilder * NXOpen::Tooling::AddReusablePart::ComponentPatternBuilder ( )

Returns the current component pattern builder
Created in NX11.0.0.

License requirements : None

◆ ComponentType()

NXOpen::Tooling::AddReusablePart::ComponentMode NXOpen::Tooling::AddReusablePart::ComponentType ( )

Returns the current component type
Created in NX11.0.0.

License requirements : None

◆ ConstructParametersData()

void NXOpen::Tooling::AddReusablePart::ConstructParametersData ( )

Constructs the parameters data, reads data from part family or spreadsheet and updates the parameter data in the part
Created in NX9.0.0.

License requirements : None

◆ CreateCloneObject() [1/2]

NXOpen::Tooling::CloneObject * NXOpen::Tooling::AddReusablePart::CreateCloneObject	(	NXOpen::Tooling::ToolingApplication	applicationType,
		const char *	assemName )

Creates the clone operation object

返回: the new NXOpen::Tooling::CloneObject instance
Created in NX6.0.0.

License requirements : None

参数

applicationType	Wizard type
assemName	Project assembly name

◆ CreateCloneObject() [2/2]

NXOpen::Tooling::CloneObject * NXOpen::Tooling::AddReusablePart::CreateCloneObject	(	NXOpen::Tooling::ToolingApplication	applicationType,
		const NXString &	assemName )

Creates the clone operation object

返回: the new NXOpen::Tooling::CloneObject instance
Created in NX6.0.0.

License requirements : None

参数

applicationType	Wizard type
assemName	Project assembly name

◆ CreateComponents()

void NXOpen::Tooling::AddReusablePart::CreateComponents	(	int	count,
		NXOpen::NXObject *	selobj )

Creates an array instance of a component
Created in NX9.0.0.

License requirements : None

参数

count	The count is array instance number
selobj	The selected object is FACE type, the reusable component place on the face

◆ CreateCriteria() [1/2]

NXOpen::PartFamily::InstanceSelectionCriteria * NXOpen::Tooling::AddReusablePart::CreateCriteria	(	const char *	expStr,
		const char *	addValue )

Creates criteria
Created in NX2212.0.0.

License requirements : None

参数

expStr	expstr
addValue	addvalue

◆ CreateCriteria() [2/2]

NXOpen::PartFamily::InstanceSelectionCriteria * NXOpen::Tooling::AddReusablePart::CreateCriteria	(	const NXString &	expStr,
		const NXString &	addValue )

Creates criteria
Created in NX2212.0.0.

License requirements : None

参数

expStr	expstr
addValue	addvalue

◆ CreatePatternComponent()

void NXOpen::Tooling::AddReusablePart::CreatePatternComponent ( bool createPattern )

Create the pattern component when the positioining pattern sketch feature is not exsit; edit pattern component when the positioining pattern feature is exsit
Created in NX11.0.0.

License requirements : None

参数

createPattern Flag to decide whether to create pattern component or edit, set flag as true to create and set flag false to edit

◆ CreatePositioningFeatureByPoint()

void NXOpen::Tooling::AddReusablePart::CreatePositioningFeatureByPoint	(	NXOpen::NXObject *	selobj,
		const NXOpen::Point3d &	inputPosition,
		bool	centerFace )

Create positioning feature on the given position
Created in NX1847.0.0.

License requirements : None

参数

selobj	The selected object is FACE type, the reusable component place on the face
inputPosition	The input position
centerFace	whether to use face center as location

◆ CreatePositioningFeatureOnPoint()

void NXOpen::Tooling::AddReusablePart::CreatePositioningFeatureOnPoint	(	NXOpen::NXObject *	selobj,
		const NXOpen::Point3d &	inputPosition,
		bool	centerFace )

Create positioning feature on the given position
Created in NX11.0.0.

License requirements : None

参数

selobj	The selected object is FACE type, the reusable component place on the face
inputPosition	The input position
centerFace	whether to use face center as location

◆ CreateReusableConstraints()

void NXOpen::Tooling::AddReusablePart::CreateReusableConstraints ( int index )

Creates constraints for the reusable component
Created in NX9.0.0.

License requirements : None

参数

index The index part is to create constraints

◆ CreateReusablePocket()

void NXOpen::Tooling::AddReusablePart::CreateReusablePocket ( bool commit )

Creates pocket for a reusable component
Created in NX9.0.0.

License requirements : None

参数

commit if the variable is true, the component needs pocket

◆ DelayComponents()

void NXOpen::Tooling::AddReusablePart::DelayComponents ( const std::vector< NXOpen::TaggedObject * > & objs )

设置组件的部件间延迟状态。
创建于 NX1953.0.0。

许可要求：无

参数

objs objs

◆ DeleteComponents()

void NXOpen::Tooling::AddReusablePart::DeleteComponents ( int count )

删除组件的数组实例
创建于 NX9.0.0。

许可要求：无

参数

count 数量是数组实例编号

◆ DeleteReusableConstraints()

void NXOpen::Tooling::AddReusablePart::DeleteReusableConstraints ( )

Deletes constraints for the reusable component
Created in NX9.0.0.

License requirements : None

◆ DeleteReusablePocket()

void NXOpen::Tooling::AddReusablePart::DeleteReusablePocket ( )

Deletes pocket for a reusable component
Created in NX9.0.0.

License requirements : None

◆ DestroyReusableBuilder()

void NXOpen::Tooling::AddReusablePart::DestroyReusableBuilder ( )

Destroys reusable builder data
Created in NX9.0.0.

License requirements : None

◆ EditReusableComponent()

void NXOpen::Tooling::AddReusablePart::EditReusableComponent ( NXOpen::Assemblies::Component * partOcc )

编辑可重用组件
创建于 NX9.0.0。

许可要求：无

参数

partOcc 要在零件数据中编辑的组件出现

◆ FindPositioningFeatureSet()

NXOpen::Features::Feature * NXOpen::Tooling::AddReusablePart::FindPositioningFeatureSet ( )

Find the positioning feature set by pattern sketch

返回: Positioning feature set
Created in NX11.0.0.

License requirements : None

◆ GetAttachedGeometry()

NXOpen::NXObject * NXOpen::Tooling::AddReusablePart::GetAttachedGeometry ( )

Gets the attached geometry, this is mainly used to get the initial parameter

返回: Geometry to calculate the initial parameter
Created in NX9.0.0.

License requirements : None

◆ GetCloneObject()

NXOpen::Tooling::CloneObject * NXOpen::Tooling::AddReusablePart::GetCloneObject ( )

Gets the clone operation object

返回: A NXOpen::Tooling::CloneObject instance
Created in NX9.0.0.

License requirements : None

◆ GetDesignElement()

std::vector< NXOpen::Assemblies::Component * > NXOpen::Tooling::AddReusablePart::GetDesignElement ( )

Gets an array of design elements

返回: The design elements
Created in NX9.0.0.

License requirements : None

◆ GetInitialPosition()

NXOpen::Point3d NXOpen::Tooling::AddReusablePart::GetInitialPosition ( )

Gets the initial location, this is mainly used to get default add location of a reusable component

返回: Drop location to initial parameter
Created in NX9.0.0.

License requirements : None

◆ GetParentPart()

NXOpen::Part * NXOpen::Tooling::AddReusablePart::GetParentPart ( )

Gets the parent part, this is mainly used to get context work part of a reusable component

返回: The parent part to place the component
Created in NX9.0.0.

License requirements : None

◆ GetReusablePocketBuilder()

NXOpen::Tooling::ReusablePocketBuilder * NXOpen::Tooling::AddReusablePart::GetReusablePocketBuilder ( )

Gets the reusable pocket builder

返回: The reusable component pocket builder
Created in NX9.0.0.

License requirements : None

◆ GetSpreadsheetData()

NXOpen::Tooling::SpreadsheetData * NXOpen::Tooling::AddReusablePart::GetSpreadsheetData ( )

Gets the spreadsheet data, this is mainly used to get the attributes of a reusable component

返回: Spreadsheet data
Created in NX9.0.0.

License requirements : None

◆ InsertReusableComponent()

void NXOpen::Tooling::AddReusablePart::InsertReusableComponent	(	int	instIndex,
		bool	needTransform )

将组件插入零件数据
创建于 NX9.0.0。

许可要求：无

参数

instIndex	正在零件数据中添加的新组件的索引
needTransform	组件在紧固件装配中是否需要变换

◆ LoadReusableComponent() [1/2]

void NXOpen::Tooling::AddReusablePart::LoadReusableComponent ( const char * krxFile )

Loads the reusable component
Created in NX9.0.0.

License requirements : None

参数

krxFile The KRX file

◆ LoadReusableComponent() [2/2]

void NXOpen::Tooling::AddReusablePart::LoadReusableComponent ( const NXString & krxFile )

Loads the reusable component
Created in NX9.0.0.

License requirements : None

参数

krxFile The KRX file

◆ ModifyParametersByRow()

void NXOpen::Tooling::AddReusablePart::ModifyParametersByRow ( int index )

Modify parameters according to row index. The number of the row is defined by the template data file.
Created in NX11.0.0.

License requirements : None

参数

index The index is the row of the template data file

◆ MoveReusableComponent()

void NXOpen::Tooling::AddReusablePart::MoveReusableComponent	(	const NXOpen::Vector3d &	translation,
		const NXOpen::Matrix3x3 &	rotation,
		int	index )

Moves a reusable component to a selected position
Created in NX9.0.0.

License requirements : None

参数

translation	The translation data
rotation	The rotation data
index	The reusable component index in the part data

◆ PositioningFeature()

NXOpen::Sketch * NXOpen::Tooling::AddReusablePart::PositioningFeature ( )

Returns the positioning feature that needed for reusable component
Created in NX11.0.0.

License requirements : None

◆ PositioningFeatureSeedCsys()

NXOpen::CoordinateSystem * NXOpen::Tooling::AddReusablePart::PositioningFeatureSeedCsys ( )

返回定位特征的种子坐标系
创建于 NX2406.0.0。

许可要求：无

◆ PositionMode()

NXOpen::Tooling::AddReusablePart::PositionMethod NXOpen::Tooling::AddReusablePart::PositionMode ( )

Returns the current position method
Created in NX5.0.0.

License requirements : None

◆ PostUpdate()

void NXOpen::Tooling::AddReusablePart::PostUpdate ( )

创建于 NX2206.0.0。

许可要求：无

◆ RecordReusableComponent() [1/2]

void NXOpen::Tooling::AddReusablePart::RecordReusableComponent ( const char * fileName )

Records the existing reusable component with the same name
Created in NX9.0.0.

License requirements : None

参数

fileName The reusable component name

◆ RecordReusableComponent() [2/2]

void NXOpen::Tooling::AddReusablePart::RecordReusableComponent ( const NXString & fileName )

Records the existing reusable component with the same name
Created in NX9.0.0.

License requirements : None

参数

fileName The reusable component name

◆ RemoveDesignElement()

void NXOpen::Tooling::AddReusablePart::RemoveDesignElement ( )

Removes design element component
Created in NX9.0.0.

License requirements : None

◆ RemoveFamilyInstance()

void NXOpen::Tooling::AddReusablePart::RemoveFamilyInstance ( NXOpen::Part * part )

Removes an instance of a part family member
Created in NX11.0.0.

License requirements : None

参数

part part

◆ RemoveOldInstance()

void NXOpen::Tooling::AddReusablePart::RemoveOldInstance ( int index )

从零件数据中移除实例
创建于 NX9.0.0。

许可要求：无

参数

index 组件实例的索引

◆ RemoveReusableComponent()

void NXOpen::Tooling::AddReusablePart::RemoveReusableComponent ( int index )

Removes a reusable component
Created in NX9.0.0.

License requirements : None

参数

index The reusable component index in the part data

◆ RenamePart() [1/2]

void NXOpen::Tooling::AddReusablePart::RenamePart ( const char * partName )

Sets reuse component name by rule if it is structure mountingfeet.
Created in NX1926.0.0.

License requirements : None

参数

partName The reuse component name

◆ RenamePart() [2/2]

void NXOpen::Tooling::AddReusablePart::RenamePart ( const NXString & partName )

Sets reuse component name by rule if it is structure mountingfeet.
Created in NX1926.0.0.

License requirements : None

参数

partName The reuse component name

◆ ReplaceReusableComponent()

void NXOpen::Tooling::AddReusablePart::ReplaceReusableComponent ( )

Replace reusable component
Created in NX11.0.0.

License requirements : None

◆ ReselectObject()

bool NXOpen::Tooling::AddReusablePart::ReselectObject ( )

返回重新选择对象的标志
创建于 NX2406.0.0。

许可要求：无

◆ ReverseComponentDirection()

NXOpen::NXObject * NXOpen::Tooling::AddReusablePart::ReverseComponentDirection	(	const NXOpen::Point3d &	inputPosition,
		const NXOpen::Point3d &	inputDirection,
		double	length,
		const NXOpen::Point3d &	outputPosition,
		const NXOpen::Point3d &	outputDirection )

Reverses the direction of the reusable component if the reusable component is placed on a face.

返回: The output face of the componnent on
Created in NX9.0.0.

License requirements : None

参数

inputPosition	The input position of componnent
inputDirection	The input direction of componnent
length	The input length of componnent
outputPosition	The output position of componnent
outputDirection	The output position of componnent

◆ ReverseDirection()

void NXOpen::Tooling::AddReusablePart::ReverseDirection ( )

Reverse mounting feet direction.
Created in NX1953.0.0.

License requirements : None

◆ ReversePreviewComponent()

void NXOpen::Tooling::AddReusablePart::ReversePreviewComponent ( const NXOpen::Point3d & rememberDir )

如果可重用组件未放置在面上，则反转其方向。
创建于 NX9.0.0。

许可要求：无

参数

rememberDir 组件的原始位置

◆ SaveLibraryPath() [1/2]

void NXOpen::Tooling::AddReusablePart::SaveLibraryPath	(	const char *	libName,
		const char *	libpath )

Saves the library name and path of the reusable component
Created in NX9.0.0.

License requirements : None

参数

libName	Library name
libpath	The path in the library

◆ SaveLibraryPath() [2/2]

void NXOpen::Tooling::AddReusablePart::SaveLibraryPath	(	const NXString &	libName,
		const NXString &	libpath )

Saves the library name and path of the reusable component
Created in NX9.0.0.

License requirements : None

参数

libName	Library name
libpath	The path in the library

◆ SavePositioningOriginPlacement() [1/2]

void NXOpen::Tooling::AddReusablePart::SavePositioningOriginPlacement	(	const char *	positionOffSet,
		int	placementOriginIndex )

Keep positioning offset and placement index
Created in NX11.0.0.

License requirements : None

参数

positionOffSet	The positionging offset value that defined in the krx file
placementOriginIndex	The positioning placement origin index that defined in the krx file

◆ SavePositioningOriginPlacement() [2/2]

void NXOpen::Tooling::AddReusablePart::SavePositioningOriginPlacement	(	const NXString &	positionOffSet,
		int	placementOriginIndex )

Keep positioning offset and placement index
Created in NX11.0.0.

License requirements : None

参数

positionOffSet	The positionging offset value that defined in the krx file
placementOriginIndex	The positioning placement origin index that defined in the krx file

◆ SetAttachedGeometry()

void NXOpen::Tooling::AddReusablePart::SetAttachedGeometry ( NXOpen::NXObject * part )

Sets the attached geometry, this is mainly used to set the initial parameter
Created in NX9.0.0.

License requirements : None

参数

part	Geometry to calculate the initial parameter

◆ SetCloneObject()

void NXOpen::Tooling::AddReusablePart::SetCloneObject ( NXOpen::Tooling::CloneObject * cloneObject )

设置克隆操作对象
创建于 NX9.0.0。

许可要求：无

参数

cloneObject 一个 NXOpen::Tooling::CloneObject 实例

◆ SetComponentHandleToPoint()

void NXOpen::Tooling::AddReusablePart::SetComponentHandleToPoint ( )

Keep the reusable component handle information into its associated pattern point
Created in NX11.0.0.

License requirements : None

◆ SetComponentPatternBuilder()

void NXOpen::Tooling::AddReusablePart::SetComponentPatternBuilder ( NXOpen::Assemblies::ComponentPatternBuilder * patternComponentBuilderTag )

Sets the current component pattern builder
Created in NX11.0.0.

License requirements : None

参数

patternComponentBuilderTag The reusable component pattern builder

◆ SetComponentProperties() [1/2]

void NXOpen::Tooling::AddReusablePart::SetComponentProperties	(	const char *	referenceSetName,
		const char *	componentName,
		int	layer )

Sets the reusable component properties
Created in NX9.0.0.

License requirements : None

参数

referenceSetName	The name of the reference set used to represent the new component
componentName	The name of the new component
layer	The layer to place the new component on

◆ SetComponentProperties() [2/2]

void NXOpen::Tooling::AddReusablePart::SetComponentProperties	(	const NXString &	referenceSetName,
		const NXString &	componentName,
		int	layer )

Sets the reusable component properties
Created in NX9.0.0.

License requirements : None

参数

referenceSetName	The name of the reference set used to represent the new component
componentName	The name of the new component
layer	The layer to place the new component on

◆ SetComponentToReplace()

void NXOpen::Tooling::AddReusablePart::SetComponentToReplace	(	int	index,
		NXOpen::Assemblies::Component *	replaceComponent )

Sets the selected component to replace
Created in NX11.0.0.

License requirements : None

参数

index	The index for component to replace
replaceComponent	The component to replace

◆ SetComponentType()

void NXOpen::Tooling::AddReusablePart::SetComponentType ( NXOpen::Tooling::AddReusablePart::ComponentMode partType )

Sets the current component type
Created in NX11.0.0.

License requirements : None

参数

partType part type

◆ SetEnablePreview()

void NXOpen::Tooling::AddReusablePart::SetEnablePreview ( bool isTrunOn )

Sets the toggle of the Preview widget
Created in NX9.0.0.

License requirements : None

参数

isTrunOn Whehter preview toggle is turned on, which is on the add reusable component dialog

◆ SetInitialPosition()

void NXOpen::Tooling::AddReusablePart::SetInitialPosition ( const NXOpen::Point3d & dropLocation )

Sets the initial location, this is mainly used to set default add location of a reusable component
Created in NX9.0.0.

License requirements : None

参数

dropLocation Drop location to initial parameter

◆ SetParentPart()

void NXOpen::Tooling::AddReusablePart::SetParentPart ( NXOpen::Part * part )

Sets the parent part, this is mainly used to set context work part of a reusable component
Created in NX9.0.0.

License requirements : None

参数

part	The parent part to place the component

◆ SetPositioningFeature()

void NXOpen::Tooling::AddReusablePart::SetPositioningFeature ( NXOpen::Sketch * sketch )

Sets the positioning feature that needed for reusable component
Created in NX11.0.0.

License requirements : None

参数

sketch Positioning feature

◆ SetPositioningFeatureSeedCsys()

void NXOpen::Tooling::AddReusablePart::SetPositioningFeatureSeedCsys ( NXOpen::CoordinateSystem * seedCsys )

设置定位特征的种子坐标系
创建于 NX2406.0.0。

许可要求：无

参数

seedCsys Seed CSYS 标签

◆ SetPositionMode()

void NXOpen::Tooling::AddReusablePart::SetPositionMode ( NXOpen::Tooling::AddReusablePart::PositionMethod positionMode )

Sets the current position method
Created in NX5.0.0.

License requirements : None

参数

positionMode position mode

◆ SetReplaceTemplate()

void NXOpen::Tooling::AddReusablePart::SetReplaceTemplate ( NXOpen::Part * replaceTemplate )

Sets the replace template part
Created in NX11.0.0.

License requirements : None

参数

replaceTemplate The replace template part

◆ SetReselectObject()

void NXOpen::Tooling::AddReusablePart::SetReselectObject ( bool isReselectObject )

设置重新选择对象的标志
创建于 NX2406.0.0。

许可要求：无

参数

isReselectObject 重新选择对象的标志

◆ SetReusablePocketBuilder()

void NXOpen::Tooling::AddReusablePart::SetReusablePocketBuilder ( NXOpen::Tooling::ReusablePocketBuilder * pocketTag )

Sets the reusable pocket builder
Created in NX9.0.0.

License requirements : None

参数

pocketTag The reusable component pocket builder

◆ SetSearchGeometry()

void NXOpen::Tooling::AddReusablePart::SetSearchGeometry ( bool isTrunOn )

Sets the search geometry for a reusable component
Created in NX9.0.0.

License requirements : None

参数

isTrunOn Whehter the search geometry toggle is turned on, which is on the add reusable component dialog

◆ SetSpreadsheetData()

void NXOpen::Tooling::AddReusablePart::SetSpreadsheetData ( NXOpen::Tooling::SpreadsheetData * spreadsheetData )

Sets the spreadsheet data, this is mainly used to set the attributes of a reusable component
Created in NX9.0.0.

License requirements : None

参数

spreadsheetData Spreadsheet data

◆ SetStructureDesignerPart()

void NXOpen::Tooling::AddReusablePart::SetStructureDesignerPart ( bool isStructureDesigner )

Sets isStructureDesigner flag if it is structure designer part.
Created in NX1926.0.0.

License requirements : None

参数

isStructureDesigner The flag of Structure Designer

◆ SetUpdateComponentName()

void NXOpen::Tooling::AddReusablePart::SetUpdateComponentName ( bool updateComponentName )

Sets the update component name for a reusable component
Created in NX12.0.0.

License requirements : None

参数

updateComponentName Whehter the component name will be updated or not for copied part

◆ SetWaveLink()

void NXOpen::Tooling::AddReusablePart::SetWaveLink ( )

Sets wave link geometry of structure member as the parents if it is structure mountingfeet.
Created in NX1926.0.0.

License requirements : None

◆ SubtituteReusableComponent()

void NXOpen::Tooling::AddReusablePart::SubtituteReusableComponent ( bool substituteInstance )

Subtitutes a reusable part
Created in NX9.0.0.

License requirements : None

参数

substituteInstance Whether the resuable component needs to be substituted

◆ UndelayComponentToUpdate()

void NXOpen::Tooling::AddReusablePart::UndelayComponentToUpdate ( NXOpen::Part * obj )

Sets the inter-part undelay status on the component.
Created in NX1953.0.0.

License requirements : None

参数

obj obj

◆ UpdateCadenasParameter() [1/2]

void NXOpen::Tooling::AddReusablePart::UpdateCadenasParameter	(	const char *	paraName,
		const char *	paraValue )

       Updates the CADENAS component by given parameter name and value,
       the name can also be retrieved by calling the following methods.
       @link NXOpen::Tooling::AddReusablePart::GetSpreadsheetData NXOpen::Tooling::AddReusablePart::GetSpreadsheetData@endlink ,
       @link NXOpen::Tooling::SpreadsheetData::GetParameterValue NXOpen::Tooling::SpreadsheetData::GetParameterValue@endlink ,
       @link NXOpen::Tooling::SpreadsheetDataParameter::ParameterName NXOpen::Tooling::SpreadsheetDataParameter::ParameterName@endlink

Created in NX11.0.0.

License requirements : None

参数

paraName	The parameter name
paraValue	The parameter value

◆ UpdateCadenasParameter() [2/2]

void NXOpen::Tooling::AddReusablePart::UpdateCadenasParameter	(	const NXString &	paraName,
		const NXString &	paraValue )

       Updates the CADENAS component by given parameter name and value,
       the name can also be retrieved by calling the following methods.
       @link NXOpen::Tooling::AddReusablePart::GetSpreadsheetData NXOpen::Tooling::AddReusablePart::GetSpreadsheetData@endlink ,
       @link NXOpen::Tooling::SpreadsheetData::GetParameterValue NXOpen::Tooling::SpreadsheetData::GetParameterValue@endlink ,
       @link NXOpen::Tooling::SpreadsheetDataParameter::ParameterName NXOpen::Tooling::SpreadsheetDataParameter::ParameterName@endlink

Created in NX11.0.0.

License requirements : None

参数

paraName	The parameter name
paraValue	The parameter value

◆ UpdateMountingFeetInfo()

void NXOpen::Tooling::AddReusablePart::UpdateMountingFeetInfo ( NXOpen::Assemblies::Component * partOcc )

创建于 NX2206.0.0。

许可要求：无

参数

partOcc partocc

◆ UpdateParametersByConfiguration()

void NXOpen::Tooling::AddReusablePart::UpdateParametersByConfiguration ( )

Updates parameters by configuration
Created in NX12.0.1.

License requirements : None

◆ UpdatePartData()

void NXOpen::Tooling::AddReusablePart::UpdatePartData ( )

Updates the part data of a reusable component
Created in NX9.0.0.

License requirements : None

◆ UpdatePocketBody()

void NXOpen::Tooling::AddReusablePart::UpdatePocketBody	(	bool	createPattern,
		NXOpen::Tooling::AddReusablePart::PocketBodyMethod	updatePocketBody )

Update pocket body for mw library reusable component
Created in NX11.0.0.

License requirements : None

参数

createPattern	Flag to decide whether to create pocket body pattern or not
updatePocketBody	Flag to decide whether to create pocket body, delete or update 0: add; 1: delete; 2:update

◆ UpdatePositioningOffset() [1/2]

void NXOpen::Tooling::AddReusablePart::UpdatePositioningOffset ( const char * positionOffSet )

Update positioning offset
Created in NX11.0.0.

License requirements : None

参数

positionOffSet The positionging offset value that defined in the krx file

◆ UpdatePositioningOffset() [2/2]

void NXOpen::Tooling::AddReusablePart::UpdatePositioningOffset ( const NXString & positionOffSet )

Update positioning offset
Created in NX11.0.0.

License requirements : None

参数

positionOffSet The positionging offset value that defined in the krx file

◆ UpdateReusableComponent()

void NXOpen::Tooling::AddReusablePart::UpdateReusableComponent ( )

Updates the part data for a reusable component, this is mainly used to update parameter for a reusable component
Created in NX9.0.0.

License requirements : None

◆ UpdateReusablePocket()

void NXOpen::Tooling::AddReusablePart::UpdateReusablePocket ( )

Updates the pocket for a reusable component
Created in NX9.0.0.

License requirements : None

◆ UpdateToolingSymbolicThread()

void NXOpen::Tooling::AddReusablePart::UpdateToolingSymbolicThread ( )

Updates the tooling symbolic thread feature.
Created in NX1953.0.0.

License requirements : None

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ ComponentMode

◆ ModeMethod

◆ PocketBodyMethod

◆ PositionMethod

成员函数说明

◆ AddClonePartName() [1/2]

◆ AddClonePartName() [2/2]

◆ AddComponentMode()

◆ AddComponentProperty() [1/2]

◆ AddComponentProperty() [2/2]

◆ AddCriteriaToInstance() [1/2]

◆ AddCriteriaToInstance() [2/2]

◆ AddHoleInstance()

◆ AddHoleInstanceForCsys()

◆ AddNewInstance()

◆ AddPartOccurance()

◆ AddReuseablePartToPattern()

◆ AffirmReusableComponent()

◆ AffirmReusableComponents()

◆ AssignStructureDesignerAttributes()

◆ ComponentPatternBuilder()

◆ ComponentType()

◆ ConstructParametersData()

◆ CreateCloneObject() [1/2]

◆ CreateCloneObject() [2/2]

◆ CreateComponents()

◆ CreateCriteria() [1/2]

◆ CreateCriteria() [2/2]

◆ CreatePatternComponent()

◆ CreatePositioningFeatureByPoint()

◆ CreatePositioningFeatureOnPoint()

◆ CreateReusableConstraints()

◆ CreateReusablePocket()

◆ DelayComponents()

◆ DeleteComponents()

◆ DeleteReusableConstraints()

◆ DeleteReusablePocket()

◆ DestroyReusableBuilder()

◆ EditReusableComponent()

◆ FindPositioningFeatureSet()

◆ GetAttachedGeometry()

◆ GetCloneObject()

◆ GetDesignElement()

◆ GetInitialPosition()

◆ GetParentPart()

◆ GetReusablePocketBuilder()

◆ GetSpreadsheetData()

◆ InsertReusableComponent()

◆ LoadReusableComponent() [1/2]

◆ LoadReusableComponent() [2/2]

◆ ModifyParametersByRow()

◆ MoveReusableComponent()

◆ PositioningFeature()

◆ PositioningFeatureSeedCsys()

◆ PositionMode()

◆ PostUpdate()

◆ RecordReusableComponent() [1/2]

◆ RecordReusableComponent() [2/2]

◆ RemoveDesignElement()

◆ RemoveFamilyInstance()

◆ RemoveOldInstance()

◆ RemoveReusableComponent()

◆ RenamePart() [1/2]

◆ RenamePart() [2/2]

◆ ReplaceReusableComponent()

◆ ReselectObject()

◆ ReverseComponentDirection()

◆ ReverseDirection()

◆ ReversePreviewComponent()

◆ SaveLibraryPath() [1/2]

◆ SaveLibraryPath() [2/2]

◆ SavePositioningOriginPlacement() [1/2]

◆ SavePositioningOriginPlacement() [2/2]

◆ SetAttachedGeometry()

◆ SetCloneObject()
