#include <Assemblies_Explosion.hxx>

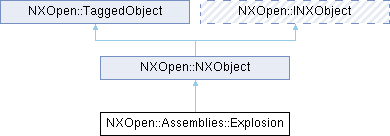

类 NXOpen::Assemblies::Explosion 继承关系图:

类
struct	BlockingOptions
struct	ExplosionOptions

Public 成员函数
void	Copy (NXOpen::Assemblies::Explosion *destinationExplosion)
void	Delete ()
int	DeleteExplosions (const std::vector< NXOpen::Assemblies::Explosion * > &explosions)
NXOpen::Positioning::ComponentPositioner *	GetPositioner ()
void	Hide (NXOpen::View *view)
void	MoveComponentsToOriginalPosition (const std::vector< NXOpen::Assemblies::ExplodedComponent * > &selectedComponents)
void	Rename (NXOpen::Assemblies::ComponentAssembly occPart, const char explosionName)
void	Rename (NXOpen::Assemblies::ComponentAssembly *occPart, const NXString &explosionName)
NXOpen::Assemblies::ExplodedComponent *	RootComponent ()
void	Show (NXOpen::View *view)
void	UnexplodeAllComponents ()
void	UnexplodeComponents (const std::vector< NXOpen::Assemblies::ExplodedComponent * > &selectedComponents)
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ExplosionBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

爆炸视图

表示一个爆炸视图。爆炸视图是一个包含已从其实际模型位置移开的零件或子装配体的视图。
使用 NXOpen::Assemblies::ExplosionCollection 创建爆炸视图。

创建于 NX4.0.0.

成员函数说明

◆ Copy()

void NXOpen::Assemblies::Explosion::Copy ( NXOpen::Assemblies::Explosion * destinationExplosion )

将源爆炸图中的组件变换复制到目标爆炸图上。
Created in NX9.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

destinationExplosion 目标爆炸图

◆ Delete()

void NXOpen::Assemblies::Explosion::Delete ( )

删除给定的 NXOpen::Assemblies::Explosion 。
Created in NX9.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

◆ DeleteExplosions()

int NXOpen::Assemblies::Explosion::DeleteExplosions ( const std::vector< NXOpen::Assemblies::Explosion * > & explosions )

尝试删除给定的 NXOpen::Assemblies::Explosion 数组。如果爆炸图正用于未在活动布局中显示的模型视图，则无法删除。
Created in NX1926.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

explosions 爆炸图数组

◆ GetPositioner()

NXOpen::Positioning::ComponentPositioner * NXOpen::Assemblies::Explosion::GetPositioner ( )

为NXOpen::Assemblies::Explosion 建立组件定位器。该定位器管理组件约束。
创建于NX1953.0.0.

许可要求：装配（"ASSEMBLIES MODULE"）

◆ Hide()

void NXOpen::Assemblies::Explosion::Hide ( NXOpen::View * view )

更改视图以使其不再显示爆炸视图。
Created in NX9.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

view 视图

◆ MoveComponentsToOriginalPosition()

void NXOpen::Assemblies::Explosion::MoveComponentsToOriginalPosition ( const std::vector< NXOpen::Assemblies::ExplodedComponent * > & selectedComponents )

将给定的NXOpen::Assemblies::ExplodedComponent 叶子组件数组重新定位到其父装配上的原始未爆炸位置
创建于NX1953.0.0.

许可要求：装配（"ASSEMBLIES MODULE"）

参数

selectedComponents 选中的组件

◆ Rename() [1/2]

void NXOpen::Assemblies::Explosion::Rename	(	NXOpen::Assemblies::ComponentAssembly *	occPart,
		const char *	explosionName )

重命名给定的 NXOpen::Assemblies::Explosion 。
Created in NX1926.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

occPart	包含此爆炸图的部件
explosionName	要分配给此爆炸图的新名称

◆ Rename() [2/2]

void NXOpen::Assemblies::Explosion::Rename	(	NXOpen::Assemblies::ComponentAssembly *	occPart,
		const NXString &	explosionName )

重命名给定的 NXOpen::Assemblies::Explosion 。
Created in NX1926.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

occPart	包含此爆炸图的部件
explosionName	要分配给此爆炸图的新名称

◆ RootComponent()

NXOpen::Assemblies::ExplodedComponent * NXOpen::Assemblies::Explosion::RootComponent ( )

返回爆炸图的根组件。根组件是爆炸组件树顶部的被爆炸组件。爆炸组件树的结构与 NXOpen::Assemblies::ComponentAssembly 中的组件树结构相同。
Created in NX9.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

◆ Show()

void NXOpen::Assemblies::Explosion::Show ( NXOpen::View * view )

更改视图以显示爆炸图。
Created in NX9.0.1.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

view 视图

◆ UnexplodeAllComponents()

void NXOpen::Assemblies::Explosion::UnexplodeAllComponents ( )

取消爆炸当前活动装配中所有NXOpen::Assemblies::ExplodedComponent 在NXOpen::Assemblies::Explosion 中的状态。
创建于NX1953.0.0.

许可要求：装配（"ASSEMBLIES MODULE"）

◆ UnexplodeComponents()

void NXOpen::Assemblies::Explosion::UnexplodeComponents ( const std::vector< NXOpen::Assemblies::ExplodedComponent * > & selectedComponents )

在 NXOpen::Assemblies::Explosion 中取消爆炸给定的 NXOpen::Assemblies::ExplodedComponent 数组。
Created in NX1953.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

参数

selectedComponents 选定的组件

类

Public 成员函数

友元

额外继承的成员函数

详细描述

成员函数说明

◆ Copy()

◆ Delete()

◆ DeleteExplosions()

◆ GetPositioner()

◆ Hide()

◆ MoveComponentsToOriginalPosition()

◆ Rename() [1/2]

◆ Rename() [2/2]

◆ RootComponent()

◆ Show()

◆ UnexplodeAllComponents()

◆ UnexplodeComponents()
