NXOpen::Weld::MeasureTrimBuilder类 参考

测量修剪构建器 更多...

#include <Weld_MeasureTrimBuilder.hxx>

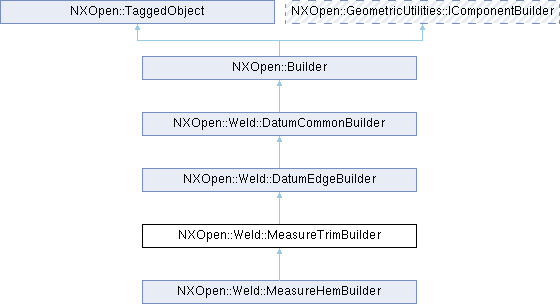

类 NXOpen::Weld::MeasureTrimBuilder 继承关系图:

友元
class	_MeasureTrimBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Weld::DatumCommonBuilder
enum	ControlMethodTypes { ControlMethodTypesPrincipalAxis , ControlMethodTypesUseSectionPlane }
enum	CreationDirectionMethods { CreationDirectionMethodsDefault , CreationDirectionMethodsOpposite }
enum	CustomTypes {   CustomTypesDefault , CustomTypesCustom1 , CustomTypesCustom2 , CustomTypesCustom3 ,   CustomTypesCustom4 , CustomTypesCustom5 , CustomTypesCustom6 , CustomTypesCustom7 }
enum	PlaneMethodTypes {   PlaneMethodTypesInferPlanes , PlaneMethodTypesParallelXCPlanes , PlaneMethodTypesParallelYCPlanes , PlaneMethodTypesParallelZCPlanes ,   PlaneMethodTypesSelectPlanes , PlaneMethodTypesUnknown }
enum	SizeMethodTypes { SizeMethodTypesAutomatic , SizeMethodTypesManual }
enum	SolidTypes {   SolidTypesSphere , SolidTypesCylinder , SolidTypesCone , SolidTypesCuboid ,   SolidTypesHollow , SolidTypesArrow , SolidTypesNone , SolidTypesHourglass }
Public 成员函数 继承自 NXOpen::Weld::DatumEdgeBuilder
NXOpen::ScCollector *	BoundaryCurve ()
double	CustomCuboidLength ()
double	CustomCuboidWidth ()
NXOpen::Weld::SelectDatumEdge *	DerivedDatum ()
double	GridSnapTolerance ()
void	InitializeAxis (const NXOpen::Point3d &approximatePoint)
void	MoveMinimumDistance ()
NXOpen::ScCollector *	RestingFace ()
void	SetCustomCuboidLength (double customCuboidLength)
void	SetCustomCuboidWidth (double customCuboidWidth)
void	SetGridSnapTolerance (double gridSnapTolerance)
void	SetSnapPointToGrid (bool snapPointToGrid)
void	SetXCoordinate (double xCoordinate)
void	SetYCoordinate (double yCoordinate)
void	SetZCoordinate (double zCoordinate)
bool	SnapPointToGrid ()
void	UpdateAxisData ()
double	XCoordinate ()
double	YCoordinate ()
double	ZCoordinate ()
Public 成员函数 继承自 NXOpen::Weld::DatumCommonBuilder
NXOpen::Assemblies::SelectComponentList *	AdditionalReferences ()
bool	Associative ()
NXOpen::Weld::CharacteristicsBuilder *	Characteristics ()
NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes	ControlMethod ()
bool	CreateDirectionVector ()
bool	CreatePlane ()
bool	CreatePoint ()
NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods	CreationDirection ()
double	CustomAboveLength ()
double	CustomRadius ()
double	CustomTotalLength ()
NXOpen::Weld::DatumCommonBuilder::CustomTypes	CustomType ()
NXString	CustomTypeName ()
bool	Derived ()
NXString	DerivedParentID ()
NXOpen::Axis *	DirectionAxis ()
double	DirectionLength ()
double	HoleDiameter ()
double	ModelingTolerance ()
double	PlaneHeight ()
NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes	PlaneMethod ()
double	PlaneWidth ()
bool	PrincipalAxisX ()
bool	PrincipalAxisY ()
bool	PrincipalAxisZ ()
bool	ProjectAlongDirection ()
NXOpen::Expression *	RadiusExp ()
NXOpen::Expression *	RotationAngle ()
NXOpen::Direction *	SectionPlaneNormal ()
void	SetAssociative (bool associative)
void	SetControlMethod (NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes controlMethod)
void	SetCreateDirectionVector (bool createDirectionVector)
void	SetCreatePlane (bool createPlane)
void	SetCreatePoint (bool createPoint)
void	SetCreationDirection (NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods creationDirection)
void	SetCustomAboveLength (double directionLength)
void	SetCustomRadius (double customRadius)
void	SetCustomTotalLength (double customTotalLength)
void	SetCustomType (NXOpen::Weld::DatumCommonBuilder::CustomTypes customType)
void	SetCustomTypeName (const char *customTypeName)
void	SetCustomTypeName (const NXString &customTypeName)
void	SetDerived (bool derived)
void	SetDerivedParentID (const char *parentDatumID)
void	SetDerivedParentID (const NXString &parentDatumID)
void	SetDirectionAxis (NXOpen::Axis *directionAxis)
void	SetDirectionLength (double directionLength)
void	SetHoleDiameter (double holeDiameter)
void	SetModelingTolerance (double modelingTolerance)
void	SetPlaneHeight (double planeHeight)
void	SetPlaneMethod (NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes planeMethod)
void	SetPlaneWidth (double planeWidth)
void	SetPrincipalAxisX (bool principalAxisX)
void	SetPrincipalAxisY (bool principalAxisY)
void	SetPrincipalAxisZ (bool principalAxisZ)
void	SetProjectAlongDirection (bool projectAlongDirection)
void	SetSectionPlaneNormal (NXOpen::Direction *sectionPlaneNormal)
void	SetSizeMethodType (NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes sizeMethodType)
void	SetSlotLength (double slotLength)
void	SetSlotWidth (double slotWidth)
void	SetSolidType (NXOpen::Weld::DatumCommonBuilder::SolidTypes solidType)
void	SetXTolerance (double xTolerance)
void	SetYTolerance (double xTolerance)
void	SetZTolerance (double xTolerance)
NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes	SizeMethodType ()
double	SlotLength ()
double	SlotWidth ()
NXOpen::Weld::DatumCommonBuilder::SolidTypes	SolidType ()
void	UpdateWithDerivedDatum ()
NXOpen::SelectNXObjectList *	UserPlane ()
double	XTolerance ()
double	YTolerance ()
double	ZTolerance ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

测量修剪构建器

用于创建或编辑 NXOpen::Weld::MeasureTrim 特征。
要创建此类的新实例，请使用 NXOpen::Weld::WeldManager::CreateMeasureTrimBuilder
默认值。

属性	值
ControlMethod	PrincipalAxis
CreateDirectionVector	1
CreatePoint	1
Derived	0
DirectionLength	20（毫米部件），1.0（英寸部件）
GridSnapTolerance	1（毫米部件），0.05（英寸部件）
ModelingTolerance	0.02（毫米部件），0.001（英寸部件）
PlaneHeight	20（毫米部件），1.0（英寸部件）
PlaneWidth	20（毫米部件），1.0（英寸部件）
PrincipalAxisX	0
PrincipalAxisY	0
PrincipalAxisZ	0
SnapPointToGrid	1

在NX2312.0.0中创建。
