NXOpen::Weld::MeasureHoleBuilder类 参考

测量孔构建器 更多...

#include <Weld_MeasureHoleBuilder.hxx>

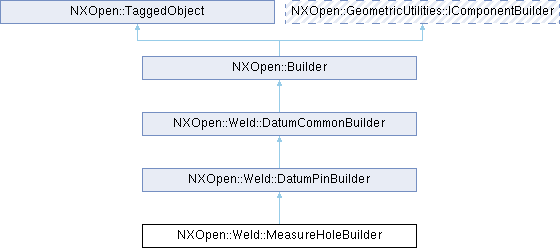

类 NXOpen::Weld::MeasureHoleBuilder 继承关系图:

友元
class	_MeasureHoleBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Weld::DatumCommonBuilder
enum	ControlMethodTypes { ControlMethodTypesPrincipalAxis , ControlMethodTypesUseSectionPlane }
enum	CreationDirectionMethods { CreationDirectionMethodsDefault , CreationDirectionMethodsOpposite }
enum	CustomTypes {   CustomTypesDefault , CustomTypesCustom1 , CustomTypesCustom2 , CustomTypesCustom3 ,   CustomTypesCustom4 , CustomTypesCustom5 , CustomTypesCustom6 , CustomTypesCustom7 }
enum	PlaneMethodTypes {   PlaneMethodTypesInferPlanes , PlaneMethodTypesParallelXCPlanes , PlaneMethodTypesParallelYCPlanes , PlaneMethodTypesParallelZCPlanes ,   PlaneMethodTypesSelectPlanes , PlaneMethodTypesUnknown }
enum	SizeMethodTypes { SizeMethodTypesAutomatic , SizeMethodTypesManual }
enum	SolidTypes {   SolidTypesSphere , SolidTypesCylinder , SolidTypesCone , SolidTypesCuboid ,   SolidTypesHollow , SolidTypesArrow , SolidTypesNone , SolidTypesHourglass }
Public 成员函数 继承自 NXOpen::Weld::DatumPinBuilder
NXOpen::ScCollector *	BoundaryCurve ()
bool	CreatePunchVector ()
NXOpen::Weld::SelectDatumPin *	DerivedDatum ()
void	InitializeAxis ()
void	MoveToCenter ()
NXOpen::Direction *	PunchDirection ()
double	PunchDirectionLength ()
void	SetCreatePunchVector (bool createPunchVector)
void	SetPunchDirection (NXOpen::Direction *punchDirection)
void	SetPunchDirectionLength (double punchDirectionLength)
void	UpdateAxisData ()
Public 成员函数 继承自 NXOpen::Weld::DatumCommonBuilder
NXOpen::Assemblies::SelectComponentList *	AdditionalReferences ()
bool	Associative ()
NXOpen::Weld::CharacteristicsBuilder *	Characteristics ()
NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes	ControlMethod ()
bool	CreateDirectionVector ()
bool	CreatePlane ()
bool	CreatePoint ()
NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods	CreationDirection ()
double	CustomAboveLength ()
double	CustomRadius ()
double	CustomTotalLength ()
NXOpen::Weld::DatumCommonBuilder::CustomTypes	CustomType ()
NXString	CustomTypeName ()
bool	Derived ()
NXString	DerivedParentID ()
NXOpen::Axis *	DirectionAxis ()
double	DirectionLength ()
double	HoleDiameter ()
double	ModelingTolerance ()
double	PlaneHeight ()
NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes	PlaneMethod ()
double	PlaneWidth ()
bool	PrincipalAxisX ()
bool	PrincipalAxisY ()
bool	PrincipalAxisZ ()
bool	ProjectAlongDirection ()
NXOpen::Expression *	RadiusExp ()
NXOpen::Expression *	RotationAngle ()
NXOpen::Direction *	SectionPlaneNormal ()
void	SetAssociative (bool associative)
void	SetControlMethod (NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes controlMethod)
void	SetCreateDirectionVector (bool createDirectionVector)
void	SetCreatePlane (bool createPlane)
void	SetCreatePoint (bool createPoint)
void	SetCreationDirection (NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods creationDirection)
void	SetCustomAboveLength (double directionLength)
void	SetCustomRadius (double customRadius)
void	SetCustomTotalLength (double customTotalLength)
void	SetCustomType (NXOpen::Weld::DatumCommonBuilder::CustomTypes customType)
void	SetCustomTypeName (const char *customTypeName)
void	SetCustomTypeName (const NXString &customTypeName)
void	SetDerived (bool derived)
void	SetDerivedParentID (const char *parentDatumID)
void	SetDerivedParentID (const NXString &parentDatumID)
void	SetDirectionAxis (NXOpen::Axis *directionAxis)
void	SetDirectionLength (double directionLength)
void	SetHoleDiameter (double holeDiameter)
void	SetModelingTolerance (double modelingTolerance)
void	SetPlaneHeight (double planeHeight)
void	SetPlaneMethod (NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes planeMethod)
void	SetPlaneWidth (double planeWidth)
void	SetPrincipalAxisX (bool principalAxisX)
void	SetPrincipalAxisY (bool principalAxisY)
void	SetPrincipalAxisZ (bool principalAxisZ)
void	SetProjectAlongDirection (bool projectAlongDirection)
void	SetSectionPlaneNormal (NXOpen::Direction *sectionPlaneNormal)
void	SetSizeMethodType (NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes sizeMethodType)
void	SetSlotLength (double slotLength)
void	SetSlotWidth (double slotWidth)
void	SetSolidType (NXOpen::Weld::DatumCommonBuilder::SolidTypes solidType)
void	SetXTolerance (double xTolerance)
void	SetYTolerance (double xTolerance)
void	SetZTolerance (double xTolerance)
NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes	SizeMethodType ()
double	SlotLength ()
double	SlotWidth ()
NXOpen::Weld::DatumCommonBuilder::SolidTypes	SolidType ()
void	UpdateWithDerivedDatum ()
NXOpen::SelectNXObjectList *	UserPlane ()
double	XTolerance ()
double	YTolerance ()
double	ZTolerance ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

测量孔构建器

用于创建或编辑 NXOpen::Weld::MeasureHole 特征。
要创建此类的新实例，请使用 NXOpen::Weld::WeldManager::CreateMeasureHoleBuilder
默认值。

属性	值
ControlMethod	PrincipalAxis
CreateDirectionVector	1
CreatePlane	1
CreatePoint	1
CreatePunchVector	1
Derived	0
DirectionLength	20（毫米制零件），1.0（英寸制零件）
ModelingTolerance	0.0254
PlaneHeight	20（毫米制零件），1.0（英寸制零件）
PlaneWidth	20（毫米制零件），1.0（英寸制零件）
PrincipalAxisX	0
PrincipalAxisY	0
PrincipalAxisZ	0
PunchDirectionLength	30（毫米制零件），1.2（英寸制零件）

在 NX2306.0.0 中创建。
