NXOpen::Routing::FixturePort类 参考

夹具端口 更多...

#include <Routing_FixturePort.hxx>

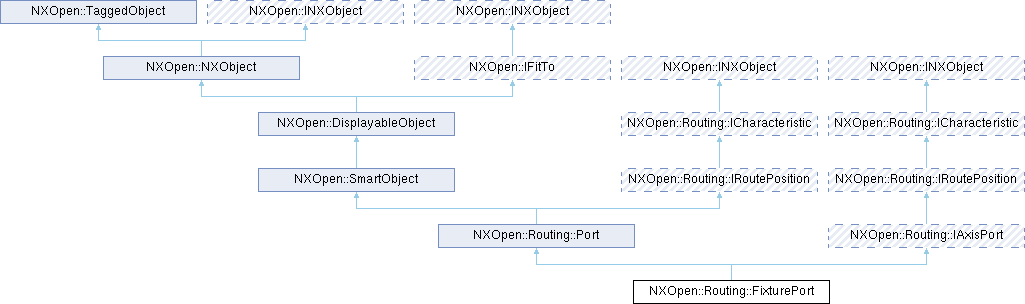

类 NXOpen::Routing::FixturePort 继承关系图:

Public 成员函数
virtual NXOpen::Axis *	Axis ()
virtual NXOpen::Expression *	CutbackLengthObject ()
virtual NXOpen::Expression *	EngagementObject ()
virtual NXOpen::Expression *	ForwardExtensionObject ()
virtual void	SetAlignVector (const NXOpen::Vector3d &vector)
virtual void	SetAxis (NXOpen::Axis *axis)
virtual void	SetCutbackLength (double cutbackLength)
virtual void	SetCutbackLengthObject (NXOpen::Expression *cutbackLength)
virtual void	SetEngagement (double engagement)
virtual void	SetEngagementObject (NXOpen::Expression *engagement)
virtual void	SetForwardExtension (double forwardExtension)
virtual void	SetForwardExtensionObject (NXOpen::Expression *forwardExtension)
virtual void	SetRotationObject (NXOpen::DisplayableObject *rotationObject)
virtual void	SetRotationVector (const NXOpen::Vector3d &vector)
Public 成员函数 继承自 NXOpen::Routing::Port
bool	AllowMultipleConnections ()
NXOpen::Routing::FeaturePort *	AskFeature ()
NXOpen::Features::WaveRouting *	AskWaveFeature ()
double	BackwardExtension ()
NXOpen::Expression *	BackwardExtensionObject ()
NXOpen::Expression *	ClockIncrementObject ()
NXOpen::Routing::PortConnection *	Connect ()
virtual void	DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
void	Disconnect ()
int	FindPortIntegerCharacteristic (const char *name)
int	FindPortIntegerCharacteristic (const NXString &name)
double	FindPortRealCharacteristic (const char *name)
double	FindPortRealCharacteristic (const NXString &name)
NXString	FindPortStringCharacteristic (const char *name)
NXString	FindPortStringCharacteristic (const NXString &name)
NXOpen::Vector3d	GetAlignmentVector ()
virtual NXOpen::Routing::CharacteristicList *	GetCharacteristics ()
double	GetClockIncrement ()
NXOpen::Assemblies::Component *	GetComponent ()
void	GetConnectedPorts (NXOpen::Routing::Port **connectedPort1, NXOpen::Routing::Port **connectedPort2)
NXOpen::Routing::ControlPoint *	GetControlPoint ()
double	GetCutbackLength ()
virtual NXOpen::Routing::CharacteristicList *	GetDestinationCharacteristics ()
double	GetEngagement ()
NXOpen::Point3d	GetEngagementPosition ()
NXOpen::Routing::Port::FlowDirectionType	GetFlowDirection ()
double	GetForwardExtension ()
NXOpen::Expression *	GetForwardExtensionObject ()
virtual int	GetIntegerCharacteristic (const char *name)
virtual int	GetIntegerCharacteristic (const NXString &name)
NXOpen::NXObject *	GetOccurrence ()
NXOpen::Routing::PortConnection *	GetPortConnection ()
NXOpen::Routing::Port::PortType	GetPortType ()
virtual double	GetRealCharacteristic (const char *name)
virtual double	GetRealCharacteristic (const NXString &name)
NXString	GetReferenceCharacteristic (const char *name)
NXString	GetReferenceCharacteristic (const NXString &name)
NXOpen::DisplayableObject *	GetRotationObject ()
NXOpen::Vector3d	GetRotationVector ()
NXOpen::Routing::ISegment *	GetSegment ()
NXOpen::Routing::Stock *	GetStockOfPort ()
virtual NXString	GetStringCharacteristic (const char *name)
virtual NXString	GetStringCharacteristic (const NXString &name)
bool	IsEngagementLocked (NXOpen::Routing::Port *portToCheck)
bool	IsRotationLocked (NXOpen::Routing::Port *portToCheck)
std::vector< NXOpen::Positioning::Constraint * >	LockEngagement (NXOpen::Routing::Port *portToLock)
std::vector< NXOpen::Positioning::Constraint * >	LockRotation (NXOpen::Routing::Port *portToLock)
	NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
virtual NXOpen::Point *	Point ()
virtual NXOpen::Point3d	Position ()
void	ReorderFeature ()
void	SetAllowMultipleConnections (bool allowMultipleConnections)
void	SetBackwardExtension (double extension)
void	SetBackwardExtensionObject (NXOpen::Expression *backwardExtension)
virtual void	SetCharacteristic (const char *name, const char *value)
virtual void	SetCharacteristic (const char *name, double value)
virtual void	SetCharacteristic (const char *name, int value)
virtual void	SetCharacteristic2 (const char *title, const char *value)
virtual void	SetCharacteristic2 (const char *title, double value)
virtual void	SetCharacteristic2 (const char *title, int value)
virtual void	SetCharacteristic2 (const NXString &title, const NXString &value)
virtual void	SetCharacteristic2 (const NXString &title, double value)
virtual void	SetCharacteristic2 (const NXString &title, int value)
virtual void	SetCharacteristics2 (NXOpen::Routing::CharacteristicList *values)
void	SetClockIncrement (double increment)
void	SetClockIncrementObject (NXOpen::Expression *increment)
void	SetFlowDirection (NXOpen::Routing::Port::FlowDirectionType flowDirection)
virtual void	SetPoint (NXOpen::Point *point)
virtual void	SetPosition (const NXOpen::Point3d &position)
void	SetReferenceCharacteristic (const char *name, const char *value)
void	SetReferenceCharacteristic (const NXString &name, const NXString &value)
void	UnlockEngagement (NXOpen::Routing::Port *portToUnlock)
void	UnlockRotation (NXOpen::Routing::Port *portToUnlock)
Public 成员函数 继承自 NXOpen::SmartObject
void	Evaluate ()
void	ProtectFromDelete ()
void	ReleaseDeleteProtection ()
void	RemoveParameters ()
void	ReplaceParameters (NXOpen::SmartObject *otherSo)
void	SetVisibility (NXOpen::SmartObject::VisibilityOption visibility)
NXOpen::SmartObject::UpdateOption	Update ()
NXOpen::SmartObject::VisibilityOption	Visibility ()
Public 成员函数 继承自 NXOpen::DisplayableObject
void	Blank ()
int	Color ()
void	Highlight ()
bool	IsBlanked ()
int	Layer ()
NXOpen::DisplayableObject::ObjectFont	LineFont ()
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
NXOpen::Point3d	NameLocation ()
void	RedisplayObject ()
void	RemoveViewDependency ()
void	SetColor (int color)
void	SetLayer (int layer)
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void	SetNameLocation (const NXOpen::Point3d &location)
void	Unblank ()
void	Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char *title, const char *value)
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetReferenceAttribute (const char *title, const char *value)
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char *title, const char *value)
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const
Public 成员函数 继承自 NXOpen::Routing::ICharacteristic
	NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
	NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name

友元
class	_FixturePortBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Routing::Port
enum	CreateRotationVector { CreateRotationVectorNo , CreateRotationVectorYes }
enum	FlowDirectionType { FlowDirectionTypeRouteFlowEither , FlowDirectionTypeRouteFlowIn , FlowDirectionTypeRouteFlowOut , FlowDirectionTypeFlowNone }
enum	PortType {   PortTypeUnknownPort , PortTypeFittingPort , PortTypeFixturePort , PortTypeMultiPort ,   PortTypeTerminalPort , PortTypeStockPort , PortTypeStockOffsetPort }
Public 类型 继承自 NXOpen::SmartObject
enum	UpdateOption {   UpdateOptionDontUpdate , UpdateOptionWithinModeling , UpdateOptionAfterModeling , UpdateOptionAfterParentBody ,   UpdateOptionMixed }
enum	VisibilityOption { VisibilityOptionInvisible , VisibilityOptionVisible , VisibilityOptionVisibleIfParentInvisible }
Public 类型 继承自 NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,   ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,   ObjectFontNine , ObjectFontTen , ObjectFontEleven }
enum	ObjectWidth {   ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,   ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,   ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine }
Public 类型 继承自 NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,   AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,   AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::Routing::Port
const NXString &	value
double	value
int	value
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value
Public 属性 继承自 NXOpen::Routing::ICharacteristic
const NXString &	value = 0
double	value = 0
int	value = 0

详细描述

夹具端口

NXOpen::Routing::FixturePort 对象是创建布线路径时供管线穿过的对象。
使用 Routing::FixturePortCollection::CreateFixturePort 获取此类实例

NX4.0.0版本创建。

成员函数说明

Axis()

virtual NXOpen::Axis * NXOpen::Routing::FixturePort::Axis ( )

virtual

获取定义端口的轴
版本始于NX5.0.0。

许可要求: routing_base ("Routing Basic")

实现了 NXOpen::Routing::IAxisPort.

CutbackLengthObject()

virtual NXOpen::Expression * NXOpen::Routing::FixturePort::CutbackLengthObject ( )

virtual

获取端口的回剥长度对象，即代表从端口开始，单根导线从线束中分离出来以连接引脚的导线长度的表达式
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

实现了 NXOpen::Routing::IAxisPort.

EngagementObject()

virtual NXOpen::Expression * NXOpen::Routing::FixturePort::EngagementObject ( )

virtual

获取端口的啮合对象，即代表端口后方可供其他接头或管段啮合的距离的表达式
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

实现了 NXOpen::Routing::IAxisPort.

ForwardExtensionObject()

virtual NXOpen::Expression * NXOpen::Routing::FixturePort::ForwardExtensionObject ( )

virtual

获取端口的正向延伸对象，即代表从NXOpen::Routing::Port伸出的线段必须保持笔直的最小长度的表达式
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

实现了 NXOpen::Routing::IAxisPort.

SetAlignVector()

virtual void NXOpen::Routing::FixturePort::SetAlignVector ( const NXOpen::Vector3d & vector )

virtual

设置端口的对齐矢量
NX4.0.0版本创建。

许可要求: routing_base ("Routing Basic")

参数

vector

绝对坐标系下的矢量方向

实现了 NXOpen::Routing::IAxisPort.

SetAxis()

virtual void NXOpen::Routing::FixturePort::SetAxis ( NXOpen::Axis * axis )

virtual

设置定义端口的轴
版本始于NX5.0.0。

许可要求: routing_base ("Routing Basic")

参数

axis

轴

实现了 NXOpen::Routing::IAxisPort.

SetCutbackLength()

virtual void NXOpen::Routing::FixturePort::SetCutbackLength ( double cutbackLength )

virtual

设置端口的回剥长度，即从端口开始，单根导线从线束中分离出来以连接引脚的导线长度
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

cutbackLength

回剥长度

实现了 NXOpen::Routing::IAxisPort.

SetCutbackLengthObject()

virtual void NXOpen::Routing::FixturePort::SetCutbackLengthObject ( NXOpen::Expression * cutbackLength )

virtual

设置端口的回剥长度对象，即代表从端口开始，单根导线从线束中分离出来以连接引脚的导线长度的表达式
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

cutbackLength

回剥长度表达式

实现了 NXOpen::Routing::IAxisPort.

SetEngagement()

virtual void NXOpen::Routing::FixturePort::SetEngagement ( double engagement )

virtual

设置NXOpen::Routing::IAxisPort的啮合距离，即端口后方可供其他接头或管段啮合的距离
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

engagement

啮合距离

实现了 NXOpen::Routing::IAxisPort.

SetEngagementObject()

virtual void NXOpen::Routing::FixturePort::SetEngagementObject ( NXOpen::Expression * engagement )

virtual

设置端口的啮合对象，即代表端口后方可供其他接头或管段啮合的距离的表达式
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

engagement

啮合表达式

实现了 NXOpen::Routing::IAxisPort.

SetForwardExtension()

virtual void NXOpen::Routing::FixturePort::SetForwardExtension ( double forwardExtension )

virtual

设置端口的正向延伸值，即从NXOpen::Routing::Port伸出的线段必须保持笔直的最小长度
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

forwardExtension

端口延伸长度

实现了 NXOpen::Routing::IAxisPort.

SetForwardExtensionObject()

virtual void NXOpen::Routing::FixturePort::SetForwardExtensionObject ( NXOpen::Expression * forwardExtension )

virtual

设置端口的正向延伸对象，即代表从NXOpen::Routing::Port伸出的线段必须保持笔直的最小长度的表达式
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

forwardExtension

正向延伸表达式

实现了 NXOpen::Routing::IAxisPort.

SetRotationObject()

virtual void NXOpen::Routing::FixturePort::SetRotationObject ( NXOpen::DisplayableObject * rotationObject )

virtual

设置用于导出端口旋转矢量的对象
版本始于NX4.0.0。

许可要求: routing_base ("Routing Basic")

参数

rotationObject

用于导出旋转矢量的对象

实现了 NXOpen::Routing::IAxisPort.

SetRotationVector()

virtual void NXOpen::Routing::FixturePort::SetRotationVector ( const NXOpen::Vector3d & vector )

virtual

设置端口的旋转矢量
NX4.0.0版本创建。

许可要求: routing_base ("Routing Basic")

参数

vector

绝对坐标系下的矢量方向

实现了 NXOpen::Routing::IAxisPort.
