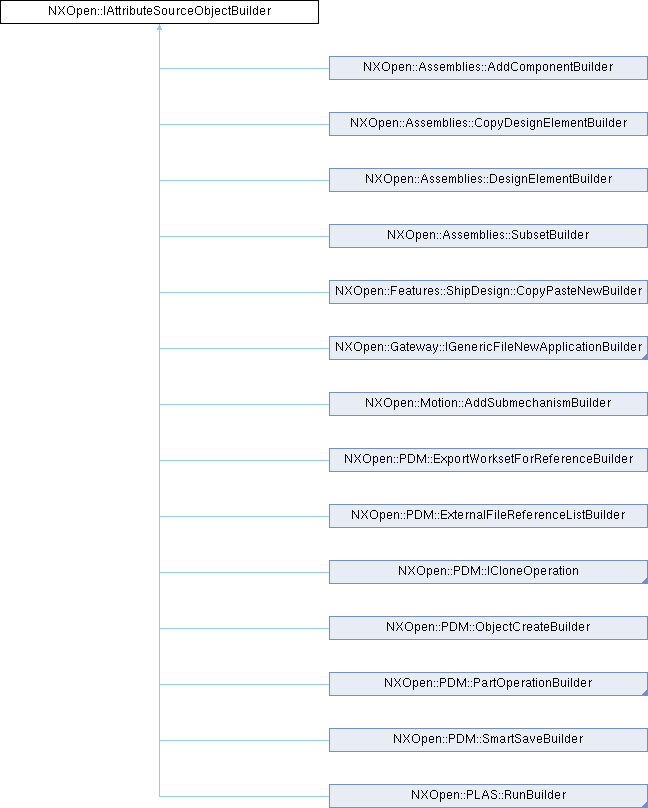

类 NXOpen::IAttributeSourceObjectBuilder 继承关系图:

Public 成员函数
virtual NXOpen::ErrorList *	AutoAssignAttributes (const std::vector< NXOpen::NXObject * > &objects)=0
virtual NXOpen::ErrorList *	AutoAssignAttributesWithNamingPattern (const std::vector< NXOpen::NXObject * > &objects, const std::vector< NXOpen::NXObject * > &properties)=0
virtual NXOpen::NXObject *	CreateAttributeTitleToNamingPatternMap (std::vector< NXString > &attributeTitles, std::vector< NXString > &titlePatterns)=0
virtual void	GetItemNamingRulePatterns (NXOpen::NXObject *object, std::vector< NXString > &patternList)=0
virtual void	GetItemRevisionNamingRules (NXOpen::NXObject *object, std::vector< NXString > &revOptions)=0

详细描述

属性源对象构建器接口

表示对NXOpen::NXObject 数组执行各种数据库操作的接口。
创建于NX8.5.0。

成员函数说明

◆ AutoAssignAttributes()

virtual NXOpen::ErrorList * NXOpen::IAttributeSourceObjectBuilder::AutoAssignAttributes ( const std::vector< NXOpen::NXObject * > & objects )

pure virtual

为给定对象数组自动分配属性，并返回自动分配失败的对象数组。
创建于NX8.5.0。

许可证要求：无

参数

objects 对象

在 NXOpen::Assemblies::AddComponentBuilder, NXOpen::Assemblies::CopyDesignElementBuilder, NXOpen::Assemblies::DesignElementBuilder, NXOpen::Assemblies::SubsetBuilder, NXOpen::Features::ShipDesign::CopyPasteNewBuilder, NXOpen::Gateway::IGenericFileNewApplicationBuilder, NXOpen::Motion::AddSubmechanismBuilder, NXOpen::PDM::ExportWorksetForReferenceBuilder, NXOpen::PDM::ExternalFileReferenceListBuilder, NXOpen::PDM::ICloneOperation, NXOpen::PDM::ObjectCreateBuilder, NXOpen::PDM::PartOperationBuilder, NXOpen::PDM::SmartSaveBuilder , 以及 NXOpen::PLAS::RunBuilder 内被实现.

◆ AutoAssignAttributesWithNamingPattern()

virtual NXOpen::ErrorList * NXOpen::IAttributeSourceObjectBuilder::AutoAssignAttributesWithNamingPattern	(	const std::vector< NXOpen::NXObject * > &	objects,
		const std::vector< NXOpen::NXObject * > &	properties )

pure virtual

为给定对象自动分配属性，并返回自动分配失败的对象数组。属性需使用CreateAttributeTitleToNamingPatternMap 创建
创建于NX12.0.0。

许可证要求：无

参数

objects	对象
properties	属性

在 NXOpen::Assemblies::AddComponentBuilder, NXOpen::Assemblies::CopyDesignElementBuilder, NXOpen::Assemblies::DesignElementBuilder, NXOpen::Assemblies::SubsetBuilder, NXOpen::Features::ShipDesign::CopyPasteNewBuilder, NXOpen::Gateway::IGenericFileNewApplicationBuilder, NXOpen::Motion::AddSubmechanismBuilder, NXOpen::PDM::ExportWorksetForReferenceBuilder, NXOpen::PDM::ExternalFileReferenceListBuilder, NXOpen::PDM::ICloneOperation, NXOpen::PDM::ObjectCreateBuilder, NXOpen::PDM::PartOperationBuilder, NXOpen::PDM::SmartSaveBuilder , 以及 NXOpen::PLAS::RunBuilder 内被实现.

◆ CreateAttributeTitleToNamingPatternMap()

virtual NXOpen::NXObject * NXOpen::IAttributeSourceObjectBuilder::CreateAttributeTitleToNamingPatternMap	(	std::vector< NXString > &	attributeTitles,
		std::vector< NXString > &	titlePatterns )

pure virtual

创建属性标题到其对应命名模式的映射对象
创建于NX12.0.0。

许可证要求：无

参数

attributeTitles	属性标题
titlePatterns	标题模式

在 NXOpen::Assemblies::AddComponentBuilder, NXOpen::Assemblies::CopyDesignElementBuilder, NXOpen::Assemblies::DesignElementBuilder, NXOpen::Assemblies::SubsetBuilder, NXOpen::Features::ShipDesign::CopyPasteNewBuilder, NXOpen::Gateway::IGenericFileNewApplicationBuilder, NXOpen::Motion::AddSubmechanismBuilder, NXOpen::PDM::ExportWorksetForReferenceBuilder, NXOpen::PDM::ExternalFileReferenceListBuilder, NXOpen::PDM::ICloneOperation, NXOpen::PDM::ObjectCreateBuilder, NXOpen::PDM::PartOperationBuilder, NXOpen::PDM::SmartSaveBuilder , 以及 NXOpen::PLAS::RunBuilder 内被实现.

◆ GetItemNamingRulePatterns()

virtual void NXOpen::IAttributeSourceObjectBuilder::GetItemNamingRulePatterns	(	NXOpen::NXObject *	object,
		std::vector< NXString > &	patternList )

pure virtual

获取给定逻辑对象的可用项目命名规则模式。逻辑对象需使用NXOpen::PDM::PartOperationBuilder::CreateLogicalObjects 创建。有效命名规则模式将存储在patternList中。使用时，为CreateAttributeTitleToNamingPatternMap 设置attributeTitles = "DB_PART_NO"和titlePatterns = patternList(index)。
创建于NX2306.0.0。

许可证要求：无

参数

object	对象
patternList	模式列表

在 NXOpen::Assemblies::AddComponentBuilder, NXOpen::Assemblies::CopyDesignElementBuilder, NXOpen::Assemblies::DesignElementBuilder, NXOpen::Assemblies::SubsetBuilder, NXOpen::Features::ShipDesign::CopyPasteNewBuilder, NXOpen::Gateway::IGenericFileNewApplicationBuilder, NXOpen::Motion::AddSubmechanismBuilder, NXOpen::PDM::ExportWorksetForReferenceBuilder, NXOpen::PDM::ExternalFileReferenceListBuilder, NXOpen::PDM::ICloneOperation, NXOpen::PDM::ObjectCreateBuilder, NXOpen::PDM::PartOperationBuilder, NXOpen::PDM::SmartSaveBuilder , 以及 NXOpen::PLAS::RunBuilder 内被实现.

◆ GetItemRevisionNamingRules()

virtual void NXOpen::IAttributeSourceObjectBuilder::GetItemRevisionNamingRules	(	NXOpen::NXObject *	object,
		std::vector< NXString > &	revOptions )

pure virtual

获取给定逻辑对象的可用项目修订命名规则修订ID。逻辑对象需使用NXOpen::PDM::PartOperationBuilder::CreateLogicalObjects 创建。有效修订ID将存储在revOptions中，并可使用NXOpen::AttributePropertiesBaseBuilder 设置。使用时，设置Title = "DB_PART_REV"和StringValue = revOptions(index)。
创建于NX2306.0.0。

许可证要求：无

参数

object	对象
revOptions	修订选项

在 NXOpen::Assemblies::AddComponentBuilder, NXOpen::Assemblies::CopyDesignElementBuilder, NXOpen::Assemblies::DesignElementBuilder, NXOpen::Assemblies::SubsetBuilder, NXOpen::Features::ShipDesign::CopyPasteNewBuilder, NXOpen::Gateway::IGenericFileNewApplicationBuilder, NXOpen::Motion::AddSubmechanismBuilder, NXOpen::PDM::ExportWorksetForReferenceBuilder, NXOpen::PDM::ExternalFileReferenceListBuilder, NXOpen::PDM::ICloneOperation, NXOpen::PDM::ObjectCreateBuilder, NXOpen::PDM::PartOperationBuilder, NXOpen::PDM::SmartSaveBuilder , 以及 NXOpen::PLAS::RunBuilder 内被实现.
