NXOpen::Features::TopologyOptimizationFeature类 参考

拓扑优化特征 更多...

#include <Features_TopologyOptimizationFeature.hxx>

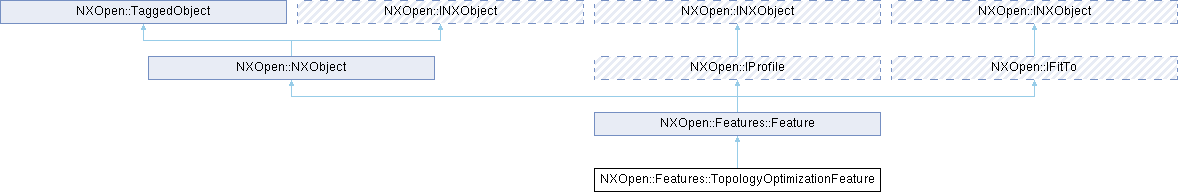

类 NXOpen::Features::TopologyOptimizationFeature 继承关系图:

Public 成员函数
NXOpen::DesignSimulation::Study *	ActiveStudy ()
NXOpen::DesignSimulation::Subcase *	ActiveSubcase ()
NXOpen::DesignSimulation::Study *	CloneStudy (NXOpen::DesignSimulation::Study *existingStudy)
NXOpen::DesignSimulation::StudyBuilder *	CreateStudyBuilder (NXOpen::DesignSimulation::Study *optimizationStudy)
bool	DelayUpdate ()
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
void	GetAllStudies (std::vector< NXOpen::DesignSimulation::Study * > &optimizationStudies)
void	MakeStudyActive (NXOpen::DesignSimulation::Study *optimizationStudy)
void	MakeSubcaseActive (NXOpen::DesignSimulation::Subcase *subcase)
void	SetDelayUpdate (bool delay)
Public 成员函数 继承自 NXOpen::Features::Feature
bool	BreakWaveLink ()
void	ChangeBooleanType ()
NXOpen::Features::IContainerFeature *	ContainerFeature ()
void	DeleteClueAlerts ()
void	DeleteHintAlerts ()
void	DeleteInformationalAlerts ()
void	DeleteWarningAlerts ()
NXString	FeatureType ()
std::vector< NXOpen::Features::Feature * >	GetAllChildren ()
std::vector< NXOpen::Body * >	GetBodies ()
std::vector< NXOpen::Features::Feature * >	GetChildren ()
std::vector< NXOpen::Edge * >	GetEdges ()
std::vector< NXOpen::NXObject * >	GetEntities ()
std::vector< NXOpen::Expression * >	GetExpressions ()
std::vector< NXOpen::Face * >	GetFaces ()
std::vector< NXString >	GetFeatureClueHintMessages ()
std::vector< NXString >	GetFeatureClueMessages ()
NXOpen::NXColor *	GetFeatureColor ()
std::vector< NXString >	GetFeatureErrorMessages ()
std::vector< NXString >	GetFeatureHintMessages ()
std::vector< NXString >	GetFeatureInformationalMessages ()
NXString	GetFeatureName ()
std::vector< NXString >	GetFeatureWarningMessages ()
std::vector< NXOpen::Features::Feature * >	GetParents ()
std::vector< NXOpen::Section * >	GetSections ()
void	HideBody ()
void	HideParents ()
void	HideSlaveFeatures (const std::vector< NXOpen::Features::Feature * > &slaveFeatures)
void	Highlight ()
bool	IsAssociative ()
bool	IsBrowsableFeature ()
bool	IsInternal ()
bool	IsOutOfDate ()
void	LoadParentPart ()
NXOpen::Point3d	Location ()
void	LogDiagnostic (int errorCode, const char *message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
void	LogDiagnostic (int errorCode, const NXString &message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
void	MakeCurrentFeature ()
void	MakeSketchExternal ()
void	MakeSketchInternal ()
	NX_DEPRECATED ("在 NX9.0.0 中已过时。请使用 NXOpen::Features::Feature::ContainerFeature 并检查其是否为 NULL 替代。") bool IsContainedFeature()
	NX_DEPRECATED ("Deprecated in NX8.5.0. Algorithm version is for internal use only. There is no replacement for this method.") int AlgorithmVersion()
void	RemoveForEdit (bool dependent)
void	RemoveParameters ()
void	SetGroupActive (bool active)
void	ShowBody (bool moveCurves)
void	ShowDimensions ()
void	ShowParents (bool moveCurves)
void	ShowSlaveFeatures (std::vector< NXOpen::Features::Feature * > &slaveFeatures)
void	Suppress ()
bool	Suppressed ()
int	Timestamp ()
void	Unhighlight ()
void	Unsuppress ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char *title, const char *value)
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetReferenceAttribute (const char *title, const char *value)
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char *title, const char *value)
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_TopologyOptimizationFeatureBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Features::Feature
enum	BooleanType {   BooleanTypeCreate , BooleanTypeUnite , BooleanTypeSubtract , BooleanTypeIntersect ,   BooleanTypeEmbossNormalSide = 8 , BooleanTypeEmbossOppositeNormalSide }
enum	DiagnosticType { DiagnosticTypeInformation = 1 , DiagnosticTypeWarning }
Public 类型 继承自 NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,   AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,   AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

拓扑优化特征

表示拓扑优化特征
NXOpen::Features::TopologyOptimizationFeature 只能在 NXOpen::TopologyOptimizationTaskEnvironment 中创建和编辑。

创建于NX1953.0.0版本。

成员函数说明

ActiveStudy()

NXOpen::DesignSimulation::Study * NXOpen::Features::TopologyOptimizationFeature::ActiveStudy

(

)

返回特征的激活 NXOpen::DesignSimulation::Study 。
创建于NX1953.0.0版本。

许可要求 : 无

ActiveSubcase()

NXOpen::DesignSimulation::Subcase * NXOpen::Features::TopologyOptimizationFeature::ActiveSubcase

(

)

返回特征的活动NXOpen::DesignSimulation::Subcase。
在NX1953.0.0中创建。

许可要求：无

CloneStudy()

NXOpen::DesignSimulation::Study * NXOpen::Features::TopologyOptimizationFeature::CloneStudy

(

NXOpen::DesignSimulation::Study *

existingStudy

)

克隆（复制）NXOpen::DesignSimulation::Study对象，成功则返回克隆的（复制的）对象。
在NX1953.0.0中创建。

许可要求：des_top_opt（“设计师拓扑优化”）或sc_des_topol_opt（“设计师拓扑优化”）

参数

existingStudy

现有研究

CreateStudyBuilder()

NXOpen::DesignSimulation::StudyBuilder * NXOpen::Features::TopologyOptimizationFeature::CreateStudyBuilder

(

NXOpen::DesignSimulation::Study *

optimizationStudy

)

创建一个 NXOpen::DesignSimulation::Study
创建于NX1953.0.0版本。

许可要求 : des_top_opt ("Topology Optimization for Designers") 或 sc_des_topol_opt (" Topology Optimization for Designers")

参数

optimizationStudy

优化研究

DelayUpdate()

bool NXOpen::Features::TopologyOptimizationFeature::DelayUpdate

(

)

返回NXOpen::Features::TopologyOptimizationFeature的更新延迟，以提供用户控制来响应任务环境外的输入更改。 默认情况下更新延迟。当更新延迟时，NXOpen::Features::TopologyOptimizationFeature的外部参考或特征参数的更改不会重新运行优化。用户可以从部件导航器更新延迟的特征，而无需关闭更新延迟。
在NX2007.0.0中创建。

许可要求：无

FindObject() [1/2]

NXOpen::INXObject * NXOpen::Features::TopologyOptimizationFeature::FindObject ( const char * journalIdentifier )

virtual

查找具有日志中记录的给定标识符的NXOpen::DesignSimulation::Study。 一个对象在软件的不同版本中可能返回与其JournalIdentifier不同的值。 但是，当FindObject传入其日志标识符的旧版本时，软件的新版本应找到相同的对象。 如果找不到具有给定日志标识符的对象，将抛出异常。

返回

找到的对象，或无此类对象则返回null。
在NX1953.0.0中创建。

许可要求：无

参数

journalIdentifier

要查找的研究的名称

重载 NXOpen::NXObject .

FindObject() [2/2]

NXOpen::INXObject * NXOpen::Features::TopologyOptimizationFeature::FindObject ( const NXString & journalIdentifier )

virtual

查找具有日志中记录的给定标识符的NXOpen::DesignSimulation::Study。 一个对象在软件的不同版本中可能返回与其JournalIdentifier不同的值。 但是，当FindObject传入其日志标识符的旧版本时，软件的新版本应找到相同的对象。 如果找不到具有给定日志标识符的对象，将抛出异常。

返回

找到的对象，或无此类对象则返回null。
在NX1953.0.0中创建。

许可要求：无

参数

journalIdentifier

要查找的研究的名称

重载 NXOpen::NXObject .

GetAllStudies()

void NXOpen::Features::TopologyOptimizationFeature::GetAllStudies

(

std::vector< NXOpen::DesignSimulation::Study * > &

optimizationStudies

)

获取特征中的所有 NXOpen::DesignSimulation::Study 对象。
创建于NX1953.0.0版本。

许可要求 : 无

参数

optimizationStudies

优化研究

MakeStudyActive()

void NXOpen::Features::TopologyOptimizationFeature::MakeStudyActive

(

NXOpen::DesignSimulation::Study *

optimizationStudy

)

激活一个 NXOpen::DesignSimulation::Study ，同时将其他所有设为非激活状态。
创建于NX1953.0.0版本。

许可要求 : des_top_opt ("Topology Optimization for Designers") 或 sc_des_topol_opt (" Topology Optimization for Designers")

参数

optimizationStudy

优化研究

MakeSubcaseActive()

void NXOpen::Features::TopologyOptimizationFeature::MakeSubcaseActive

(

NXOpen::DesignSimulation::Subcase *

subcase

)

激活一个 NXOpen::DesignSimulation::Subcase ，同时将其他所有设为非激活状态。 其父 NXOpen::DesignSimulation::Study 也会被激活。
创建于NX1953.0.0版本。

许可要求 : des_top_opt ("Topology Optimization for Designers") 或 sc_des_topol_opt (" Topology Optimization for Designers")

参数

subcase

子工况

SetDelayUpdate()

void NXOpen::Features::TopologyOptimizationFeature::SetDelayUpdate

(

bool

delay

)

设置NXOpen::Features::TopologyOptimizationFeature的更新延迟，以提供用户控制来响应任务环境外的输入更改。 默认情况下更新延迟。当更新延迟时，NXOpen::Features::TopologyOptimizationFeature的外部参考或特征参数的更改不会重新运行优化。用户可以从部件导航器更新延迟的特征，而无需关闭更新延迟。
在NX2007.0.0中创建。

许可要求：des_top_opt（“设计师拓扑优化”）或sc_des_topol_opt（“设计师拓扑优化”）

参数

delay

延迟
