测量曲面构建器更多...

#include <Weld_MeasureSurfaceBuilder.hxx>

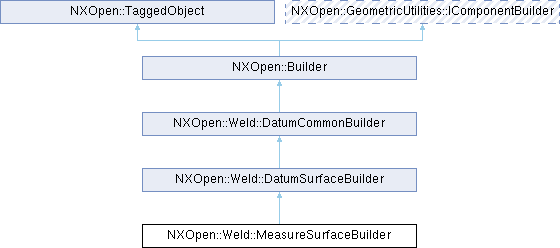

类 NXOpen::Weld::MeasureSurfaceBuilder 继承关系图:

Public 成员函数
double	CustomArrowLength ()
double	CustomArrowWidth ()
void	SetCustomArrowLength (double customArrowLength)
void	SetCustomArrowWidth (double customArrowWidth)
Public 成员函数继承自 NXOpen::Weld::DatumSurfaceBuilder
NXOpen::ScCollector *	BoundaryCurve ()
double	CustomCuboidLength ()
double	CustomCuboidWidth ()
double	CustomHollowLength ()
double	CustomHollowRadius ()
NXOpen::Weld::SelectDatumSurface *	DerivedDatum ()
double	GridSnapTolerance ()
void	InitializeAxis (const NXOpen::Point3d &approximatePoint)
NXOpen::Plane *	MirrorPlane ()
void	MoveMinimumDistance ()
NXOpen::ScCollector *	RestingFace ()
void	SetCustomCuboidLength (double customCuboidLength)
void	SetCustomCuboidWidth (double customCuboidWidth)
void	SetCustomHollowLength (double customHollowLength)
void	SetCustomHollowRadius (double customHollowRadius)
void	SetGridSnapTolerance (double gridSnapTolerance)
void	SetMirrorPlane (NXOpen::Plane *mirrorPlane)
void	SetSnapPointToGrid (bool snapPointToGrid)
void	SetType (NXOpen::Weld::DatumSurfaceBuilder::Types type)
void	SetXCoordinate (double xCoordinate)
void	SetYCoordinate (double yCoordinate)
void	SetZCoordinate (double zCoordinate)
bool	SnapPointToGrid ()
NXOpen::Weld::DatumSurfaceBuilder::Types	Type ()
void	UpdateAxisData ()
void	UpdateWithReferenceDatum ()
double	XCoordinate ()
double	YCoordinate ()
double	ZCoordinate ()
Public 成员函数继承自 NXOpen::Weld::DatumCommonBuilder
NXOpen::Assemblies::SelectComponentList *	AdditionalReferences ()
bool	Associative ()
NXOpen::Weld::CharacteristicsBuilder *	Characteristics ()
NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes	ControlMethod ()
bool	CreateDirectionVector ()
bool	CreatePlane ()
bool	CreatePoint ()
NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods	CreationDirection ()
double	CustomAboveLength ()
double	CustomRadius ()
double	CustomTotalLength ()
NXOpen::Weld::DatumCommonBuilder::CustomTypes	CustomType ()
NXString	CustomTypeName ()
bool	Derived ()
NXString	DerivedParentID ()
NXOpen::Axis *	DirectionAxis ()
double	DirectionLength ()
double	HoleDiameter ()
double	ModelingTolerance ()
double	PlaneHeight ()
NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes	PlaneMethod ()
double	PlaneWidth ()
bool	PrincipalAxisX ()
bool	PrincipalAxisY ()
bool	PrincipalAxisZ ()
bool	ProjectAlongDirection ()
NXOpen::Expression *	RadiusExp ()
NXOpen::Expression *	RotationAngle ()
NXOpen::Direction *	SectionPlaneNormal ()
void	SetAssociative (bool associative)
void	SetControlMethod (NXOpen::Weld::DatumCommonBuilder::ControlMethodTypes controlMethod)
void	SetCreateDirectionVector (bool createDirectionVector)
void	SetCreatePlane (bool createPlane)
void	SetCreatePoint (bool createPoint)
void	SetCreationDirection (NXOpen::Weld::DatumCommonBuilder::CreationDirectionMethods creationDirection)
void	SetCustomAboveLength (double directionLength)
void	SetCustomRadius (double customRadius)
void	SetCustomTotalLength (double customTotalLength)
void	SetCustomType (NXOpen::Weld::DatumCommonBuilder::CustomTypes customType)
void	SetCustomTypeName (const char *customTypeName)
void	SetCustomTypeName (const NXString &customTypeName)
void	SetDerived (bool derived)
void	SetDerivedParentID (const char *parentDatumID)
void	SetDerivedParentID (const NXString &parentDatumID)
void	SetDirectionAxis (NXOpen::Axis *directionAxis)
void	SetDirectionLength (double directionLength)
void	SetHoleDiameter (double holeDiameter)
void	SetModelingTolerance (double modelingTolerance)
void	SetPlaneHeight (double planeHeight)
void	SetPlaneMethod (NXOpen::Weld::DatumCommonBuilder::PlaneMethodTypes planeMethod)
void	SetPlaneWidth (double planeWidth)
void	SetPrincipalAxisX (bool principalAxisX)
void	SetPrincipalAxisY (bool principalAxisY)
void	SetPrincipalAxisZ (bool principalAxisZ)
void	SetProjectAlongDirection (bool projectAlongDirection)
void	SetSectionPlaneNormal (NXOpen::Direction *sectionPlaneNormal)
void	SetSizeMethodType (NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes sizeMethodType)
void	SetSlotLength (double slotLength)
void	SetSlotWidth (double slotWidth)
void	SetSolidType (NXOpen::Weld::DatumCommonBuilder::SolidTypes solidType)
void	SetXTolerance (double xTolerance)
void	SetYTolerance (double xTolerance)
void	SetZTolerance (double xTolerance)
NXOpen::Weld::DatumCommonBuilder::SizeMethodTypes	SizeMethodType ()
double	SlotLength ()
double	SlotWidth ()
NXOpen::Weld::DatumCommonBuilder::SolidTypes	SolidType ()
void	UpdateWithDerivedDatum ()
NXOpen::SelectNXObjectList *	UserPlane ()
double	XTolerance ()
double	YTolerance ()
double	ZTolerance ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_MeasureSurfaceBuilderBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::Weld::DatumSurfaceBuilder
enum	Types { TypesDirect , TypesMirror }
Public 类型继承自 NXOpen::Weld::DatumCommonBuilder
enum	ControlMethodTypes { ControlMethodTypesPrincipalAxis , ControlMethodTypesUseSectionPlane }
enum	CreationDirectionMethods { CreationDirectionMethodsDefault , CreationDirectionMethodsOpposite }
enum	CustomTypes { CustomTypesDefault , CustomTypesCustom1 , CustomTypesCustom2 , CustomTypesCustom3 , CustomTypesCustom4 , CustomTypesCustom5 , CustomTypesCustom6 , CustomTypesCustom7 }
enum	PlaneMethodTypes { PlaneMethodTypesInferPlanes , PlaneMethodTypesParallelXCPlanes , PlaneMethodTypesParallelYCPlanes , PlaneMethodTypesParallelZCPlanes , PlaneMethodTypesSelectPlanes , PlaneMethodTypesUnknown }
enum	SizeMethodTypes { SizeMethodTypesAutomatic , SizeMethodTypesManual }
enum	SolidTypes { SolidTypesSphere , SolidTypesCylinder , SolidTypesCone , SolidTypesCuboid , SolidTypesHollow , SolidTypesArrow , SolidTypesNone , SolidTypesHourglass }

详细描述

测量曲面构建器

用于创建或编辑 NXOpen::Weld::MeasureSurface 特征。
要创建此类的新实例，请使用 NXOpen::Weld::WeldManager::CreateMeasureSurfaceBuilder
默认值。

属性	值
ControlMethod	PrincipalAxis
CreateDirectionVector	1
CreatePlane	1
CreatePoint	1
Derived	0
DirectionLength	20 (毫米单位部件), 1.0 (英寸单位部件)
GridSnapTolerance	1 (毫米单位部件), 0.05 (英寸单位部件)
ModelingTolerance	0.0254
PlaneHeight	20 (毫米单位部件), 1.0 (英寸单位部件)
PlaneWidth	20 (毫米单位部件), 1.0 (英寸单位部件)
PrincipalAxisX	0
PrincipalAxisY	0
PrincipalAxisZ	0
ProjectAlongDirection	1
SnapPointToGrid	1
XCoordinate	0.0
YCoordinate	0.0
ZCoordinate	0.0

在NX2306.0.0中创建。

成员函数说明

◆ CustomArrowLength()

double NXOpen::Weld::MeasureSurfaceBuilder::CustomArrowLength ( )

返回实体箭头杆的长度。
创建于 NX2306.0.0。
许可证要求：无

◆ CustomArrowWidth()

double NXOpen::Weld::MeasureSurfaceBuilder::CustomArrowWidth ( )

返回实体箭头头的宽度。
创建于 NX2306.0.0。
许可证要求：无

◆ SetCustomArrowLength()

void NXOpen::Weld::MeasureSurfaceBuilder::SetCustomArrowLength ( double customArrowLength )

设置实体箭头杆的长度。
创建于 NX2306.0.0。
许可证要求：tooling_locators ("Tooling Locators")

参数

customArrowLength customarrowlength

◆ SetCustomArrowWidth()

void NXOpen::Weld::MeasureSurfaceBuilder::SetCustomArrowWidth ( double customArrowWidth )

设置实体箭头头的宽度。
创建于 NX2306.0.0。
许可证要求：tooling_locators ("Tooling Locators")
