Public 成员函数 | 友元 | 所有成员列表
NXOpen::Die::Tip类 参考

模具镶块类 更多...

#include <Die_Tip.hxx>

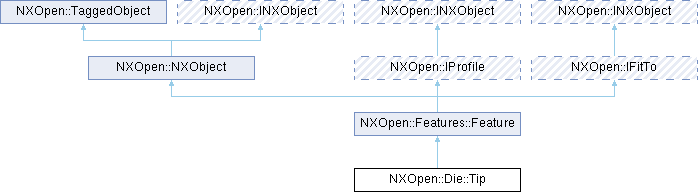

类 NXOpen::Die::Tip 继承关系图:
NXOpen::Features::Feature NXOpen::NXObject NXOpen::IProfile NXOpen::IFitTo NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject NXOpen::INXObject

Public 成员函数

void AddToDieData (const std::vector< NXOpen::Curve * > &objects)
void CreateDieData (bool allTips)
void DeleteDieData ()
void DisplayDieData ()
std::vector< NXOpen::Edge * > GetUnprocessedHoles ()
void MapCollectorToDie (NXOpen::ScCollector *collector)
void MapCollectorToPart (NXOpen::ScCollector *collector)
void MapEdge (NXOpen::IProfile *inEdge, NXOpen::IProfile **partEdge, NXOpen::IProfile **dieEdge)
void SetReferenceCurves (const std::vector< NXOpen::Curve * > &objects)
void TransformDieDirection (NXOpen::Direction *vector)
void TransformDiePoint (NXOpen::Point *point)
void UndisplayDieData ()
Public 成员函数 继承自 NXOpen::Features::Feature
bool BreakWaveLink ()
void ChangeBooleanType ()
NXOpen::Features::IContainerFeature * ContainerFeature ()
void DeleteClueAlerts ()
void DeleteHintAlerts ()
void DeleteInformationalAlerts ()
void DeleteWarningAlerts ()
NXString FeatureType ()
std::vector< NXOpen::Features::Feature * > GetAllChildren ()
std::vector< NXOpen::Body * > GetBodies ()
std::vector< NXOpen::Features::Feature * > GetChildren ()
std::vector< NXOpen::Edge * > GetEdges ()
std::vector< NXOpen::NXObject * > GetEntities ()
std::vector< NXOpen::Expression * > GetExpressions ()
std::vector< NXOpen::Face * > GetFaces ()
std::vector< NXString > GetFeatureClueHintMessages ()
std::vector< NXString > GetFeatureClueMessages ()
NXOpen::NXColor * GetFeatureColor ()
std::vector< NXString > GetFeatureErrorMessages ()
std::vector< NXString > GetFeatureHintMessages ()
std::vector< NXString > GetFeatureInformationalMessages ()
NXString GetFeatureName ()
std::vector< NXString > GetFeatureWarningMessages ()
std::vector< NXOpen::Features::Feature * > GetParents ()
std::vector< NXOpen::Section * > GetSections ()
void HideBody ()
void HideParents ()
void HideSlaveFeatures (const std::vector< NXOpen::Features::Feature * > &slaveFeatures)
void Highlight ()
bool IsAssociative ()
bool IsBrowsableFeature ()
bool IsInternal ()
bool IsOutOfDate ()
void LoadParentPart ()
NXOpen::Point3d Location ()
void LogDiagnostic (int errorCode, const char *message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
void LogDiagnostic (int errorCode, const NXString &message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
void MakeCurrentFeature ()
void MakeSketchExternal ()
void MakeSketchInternal ()
 NX_DEPRECATED ("在 NX9.0.0 中已过时。请使用 NXOpen::Features::Feature::ContainerFeature 并检查其是否为 NULL 替代。") bool IsContainedFeature()
 NX_DEPRECATED ("Deprecated in NX8.5.0. Algorithm version is for internal use only. There is no replacement for this method.") int AlgorithmVersion()
void RemoveForEdit (bool dependent)
void RemoveParameters ()
void SetGroupActive (bool active)
void ShowBody (bool moveCurves)
void ShowDimensions ()
void ShowParents (bool moveCurves)
void ShowSlaveFeatures (std::vector< NXOpen::Features::Feature * > &slaveFeatures)
void Suppress ()
bool Suppressed ()
int Timestamp ()
void Unhighlight ()
void Unsuppress ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _TipBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::Features::Feature
enum  BooleanType {
  BooleanTypeCreate , BooleanTypeUnite , BooleanTypeSubtract , BooleanTypeIntersect ,
  BooleanTypeEmbossNormalSide = 8 , BooleanTypeEmbossOppositeNormalSide
}
enum  DiagnosticType { DiagnosticTypeInformation = 1 , DiagnosticTypeWarning }
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

模具镶块类

表示Tip特征。
该类支持Tip特征的操作，创建操作参见TipBuilder。

于NX4.0.0创建。

成员函数说明

◆ AddToDieData()

void NXOpen::Die::Tip::AddToDieData ( const std::vector< NXOpen::Curve * > & objects)

将输入曲线添加到模具数据中。
于NX5.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
objects要添加到模具数据的曲线

◆ CreateDieData()

void NXOpen::Die::Tip::CreateDieData ( bool allTips)

在模具位置创建产品数据的副本。产品数据在创建时不可见。 在使用 Die::Tip::DeleteDieData、 Die::Tip::DisplayDieData、Die::Tip::UndisplayDieData、 Die::Tip::TransformDiePoint 或 Die::Tip::TransformDieDirection 方法前，必须先调用此方法。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
allTips是否创建操作中所有Tip的模具位置产品数据？

◆ DeleteDieData()

void NXOpen::Die::Tip::DeleteDieData ( )

删除产品数据的副本。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

◆ DisplayDieData()

void NXOpen::Die::Tip::DisplayDieData ( )

使模具位置的产品数据可见。Tip特征的显示会变为不可见。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

◆ GetUnprocessedHoles()

std::vector< NXOpen::Edge * > NXOpen::Die::Tip::GetUnprocessedHoles ( )

查找尚未处理的孔边缘。
于NX5.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

◆ MapCollectorToDie()

void NXOpen::Die::Tip::MapCollectorToDie ( NXOpen::ScCollector * collector)

将收集器中的边从部件位置映射到模具位置。
于NX5.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
collector收集器

◆ MapCollectorToPart()

void NXOpen::Die::Tip::MapCollectorToPart ( NXOpen::ScCollector * collector)

将收集器中的边从模具位置映射到部件位置。
于NX5.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
collector收集器

◆ MapEdge()

void NXOpen::Die::Tip::MapEdge ( NXOpen::IProfile * inEdge,
NXOpen::IProfile ** partEdge,
NXOpen::IProfile ** dieEdge )

映射边以查找部件和模具位置的实体，其中任一实体都可以为NULL。
于NX5.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
inEdge输入边
partEdge部件边
dieEdge模具边

◆ SetReferenceCurves()

void NXOpen::Die::Tip::SetReferenceCurves ( const std::vector< NXOpen::Curve * > & objects)

在模具Tip特征中设置参考曲线。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
objects要添加到Tip的曲线

◆ TransformDieDirection()

void NXOpen::Die::Tip::TransformDieDirection ( NXOpen::Direction * vector)

将方向从模具位置转换到产品位置。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
vector待转换的方向。

◆ TransformDiePoint()

void NXOpen::Die::Tip::TransformDiePoint ( NXOpen::Point * point)

将点从模具位置转换到产品位置。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")

参数
point待转换的点。

◆ UndisplayDieData()

void NXOpen::Die::Tip::UndisplayDieData ( )

使模具位置的产品数据不可见。Tip特征的显示会变为可见。
于NX4.0.0创建。

许可证要求：die_engineering ("DIE ENGINEERING")
