#include <Annotations_DimensionSet.hxx>

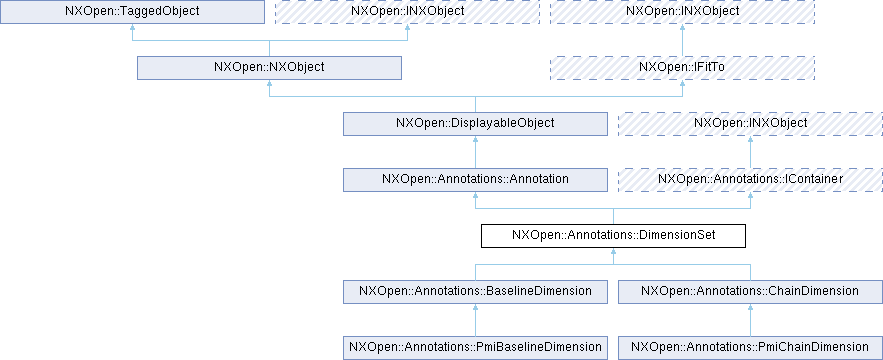

类 NXOpen::Annotations::DimensionSet 继承关系图:

Public 成员函数
NXOpen::Annotations::Dimension *	AddDimension (NXOpen::Annotations::DimensionData *dimensionData, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim)
NXOpen::Annotations::Dimension *	AddPmiDimension (NXOpen::Annotations::DimensionData dimensionData, NXOpen::Annotations::PmiData pmiData, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim)
NXOpen::Annotations::Dimension *	AddPmiDimension (NXOpen::Annotations::DimensionData dimensionData, NXOpen::Annotations::PmiData pmiData, NXOpen::Xform *annotationPlane, const NXOpen::Point3d &origin, bool autoAdjustNarrowDim)
double	DimensionOffset ()
std::vector< NXOpen::Annotations::Dimension * >	GetAllSubDimensions ()
virtual std::vector< NXOpen::NXObject * >	GetObjects ()
virtual void	RemoveObject (NXOpen::NXObject *object)
void	ReverseOffset ()
void	SetDimensionOffset (double dimensionOffset)
Public 成员函数继承自 NXOpen::Annotations::Annotation
NXOpen::Point3d	AnnotationOrigin ()
NXOpen::Xform *	AnnotationPlane ()
bool	Freeze ()
NXOpen::Annotations::Annotation::AssociativeOriginData	GetAssociativeOrigin (NXOpen::Point3d *origin)
NXOpen::Annotations::Associativity *	GetAssociativity (int associativityIndex)
NXOpen::Xform *	GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
NXOpen::Annotations::LetteringPreferences *	GetLetteringPreferences ()
NXOpen::Annotations::LineAndArrowPreferences *	GetLineAndArrowPreferences ()
NXOpen::Annotations::SymbolPreferences *	GetSymbolPreferences ()
std::vector< NXOpen::View * >	GetViews ()
bool	HasAssociativeOrigin ()
void	InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
bool	IsOutOfDate ()
bool	IsRetained ()
NXOpen::Annotations::LeaderOrientation	LeaderOrientation ()
int	NumberOfAssociativities ()
bool	ParallelToScreen ()
void	RemoveFromStack ()
void	SetAnnotationOrigin (const NXOpen::Point3d &origin)
void	SetAnnotationPlane (NXOpen::Xform *annotationPlane)
void	SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
void	SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
void	SetFreeze (bool freeze)
void	SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
void	SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
void	SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
void	SetParallelToScreen (bool parallelToScreen)
void	SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
void	SetViews (const std::vector< NXOpen::View * > &modelViews)
bool	Suppressed ()
Public 成员函数继承自 NXOpen::DisplayableObject
void	Blank ()
int	Color ()
void	Highlight ()
bool	IsBlanked ()
int	Layer ()
NXOpen::DisplayableObject::ObjectFont	LineFont ()
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
NXOpen::Point3d	NameLocation ()
void	RedisplayObject ()
void	RemoveViewDependency ()
void	SetColor (int color)
void	SetLayer (int layer)
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void	SetNameLocation (const NXOpen::Point3d &location)
void	Unblank ()
void	Unhighlight ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_DimensionSetBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline , ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 , ObjectFontNine , ObjectFontTen , ObjectFontEleven }
enum	ObjectWidth { ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 , ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive , ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

尺寸集

表示一个尺寸集
这是一个抽象类。

创建于 NX4.0.0。

成员函数说明

◆ AddDimension()

NXOpen::Annotations::Dimension * NXOpen::Annotations::DimensionSet::AddDimension	(	NXOpen::Annotations::DimensionData *	dimensionData,
		const NXOpen::Point3d &	origin,
		bool	autoAdjustNarrowDim )

向尺寸集添加一个尺寸

返回: 添加到集合中的尺寸
创建于 NX4.0.0。

许可要求： drafting ("DRAFTING")

参数

dimensionData	尺寸数据
origin	尺寸的原点
autoAdjustNarrowDim	是否应自动调整窄尺寸

◆ AddPmiDimension() [1/2]

NXOpen::Annotations::Dimension * NXOpen::Annotations::DimensionSet::AddPmiDimension	(	NXOpen::Annotations::DimensionData *	dimensionData,
		NXOpen::Annotations::PmiData *	pmiData,
		const NXOpen::Point3d &	origin,
		bool	autoAdjustNarrowDim )

向 PMI 尺寸集添加一个 PMI 尺寸。新尺寸创建在与现有尺寸相同的平面上。

返回: 添加到集合中的尺寸
创建于 NX4.0.0。

许可要求： geometric_tol ("GDT")

参数

dimensionData	尺寸数据
pmiData	PMI 数据
origin	尺寸的原点
autoAdjustNarrowDim	是否应自动调整窄尺寸

◆ AddPmiDimension() [2/2]

NXOpen::Annotations::Dimension * NXOpen::Annotations::DimensionSet::AddPmiDimension	(	NXOpen::Annotations::DimensionData *	dimensionData,
		NXOpen::Annotations::PmiData *	pmiData,
		NXOpen::Xform *	annotationPlane,
		const NXOpen::Point3d &	origin,
		bool	autoAdjustNarrowDim )

向 PMI 尺寸集添加一个 PMI 尺寸。新尺寸创建在与现有尺寸相同的平面上。

返回: 添加到集合中的尺寸
创建于 NX5.0.0。

许可要求： geometric_tol ("GDT")

参数

dimensionData	尺寸数据
pmiData	PMI 数据
annotationPlane	尺寸所在的注释平面
origin	尺寸的原点
autoAdjustNarrowDim	是否应自动调整窄尺寸

◆ DimensionOffset()

double NXOpen::Annotations::DimensionSet::DimensionOffset ( )

获取尺寸偏移量
创建于 NX4.0.0。

许可要求：无

◆ GetAllSubDimensions()

std::vector< NXOpen::Annotations::Dimension * > NXOpen::Annotations::DimensionSet::GetAllSubDimensions ( )

返回此集合中的所有子尺寸

返回: 创建于 NX5.0.0。

许可要求：无

◆ GetObjects()

virtual std::vector< NXOpen::NXObject * > NXOpen::Annotations::DimensionSet::GetObjects ( )

virtual

返回容器中的对象

返回: 对象列表
创建于 NX4.0.0。

许可要求：无

实现了 NXOpen::Annotations::IContainer.

◆ RemoveObject()

virtual void NXOpen::Annotations::DimensionSet::RemoveObject ( NXOpen::NXObject * object )

virtual

移除容器中的一个对象。当容器中的最后一个对象被删除时，容器对象也将被删除
创建于 NX4.0.0。

许可要求： geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数

object 要移除的对象

实现了 NXOpen::Annotations::IContainer.

◆ ReverseOffset()

void NXOpen::Annotations::DimensionSet::ReverseOffset ( )

反转基线/链式尺寸的偏移方向
创建于 NX5.0.0。

许可要求： geometric_tol ("GDT")

◆ SetDimensionOffset()

void NXOpen::Annotations::DimensionSet::SetDimensionOffset ( double dimensionOffset )

设置尺寸偏移量
创建于 NX4.0.0。

许可要求： geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数

dimensionOffset 尺寸偏移量
