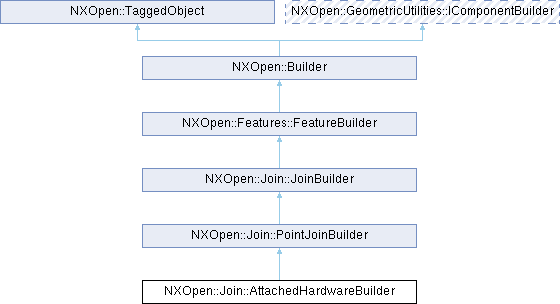

类 NXOpen::Join::AttachedHardwareBuilder 继承关系图:

Public 成员函数
NXOpen::ScCollector *	MatingFace ()
Public 成员函数继承自 NXOpen::Join::PointJoinBuilder
void	ClearAttachmentHardware ()
void	ClearHardwarePin ()
void	CreateAttachmentHardware ()
bool	CreateCsys ()
void	CreateHardwarePin ()
NXOpen::TaggedObject *	CsysYDirection ()
bool	FlipCsysDirection ()
NXOpen::Join::AttachmentHardware *	GetAttachmentHardware ()
NXOpen::Join::PointJoinHardware *	GetHardwarePin ()
NXOpen::Join::PointJoinHardware *	GetNthHeadSidePart (int headsidePartIndex)
NXOpen::Join::PointJoinHardware *	GetNthTailSidePart (int tailsidePartIndex)
int	GetNumberOfHeadSideParts ()
int	GetNumberOfTailSideParts ()
bool	GetStackupDirectionForPoint (NXOpen::Point *point)
NXOpen::Point3d	GetStackupEntryPoint ()
NXOpen::Expression *	HardwareAlignmentAngle ()
bool	HardwareLoad ()
NXOpen::ScCollector *	HardwareOrientationCurve ()
NXOpen::Expression *	HoleCounterBoreDepth ()
NXOpen::Expression *	HoleCounterBoreDiameter ()
NXOpen::Expression *	HoleCounterSinkAngle ()
NXOpen::Expression *	HoleCounterSinkDiameter ()
NXOpen::Expression *	HoleCounterSinkSubflush ()
NXOpen::Expression *	HoleDiameter ()
NXOpen::Join::PointJoinBuilder::HoleTypes	HoleType ()
NXOpen::Expression *	JointMarkAngle ()
NXOpen::ScCollector *	JointMarkFace ()
NXOpen::SelectCurveList *	JointMarkGuideCurve ()
NXOpen::Expression *	JointMarkSize ()
bool	MatedWithNutplate ()
	NX_DEPRECATED ("Deprecated in NX1926.0.0. This functionality is no longer supported.") void SetHardwarePin(const NXString &pinName
	NX_DEPRECATED ("Deprecated in NX2007.0.0. This functionality is no longer supported.") bool LoadHardware()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. This functionality is no longer supported.") bool UnloadHardware()
	NX_DEPRECATED ("Deprecated in NX2312.0.0. Use NXOpen::Join::JoinManager::CreateJoinHoleBuilder instead.") bool HoleCreate()
	NX_DEPRECATED ("Deprecated in NX2312.0.0. Use NXOpen::Join::JoinManager::CreateJoinHoleBuilder instead.") void SetHoleCreate(bool status)
NXOpen::SelectPointList *	PointSelPoints ()
void	ProcessWasherInfoForStackup ()
void	SetCreateCsys (bool createCsys)
void	SetCsysYDirection (NXOpen::TaggedObject *csysYDirection)
void	SetFlipCsysDirection (bool flipCsysDirection)
void	SetHardwareLoad (bool status)
void	SetHardwarePin (const char pinName, const char pinPath)
void	SetHoleType (NXOpen::Join::PointJoinBuilder::HoleTypes holeType)
void	SetMatedWithNutplate (bool matedWithNutplate)
void	SetNumberOfHeadSideParts (int numberOfHeadsideParts)
void	SetNumberOfTailSideParts (int numberOfTailsideParts)
void	SetStackupAlignment (NXOpen::TaggedObject *stackupAlignment)
void	SetStackupAlignmentType (NXOpen::Join::PointJoinBuilder::StackupAlignmentTypes stackupAlignmentType)
void	SetStackupDirectionForPoint (NXOpen::Point *point, bool reverseStackupDirection)
void	SetStackupReverseDirection (bool toReverse)
void	SetSynchronizeLocation (bool synchronizeLocation)
void	SetVisualizationColor (int visualizationColor)
void	SetVisualizationCreateSolid (bool visualizationCreateSolid)
void	SetVisualizationGeometry (NXOpen::Join::PointJoinBuilder::VisualizationGeometryType visualizationGeometry)
void	SetVisualizationPointMarker (int visualizationPointMarker)
NXOpen::TaggedObject *	StackupAlignment ()
NXOpen::Join::PointJoinBuilder::StackupAlignmentTypes	StackupAlignmentType ()
NXOpen::Expression *	StackupGapLimit ()
NXOpen::Expression *	StackupGapTolerance ()
NXOpen::Expression *	StackupMaxHolePerimeter ()
NXOpen::ScCollector *	StackupNormalSurface ()
NXOpen::Expression *	StackupOnSurfaceTolerance ()
NXOpen::Expression *	StackupOverlapTolerance ()
bool	StackupReverseDirection ()
bool	SynchronizeLocation ()
int	VisualizationColor ()
bool	VisualizationCreateSolid ()
NXOpen::Expression *	VisualizationDiameter ()
NXOpen::Join::PointJoinBuilder::VisualizationGeometryType	VisualizationGeometry ()
NXOpen::Expression *	VisualizationHeight ()
int	VisualizationPointMarker ()
Public 成员函数继承自 NXOpen::Join::JoinBuilder
void	AddNewlyCreatedWaveLink (NXOpen::NXObject *waveLink)
bool	Associative ()
NXOpen::SelectBodyList *	ConnectedBodies ()
NXOpen::TaggedObject *	CustomAttributesHolder ()
bool	DelayUpdate ()
NXOpen::Join::JoinBuilder::DestinationTypes	Destination ()
NXOpen::Expression *	DistanceTolerance ()
std::vector< NXOpen::Body * >	GetJoinBodies ()
NXOpen::TaggedObject *	Material ()
NXOpen::Expression *	MaterialActualThickness ()
NXOpen::Join::JoinBuilder::MaterialAssignmentPolicyType	MaterialAssignmentPolicy ()
NXOpen::Expression *	MaterialDispensedWidth ()
NXOpen::Expression *	NuggetDiameter ()
void	SetAssociative (bool associative)
void	SetDelayUpdate (bool delayUpdate)
void	SetDestination (NXOpen::Join::JoinBuilder::DestinationTypes type)
void	SetHideSolid (bool hideSolid)
void	SetMaterial (NXOpen::TaggedObject *material)
void	SetMaterialAssignmentPolicy (NXOpen::Join::JoinBuilder::MaterialAssignmentPolicyType materialPolicy)
void	SetShowConnectedBodies (bool showConnectedBodies)
void	SetShowThroughState (bool status)
void	SetSubtype (const char *type)
void	SetSubtype (const NXString &type)
void	SetWeldFinishMethod (NXOpen::Annotations::FinishMethod method)
bool	ShowConnectedBodies ()
NXString	Subtype ()
NXOpen::Annotations::FinishMethod	WeldFinishMethod ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_AttachedHardwareBuilderBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::Join::PointJoinBuilder
enum	HoleTypes { HoleTypesSimple , HoleTypesCounterbored , HoleTypesCountersunk }
enum	StackupAlignmentTypes { StackupAlignmentTypesNormalClosestFace , StackupAlignmentTypesNormalSelectedFace , StackupAlignmentTypesAlongVector }
enum	VisualizationGeometryType { VisualizationGeometryTypeSphere , VisualizationGeometryTypeCylinder , VisualizationGeometryTypeCone , VisualizationGeometryTypePrism }
Public 类型继承自 NXOpen::Join::JoinBuilder
enum	DestinationTypes { DestinationTypesWorkPart , DestinationTypesNewComponent }
enum	MaterialAssignmentPolicyType { MaterialAssignmentPolicyTypeNoneAssigned , MaterialAssignmentPolicyTypeExternallyAssigned , MaterialAssignmentPolicyTypeJoinFeatureAssigned }
Public 属性继承自 NXOpen::Join::PointJoinBuilder
const NXString &	pinPath

详细描述

附加硬件构建器

表示 NXOpen::Join::AttachedHardware 构建器。
要创建此类的新实例，请使用 NXOpen::Join::JoinManager::CreateAttachedHardwareBuilder

在 NX2007.0.0 中创建。

成员函数说明

◆ MatingFace()

NXOpen::ScCollector * NXOpen::Join::AttachedHardwareBuilder::MatingFace ( )

返回所选的配合面
在 NX2007.0.0 中创建。

许可证要求： nx_join (" NX Join")
