NXOpen::Features::RasterImage类 参考

光栅图像特征 更多...

#include <Features_RasterImage.hxx>

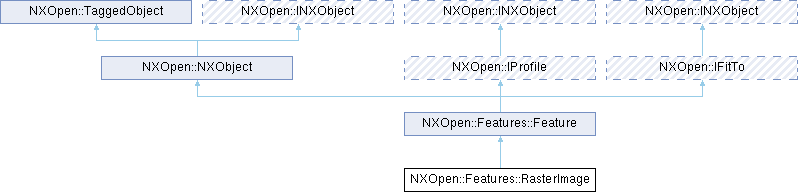

类 NXOpen::Features::RasterImage 继承关系图:

Public 类型
enum	MaxTextureSize {   MaxTextureSizeN512 , MaxTextureSizeN1024 , MaxTextureSizeN2048 , MaxTextureSizeN4096 ,   MaxTextureSizeN8192 , MaxTextureSizeN16384 , MaxTextureSizeN32768 }
Public 类型 继承自 NXOpen::Features::Feature
enum	BooleanType {   BooleanTypeCreate , BooleanTypeUnite , BooleanTypeSubtract , BooleanTypeIntersect ,   BooleanTypeEmbossNormalSide = 8 , BooleanTypeEmbossOppositeNormalSide }
enum	DiagnosticType { DiagnosticTypeInformation = 1 , DiagnosticTypeWarning }
Public 类型 继承自 NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,   AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,   AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
double	Height ()
NXString	ImageFileName ()
double	Length ()
NXOpen::Matrix3x3	Matrix ()
NXOpen::Features::RasterImage::MaxTextureSize	MaximumTextureSize ()
NXOpen::Point3d	Origin ()
double	Translucency ()
void	Update (const NXOpen::Point3d &origin, const NXOpen::Matrix3x3 &matrix, double length, double height, const char *imageFileName, double translucency, NXOpen::Features::RasterImage::MaxTextureSize maximumTextureSize)
void	Update (const NXOpen::Point3d &origin, const NXOpen::Matrix3x3 &matrix, double length, double height, const NXString &imageFileName, double translucency, NXOpen::Features::RasterImage::MaxTextureSize maximumTextureSize)
Public 成员函数 继承自 NXOpen::Features::Feature
bool	BreakWaveLink ()
void	ChangeBooleanType ()
NXOpen::Features::IContainerFeature *	ContainerFeature ()
void	DeleteClueAlerts ()
void	DeleteHintAlerts ()
void	DeleteInformationalAlerts ()
void	DeleteWarningAlerts ()
NXString	FeatureType ()
std::vector< NXOpen::Features::Feature * >	GetAllChildren ()
std::vector< NXOpen::Body * >	GetBodies ()
std::vector< NXOpen::Features::Feature * >	GetChildren ()
std::vector< NXOpen::Edge * >	GetEdges ()
std::vector< NXOpen::NXObject * >	GetEntities ()
std::vector< NXOpen::Expression * >	GetExpressions ()
std::vector< NXOpen::Face * >	GetFaces ()
std::vector< NXString >	GetFeatureClueHintMessages ()
std::vector< NXString >	GetFeatureClueMessages ()
NXOpen::NXColor *	GetFeatureColor ()
std::vector< NXString >	GetFeatureErrorMessages ()
std::vector< NXString >	GetFeatureHintMessages ()
std::vector< NXString >	GetFeatureInformationalMessages ()
NXString	GetFeatureName ()
std::vector< NXString >	GetFeatureWarningMessages ()
std::vector< NXOpen::Features::Feature * >	GetParents ()
std::vector< NXOpen::Section * >	GetSections ()
void	HideBody ()
void	HideParents ()
void	HideSlaveFeatures (const std::vector< NXOpen::Features::Feature * > &slaveFeatures)
void	Highlight ()
bool	IsAssociative ()
bool	IsBrowsableFeature ()
bool	IsInternal ()
bool	IsOutOfDate ()
void	LoadParentPart ()
NXOpen::Point3d	Location ()
void	LogDiagnostic (int errorCode, const char *message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
void	LogDiagnostic (int errorCode, const NXString &message, NXOpen::Features::Feature::DiagnosticType diagnosticType)
void	MakeCurrentFeature ()
void	MakeSketchExternal ()
void	MakeSketchInternal ()
	NX_DEPRECATED ("在 NX9.0.0 中已过时。请使用 NXOpen::Features::Feature::ContainerFeature 并检查其是否为 NULL 替代。") bool IsContainedFeature()
	NX_DEPRECATED ("Deprecated in NX8.5.0. Algorithm version is for internal use only. There is no replacement for this method.") int AlgorithmVersion()
void	RemoveForEdit (bool dependent)
void	RemoveParameters ()
void	SetGroupActive (bool active)
void	ShowBody (bool moveCurves)
void	ShowDimensions ()
void	ShowParents (bool moveCurves)
void	ShowSlaveFeatures (std::vector< NXOpen::Features::Feature * > &slaveFeatures)
void	Suppress ()
bool	Suppressed ()
int	Timestamp ()
void	Unhighlight ()
void	Unsuppress ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char *title, const char *value)
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。 创建于NX12.0.0。 许可要求：无
void	SetReferenceAttribute (const char *title, const char *value)
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char *title, const char *value)
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_RasterImageBuilder

额外继承的成员函数
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

光栅图像特征

表示光栅图像特征
目前不被KF支持

创建于NX4.0.0版本。

成员枚举类型说明

MaxTextureSize

enum NXOpen::Features::RasterImage::MaxTextureSize

指定光栅图像宽度或高度允许的最大像素数。如果请求的尺寸大于硬件支持的尺寸，则使用最大支持尺寸。所有硬件至少支持512x512像素。

枚举值
MaxTextureSizeN512	最大尺寸 512 x 512
MaxTextureSizeN1024	最大尺寸 1024 x 1024
MaxTextureSizeN2048	最大尺寸 2048 x 2048
MaxTextureSizeN4096	最大尺寸 4096 x 4096
MaxTextureSizeN8192	最大尺寸 8192 x 8192
MaxTextureSizeN16384	最大尺寸 16384 x 16384
MaxTextureSizeN32768	最大尺寸 32768 x 32768

成员函数说明

Height()

double NXOpen::Features::RasterImage::Height

(

)

获取图像的高度，以部件单位（mm或in）为单位
创建于NX4.0.0版本。

许可证要求：无

ImageFileName()

NXString NXOpen::Features::RasterImage::ImageFileName

(

)

获取用于光栅图像的图像文件名。
创建于NX4.0.0版本。

许可证要求：无

Length()

double NXOpen::Features::RasterImage::Length

(

)

获取图像的长度，以部件单位（mm或in）为单位。有时被视为图像的宽度。
创建于NX4.0.0版本。

许可证要求：无

Matrix()

NXOpen::Matrix3x3 NXOpen::Features::RasterImage::Matrix

(

)

获取光栅图像的旋转矩阵
创建于NX4.0.0版本。

许可证要求：无

MaximumTextureSize()

NXOpen::Features::RasterImage::MaxTextureSize NXOpen::Features::RasterImage::MaximumTextureSize

(

)

获取图像最大尺寸的枚举值，以像素为单位
创建于NX4.0.0版本。

许可证要求：无

Origin()

NXOpen::Point3d NXOpen::Features::RasterImage::Origin

(

)

获取光栅图像的原点
创建于NX4.0.0版本。

许可证要求：无

Translucency()

double NXOpen::Features::RasterImage::Translucency

(

)

获取光栅图像的透明度，范围为[0.0, 1.0]
创建于NX4.0.0版本。

许可证要求：无

Update() [1/2]

void NXOpen::Features::RasterImage::Update	(	const NXOpen::Point3d &	origin,
		const NXOpen::Matrix3x3 &	matrix,
		double	length,
		double	height,
		const char *	imageFileName,
		double	translucency,
		NXOpen::Features::RasterImage::MaxTextureSize	maximumTextureSize )

更新光栅图像特征
创建于NX4.0.0版本。

许可证要求：studio_visualize ("STUDIO VISUALIZE")

参数

origin	光栅图像的原点
matrix	光栅图像的旋转矩阵
length	图像长度，以部件单位（mm或in）为单位
height	图像高度，以部件单位（mm或in）为单位
imageFileName	要使用的图像文件名。目前，必须是.tif文件
translucency	0.0表示不透明，1.0表示完全透明
maximumTextureSize	最大纹理尺寸

Update() [2/2]

void NXOpen::Features::RasterImage::Update	(	const NXOpen::Point3d &	origin,
		const NXOpen::Matrix3x3 &	matrix,
		double	length,
		double	height,
		const NXString &	imageFileName,
		double	translucency,
		NXOpen::Features::RasterImage::MaxTextureSize	maximumTextureSize )

更新光栅图像特征
创建于NX4.0.0版本。

许可证要求：studio_visualize ("STUDIO VISUALIZE")

参数

origin	光栅图像的原点
matrix	光栅图像的旋转矩阵
length	图像长度，以部件单位（mm或in）为单位
height	图像高度，以部件单位（mm或in）为单位
imageFileName	要使用的图像文件名。目前，必须是.tif文件
translucency	0.0表示不透明，1.0表示完全透明
maximumTextureSize	最大纹理尺寸
