#include <CAE_Mesh.hxx>

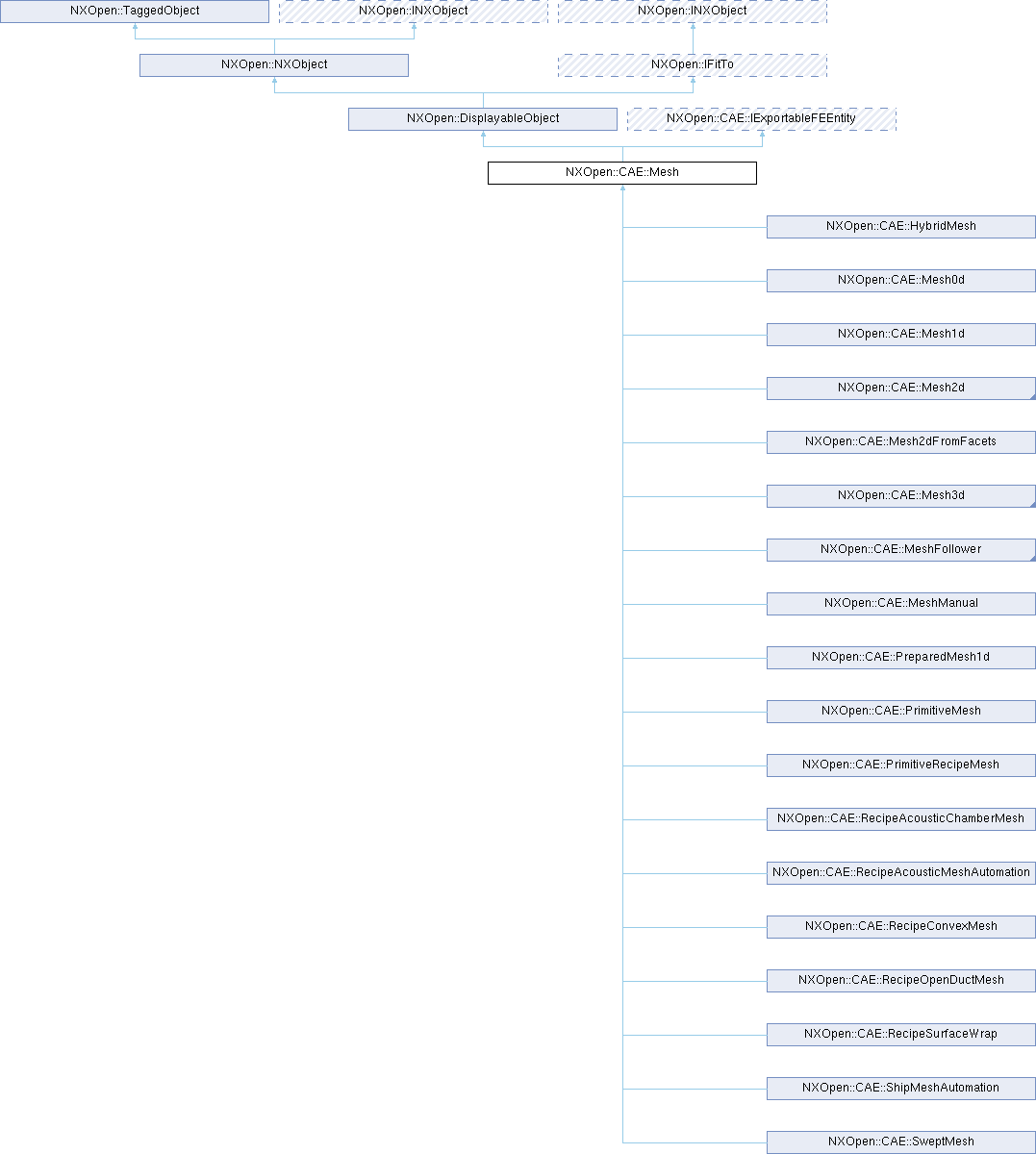

类 NXOpen::CAE::Mesh 继承关系图:

Public 成员函数
NXOpen::CAE::PropertyTable *	ElementPropertyTable ()
bool	ExportMeshProperty ()
NXOpen::Body *	GetLatticeBody ()
NXOpen::CAE::MeshDisplaySettings *	GetMeshDisplaySettings ()
bool	GetPrintMeshWithTolerance ()
virtual std::vector< NXString >	GetSolverCardSyntax ()
bool	GetUpdatePendingStatus ()
bool	IsValid ()
bool	LockStatus ()
NXOpen::CAE::IMeshCollector *	MeshCollector ()
void	SetExportMeshProperty (bool fExportMesh)
void	SetLockStatus (bool lockStatus)
void	SetPrintMeshWithTolerance (bool printTolerance)
Public 成员函数继承自 NXOpen::DisplayableObject
void	Blank ()
int	Color ()
void	Highlight ()
bool	IsBlanked ()
int	Layer ()
NXOpen::DisplayableObject::ObjectFont	LineFont ()
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
NXOpen::Point3d	NameLocation ()
void	RedisplayObject ()
void	RemoveViewDependency ()
void	SetColor (int color)
void	SetLayer (int layer)
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void	SetNameLocation (const NXOpen::Point3d &location)
void	Unblank ()
void	Unhighlight ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_MeshBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline , ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 , ObjectFontNine , ObjectFontTen , ObjectFontEleven }
enum	ObjectWidth { ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 , ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive , ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

网格基类

表示一个网格。更多信息，请参考求解器语言文档。
这是一个抽象类

创建于 NX5.0.0。

成员函数说明

◆ ElementPropertyTable()

NXOpen::CAE::PropertyTable * NXOpen::CAE::Mesh::ElementPropertyTable ( )

返回与网格对象关联的单元属性表
创建于 NX5.0.1。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ ExportMeshProperty()

bool NXOpen::CAE::Mesh::ExportMeshProperty ( )

返回此网格的导出网格属性。
创建于 NX9.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ GetLatticeBody()

NXOpen::Body * NXOpen::CAE::Mesh::GetLatticeBody ( )

如果网格与晶格相关，则获取晶格实体信息
创建于 NX12.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ GetMeshDisplaySettings()

NXOpen::CAE::MeshDisplaySettings * NXOpen::CAE::Mesh::GetMeshDisplaySettings ( )

此网格的网格显示设置。
创建于 NX8.5.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ GetPrintMeshWithTolerance()

bool NXOpen::CAE::Mesh::GetPrintMeshWithTolerance ( )

网格数据是否将带容差打印
创建于 NX1953.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ GetSolverCardSyntax()

virtual std::vector< NXString > NXOpen::CAE::Mesh::GetSolverCardSyntax ( )

virtual

返回此实体的求解器卡片语法字符串。

返回: 创建于 NX8.5.0。

许可要求：无

实现了 NXOpen::CAE::IExportableFEEntity.

◆ GetUpdatePendingStatus()

bool NXOpen::CAE::Mesh::GetUpdatePendingStatus ( )

获取此网格的待更新标志
创建于 NX12.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ IsValid()

bool NXOpen::CAE::Mesh::IsValid ( )

判断网格在当前求解器环境中是否有效。
创建于 NX11.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ LockStatus()

bool NXOpen::CAE::Mesh::LockStatus ( )

返回此网格的锁定状态。如果网格被锁定，则在有限元模型更新时它将不会更新。网格通常通过使用手动节点和单元命令来锁定。
创建于 NX6.0.4。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ MeshCollector()

NXOpen::CAE::IMeshCollector * NXOpen::CAE::Mesh::MeshCollector ( )

返回此网格的网格收集器。
创建于 NX7.5.2。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

◆ SetExportMeshProperty()

void NXOpen::CAE::Mesh::SetExportMeshProperty ( bool fExportMesh )

设置此网格的导出网格属性。
创建于 NX9.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

参数

fExportMesh 导出网格

◆ SetLockStatus()

void NXOpen::CAE::Mesh::SetLockStatus ( bool lockStatus )

设置此网格的锁定状态。如果网格被锁定，则在有限元模型更新时它将不会更新。网格通常通过使用手动节点和单元命令来锁定。
创建于 NX6.0.4。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

参数

lockStatus 锁定状态

◆ SetPrintMeshWithTolerance()

void NXOpen::CAE::Mesh::SetPrintMeshWithTolerance ( bool printTolerance )

设置网格数据是否应带容差打印
创建于 NX1953.0.0。

许可要求： nx_masterfem ("有限元建模") 或 nx_design_sim ("NX 设计仿真")

参数

printTolerance 打印容差

Public 成员函数

友元

额外继承的成员函数

详细描述

成员函数说明

◆ ElementPropertyTable()

◆ ExportMeshProperty()

◆ GetLatticeBody()

◆ GetMeshDisplaySettings()

◆ GetPrintMeshWithTolerance()

◆ GetSolverCardSyntax()

◆ GetUpdatePendingStatus()

◆ IsValid()

◆ LockStatus()

◆ MeshCollector()

◆ SetExportMeshProperty()

◆ SetLockStatus()

◆ SetPrintMeshWithTolerance()
