几何尺寸和公差更多...

#include <Annotations_Gdt.hxx>

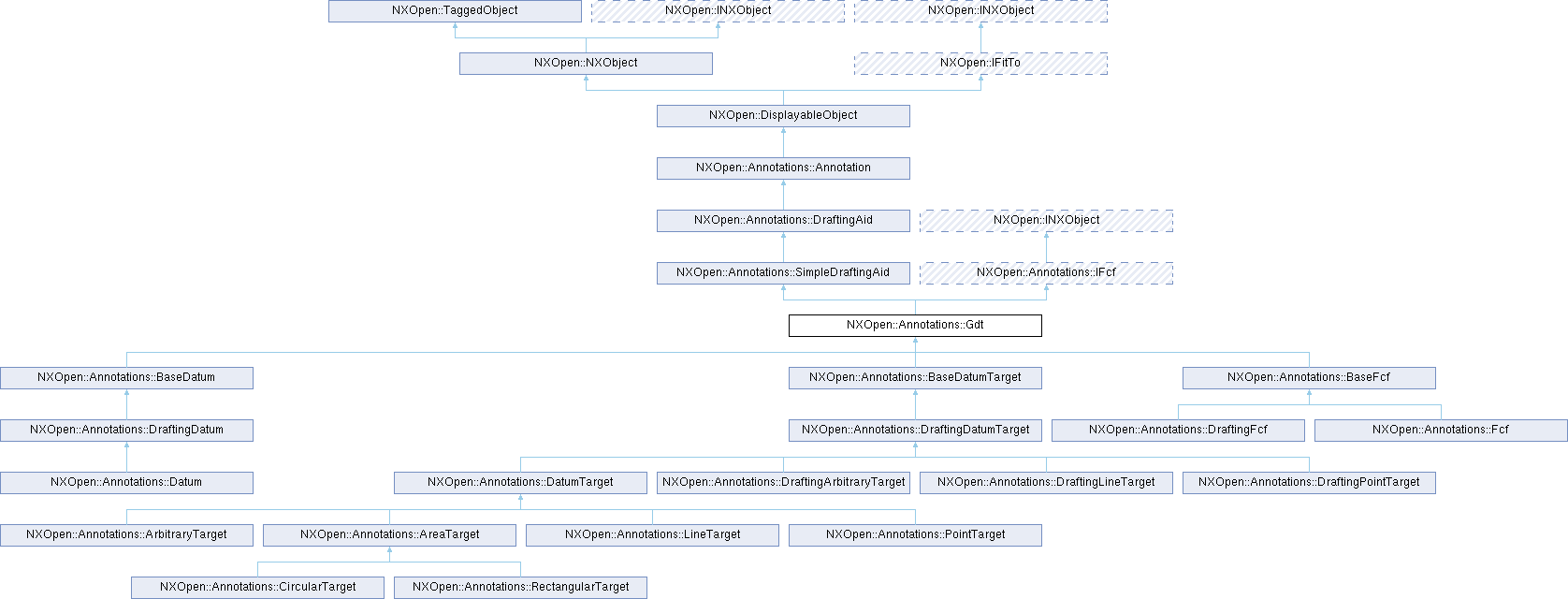

类 NXOpen::Annotations::Gdt 继承关系图:

Public 成员函数
bool	CanChangeLeaderPositionParameter ()
virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()
virtual std::vector< NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()
bool	HasLeaderPositionParameter ()
bool	HasStubbedDatumStyle ()
double	LeaderPositionParameter ()
virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
void	SetHasStubbedDatumStyle (bool stubbed)
void	SetLeaderPositionParameter (double param)
void	SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
Public 成员函数继承自 NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString >	GetText ()
NXOpen::Annotations::UserSymbolPreferences *	GetUserSymbolPreferences ()
void	GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double *heightOrAspectRatio)
void	SetText (std::vector< NXString > &lines)
void	SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
void	SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
Public 成员函数继承自 NXOpen::Annotations::Annotation
NXOpen::Point3d	AnnotationOrigin ()
NXOpen::Xform *	AnnotationPlane ()
bool	Freeze ()
NXOpen::Annotations::Annotation::AssociativeOriginData	GetAssociativeOrigin (NXOpen::Point3d *origin)
NXOpen::Annotations::Associativity *	GetAssociativity (int associativityIndex)
NXOpen::Xform *	GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
NXOpen::Annotations::LetteringPreferences *	GetLetteringPreferences ()
NXOpen::Annotations::LineAndArrowPreferences *	GetLineAndArrowPreferences ()
NXOpen::Annotations::SymbolPreferences *	GetSymbolPreferences ()
std::vector< NXOpen::View * >	GetViews ()
bool	HasAssociativeOrigin ()
void	InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
bool	IsOutOfDate ()
bool	IsRetained ()
NXOpen::Annotations::LeaderOrientation	LeaderOrientation ()
int	NumberOfAssociativities ()
bool	ParallelToScreen ()
void	RemoveFromStack ()
void	SetAnnotationOrigin (const NXOpen::Point3d &origin)
void	SetAnnotationPlane (NXOpen::Xform *annotationPlane)
void	SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
void	SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
void	SetFreeze (bool freeze)
void	SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
void	SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
void	SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
void	SetParallelToScreen (bool parallelToScreen)
void	SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
void	SetViews (const std::vector< NXOpen::View * > &modelViews)
bool	Suppressed ()
Public 成员函数继承自 NXOpen::DisplayableObject
void	Blank ()
int	Color ()
void	Highlight ()
bool	IsBlanked ()
int	Layer ()
NXOpen::DisplayableObject::ObjectFont	LineFont ()
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
NXOpen::Point3d	NameLocation ()
void	RedisplayObject ()
void	RemoveViewDependency ()
void	SetColor (int color)
void	SetLayer (int layer)
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void	SetNameLocation (const NXOpen::Point3d &location)
void	Unblank ()
void	Unhighlight ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_GdtBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline , ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 , ObjectFontNine , ObjectFontTen , ObjectFontEleven }
enum	ObjectWidth { ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 , ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive , ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

几何尺寸和公差

表示几何尺寸与公差符号
此为抽象类，无法实例化

创建于 NX3.0.0 版本

成员函数说明

◆ CanChangeLeaderPositionParameter()

bool NXOpen::Annotations::Gdt::CanChangeLeaderPositionParameter ( )

返回指示 NXOpen::Annotations::Gdt::LeaderPositionParameter 是否可以更改的标志。
创建于NX3.0.0。

许可要求：无

◆ GetFcfFrameData()

virtual NXOpen::Annotations::FcfFrameData * NXOpen::Annotations::Gdt::GetFcfFrameData ( )

virtual

返回单个FCF框架数据。此方法仅设计用于处理没有构建器的旧版几何公差控制框。对于新版几何公差控制框，应使用构建器来访问此数据。此方法将返回错误。

返回: FCF框架数据
创建于NX4.0.0。

许可要求：无

实现了 NXOpen::Annotations::IFcf.

◆ GetFcfFrameDataArray()

virtual std::vector< NXOpen::Annotations::FcfFrameData * > NXOpen::Annotations::Gdt::GetFcfFrameDataArray ( )

virtual

返回多个FCF框架数据此方法仅设计用于处理不带构建器的旧版特征控制框架。对于新版特征控制框架，应使用构建器访问此数据。此方法将返回错误。

返回: FCF框架数据数组
创建于NX5.0.0。

许可要求：无

实现了 NXOpen::Annotations::IFcf.

◆ HasLeaderPositionParameter()

bool NXOpen::Annotations::Gdt::HasLeaderPositionParameter ( )

返回指示此GDT是否具有指引线位置参数的标志。具有以下指引线类型的GDT没有指引线位置参数：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned

创建于NX3.0.0。

许可要求：无

◆ HasStubbedDatumStyle()

bool NXOpen::Annotations::Gdt::HasStubbedDatumStyle ( )

获取指示指引线是否为短基准样式的标志。此属性不适用于具有以下指引线类型的 GDT：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned

NXOpen::Annotations::LeaderTypeOnAnnotation
请勿尝试为这些指引线类型设置此属性。
创建于 NX3.0.0 版本

许可要求：无

◆ LeaderPositionParameter()

double NXOpen::Annotations::Gdt::LeaderPositionParameter ( )

返回指示指引线端点在其附着对象上位置的参数。0.0表示附着对象的起点，1.0表示终点。此属性不适用于具有以下指引线类型的GDT：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned
除非 NXOpen::Annotations::Gdt::HasLeaderPositionParameter 为true，否则不应尝试读取此参数。除非 NXOpen::Annotations::Gdt::CanChangeLeaderPositionParameter 返回true，否则不应尝试更改此参数。不能为具有以下指引线类型的GDT设置此参数：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned

NXOpen::Annotations::LeaderTypeOnAnnotation

NXOpen::Annotations::LeaderTypeOnStub
注意：不应使用set方法编辑只读对象（如镜像PMI对象）。如果这样做，更新部件时更改将被覆盖。
创建于NX3.0.0。

许可要求：无

◆ SetFcfFrameData() [1/2]

virtual void NXOpen::Annotations::Gdt::SetFcfFrameData ( const std::vector< NXOpen::Annotations::FcfFrameData * > & fcfFrameData )

virtual

设置多个FCF框架数据。注意：此方法不应用于编辑只读对象（如镜像PMI对象）。若使用，更改将在部件更新时被覆盖。
创建于NX5.0.0。

许可要求：geometric_tol ("GDT")

参数

fcfFrameData FCF框架数据数组

实现了 NXOpen::Annotations::IFcf.

◆ SetFcfFrameData() [2/2]

virtual void NXOpen::Annotations::Gdt::SetFcfFrameData ( NXOpen::Annotations::FcfFrameData * data )

virtual

设置单个FCF框架数据。注意：此方法不应用于编辑只读对象（如镜像PMI对象）。若使用，更改将在部件更新时被覆盖。
创建于NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

data FCF框架数据

实现了 NXOpen::Annotations::IFcf.

◆ SetHasStubbedDatumStyle()

void NXOpen::Annotations::Gdt::SetHasStubbedDatumStyle ( bool stubbed )

设置指示指引线是否具有短接基准样式的标志。此属性不适用于具有以下指引线类型的GDT：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned

NXOpen::Annotations::LeaderTypeOnAnnotation
不要尝试为这些指引线类型设置此属性。
创建于NX3.0.0。

许可要求：制图 ("DRAFTING")

参数

stubbed stubbed

◆ SetLeaderPositionParameter()

void NXOpen::Annotations::Gdt::SetLeaderPositionParameter ( double param )

设置指示指引线端点在其附着对象上位置的参数。0.0表示附着对象的起点，1.0表示终点。此属性不适用于具有以下指引线类型的GDT：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned
除非 NXOpen::Annotations::Gdt::HasLeaderPositionParameter 为true，否则不应尝试读取此参数。除非 NXOpen::Annotations::Gdt::CanChangeLeaderPositionParameter 返回true，否则不应尝试更改此参数。不能为具有以下指引线类型的GDT设置此参数：
NXOpen::Annotations::LeaderTypePlain

NXOpen::Annotations::LeaderTypeAround

NXOpen::Annotations::LeaderTypePlainAligned

NXOpen::Annotations::LeaderTypeAroundAligned

NXOpen::Annotations::LeaderTypeOnAnnotation

NXOpen::Annotations::LeaderTypeOnStub
注意：不应使用set方法编辑只读对象（如镜像PMI对象）。如果这样做，更新部件时更改将被覆盖。
创建于NX3.0.0。

许可要求：制图 ("DRAFTING")

参数

param param

◆ SetSymbolCfw()

void NXOpen::Annotations::Gdt::SetSymbolCfw ( const NXOpen::Annotations::LineCfw & cfw )

设置符号的颜色、字体和宽度。此更改在执行更新操作后才会应用到系统。可通过调用 Update::DoUpdate 执行更新。注意：此方法不应用于编辑只读对象（如镜像的 PMI 对象）。否则，在部件更新时，所做的更改将被覆盖。
创建于 NX3.0.0 版本

许可要求：制图 ("DRAFTING")

参数

cfw 颜色、字体、宽度

Public 成员函数

友元

额外继承的成员函数

详细描述

成员函数说明

◆ CanChangeLeaderPositionParameter()

◆ GetFcfFrameData()

◆ GetFcfFrameDataArray()

◆ HasLeaderPositionParameter()

◆ HasStubbedDatumStyle()

◆ LeaderPositionParameter()

◆ SetFcfFrameData() [1/2]

◆ SetFcfFrameData() [2/2]

◆ SetHasStubbedDatumStyle()

◆ SetLeaderPositionParameter()

◆ SetSymbolCfw()
