Public 类型 | Public 成员函数 | 友元 | 所有成员列表
NXOpen::Annotations::LineWeld类 参考

线焊接符号 更多...

#include <Annotations_LineWeld.hxx>

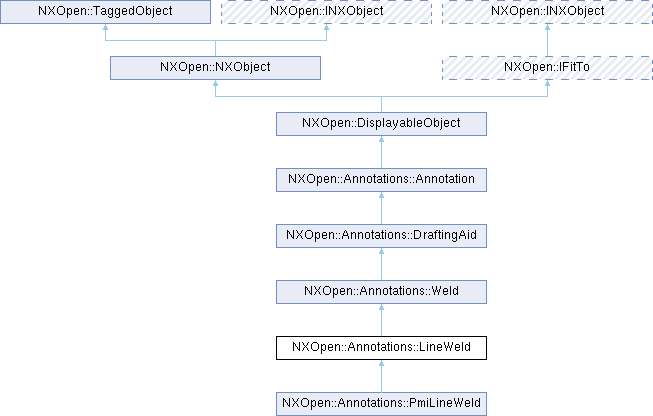

类 NXOpen::Annotations::LineWeld 继承关系图:
NXOpen::Annotations::Weld NXOpen::Annotations::DraftingAid NXOpen::Annotations::Annotation NXOpen::DisplayableObject NXOpen::NXObject NXOpen::IFitTo NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject NXOpen::Annotations::PmiLineWeld

Public 类型

enum  AutoWeldType {
  AutoWeldTypeOtherSideGrooveCountersinkAngle , AutoWeldTypeArrowSideGrooveCountersinkAngle , AutoWeldTypeOtherSideNumberRootDepth , AutoWeldTypeArrowSideNumberRootDepth ,
  AutoWeldTypeOtherSideWeldSize , AutoWeldTypeArrowSideWeldSize , AutoWeldTypeOtherSideCompoundWeldSize , AutoWeldTypeArrowSideCompoundWeldSize ,
  AutoWeldTypeOtherSideLengthPitch , AutoWeldTypeArrowSideLengthPitch , AutoWeldTypeOtherSideWeldSizeCode , AutoWeldTypeArrowSideWeldSizeCode ,
  AutoWeldTypeOtherSideCompoundWeldSizeCode , AutoWeldTypeArrowSideCompoundWeldSizeCode , AutoWeldTypeFieldWeldType
}
Public 类型 继承自 NXOpen::DisplayableObject
enum  ObjectFont {
  ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,
  ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,
  ObjectFontNine , ObjectFontTen , ObjectFontEleven
}
enum  ObjectWidth {
  ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,
  ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,
  ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数

NXOpen::Annotations::LineWeldData * GetWeldData ()
void SetAutoWeldSymbol (bool isAutoWeldSymbol)
void SetAutoWeldType (NXOpen::Annotations::LineWeld::AutoWeldType type, bool flag)
void SetEditAuto (bool isEditAuto)
void SetWeldData (NXOpen::Annotations::LineWeldData *data)
Public 成员函数 继承自 NXOpen::Annotations::Annotation
NXOpen::Point3d AnnotationOrigin ()
NXOpen::Xform * AnnotationPlane ()
bool Freeze ()
NXOpen::Annotations::Annotation::AssociativeOriginData GetAssociativeOrigin (NXOpen::Point3d *origin)
NXOpen::Annotations::Associativity * GetAssociativity (int associativityIndex)
NXOpen::Xform * GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
NXOpen::Annotations::LetteringPreferences * GetLetteringPreferences ()
NXOpen::Annotations::LineAndArrowPreferences * GetLineAndArrowPreferences ()
NXOpen::Annotations::SymbolPreferences * GetSymbolPreferences ()
std::vector< NXOpen::View * > GetViews ()
bool HasAssociativeOrigin ()
void InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
bool IsOutOfDate ()
bool IsRetained ()
NXOpen::Annotations::LeaderOrientation LeaderOrientation ()
int NumberOfAssociativities ()
bool ParallelToScreen ()
void RemoveFromStack ()
void SetAnnotationOrigin (const NXOpen::Point3d &origin)
void SetAnnotationPlane (NXOpen::Xform *annotationPlane)
void SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
void SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
void SetFreeze (bool freeze)
void SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
void SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
void SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
void SetParallelToScreen (bool parallelToScreen)
void SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
void SetViews (const std::vector< NXOpen::View * > &modelViews)
bool Suppressed ()
Public 成员函数 继承自 NXOpen::DisplayableObject
void Blank ()
int Color ()
void Highlight ()
bool IsBlanked ()
int Layer ()
NXOpen::DisplayableObject::ObjectFont LineFont ()
NXOpen::DisplayableObject::ObjectWidth LineWidth ()
NXOpen::Point3d NameLocation ()
void RedisplayObject ()
void RemoveViewDependency ()
void SetColor (int color)
void SetLayer (int layer)
void SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void SetNameLocation (const NXOpen::Point3d &location)
void Unblank ()
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _LineWeldBuilder

额外继承的成员函数

Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

线焊接符号

表示线焊接
要创建或编辑此类的实例，请使用 NXOpen::Annotations::LineWeldBuilder

创建于 NX4.0.0.

成员枚举类型说明

◆ AutoWeldType

enum NXOpen::Annotations::LineWeld::AutoWeldType

自动焊接类型枚举

枚举值
AutoWeldTypeOtherSideGrooveCountersinkAngle

另一侧坡口沉头角度

AutoWeldTypeArrowSideGrooveCountersinkAngle

箭头侧坡口沉头角度

AutoWeldTypeOtherSideNumberRootDepth

另一侧根部深度编号

AutoWeldTypeArrowSideNumberRootDepth

箭头侧根部深度编号

AutoWeldTypeOtherSideWeldSize

另一侧焊缝尺寸

AutoWeldTypeArrowSideWeldSize

箭头侧焊缝尺寸

AutoWeldTypeOtherSideCompoundWeldSize

另一侧复合焊缝尺寸

AutoWeldTypeArrowSideCompoundWeldSize

箭头侧复合焊缝尺寸

AutoWeldTypeOtherSideLengthPitch

另一侧长度/间距

AutoWeldTypeArrowSideLengthPitch

箭头侧长度/间距

AutoWeldTypeOtherSideWeldSizeCode

另一侧焊缝尺寸代码

AutoWeldTypeArrowSideWeldSizeCode

箭头侧焊缝尺寸代码

AutoWeldTypeOtherSideCompoundWeldSizeCode

另一侧复合焊缝尺寸代码

AutoWeldTypeArrowSideCompoundWeldSizeCode

箭头侧复合焊缝尺寸代码

AutoWeldTypeFieldWeldType

现场焊接类型

成员函数说明

◆ GetWeldData()

NXOpen::Annotations::LineWeldData * NXOpen::Annotations::LineWeld::GetWeldData ( )

获取焊接数据

返回
线焊接数据
创建于 NX4.0.0.

许可要求：无

◆ SetAutoWeldSymbol()

void NXOpen::Annotations::LineWeld::SetAutoWeldSymbol ( bool isAutoWeldSymbol)

设置自动焊接符号标志。
创建于 NX11.0.1.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数
isAutoWeldSymbol是否为自动焊接符号

◆ SetAutoWeldType()

void NXOpen::Annotations::LineWeld::SetAutoWeldType ( NXOpen::Annotations::LineWeld::AutoWeldType type,
bool flag )

设置自动焊接符号类型标志。
创建于 NX1953.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数
type类型
flag标志

◆ SetEditAuto()

void NXOpen::Annotations::LineWeld::SetEditAuto ( bool isEditAuto)

设置自动焊接符号标志。
创建于 NX1847.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数
isEditAuto是否为自动编辑

◆ SetWeldData()

void NXOpen::Annotations::LineWeld::SetWeldData ( NXOpen::Annotations::LineWeldData * data)

设置焊接数据。 注意：此方法不应用于编辑只读对象（如镜像的 PMI 对象）。 如果使用，则在部件更新时更改将被覆盖。
创建于 NX4.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数
data新的线焊接数据
