NXOpen::Annotations::IPmi类 参考

产品制造信息接口 更多...

#include <Annotations_IPmi.hxx>

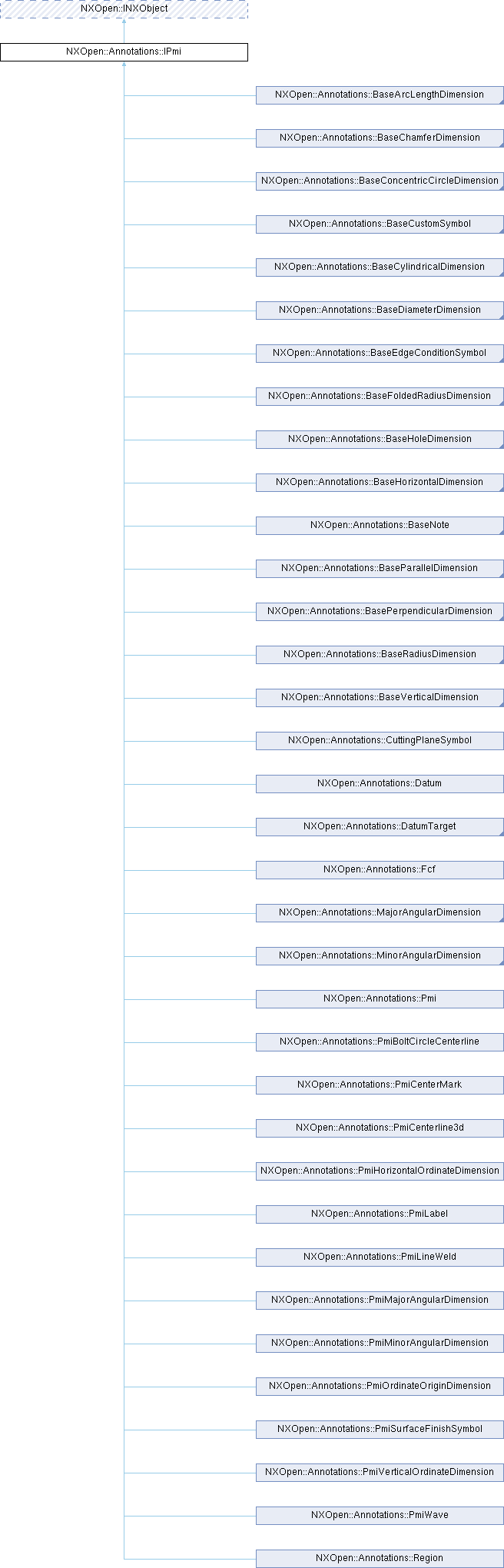

类 NXOpen::Annotations::IPmi 继承关系图:

Public 成员函数
virtual void	AddBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)=0
virtual bool	AssignUniversallyUniqueId ()=0
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()=0
virtual std::vector< NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()=0
virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()=0
virtual bool	HasUniversallyUniqueId ()=0
virtual int	Index ()=0
virtual bool	IsMirrored ()=0
virtual bool	IsWaveLinked ()=0
virtual NXOpen::Annotations::Annotation *	LinkSource ()=0
virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)=0
virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)=0
virtual void	SetIndex (int index)=0
virtual NXString	UniversallyUniqueId ()=0
Public 成员函数 继承自 NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)=0
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
virtual bool	IsOccurrence ()=0
virtual NXString	JournalIdentifier ()=0
virtual NXString	Name ()=0
virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
virtual NXOpen::BasePart *	OwningPart ()=0
virtual void	Print ()=0
virtual NXOpen::INXObject *	Prototype ()=0
virtual void	SetName (const char *name)=0
virtual void	SetName (const NXString &name)=0

详细描述

产品制造信息接口

表示包含 PMI（产品与制造信息）数据的对象。
创建于 NX4.0.0。

成员函数说明

AddBusinessModifiers()

virtual void NXOpen::Annotations::IPmi::AddBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > & businessModifiers )

pure virtual

添加业务修饰符。
创建于 NX12.0.0。

许可要求：geometric_tol ("GDT")

参数

businessModifiers

新的业务修饰符列表

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

AssignUniversallyUniqueId()

virtual bool NXOpen::Annotations::IPmi::AssignUniversallyUniqueId ( )

pure virtual

为 PMI 分配全局唯一标识符。

返回

TRUE，表示已为 PMI 分配全局唯一标识符。
FALSE，表示未为 PMI 分配全局唯一标识符。

创建于 NX2406.0.0。

许可要求：geometric_tol ("GDT")

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

GetAssociatedObject()

virtual NXOpen::Annotations::AssociatedObject * NXOpen::Annotations::IPmi::GetAssociatedObject ( )

pure virtual

获取关联对象。

返回

关联对象
创建于 NX4.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

GetBusinessModifiers()

virtual std::vector< NXOpen::Annotations::BusinessModifier * > NXOpen::Annotations::IPmi::GetBusinessModifiers ( )

pure virtual

获取业务修饰符列表。

返回

业务修饰符列表
创建于 NX4.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

GetSharedAssociatedObject()

virtual NXOpen::Annotations::AssociatedObject * NXOpen::Annotations::IPmi::GetSharedAssociatedObject ( )

pure virtual

获取共享关联对象。

返回

共享关联对象
创建于 NX8.5.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

HasUniversallyUniqueId()

virtual bool NXOpen::Annotations::IPmi::HasUniversallyUniqueId ( )

pure virtual

获取指示 PMI 是否具有全局唯一标识符的标志。

返回

PMI 是否存在全局唯一标识符
创建于 NX2406.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

Index()

virtual int NXOpen::Annotations::IPmi::Index ( )

pure virtual

获取 索引。这是分配给 PMI 对象的唯一整数。 注意：设置方法不应用于编辑只读对象（如镜像 PMI 对象）。 否则，部件更新时更改将被覆盖。
创建于 NX4.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

IsMirrored()

virtual bool NXOpen::Annotations::IPmi::IsMirrored ( )

pure virtual

获取 指示注释是否为镜像的标志
创建于 NX8.5.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

IsWaveLinked()

virtual bool NXOpen::Annotations::IPmi::IsWaveLinked ( )

pure virtual

获取 指示 PMI 是否为 WAVE 链接的标志
创建于 NX1847.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

LinkSource()

virtual NXOpen::Annotations::Annotation * NXOpen::Annotations::IPmi::LinkSource ( )

pure virtual

获取 通过 WAVE 或镜像链接的链接 PMI 的源 PMI。
创建于 NX1847.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

SetAssociatedObject()

virtual void NXOpen::Annotations::IPmi::SetAssociatedObject ( NXOpen::Annotations::AssociatedObject * assocObj )

pure virtual

设置关联对象。 注意：此方法不应用于编辑只读对象（如镜像 PMI 对象）。 否则，部件更新时更改将被覆盖。
如果关联对象与 PMI 对象不在同一部件中，将引发错误。

创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

assocObj

新的关联对象

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

SetBusinessModifiers()

virtual void NXOpen::Annotations::IPmi::SetBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > & businessModifiers )

pure virtual

设置业务修饰符。 注意：此方法不应用于编辑只读对象（如镜像 PMI 对象）。 否则，部件更新时更改将被覆盖。
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

businessModifiers

新的业务修饰符列表

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

SetIndex()

virtual void NXOpen::Annotations::IPmi::SetIndex ( int index )

pure virtual

设置 索引。这是分配给 PMI 对象的唯一整数。 注意：设置方法不应用于编辑只读对象（如镜像 PMI 对象）。 否则，部件更新时更改将被覆盖。
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数

index

PMI 对象的新整数值

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.

UniversallyUniqueId()

virtual NXString NXOpen::Annotations::IPmi::UniversallyUniqueId ( )

pure virtual

获取 全局唯一标识符
创建于 NX2406.0.0。

许可要求：无

在 NXOpen::Annotations::BaseArcLengthDimension, NXOpen::Annotations::BaseChamferDimension, NXOpen::Annotations::BaseConcentricCircleDimension, NXOpen::Annotations::BaseCustomSymbol, NXOpen::Annotations::BaseCylindricalDimension, NXOpen::Annotations::BaseDiameterDimension, NXOpen::Annotations::BaseEdgeConditionSymbol, NXOpen::Annotations::BaseFoldedRadiusDimension, NXOpen::Annotations::BaseHoleDimension, NXOpen::Annotations::BaseHorizontalDimension, NXOpen::Annotations::BaseNote, NXOpen::Annotations::BaseParallelDimension, NXOpen::Annotations::BasePerpendicularDimension, NXOpen::Annotations::BaseRadiusDimension, NXOpen::Annotations::BaseVerticalDimension, NXOpen::Annotations::CuttingPlaneSymbol, NXOpen::Annotations::Datum, NXOpen::Annotations::DatumTarget, NXOpen::Annotations::Fcf, NXOpen::Annotations::MajorAngularDimension, NXOpen::Annotations::MinorAngularDimension, NXOpen::Annotations::Pmi, NXOpen::Annotations::PmiBoltCircleCenterline, NXOpen::Annotations::PmiCenterline3d, NXOpen::Annotations::PmiCenterMark, NXOpen::Annotations::PmiHorizontalOrdinateDimension, NXOpen::Annotations::PmiLabel, NXOpen::Annotations::PmiLineWeld, NXOpen::Annotations::PmiMajorAngularDimension, NXOpen::Annotations::PmiMinorAngularDimension, NXOpen::Annotations::PmiOrdinateOriginDimension, NXOpen::Annotations::PmiSurfaceFinishSymbol, NXOpen::Annotations::PmiVerticalOrdinateDimension, NXOpen::Annotations::PmiWave , 以及 NXOpen::Annotations::Region 内被实现.
