产品制造信息基类更多...

#include <Annotations_Pmi.hxx>

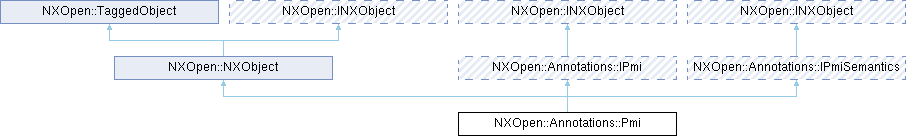

类 NXOpen::Annotations::Pmi 继承关系图:

Public 类型
enum	PmiType { PmiTypeNone , PmiTypeBalloonNote , PmiTypeBalloonIdSymbol , PmiTypeCenterline , PmiTypeCoordinateNote , PmiTypeCustomSymbol , PmiTypeCuttingPlaneSymbol , PmiTypeDatum , PmiTypeDatumTarget , PmiTypeDimension , PmiTypeEdgeCondition , PmiTypeEnterpriseIdentification , PmiTypeExportControl , PmiTypeFeatureControlFrame , PmiTypeGovernmentSecurityInformation , PmiTypeLineWeld , PmiTypeLocatorDesignator , PmiTypeMaterialSpecification , PmiTypeNote , PmiTypePartIdentification , PmiTypeProcessSpecification , PmiTypeProprietaryInformation , PmiTypeRegion , PmiTypeSurfaceFinish , PmiTypeTable }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
virtual void	AddBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)
virtual bool	AssignUniversallyUniqueId ()
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()
virtual NXOpen::Annotations::PmiBalloonIdSymbolData *	GetBalloonIdSymbolData ()
virtual NXOpen::Annotations::PmiBalloonNoteData *	GetBalloonNoteData ()
virtual std::vector< NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()
virtual NXOpen::Annotations::PmiCoordinateNoteData *	GetCoordinateNoteData ()
virtual NXOpen::Annotations::PmiDatumData *	GetDatumData ()
virtual NXOpen::Annotations::PmiDatumTargetData *	GetDatumTargetData ()
virtual NXOpen::Annotations::PmiDimensionData *	GetDimensionData ()
std::vector< NXOpen::Annotations::Annotation * >	GetDisplayInstances ()
virtual NXOpen::Annotations::PmiEdgeConditionSymbolData *	GetECSData ()
virtual NXOpen::Annotations::PmiEnterpriseIdentifierData *	GetEnterpriseIdentifierData ()
virtual NXOpen::Annotations::PmiExportControlData *	GetExportControlData ()
virtual NXOpen::Annotations::PmiFcfData *	GetFcfData ()
virtual NXOpen::Annotations::PmiGovernmentSecurityInfoData *	GetGovernmentSecurityInfoData ()
virtual NXOpen::Annotations::PmiLineWeldData *	GetLineWeldData ()
virtual NXOpen::Annotations::PmiLocatorDesignatorData *	GetLocatorDesignatorData ()
virtual NXOpen::Annotations::PmiMaterialSpecificationData *	GetMaterialSpecificationData ()
virtual NXOpen::Annotations::PmiNoteData *	GetNoteData ()
virtual NXOpen::Annotations::PmiPartIdentificationData *	GetPartIdentificationData ()
virtual NXOpen::Annotations::PmiProcessSpecificationData *	GetProcessSpecificationData ()
virtual NXOpen::Annotations::PmiProprietaryInfoData *	GetProprietaryInfoData ()
virtual NXOpen::Annotations::PmiRegionData *	GetRegionData ()
virtual NXOpen::Annotations::PmiSfsData *	GetSfsData ()
virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()
virtual NXOpen::Annotations::PmiSurfaceFinishData *	GetSurfaceFinishData ()
virtual bool	HasUniversallyUniqueId ()
virtual int	Index ()
virtual bool	IsMirrored ()
virtual bool	IsWaveLinked ()
virtual NXOpen::Annotations::Annotation *	LinkSource ()
virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)
virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)
virtual void	SetIndex (int index)
NXOpen::Annotations::Pmi::PmiType	Type ()
virtual NXString	UniversallyUniqueId ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_PmiBuilder

额外继承的成员函数
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

产品制造信息基类

表示一个PMI（产品与制造信息）对象。PMI对象用于将非几何信息嵌入到部件中。它通过称为PMI显示实例的对象在图形区域中显示，这些实例由 NXOpen::Annotations::Annotation 的子类表示，并继承自 NXOpen::Annotations::IPmi 。
创建于NX5.0.0。

成员枚举类型说明

◆ PmiType

enum NXOpen::Annotations::Pmi::PmiType

PMI对象的PMI类型。

枚举值
PmiTypeNone	无 - 对象不是PMI
PmiTypeBalloonNote	PMI球标注释
PmiTypeBalloonIdSymbol	PMI球标ID符号
PmiTypeCenterline	PMI中心线
PmiTypeCoordinateNote	PMI坐标注释
PmiTypeCustomSymbol	PMI自定义符号
PmiTypeCuttingPlaneSymbol	PMI剖切平面符号
PmiTypeDatum	PMI基准
PmiTypeDatumTarget	PMI基准目标
PmiTypeDimension	PMI尺寸
PmiTypeEdgeCondition	PMI边状况符号
PmiTypeEnterpriseIdentification	PMI企业标识
PmiTypeExportControl	PMI出口管制
PmiTypeFeatureControlFrame	PMI形位公差框
PmiTypeGovernmentSecurityInformation	PMI政府安全信息
PmiTypeLineWeld	PMI焊缝线
PmiTypeLocatorDesignator	PMI定位器指示符
PmiTypeMaterialSpecification	PMI材料规范
PmiTypeNote	PMI注释
PmiTypePartIdentification	PMI零件标识
PmiTypeProcessSpecification	PMI工艺规范
PmiTypeProprietaryInformation	PMI专有信息
PmiTypeRegion	PMI区域
PmiTypeSurfaceFinish	PMI表面粗糙度
PmiTypeTable	PMI表格

成员函数说明

◆ AddBusinessModifiers()

virtual void NXOpen::Annotations::Pmi::AddBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > & businessModifiers )

virtual

添加业务修饰符。
在NX12.0.0中创建。

许可要求：geometric_tol ("GDT")

参数

businessModifiers 新的业务修饰符列表

实现了 NXOpen::Annotations::IPmi.

◆ AssignUniversallyUniqueId()

virtual bool NXOpen::Annotations::Pmi::AssignUniversallyUniqueId ( )

virtual

为PMI分配全局唯一标识符。

返回: 如果成功为PMI分配了全局唯一标识符，则返回TRUE。
如果未能为PMI分配全局唯一标识符，则返回FALSE。

创建于 NX2406.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmi.

◆ GetAssociatedObject()

virtual NXOpen::Annotations::AssociatedObject * NXOpen::Annotations::Pmi::GetAssociatedObject ( )

virtual

返回关联对象

返回: 关联对象
在NX4.0.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ GetBalloonIdSymbolData()

virtual NXOpen::Annotations::PmiBalloonIdSymbolData * NXOpen::Annotations::Pmi::GetBalloonIdSymbolData ( )

virtual

返回PMI球标ID符号语义数据

返回: PMI语义数据
创建于NX2212.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetBalloonNoteData()

virtual NXOpen::Annotations::PmiBalloonNoteData * NXOpen::Annotations::Pmi::GetBalloonNoteData ( )

virtual

返回PMI球标注释语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetBusinessModifiers()

virtual std::vector< NXOpen::Annotations::BusinessModifier * > NXOpen::Annotations::Pmi::GetBusinessModifiers ( )

virtual

返回业务修饰符

返回: 业务修饰符列表
在NX4.0.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ GetCoordinateNoteData()

virtual NXOpen::Annotations::PmiCoordinateNoteData * NXOpen::Annotations::Pmi::GetCoordinateNoteData ( )

virtual

返回PMI坐标注释语义数据

返回: PMI语义数据
创建于NX1953.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetDatumData()

virtual NXOpen::Annotations::PmiDatumData * NXOpen::Annotations::Pmi::GetDatumData ( )

virtual

返回PMI基准语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetDatumTargetData()

virtual NXOpen::Annotations::PmiDatumTargetData * NXOpen::Annotations::Pmi::GetDatumTargetData ( )

virtual

返回PMI基准目标语义数据

返回: PMI语义数据
创建于NX1953.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetDimensionData()

virtual NXOpen::Annotations::PmiDimensionData * NXOpen::Annotations::Pmi::GetDimensionData ( )

virtual

返回PMI尺寸语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetDisplayInstances()

std::vector< NXOpen::Annotations::Annotation * > NXOpen::Annotations::Pmi::GetDisplayInstances ( )

返回在图形区域中显示此PMI的所有对象。

返回: 显示实例列表
在NX5.0.0中创建。

许可要求：无

◆ GetECSData()

virtual NXOpen::Annotations::PmiEdgeConditionSymbolData * NXOpen::Annotations::Pmi::GetECSData ( )

virtual

返回PMI边缘条件符号语义数据

返回: PMI语义数据
创建于NX2206.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetEnterpriseIdentifierData()

virtual NXOpen::Annotations::PmiEnterpriseIdentifierData * NXOpen::Annotations::Pmi::GetEnterpriseIdentifierData ( )

virtual

返回PMI企业标识符语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetExportControlData()

virtual NXOpen::Annotations::PmiExportControlData * NXOpen::Annotations::Pmi::GetExportControlData ( )

virtual

返回PMI出口管制语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetFcfData()

virtual NXOpen::Annotations::PmiFcfData * NXOpen::Annotations::Pmi::GetFcfData ( )

virtual

返回PMI几何公差框语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetGovernmentSecurityInfoData()

virtual NXOpen::Annotations::PmiGovernmentSecurityInfoData * NXOpen::Annotations::Pmi::GetGovernmentSecurityInfoData ( )

virtual

返回PMI政府安全信息语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetLineWeldData()

virtual NXOpen::Annotations::PmiLineWeldData * NXOpen::Annotations::Pmi::GetLineWeldData ( )

virtual

返回PMI线焊缝语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetLocatorDesignatorData()

virtual NXOpen::Annotations::PmiLocatorDesignatorData * NXOpen::Annotations::Pmi::GetLocatorDesignatorData ( )

virtual

返回PMI定位器标识符语义数据

返回: PMI语义数据
创建于NX1953.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetMaterialSpecificationData()

virtual NXOpen::Annotations::PmiMaterialSpecificationData * NXOpen::Annotations::Pmi::GetMaterialSpecificationData ( )

virtual

返回PMI材料规范语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetNoteData()

virtual NXOpen::Annotations::PmiNoteData * NXOpen::Annotations::Pmi::GetNoteData ( )

virtual

返回PMI注释语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetPartIdentificationData()

virtual NXOpen::Annotations::PmiPartIdentificationData * NXOpen::Annotations::Pmi::GetPartIdentificationData ( )

virtual

返回PMI零件标识语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetProcessSpecificationData()

virtual NXOpen::Annotations::PmiProcessSpecificationData * NXOpen::Annotations::Pmi::GetProcessSpecificationData ( )

virtual

返回PMI工艺规范语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetProprietaryInfoData()

virtual NXOpen::Annotations::PmiProprietaryInfoData * NXOpen::Annotations::Pmi::GetProprietaryInfoData ( )

virtual

返回PMI专有信息语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetRegionData()

virtual NXOpen::Annotations::PmiRegionData * NXOpen::Annotations::Pmi::GetRegionData ( )

virtual

返回PMI区域语义数据

返回: PMI语义数据
创建于 NX1953.0.0。

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetSfsData()

virtual NXOpen::Annotations::PmiSfsData * NXOpen::Annotations::Pmi::GetSfsData ( )

virtual

返回PMI表面粗糙度符号语义数据

返回: PMI语义数据
创建于NX2406.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ GetSharedAssociatedObject()

virtual NXOpen::Annotations::AssociatedObject * NXOpen::Annotations::Pmi::GetSharedAssociatedObject ( )

virtual

返回共享关联对象

返回: 共享关联对象
在NX8.5.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ GetSurfaceFinishData()

virtual NXOpen::Annotations::PmiSurfaceFinishData * NXOpen::Annotations::Pmi::GetSurfaceFinishData ( )

virtual

返回PMI表面粗糙度语义数据

返回: PMI语义数据
创建于NX1953.0.0.

许可要求：geometric_tol ("GDT")

实现了 NXOpen::Annotations::IPmiSemantics.

◆ HasUniversallyUniqueId()

virtual bool NXOpen::Annotations::Pmi::HasUniversallyUniqueId ( )

virtual

返回指示PMI是否具有全局唯一标识符的标志

返回: PMI是否存在全局唯一标识符
在NX2406.0.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ Index()

virtual int NXOpen::Annotations::Pmi::Index ( )

virtual

返回索引。这是分配给PMI对象的唯一整数。注意：set方法不应用于编辑只读对象（如镜像PMI对象）。如果这样做，则在部件更新时更改将被覆盖。
在NX4.0.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ IsMirrored()

virtual bool NXOpen::Annotations::Pmi::IsMirrored ( )

virtual

返回指示注释是否为镜像的标志
在NX8.5.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ IsWaveLinked()

virtual bool NXOpen::Annotations::Pmi::IsWaveLinked ( )

virtual

返回指示PMI是否为WAVE链接的标志
在NX1847.0.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ LinkSource()

virtual NXOpen::Annotations::Annotation * NXOpen::Annotations::Pmi::LinkSource ( )

virtual

返回通过WAVE或镜像链接的链接PMI的源PMI。
在NX1847.0.0中创建。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

◆ SetAssociatedObject()

virtual void NXOpen::Annotations::Pmi::SetAssociatedObject ( NXOpen::Annotations::AssociatedObject * assocObj )

virtual

设置关联对象。注意：此方法不应用于编辑只读对象（如镜像PMI对象）。如果这样做，则在部件更新时更改将被覆盖。
如果关联对象与PMI对象不在同一部件中，则会引发错误。

在NX4.0.0中创建。

许可要求：geometric_tol ("GDT")

参数

assocObj 新的关联对象

实现了 NXOpen::Annotations::IPmi.

◆ SetBusinessModifiers()

virtual void NXOpen::Annotations::Pmi::SetBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > & businessModifiers )

virtual

设置业务修饰符。注意：此方法不应用于编辑只读对象（如镜像PMI对象）。如果这样做，则在部件更新时更改将被覆盖。
在NX4.0.0中创建。

许可要求：geometric_tol ("GDT")

参数

businessModifiers 新的业务修饰符列表

实现了 NXOpen::Annotations::IPmi.

◆ SetIndex()

virtual void NXOpen::Annotations::Pmi::SetIndex ( int index )

virtual

设置索引。这是分配给PMI对象的唯一整数。注意：set方法不应用于编辑只读对象（如镜像PMI对象）。如果这样做，则在部件更新时更改将被覆盖。
在NX4.0.0中创建。

许可要求：geometric_tol ("GDT")

参数

index PMI对象的新整数

实现了 NXOpen::Annotations::IPmi.

◆ Type()

NXOpen::Annotations::Pmi::PmiType NXOpen::Annotations::Pmi::Type ( )

返回 PMI类型
在NX2007.0.0中创建。

许可要求：无

◆ UniversallyUniqueId()

virtual NXString NXOpen::Annotations::Pmi::UniversallyUniqueId ( )

virtual

返回全局唯一标识符
创建于 NX2406.0.0。

许可要求：无

实现了 NXOpen::Annotations::IPmi.

Public 类型

Public 成员函数

友元

额外继承的成员函数

详细描述

成员枚举类型说明

◆ PmiType

成员函数说明

◆ AddBusinessModifiers()

◆ AssignUniversallyUniqueId()

◆ GetAssociatedObject()

◆ GetBalloonIdSymbolData()

◆ GetBalloonNoteData()

◆ GetBusinessModifiers()

◆ GetCoordinateNoteData()

◆ GetDatumData()

◆ GetDatumTargetData()

◆ GetDimensionData()

◆ GetDisplayInstances()

◆ GetECSData()

◆ GetEnterpriseIdentifierData()

◆ GetExportControlData()

◆ GetFcfData()

◆ GetGovernmentSecurityInfoData()

◆ GetLineWeldData()

◆ GetLocatorDesignatorData()

◆ GetMaterialSpecificationData()

◆ GetNoteData()

◆ GetPartIdentificationData()

◆ GetProcessSpecificationData()

◆ GetProprietaryInfoData()

◆ GetRegionData()

◆ GetSfsData()

◆ GetSharedAssociatedObject()

◆ GetSurfaceFinishData()

◆ HasUniversallyUniqueId()

◆ Index()

◆ IsMirrored()

◆ IsWaveLinked()

◆ LinkSource()

◆ SetAssociatedObject()

◆ SetBusinessModifiers()

◆ SetIndex()

◆ Type()

◆ UniversallyUniqueId()
