NXOpen::Annotations::BaseDatumTarget类 参考

基础基准目标 更多...

#include <Annotations_BaseDatumTarget.hxx>

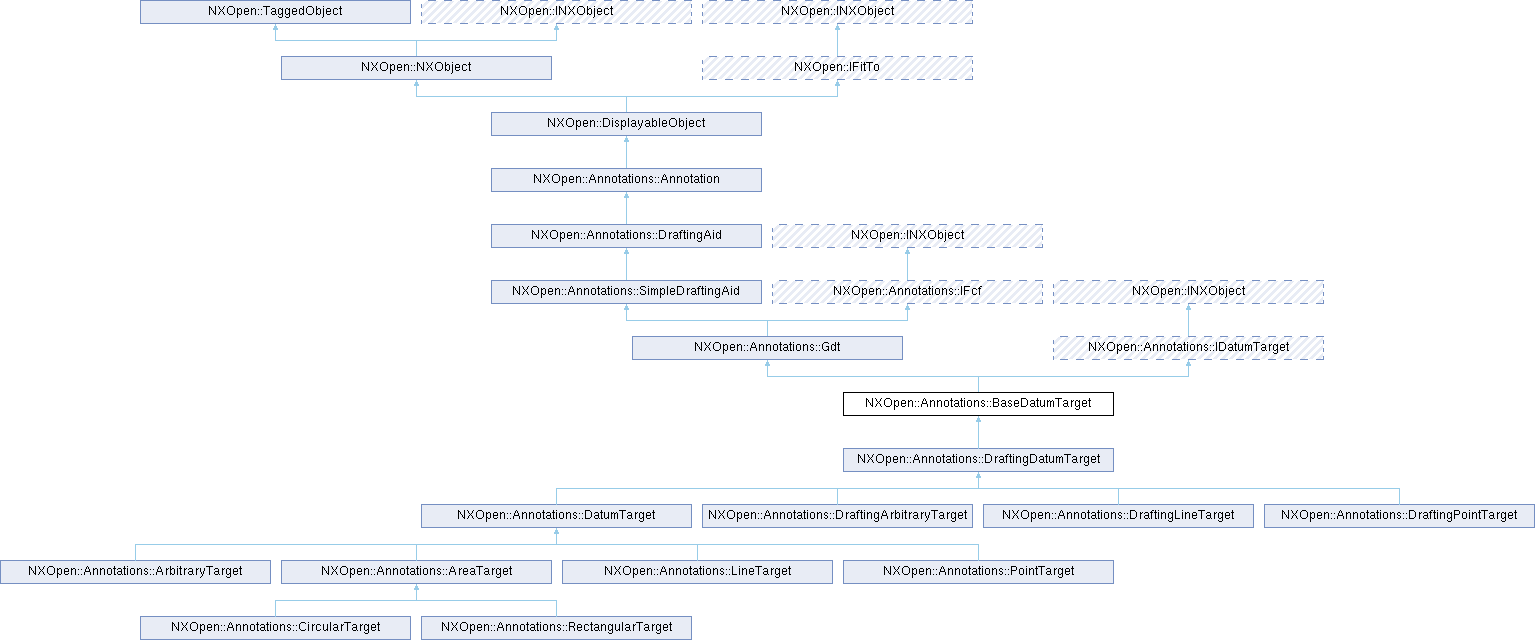

类 NXOpen::Annotations::BaseDatumTarget 继承关系图:
NXOpen::Annotations::Gdt NXOpen::Annotations::IDatumTarget NXOpen::Annotations::SimpleDraftingAid NXOpen::Annotations::IFcf NXOpen::INXObject NXOpen::Annotations::DraftingAid NXOpen::INXObject NXOpen::Annotations::Annotation NXOpen::DisplayableObject NXOpen::NXObject NXOpen::IFitTo NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject NXOpen::Annotations::DraftingDatumTarget NXOpen::Annotations::DatumTarget NXOpen::Annotations::DraftingArbitraryTarget NXOpen::Annotations::DraftingLineTarget NXOpen::Annotations::DraftingPointTarget NXOpen::Annotations::ArbitraryTarget NXOpen::Annotations::AreaTarget NXOpen::Annotations::LineTarget NXOpen::Annotations::PointTarget NXOpen::Annotations::CircularTarget NXOpen::Annotations::RectangularTarget

Public 成员函数

virtual NXString DatumLabel ()
virtual void SetDatumLabel (const char *datumLabel)
virtual void SetDatumLabel (const NXString &datumLabel)
virtual void SetTargetIndex (int index)
virtual int TargetIndex ()
Public 成员函数 继承自 NXOpen::Annotations::Gdt
bool CanChangeLeaderPositionParameter ()
virtual NXOpen::Annotations::FcfFrameData * GetFcfFrameData ()
virtual std::vector< NXOpen::Annotations::FcfFrameData * > GetFcfFrameDataArray ()
bool HasLeaderPositionParameter ()
bool HasStubbedDatumStyle ()
double LeaderPositionParameter ()
virtual void SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
virtual void SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
void SetHasStubbedDatumStyle (bool stubbed)
void SetLeaderPositionParameter (double param)
void SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
Public 成员函数 继承自 NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString > GetText ()
NXOpen::Annotations::UserSymbolPreferences * GetUserSymbolPreferences ()
void GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType *sizeType, double *lengthOrScale, double *heightOrAspectRatio)
void SetText (std::vector< NXString > &lines)
void SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
void SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
Public 成员函数 继承自 NXOpen::Annotations::Annotation
NXOpen::Point3d AnnotationOrigin ()
NXOpen::Xform * AnnotationPlane ()
bool Freeze ()
NXOpen::Annotations::Annotation::AssociativeOriginData GetAssociativeOrigin (NXOpen::Point3d *origin)
NXOpen::Annotations::Associativity * GetAssociativity (int associativityIndex)
NXOpen::Xform * GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
NXOpen::Annotations::LetteringPreferences * GetLetteringPreferences ()
NXOpen::Annotations::LineAndArrowPreferences * GetLineAndArrowPreferences ()
NXOpen::Annotations::SymbolPreferences * GetSymbolPreferences ()
std::vector< NXOpen::View * > GetViews ()
bool HasAssociativeOrigin ()
void InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
bool IsOutOfDate ()
bool IsRetained ()
NXOpen::Annotations::LeaderOrientation LeaderOrientation ()
int NumberOfAssociativities ()
bool ParallelToScreen ()
void RemoveFromStack ()
void SetAnnotationOrigin (const NXOpen::Point3d &origin)
void SetAnnotationPlane (NXOpen::Xform *annotationPlane)
void SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
void SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
void SetFreeze (bool freeze)
void SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
void SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
void SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
void SetParallelToScreen (bool parallelToScreen)
void SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
void SetViews (const std::vector< NXOpen::View * > &modelViews)
bool Suppressed ()
Public 成员函数 继承自 NXOpen::DisplayableObject
void Blank ()
int Color ()
void Highlight ()
bool IsBlanked ()
int Layer ()
NXOpen::DisplayableObject::ObjectFont LineFont ()
NXOpen::DisplayableObject::ObjectWidth LineWidth ()
NXOpen::Point3d NameLocation ()
void RedisplayObject ()
void RemoveViewDependency ()
void SetColor (int color)
void SetLayer (int layer)
void SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void SetNameLocation (const NXOpen::Point3d &location)
void Unblank ()
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _BaseDatumTargetBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::DisplayableObject
enum  ObjectFont {
  ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,
  ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,
  ObjectFontNine , ObjectFontTen , ObjectFontEleven
}
enum  ObjectWidth {
  ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,
  ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,
  ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

基础基准目标

表示一个基准目标
这是一个抽象类，无法实例化。

创建于 NX7.5.0。

成员函数说明

◆ DatumLabel()

virtual NXString NXOpen::Annotations::BaseDatumTarget::DatumLabel ( )
virtual

获取 基准目标标签。 注意：不应使用 set 方法编辑只读对象（如镜像的 PMI 对象）。 如果这样做，当部件更新时，更改将被覆盖。
创建于 NX4.0.0。

许可要求：无

实现了 NXOpen::Annotations::IDatumTarget.

◆ SetDatumLabel() [1/2]

virtual void NXOpen::Annotations::BaseDatumTarget::SetDatumLabel ( const char * datumLabel)
virtual

设置 基准目标标签。 注意：不应使用 set 方法编辑只读对象（如镜像的 PMI 对象）。 如果这样做，当部件更新时，更改将被覆盖。
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数
datumLabel新的基准标签

实现了 NXOpen::Annotations::IDatumTarget.

◆ SetDatumLabel() [2/2]

virtual void NXOpen::Annotations::BaseDatumTarget::SetDatumLabel ( const NXString & datumLabel)
virtual

设置 基准目标标签。 注意：不应使用 set 方法编辑只读对象（如镜像的 PMI 对象）。 如果这样做，当部件更新时，更改将被覆盖。
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数
datumLabel新的基准标签

实现了 NXOpen::Annotations::IDatumTarget.

◆ SetTargetIndex()

virtual void NXOpen::Annotations::BaseDatumTarget::SetTargetIndex ( int index)
virtual

设置 基准目标索引。 注意：不应使用 set 方法编辑只读对象（如镜像的 PMI 对象）。 如果这样做，当部件更新时，更改将被覆盖。
创建于 NX4.0.0。

许可要求：geometric_tol ("GDT")

参数
index新的基准目标索引

实现了 NXOpen::Annotations::IDatumTarget.

◆ TargetIndex()

virtual int NXOpen::Annotations::BaseDatumTarget::TargetIndex ( )
virtual

获取 基准目标索引。 注意：不应使用 set 方法编辑只读对象（如镜像的 PMI 对象）。 如果这样做，当部件更新时，更改将被覆盖。
创建于 NX4.0.0。

许可要求：无

实现了 NXOpen::Annotations::IDatumTarget.
