NXOpen::Routing::Overstock类 参考

余料 更多...

#include <Routing_Overstock.hxx>

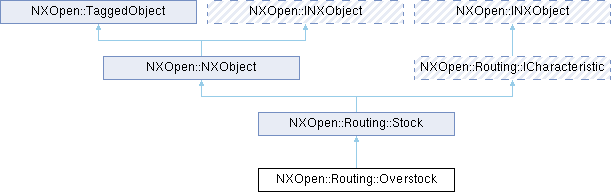

类 NXOpen::Routing::Overstock 继承关系图:
NXOpen::Routing::Stock NXOpen::NXObject NXOpen::Routing::ICharacteristic NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject

Public 成员函数

NXOpen::Routing::OverstockApplication * Application ()
std::vector< NXOpen::Routing::Stock * > GetCoveredStocks ()
NXOpen::Scalar * GetGapDistance ()
NXOpen::Scalar * GetNumberOfWraps ()
NXOpen::Routing::CreationMethod GetOverstockCreationMethod ()
std::vector< NXOpen::Curve * > GetOverstockSegments ()
NXOpen::Routing::Type GetOverstockType ()
NXOpen::Scalar * GetPercentageOverlap ()
NXOpen::Scalar * GetThickness ()
NXOpen::Scalar * GetWidth ()
Public 成员函数 继承自 NXOpen::Routing::Stock
void AddSegments (const std::vector< NXOpen::Curve * > &segments)
void AlignStock (const NXOpen::Vector3d &vector)
void ColorBodies ()
bool ConnectStockComponentWithAssemblyPath ()
virtual void DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values)
double Diameter ()
bool FixCrossSectionInvalidities ()
NXOpen::Routing::Anchor * GetAnchor ()
std::vector< NXOpen::Body * > GetBodies ()
void GetBodySegmentMap (NXOpen::Features::Feature *feature, NXOpen::Body **body, std::vector< NXOpen::Curve * > &stockSegments, std::vector< NXOpen::Curve * > &pathSegments)
virtual NXOpen::Routing::CharacteristicList * GetCharacteristics ()
NXOpen::Assemblies::Component * GetComponent ()
std::vector< NXOpen::Routing::Electrical::Connection * > GetConnections ()
NXOpen::Routing::CrossSection * GetCrossSection ()
virtual NXOpen::Routing::CharacteristicList * GetDestinationCharacteristics ()
std::vector< NXOpen::Features::Feature * > GetFeatures ()
NXOpen::Routing::Flip GetFlippedStatus ()
NXOpen::Routing::Electrical::HarnessDevice * GetHarnessDevice ()
virtual int GetIntegerCharacteristic (const char *name)
virtual int GetIntegerCharacteristic (const NXString &name)
NXOpen::Routing::ComponentName GetNameStatus ()
double GetOriginalLength ()
void GetPorts (NXOpen::Routing::StockPort **startPort, NXOpen::Routing::StockPort **endPort)
NXOpen::Routing::ProfileFrom GetProfileEnd ()
virtual double GetRealCharacteristic (const char *name)
virtual double GetRealCharacteristic (const NXString &name)
double GetRotationAngle ()
std::vector< NXOpen::Curve * > GetSegments ()
NXOpen::Routing::StockData * GetStockData ()
NXOpen::Routing::StockStyle GetStockStyle ()
NXOpen::Routing::StockUse GetStockUse ()
virtual NXString GetStringCharacteristic (const char *name)
virtual NXString GetStringCharacteristic (const NXString &name)
double GetTwistAngle ()
std::vector< NXOpen::Routing::Wire * > GetWires ()
void Highlight ()
bool IsSpaceReservation ()
bool IsStockEqual (NXOpen::Routing::Stock *otherStock)
bool NegateOffsetsFlag ()
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("Deprecated in NX11.0.0. Use NXOpen::Routing::ICharacteristic::SetCharacteristic2 instead.") virtual void SetCharacteristic(const NXString &name
void RemoveSegments (const std::vector< NXOpen::Curve * > &segments)
void RenameStockComponent (const char *partName)
void RenameStockComponent (const NXString &partName)
void SetAnchor (NXOpen::Routing::Anchor *anchor)
virtual void SetCharacteristic (const char *name, const char *value)
virtual void SetCharacteristic (const char *name, double value)
virtual void SetCharacteristic (const char *name, int value)
virtual void SetCharacteristic2 (const char *title, const char *value)
virtual void SetCharacteristic2 (const char *title, double value)
virtual void SetCharacteristic2 (const char *title, int value)
virtual void SetCharacteristic2 (const NXString &title, const NXString &value)
virtual void SetCharacteristic2 (const NXString &title, double value)
virtual void SetCharacteristic2 (const NXString &title, int value)
virtual void SetCharacteristics2 (NXOpen::Routing::CharacteristicList *values)
void SetCrossSection (NXOpen::Routing::CrossSection *crossSection)
void SetFlippedStatus (NXOpen::Routing::Flip flipped)
void SetNegateOffsetsFlag (bool offsetFlag)
void SetProfileEnd (NXOpen::Routing::ProfileFrom profileEnd)
void SetRotationAngle (double rotationAngle)
void SetStockData (NXOpen::Routing::StockData *stockData)
void SetStockStyle (NXOpen::Routing::StockStyle style)
void SetTwistAngle (double twistAngle)
void SyncComponentAttrs (bool isNewPart)
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const
Public 成员函数 继承自 NXOpen::Routing::ICharacteristic
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name
 NX_DEPRECATED ("在NX11.0.0中已弃用。 请改用NXOpen::Routing::ICharacteristic::SetCharacteristic2。") virtual void SetCharacteristic(const NXString &name

友元

class _OverstockBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::Routing::Stock
const NXString & value
double value
int value
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value
Public 属性 继承自 NXOpen::Routing::ICharacteristic
const NXString & value = 0
double value = 0
int value = 0

详细描述

余料

表示一个NXOpen::Routing::Overstock 对象。
KF环境下不可用创建器。

于NX5.0.0版本创建。

成员函数说明

◆ Application()

NXOpen::Routing::OverstockApplication * NXOpen::Routing::Overstock::Application ( )

返回定义此过盈件如何应用到管线段的NXOpen::Routing::OverstockApplication 对象。
于NX2212.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetCoveredStocks()

std::vector< NXOpen::Routing::Stock * > NXOpen::Routing::Overstock::GetCoveredStocks ( )

获取被此NXOpen::Routing::Overstock 覆盖的管段。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetGapDistance()

NXOpen::Scalar * NXOpen::Routing::Overstock::GetGapDistance ( )

获取此NXOpen::Routing::Overstock 的间隙距离。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetNumberOfWraps()

NXOpen::Scalar * NXOpen::Routing::Overstock::GetNumberOfWraps ( )

返回此NXOpen::Routing::Overstock 的缠绕层数。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetOverstockCreationMethod()

NXOpen::Routing::CreationMethod NXOpen::Routing::Overstock::GetOverstockCreationMethod ( )

返回此NXOpen::Routing::Overstock 的创建方式。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetOverstockSegments()

std::vector< NXOpen::Curve * > NXOpen::Routing::Overstock::GetOverstockSegments ( )

返回此NXOpen::Routing::Overstock 所应用的管线段。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetOverstockType()

NXOpen::Routing::Type NXOpen::Routing::Overstock::GetOverstockType ( )

返回过盈件的类型，可选类型包括缠绕式、套筒式、标记式和固定截面式。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetPercentageOverlap()

NXOpen::Scalar * NXOpen::Routing::Overstock::GetPercentageOverlap ( )

获取此NXOpen::Routing::Overstock 的重叠百分比。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetThickness()

NXOpen::Scalar * NXOpen::Routing::Overstock::GetThickness ( )

获取此NXOpen::Routing::Overstock 的厚度。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")

◆ GetWidth()

NXOpen::Scalar * NXOpen::Routing::Overstock::GetWidth ( )

获取此NXOpen::Routing::Overstock 的宽度。

返回

于NX5.0.0版本创建。

许可要求: routing_advanced("高级布线") OR routing_harness("线束布线") OR routing_cabling("电缆布线") OR routing_pipetube("管道与导管布线") OR routing_hvac("HVAC布线") OR routing_platform("平台布线") OR routing_pid("PID布线")
